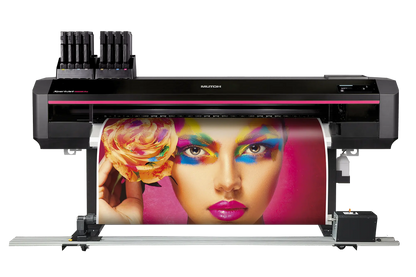

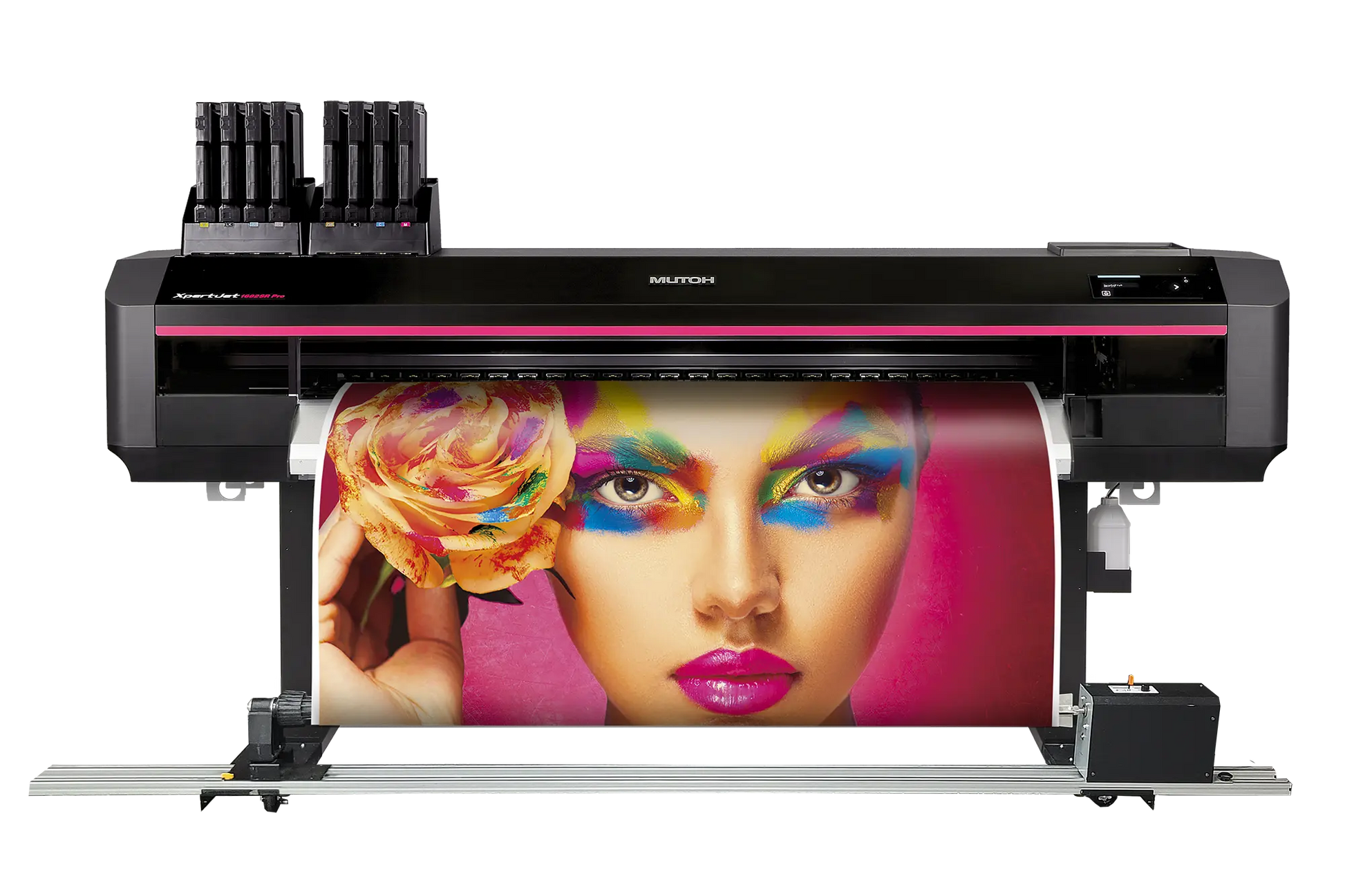

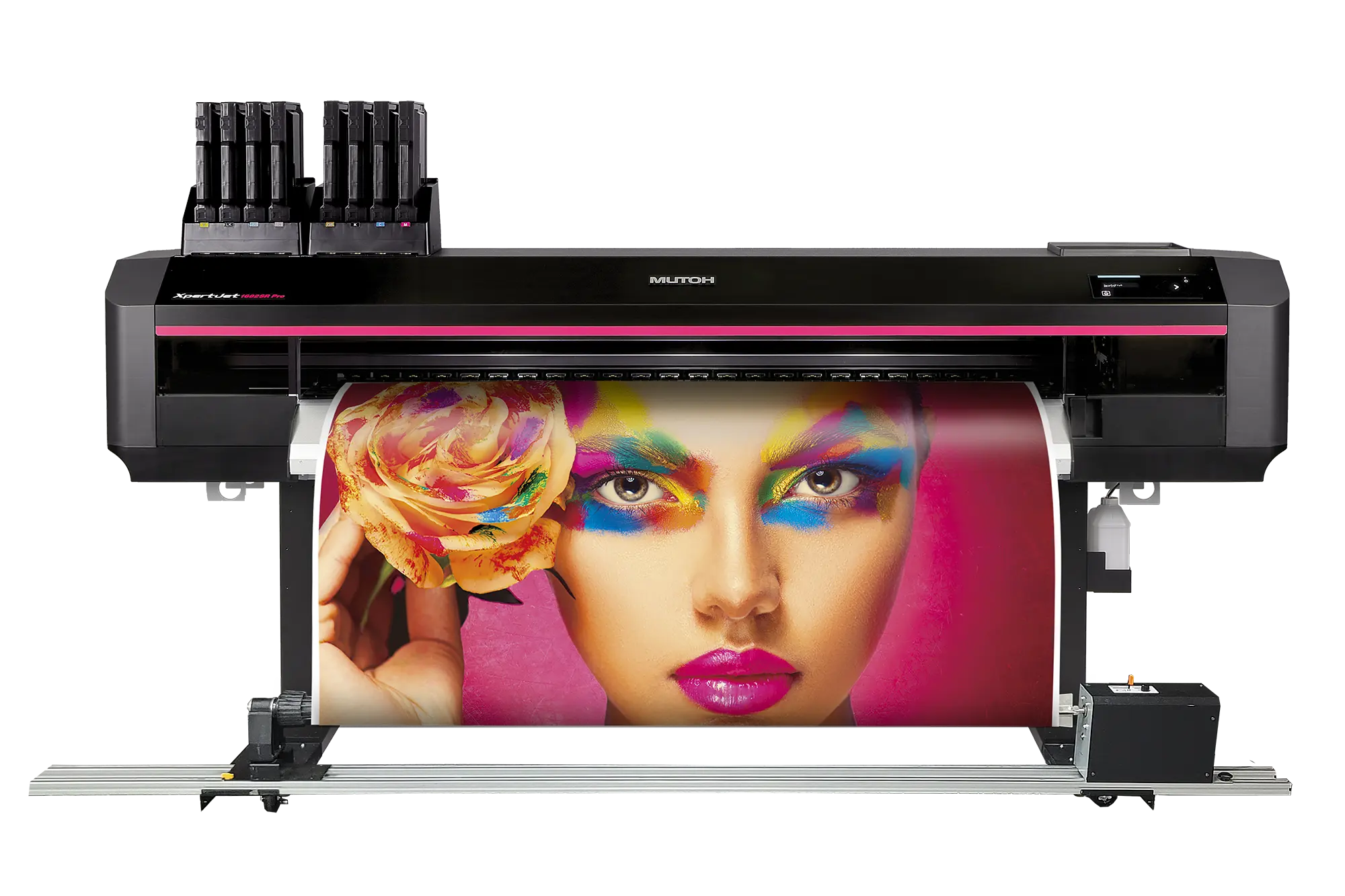

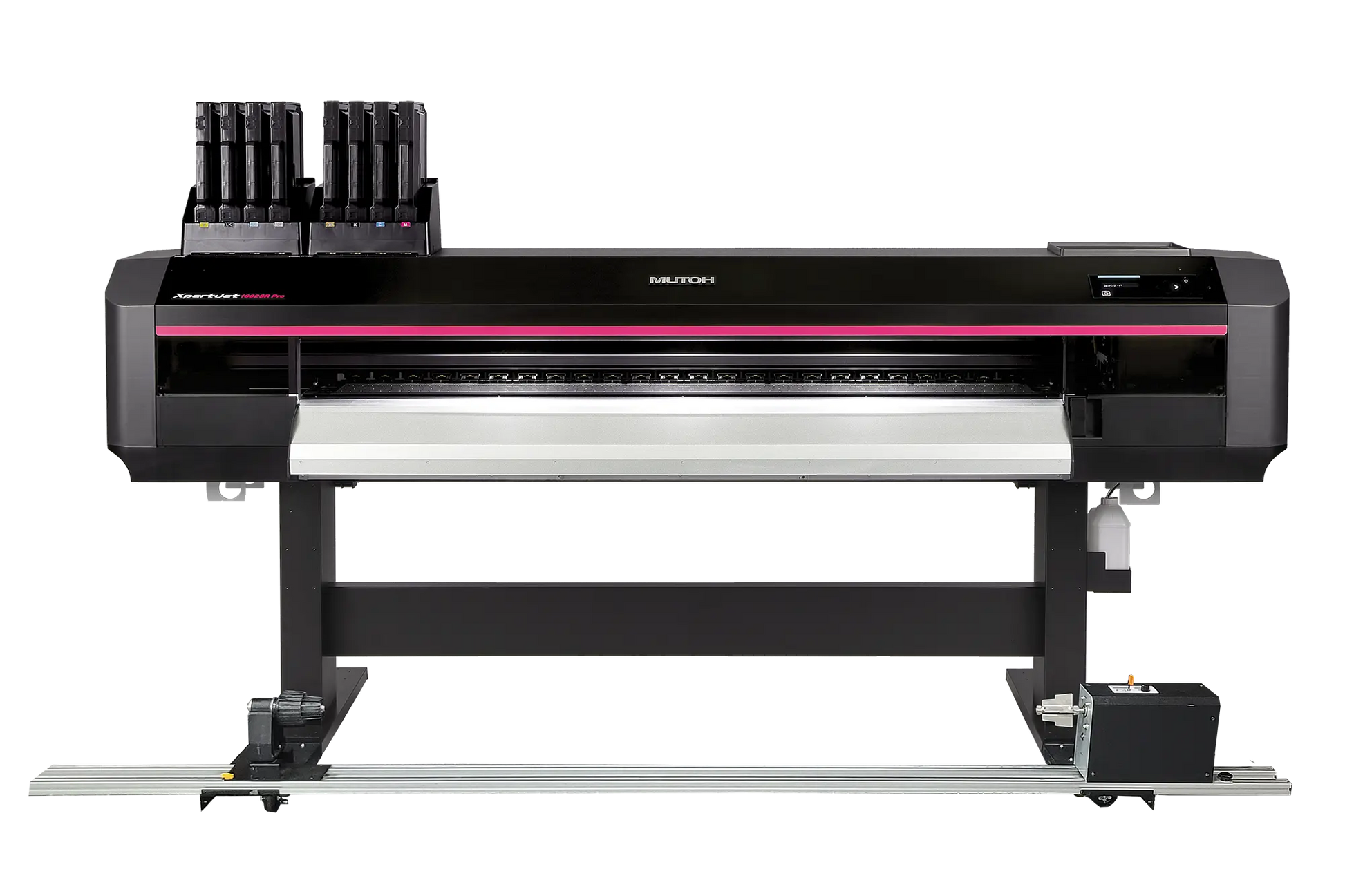

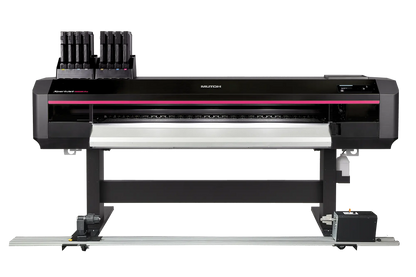

MUTOH XpertJet 1682SR Pro 64" Eco-Solvent Printer
The Ultimate Powerhouse for High-Volume Signage & Wraps
Elevate your production with the MUTOH XpertJet 1682SR Pro. Engineered for professionals, this 64-inch workhorse features staggered dual AccuFine HD printheads, delivering blazing-fast speeds without sacrificing the smooth gradations and fine detail your customers demand. Whether you are producing vehicle wraps, outdoor banners, or fine art wall coverings, the XPJ-1682SR Pro provides the reliability and color depth needed to grow your business.
Key Features:
- Dual AccuFine HD Printheads: Achieve ultra-fast print speeds and high-quality output, even at lower resolutions.
- Expanded Color Gamut: Choose between a standard 4-color (CMYK) setup or an 8-color configuration (CMYKLcLmLkOr) for breathtaking orange and light ink transitions.
- Smart Automation: Equipped with Dropmaster 2 and Feed Master for automatic bi-directional and media feed alignments, saving you time and reducing media waste.
- Advanced Banding Mitigation: Uses i-screen print effects to virtually eliminate banding for flawless solid fills and gradients.
- Faster Finishing: An improved front dryer system allows for 20% faster ink dry times, letting you move to lamination and finishing sooner.
- Uninterrupted Production: Features an optional Automatic Nozzle Checking Unit and Media Tracker to monitor roll remainder and keep the printer running overnight with confidence.
Professional Software Included
Every XPJ-1682SR Pro comes bundled with VerteLith™ Genuine RIP Software and FlexiDESIGNER MUTOH Edition 21, providing a complete, out-of-the-box solution for high-end color management and workflow efficiency.
Ideal Applications:
- Vehicle Wraps (High-durability MS41 Eco-Solvent Inks)
- Banners & Signage
- Wall Coverings & Decor
- Backlit Displays
Specifications
| Printing Method | Drop-on-demand Micro Piezo Inkjet Technology |

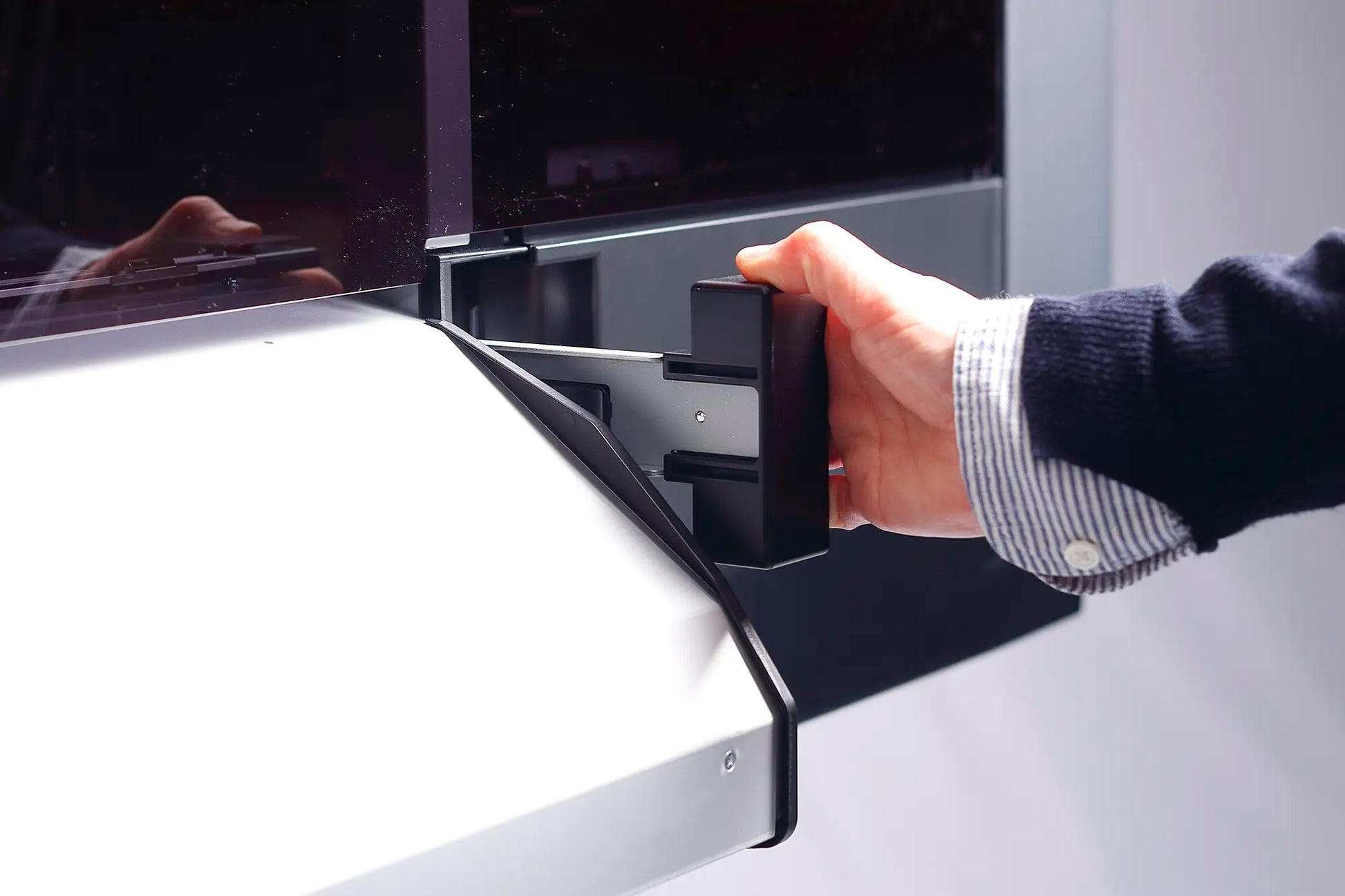

| Print Head Height | Four-level adjustment: 1.5mm, 2.0mm, 2.5mm, 4.0mm |
| Print Head | 2 (staggered) |
| Max Print Resolution | 1200 x 1200 dpi |
| Print Modes | 1200x1200 DPI (1200 / 900 / 600 / 300 DPI print modes) |
| Media Width | 64" |
| Media Capacity | ø5.9" dia / 2" & 3" cores / Roll media 66 lbs or less |
| Max Media Thickness | Low1 0.3mm, Low2 0.8mm, Mid. 1.3mm, High 2.8mm |
| Max Printable Width | 64 in |
| Take-up System | VJ16/19-TUP40 take-up included (options available) |
| Max Print Speed | 1,225 sqft/hr (300x600 DPI) |
| RIP Software | VerteLith™, bundled with FlexiDESIGNER MUTOH Edition 21 |
| Ink Type | MS41 Eco-Solvent ink |
| Ink Set | 4 color (CMYK) | 8 color (CMYKLcLmLkOr) |
| Ink Volume | 1L ink bags (300mL bag for Or) |
| Ink Slots | 8 |
| Interface | Gigabit-Ethernet (1000BASE-T) |
| Power Requirements | AC 100–120V ± 10%, 50/60Hz ± 1Hz |
| Printable Environment | Temperature: 68–89.6°F | Humidity: 40–60% RH (non condensing) | Rec. environment: 71.6–86°F |
| Power Consumption | Main: Operation status 1100W or less | Standby: 30W or less |
| Dimensions (WxDxH) | Printer including stand: 108.26" x 35.23" x 56.22" cover closed |
| Weight | Body: 313 lb | Stand: 70.54 lb |
