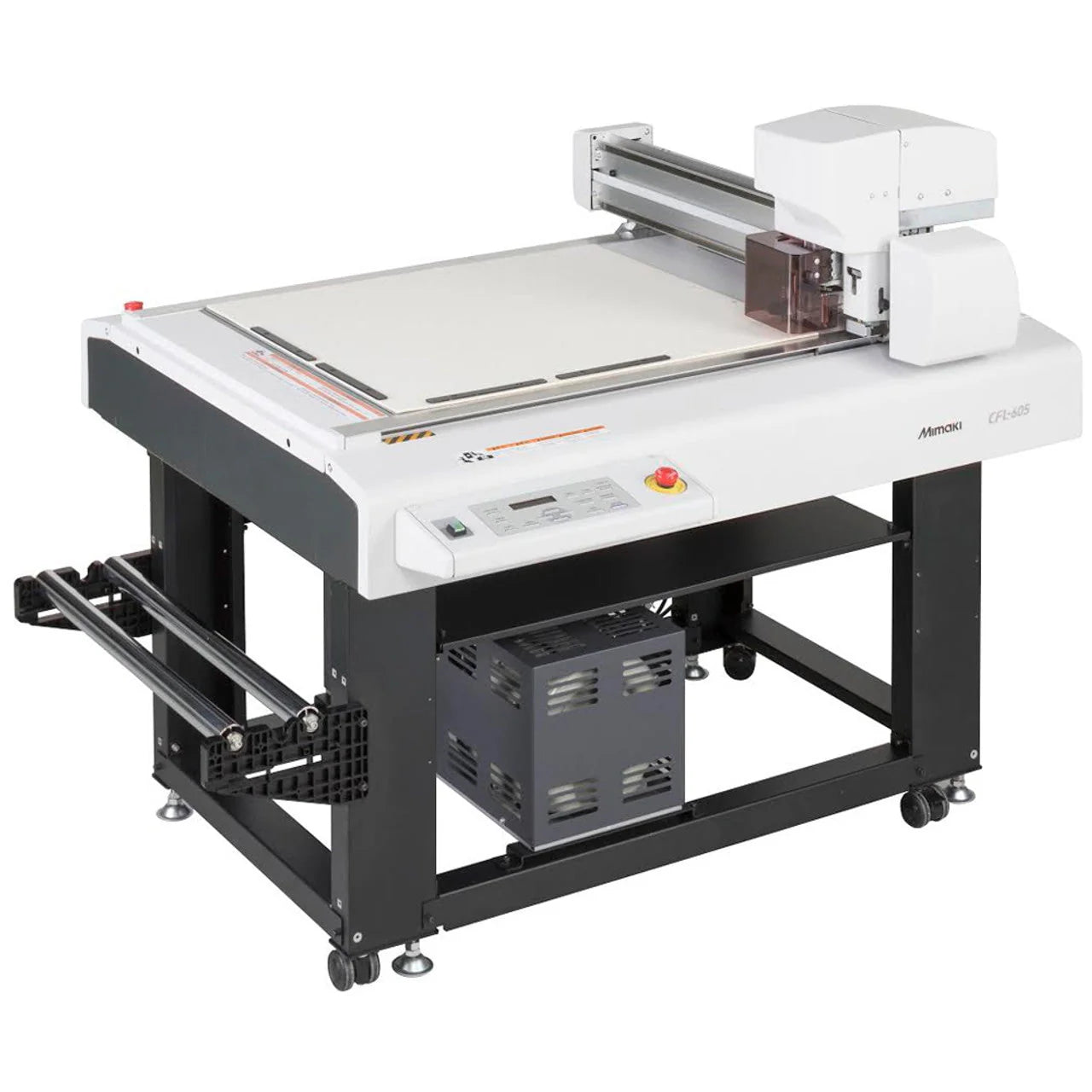

Mimaki CFL-605RT Flatbed Cutter
The Mimaki CFL-605RT is a compact multi-function flatbed cutting plotter designed for rapid sample making, package mockups, and short-run specialty production. Its tool set supports eccentric, tangential, and reciprocating cutting plus creasing, making it a versatile finishing tool for design studios and packaging environments.
- Compact footprint for studios, prototyping, and on-demand production
- Supports eccentric, tangential, and reciprocating cutting plus creasing
- Well suited for packaging samples and short-run production
- Pairs well with tabletop UV printing workflows
Specifications
| Specification | Details |
|---|---|
| Max Media Area | 24.8 in x 20.8 in (630 mm x 530 mm) |
| Cutting Area | 24 in x 20 in (610 mm × 510 mm) |
| Max Cutting Speed | XY: 16.65 in (423 mm) per second (45° angle direction) Z: 1.18 in (30 mm) per second |
| Max Downforce Pressure | Reciprocating cutter: 1500 g (fixed) Tangential cutter: 1500 g Eccentric cutter: 1000 g Creasing roller: 1500 g |
| Max Media Thickness | Reciprocating cutter: 0.39 in (10 mm) Tangential cutter: 0.078 in (2 mm) Eccentric cutter: 0.039 in (1 mm) |
| Max Media Weight | 44 lbs (20 kg) (not one-point-load strength) |
| Repeatability | 0.007 in (0.2 mm) or less (material shrinkage is ignored) |
| Distance Accuracy | Moving distance × ±0.2% or less, or ±0.0039 in (0.1 mm) or less (larger value applied) |
| Original Repetition Accuracy | 0.0039 in (0.1 mm) or less |
| Material Holding | Vacuum unit (included) Adsorption sheet for thin, lightweight or porous materials (optional) |
| Attachable Tools | Unit A: Eccentric cutter, pen Unit B: Reciprocating cutter, Tangential cutter, Creasing roller |
| Command | MGL-IIc3 |
| Interface | Ethernet, USB 2.0 (High Speed), RS-232C |
| Receive Buffer | 30 MB |
| Power Supply | Single phase AC 100–120V / 200–240V, 50/60 Hz |
| Power Consumption | 500W or less |
| Operational Environment | Temperature: 41°F – 95°F (5°C – 35°C), 35%–75% Rh (Non-condensing) Guaranteed accurate range: 54°F – 77°F (12°C – 25°C), 45%–65% Rh (Non-condensing) |
| Dimensions (W × D × H) | 52 x 41 x 43 in (1,320 × 1,050 × 1,100 mm) |
| Weight | Cutter: 240 lbs (109 kg) Blower: 51 lbs (23 kg) included |
