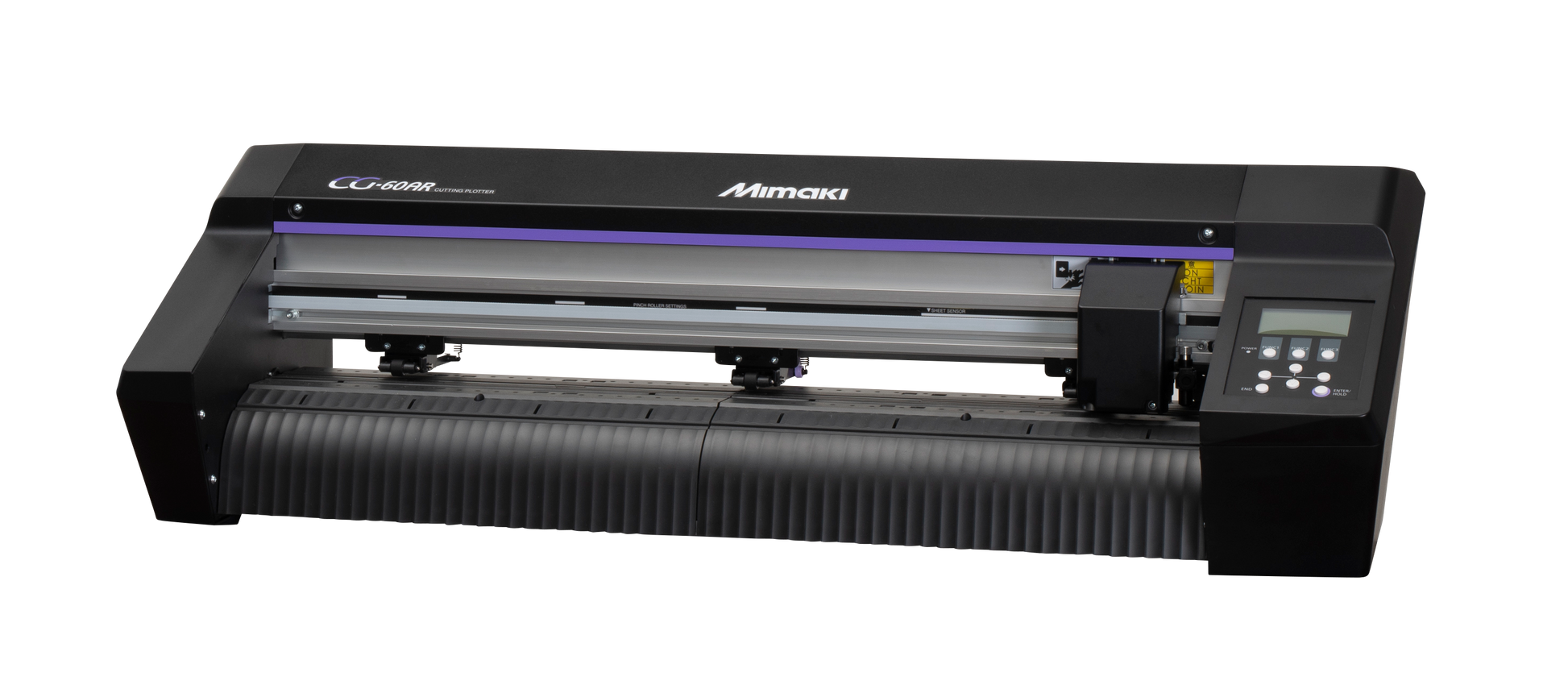

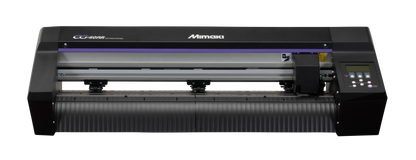

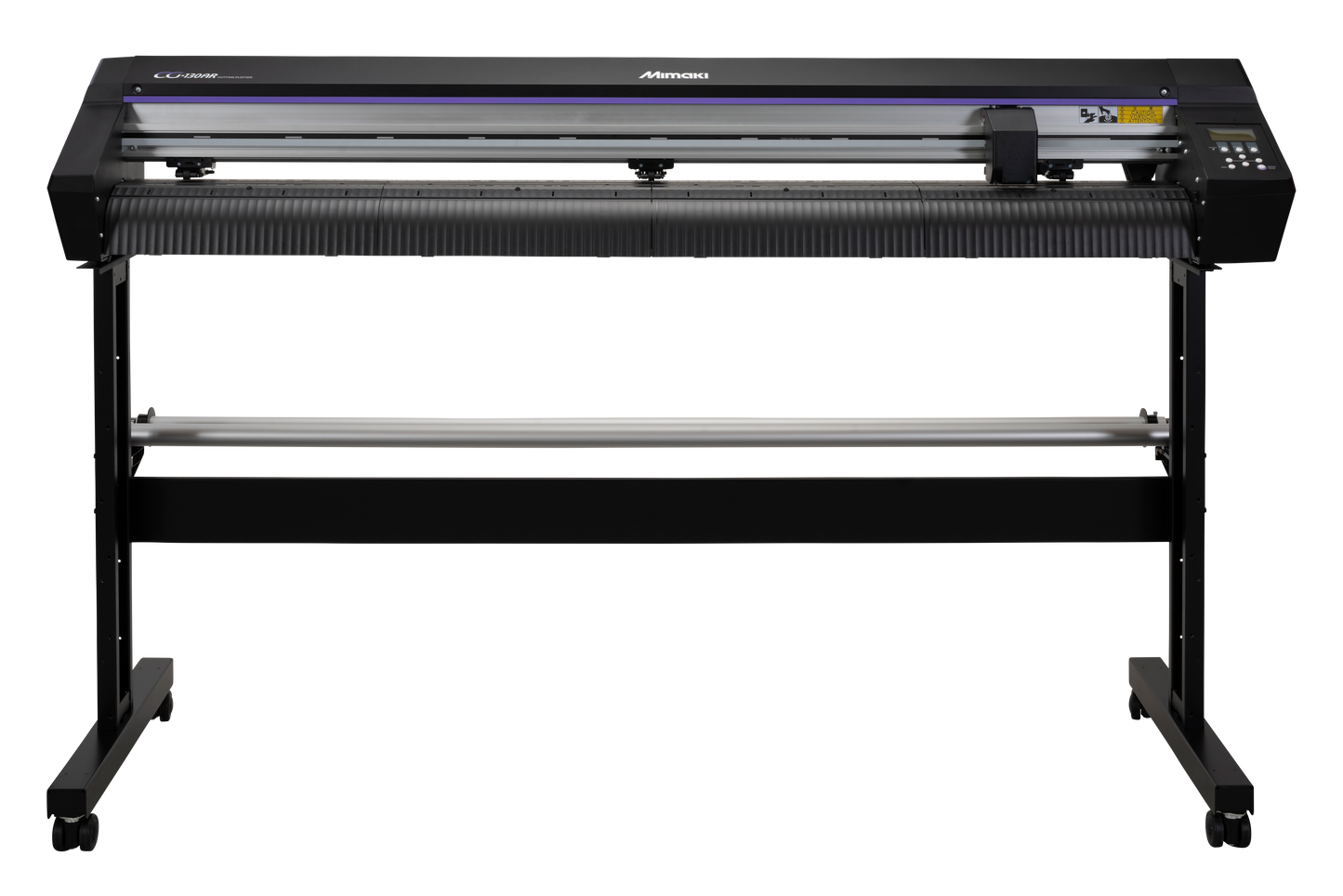

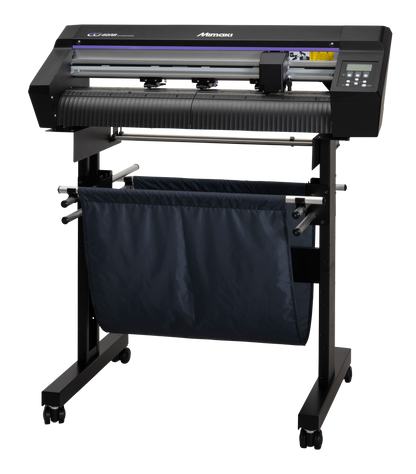

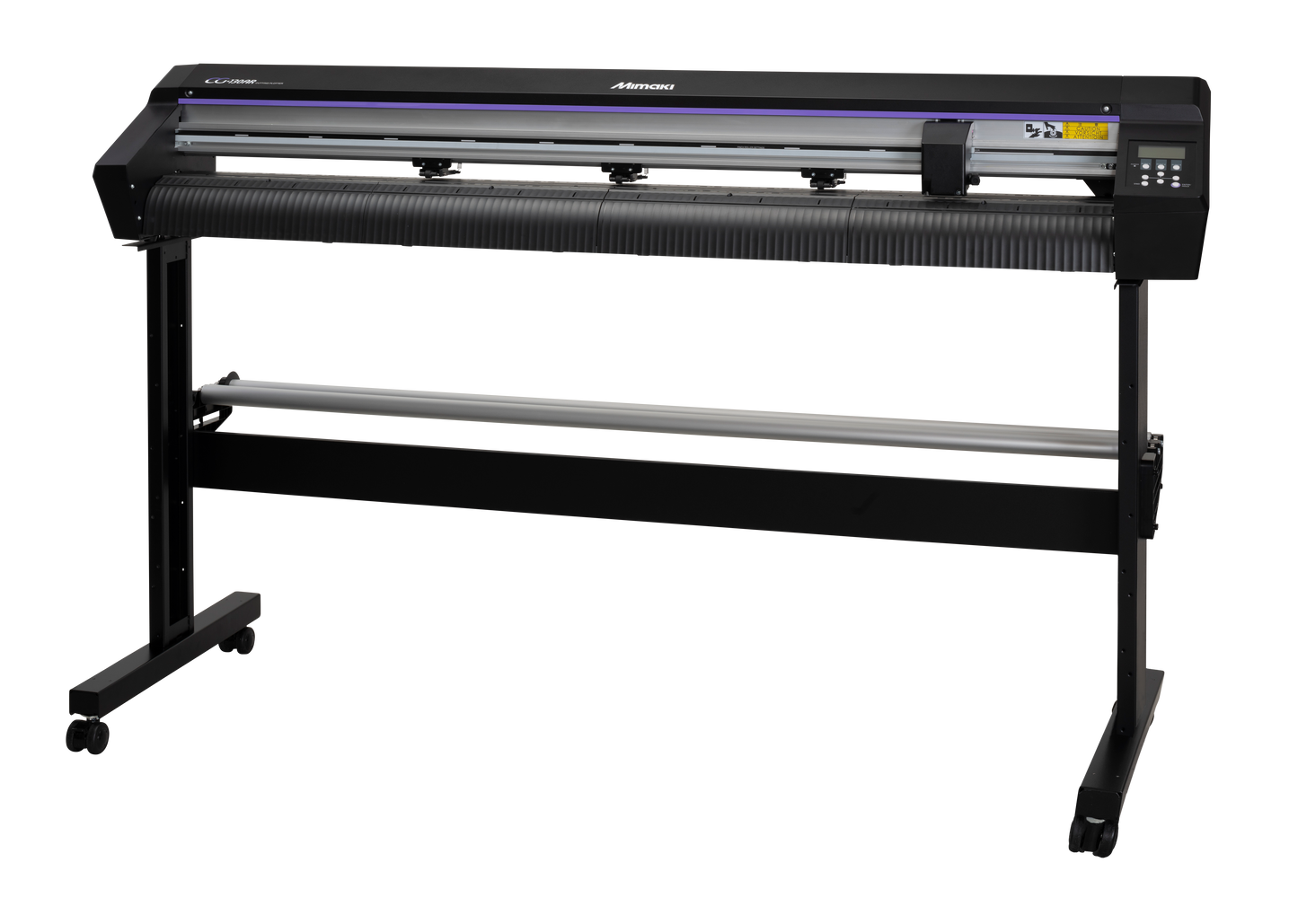

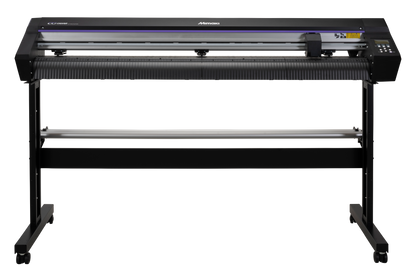

Mimaki CG-AR Vinyl Cutter
The Mimaki CG-AR series is an entry-level professional roll-to-roll cutting plotter line that emphasizes ease of use, affordability, and improved cutting performance across sign, decal, label, and packaging applications. It also adds support for cardboard full cutting and folding-line workflows through dedicated options.
- Entry-level professional cutter with improved usability and productivity
- 550 g maximum cut pressure in the entry class
- Supports print-and-cut workflows with Mimaki ID Cut
- Suitable for signs, decals, window graphics, labels, and packaging
Specifications
| Specification | Details |
|---|---|
| Type | Roll-based cutting plotter |
| Maximum Media Width | CG-60AR: 29.1″ (740 mm) CG-130AR: 61″ (1550 mm) |
| Cutting Width | CG-60AR: 23.9″ (600 mm) CG-130AR: 53.9″ (1370 mm) |
| Maximum Media Thickness | Recommended sheets up to 0.01″ (.25mm) including laminate and liner; Up to 0.04″ (1mm) max (results may vary) |
| Maximum Cut Speed | 28.7″/s (73 cm/s) |
| Moving Speed | 40.5″/s (103 cm/s) |
| Maximum Cut Pressure | 550g |
| Adjustable Speed Range | 1–10 cm/s: 1 cm/s step adjustment 1–73 cm/s: 5 cm/s step adjustment |
| Cutter Types | Eccentric cutter, Blade for small character, Blade for reflective sheet, Blade for fluorescent sheet, Blade for PVC with low-pressure, Ball point pen, Cutter heavy paper, Creasing Tool |
| Mechanical Resolution | X direction: 2.5 μm; Y direction: 5 μm |
| Program Steps | 25 μm or 10 μm (MGL-IIc); 100 μm, 50 μm (MGL-Ic1) |
| Repeatability | +/- 0.2 mm / 2 M |
| Downforce Pressure |
Cutter: 10–20g (2g step), 20–100g (5g step), 100–550g (10g step) Pen: 10–20g (2g step), 20–100g (5g step), 100–150g (10g step) Creasing Tool: 10–20g (2g step), 20–100g (5g step), 100–550g (10g step) |
| Command | MGL-IIc, MGL-Ic1 |
| Interface | USB, RS-232C, Ethernet |
| Receive Buffer | 27MB standard, 17MB when sorting |
| Power Supply | AC 100V – 240V 1A 50/60Hz |
| Power Consumption | 168W or less | 228W or less | 228W or less |
| Operational Environment | Temperature: 5–35°C (41–95°F) Humidity: 35–75% Rh (Non-condensing) |
| Dimensions (W × D × H) | CG-60AR: 1,010 × 355 × 355 mm (39.8 × 14.0 × 14.0″) CG-60AR w/ stand: 1,010 × 580 × 1,160 mm (39.8 × 22.8 × 45.7″) CG-130AR: 1,810 × 580 × 1,160 mm (71.3 × 22.8 × 45.7″) |
| Weight | CG-60AR: 37.5 lbs. (17 kg) CG-60AR w/ stand: 27 kg (59.5 lb) CG-130AR: 94.8 lbs. (43 kg) |
