The Mimaki JFX200 series represents the pinnacle of entry-to-mid-level UV-LED flatbed printing, designed to bring high-impact, professional-grade results to shops of all sizes. This versatile series allows you to print directly onto a massive range of rigid and flexible substrates—including acrylic, wood, glass, metal, and foam board—up to 2 inches (50 mm) thick. By utilizing advanced UV-LED curing technology, these printers offer instant-dry results, low energy consumption, and an eco-friendly process that produces minimal VOCs.
Three Sizes for Every Production Need
The series is available in three distinct bed sizes to match your specific workspace and throughput requirements:

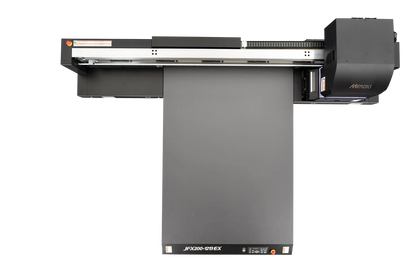

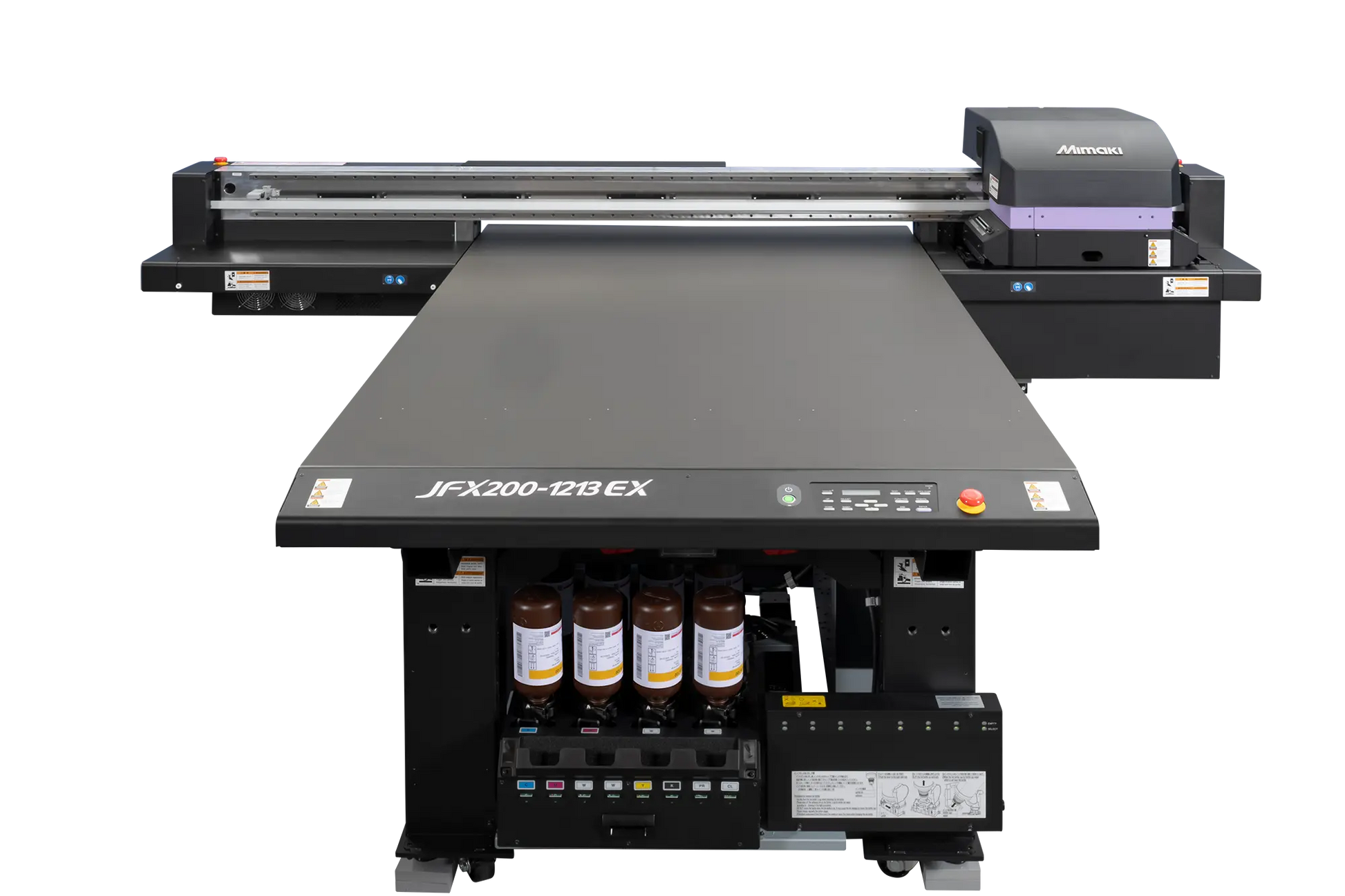

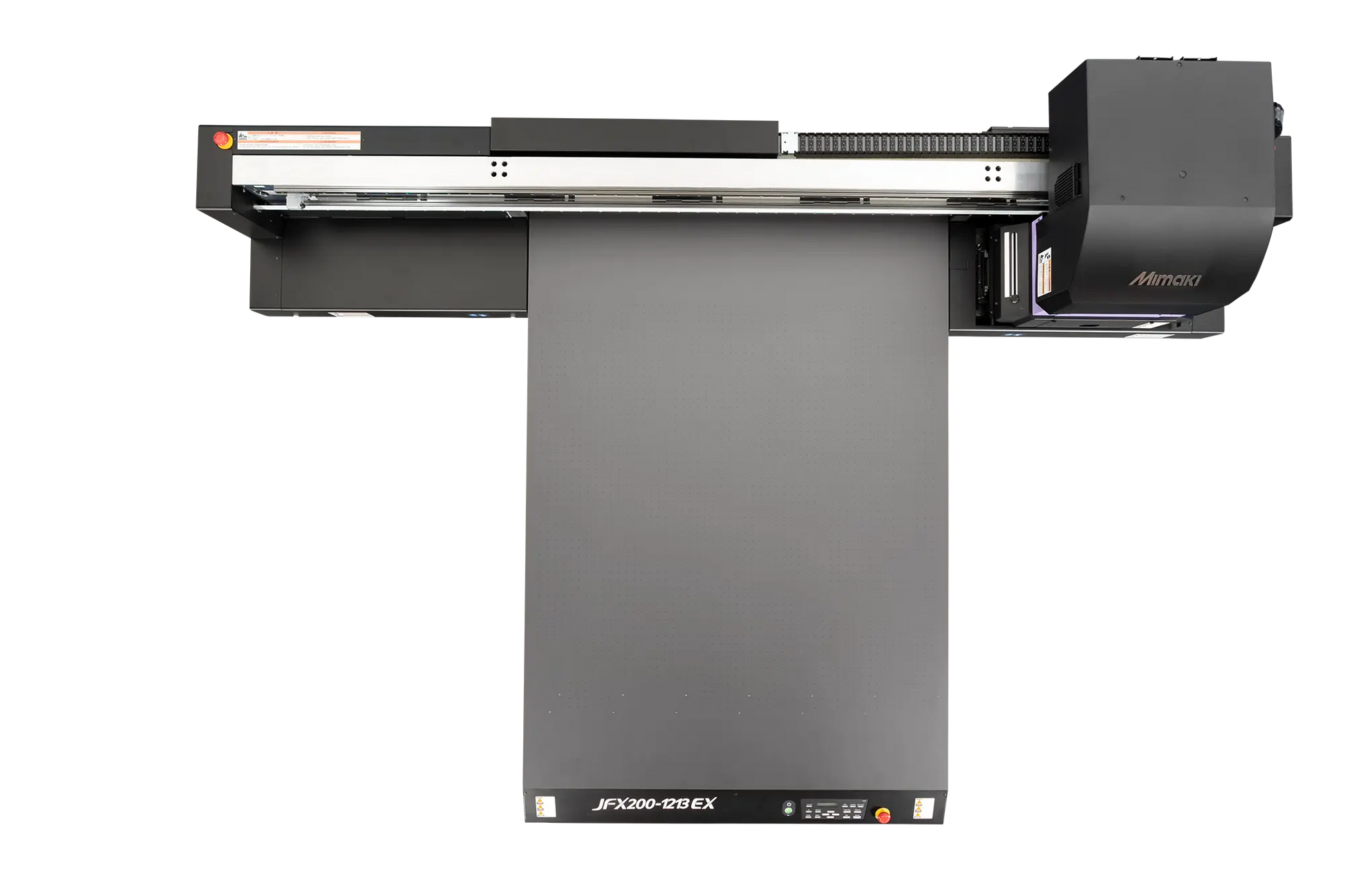

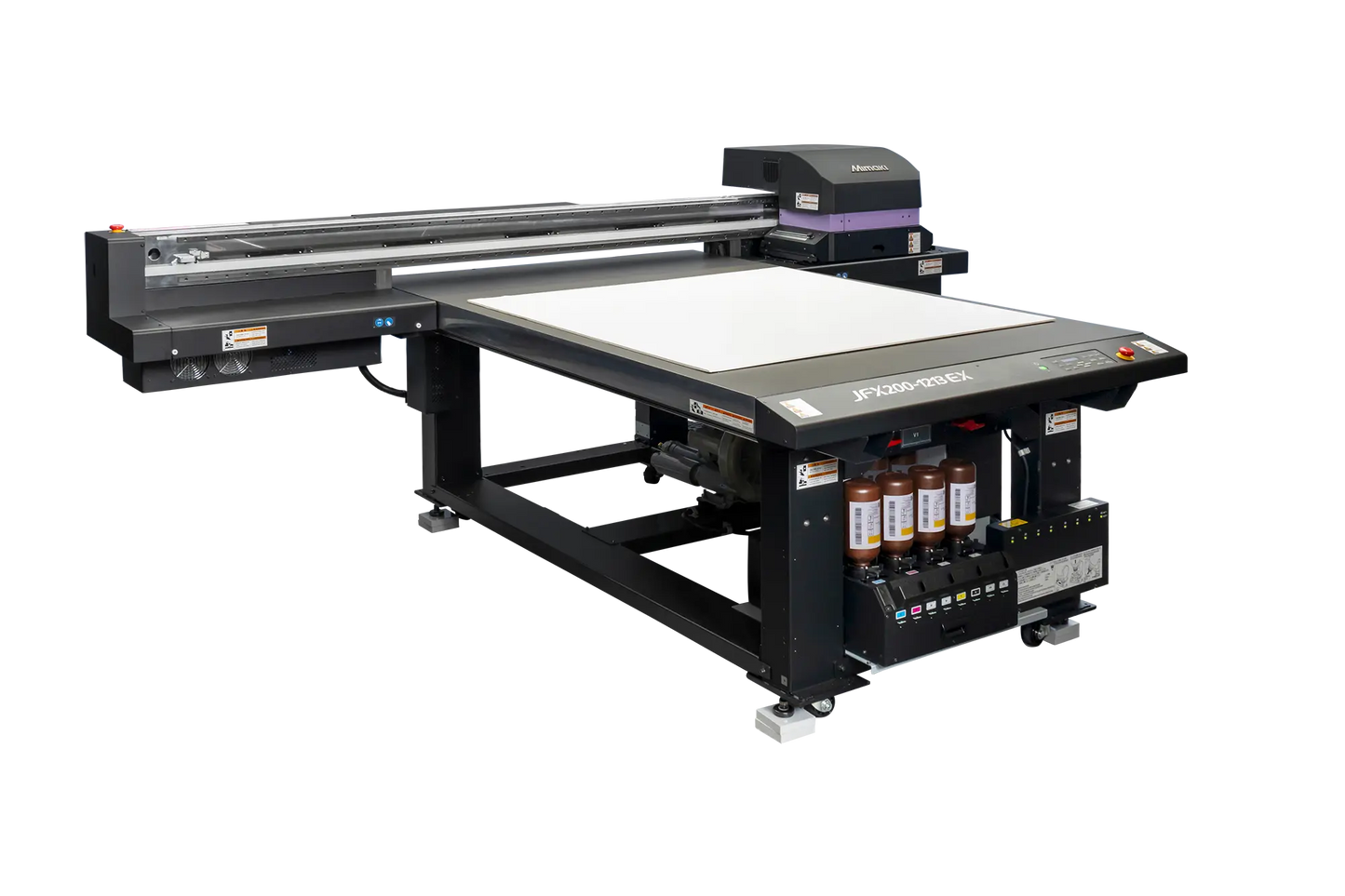

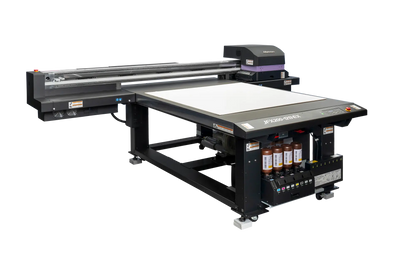

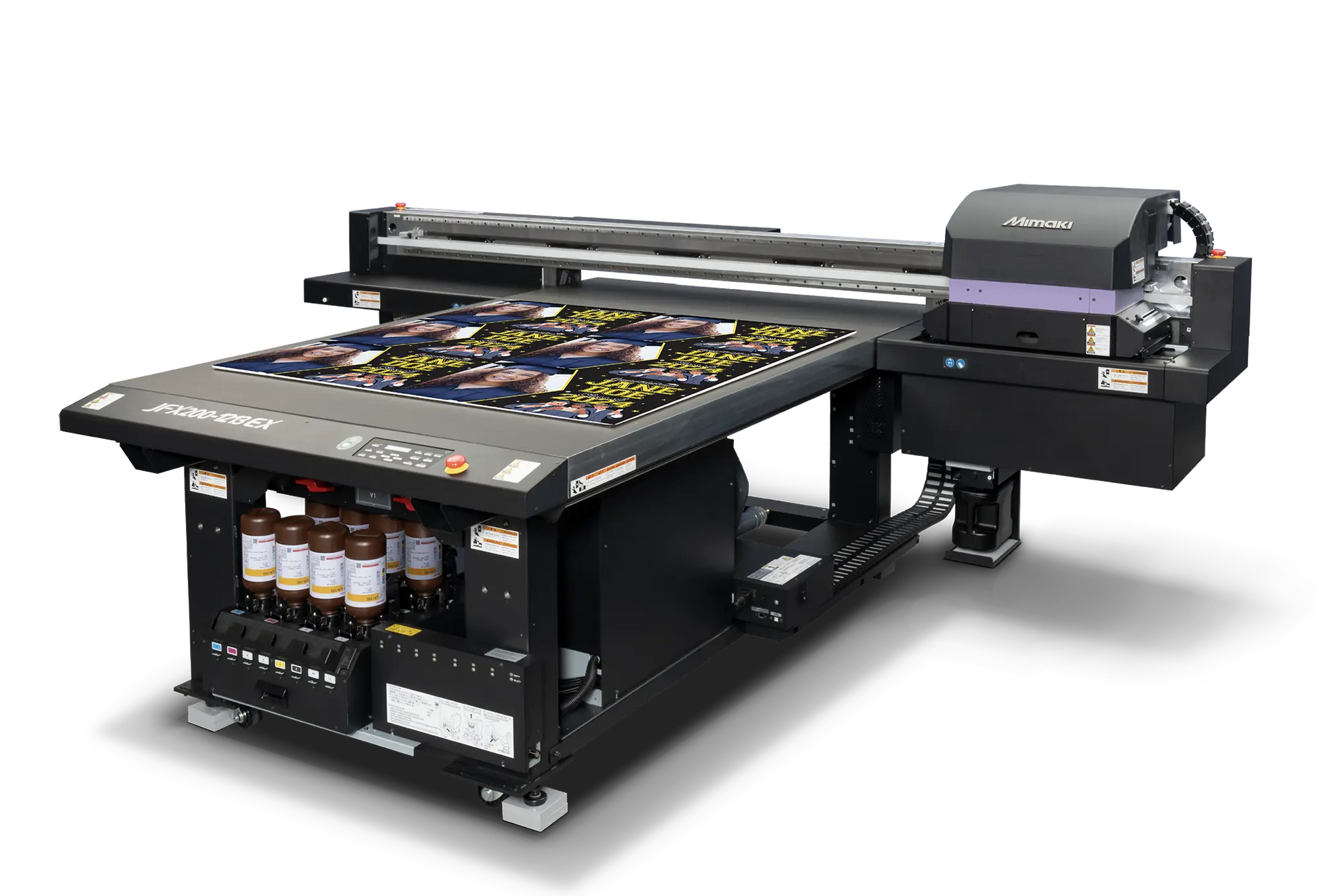

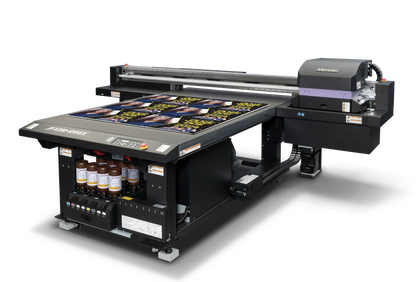

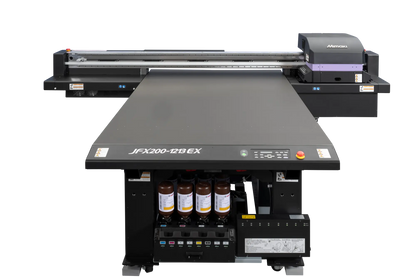

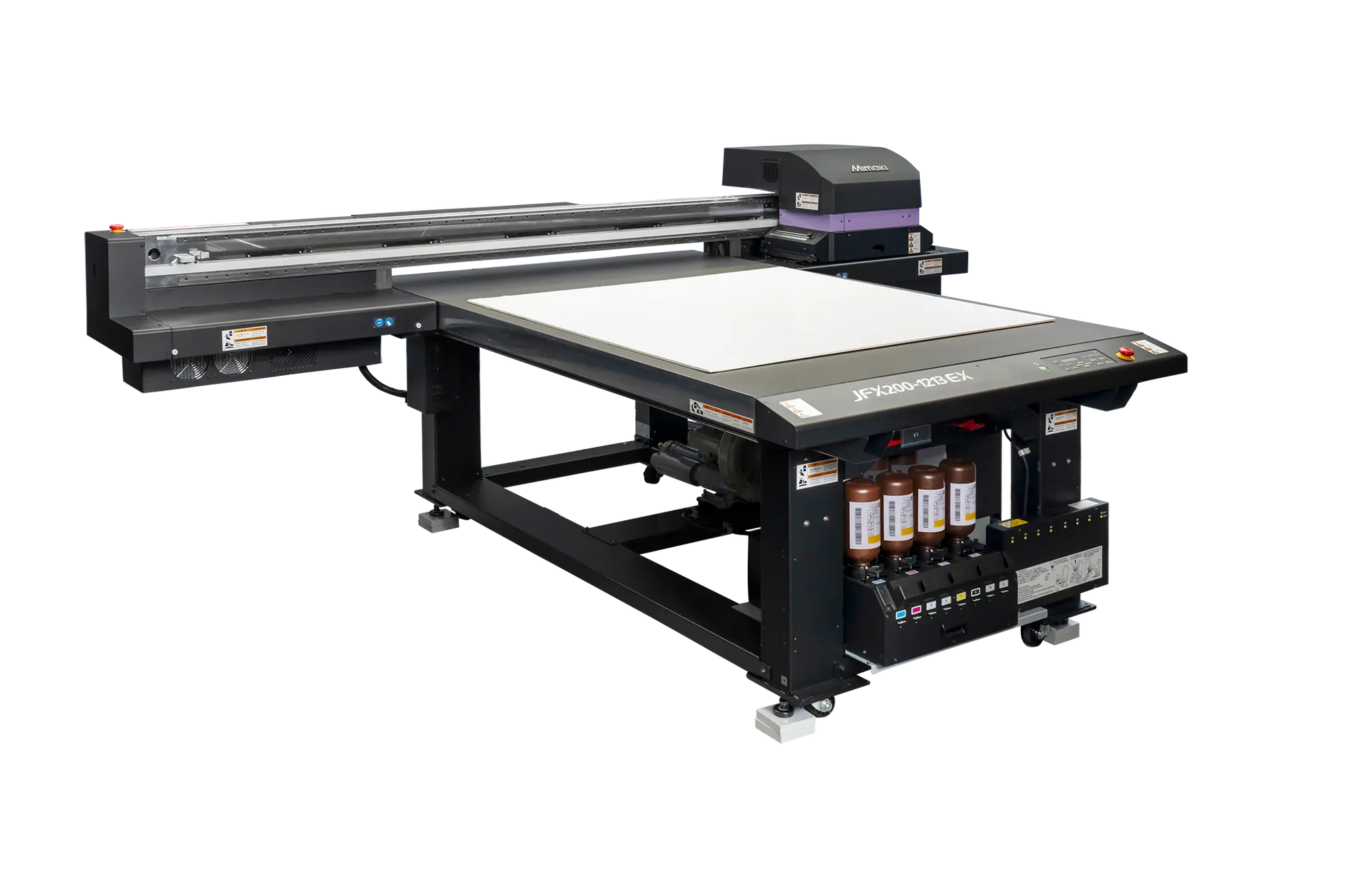

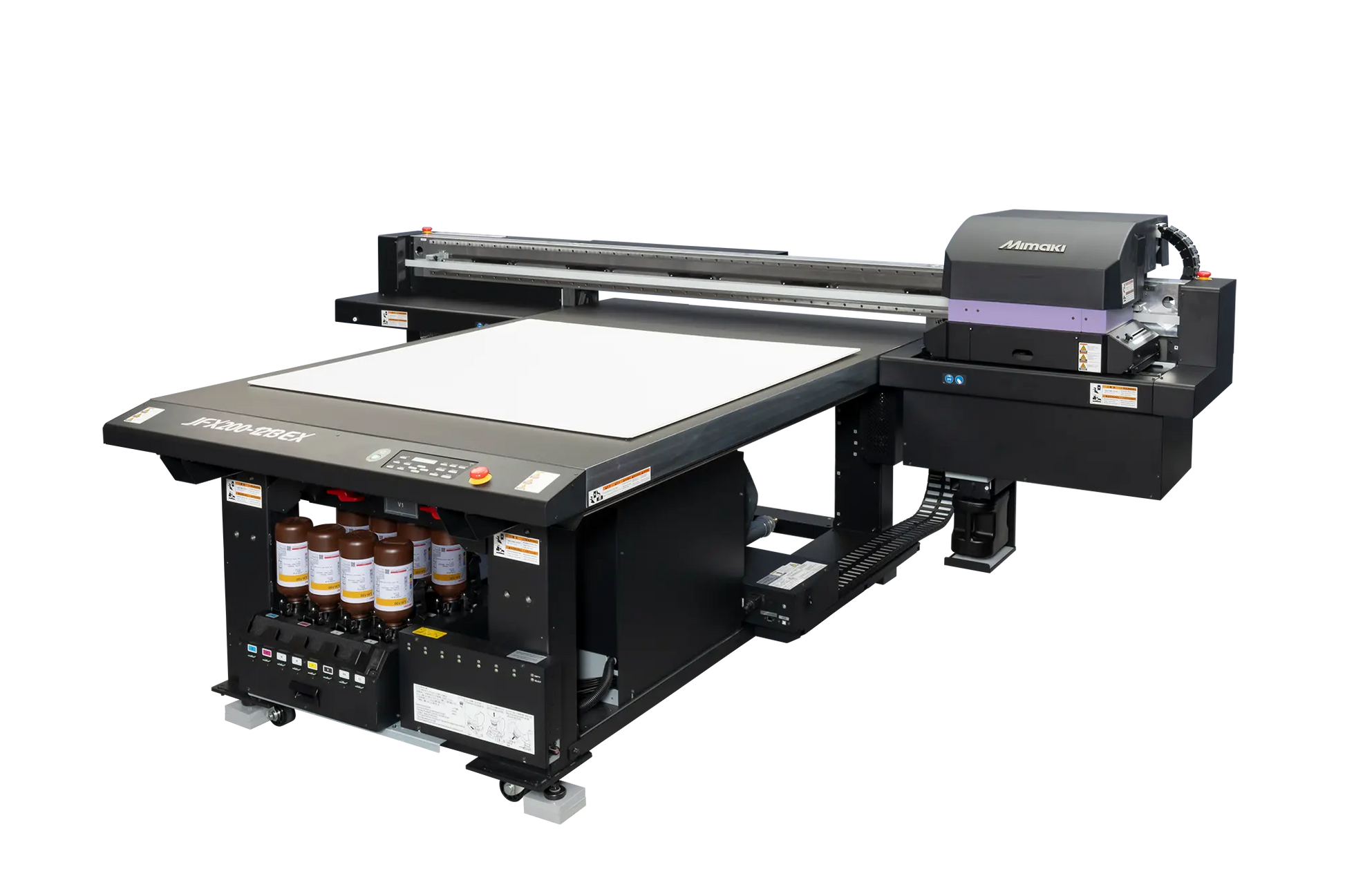

JFX200-1213EX 4' x 4'
The "Just In Size" solution for shops with limited space. It offers a compact 4' x 4' (1,270 mm x 1,300 mm) print area, providing the same high-end features as larger models in a 30% smaller footprint. It is ideal for high-quality production of custom goods, signage, and packaging prototypes.

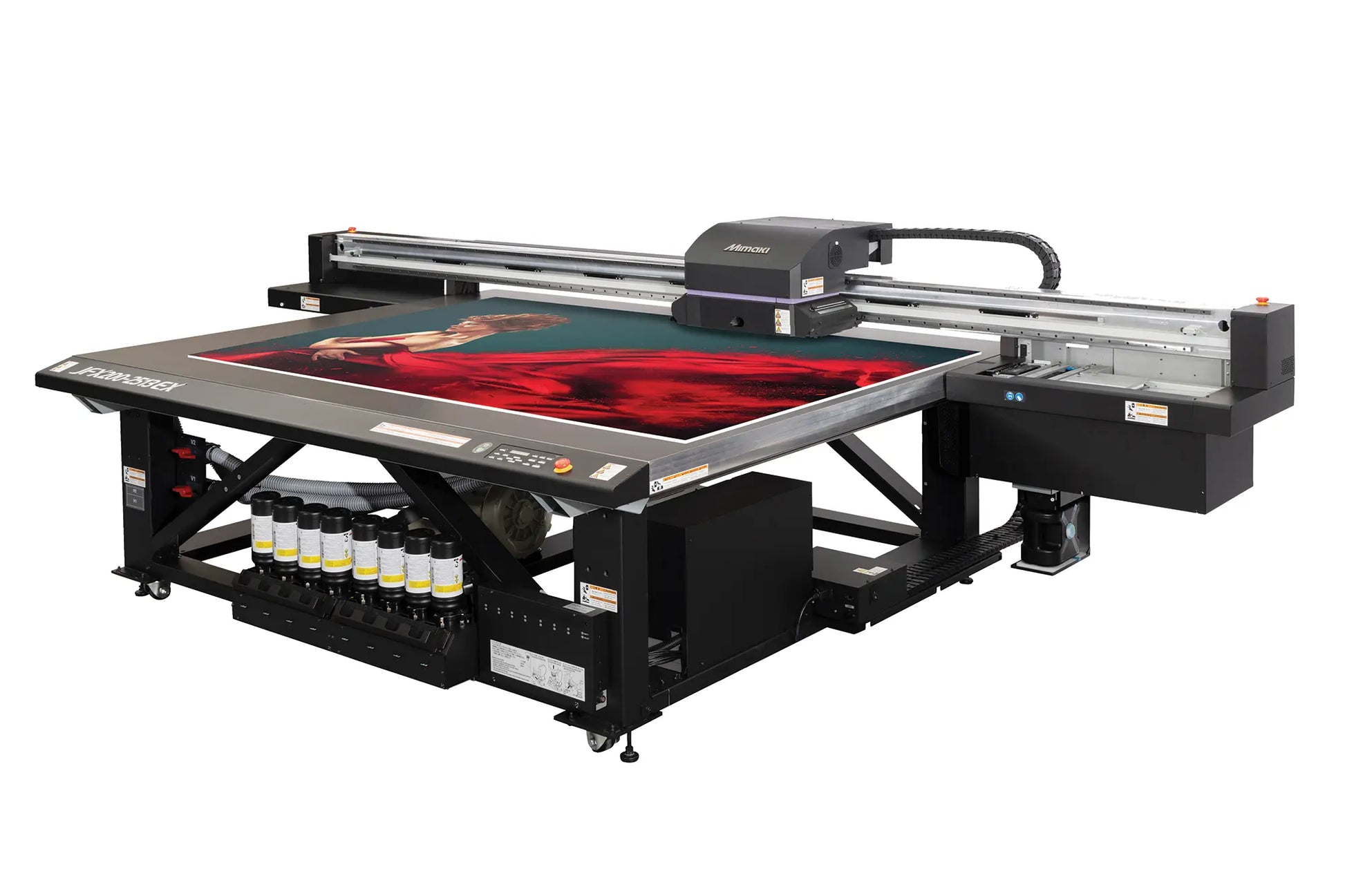

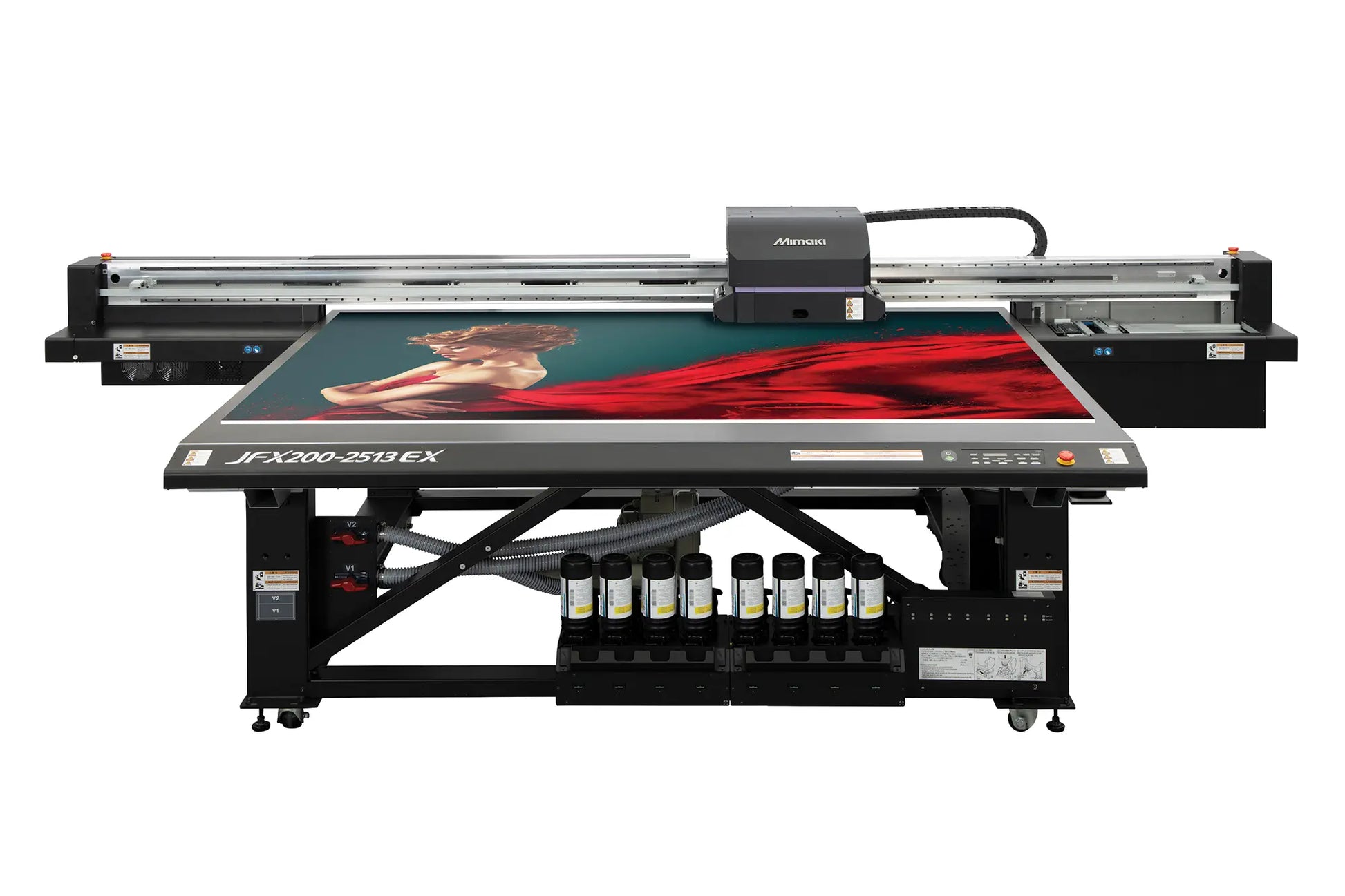

JFX 200-2513 EX 4' x 8"
The industry standard for wide-format production, featuring a 4' x 8' (2,500 mm x 1,300 mm) landscape-oriented bed. This model is engineered for high-volume sign shops, capable of handling standard 4' x 8' boards or multiple smaller pieces simultaneously for efficient batch production.

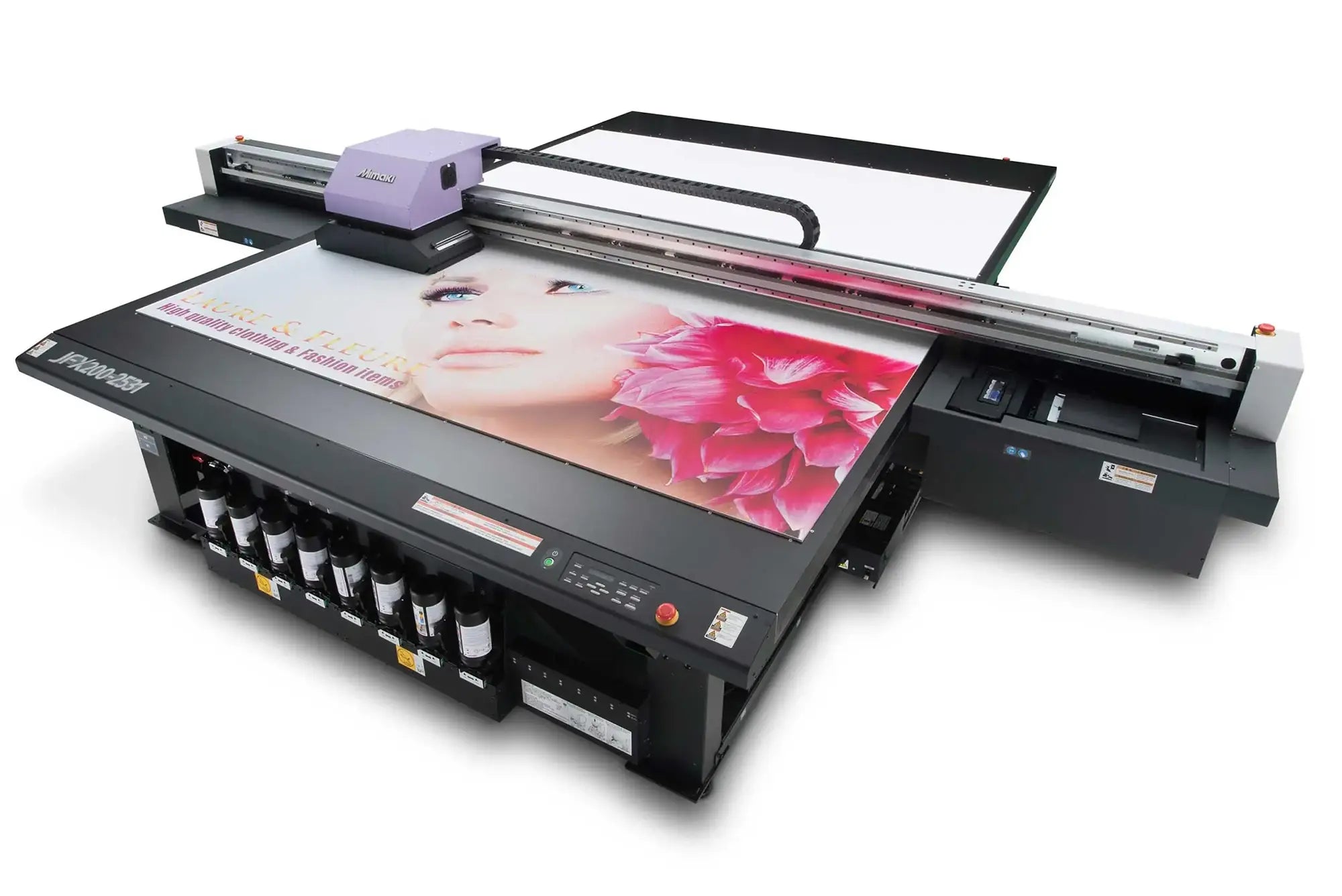

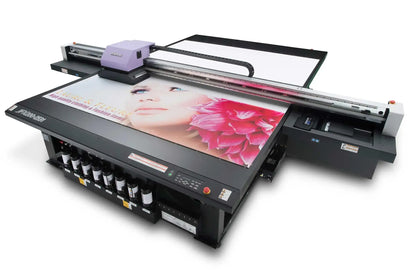

JFX 200-2531 8' x 10"
Designed for maximum productivity, this model doubles the print area of the 2513, offering a massive 8' x 10' (2,500 mm x 3,100 mm) bed. It features a unique Toggle Print function and dual origin points, allowing operators to load one side of the bed while the other is still printing for non-stop, continuous production.
Core Technology & Features
- Staggered Printheads: Depending on the model, two or three staggered heads allow for simultaneous printing of color, white, and clear inks without sacrificing speed.
- 2.5D Textured Printing: Easily create high-value, tactile effects and ADA-compliant braille using multi-layer clear ink applications.
- Mimaki Advance Pass System (MAPS): A proprietary mask pattern that eliminates banding and ensures smooth gradations in every pass.
- Smart Maintenance: The Nozzle Recovery System (NRS) and Nozzle Check Unit (NCU) automatically detect and compensate for missing nozzles to keep your production moving without downtime.
- White Ink Circulation (MCT): Prevents pigment settling in the lines, ensuring consistent white ink density and reducing overall ink waste.
Specifications
| Printhead | JFX200-1213 EX: Three on-demand piezo heads JFX200-2513 EX: Three on-demand piezo heads JFX200-2531: Two on-demand piezo heads |
| Print Resolution | 300, 450, 600, 900, 1,200 dpi |
| Print Speed (4 Color Mode) | JFX200-1213 EX: Up to 269 sq ft/hr (25 m²/h) JFX200-2513 EX: Up to 377 sq ft/hr (31.9 m²/h) JFX200-2531: Up to 269 sq ft/hr (25 m²/h) |
| Maximum Print Area | JFX200-1213 EX: 50.0″ × 51.2″ (1,270 × 1,300 mm) JFX200-2513 EX: 98.4″ × 51.2″ (2,500 × 1,300 mm) JFX200-2531: 98.4″ × 122.0″ (2,500 × 3,100 mm) |
| Maximum Media Thickness | Up to 1.97″ (50 mm) — all models |
| Maximum Media Weight | JFX200-1213 EX: 110.3 lb (50.0 kg) JFX200-2513 EX / 2531: 10.2 lb/ft² (50 kg/m²) |
| Ink Type | JFX200-1213 EX: Rigid: LH-100 (C, M, Y, K, Lc, Lm, W, Cl) | Flexible: LUS-150 (C, M, Y, K, Lc, Lm, W + LUS-100 Cl), LUS-120 (C, M, Y, K, W, Cl), LUS-350 (C, M, Y, K, W, Cl) JFX200-2513 EX: Rigid: LH-100 | Flexible: LUS-120, LUS-150 | Thermoforming: LUS-350 JFX200-2531: Rigid: LH-100 | Flexible: LUS-120, LUS-150, LUS-200 | Thermoforming: LUS-350 |
| Interface | JFX200-1213 EX: Ethernet 10,000 BASE-T JFX200-2513 EX: Ethernet 1000BASE-T / USB 2.0 Hi-Speed JFX200-2531: USB 2.0 Hi-Speed |
| Power Supply | JFX200-1213 EX: Single phase, AC200–240V ±10%, 50/60 Hz ±1 Hz (×1) JFX200-2513 EX: Single phase, 200–240 V AC, 50/60 Hz, 12 A or less JFX200-2531: Single phase, AC200–240 V, 12 A or less / 8 A or less (two inlets) |
| Power Consumption | JFX200-1213 EX: 2.88 kVA or less JFX200-2513 EX: 2.88 kVA or less JFX200-2531: 4.8 kVA |
| Operational Environment | Temperature: 68–86 °F (15–30 °C) — JFX200-1213 EX; 59–86 °F (15–30 °C) — 2513 EX / 2531 Humidity: 35–65% RH (non-condensing) |
| Dimensions (W × D × H) | JFX200-1213 EX: 125″ × 96″ × 49″ (3,175 × 2,450 × 1,250 mm) JFX200-2513 EX: 173.2″ × 96.4″ × 49.2″ (439.9 × 244.9 × 125 cm) JFX200-2531: 173.2″ × 168.9″ × 49.2″ (439.9 × 429 × 125 cm) |
| Weight | JFX200-1213 EX: 1,124 lb (510 kg) JFX200-2513 EX: 1,433 lb (650 kg) JFX200-2531: 2,205 lb (1,000 kg) |
| Certifications | JFX200-1213 EX: VCCI Class A, CE Mark, CB Report, UL (UL62368-1), RoHS, FCC Class A, Machinery Directive, RCM JFX200-2513 EX: VCCI Class A, CE Mark, CB Report, UL (UL62368-1), RoHS, FCC Class A, Machinery Directive, EAC, RCM JFX200-2531: VCCI Class A, FCC Class A, ETL UL60950-1, CB, CE Marking (EMC, Low Voltage, Machinery Directive, RoHS) |
