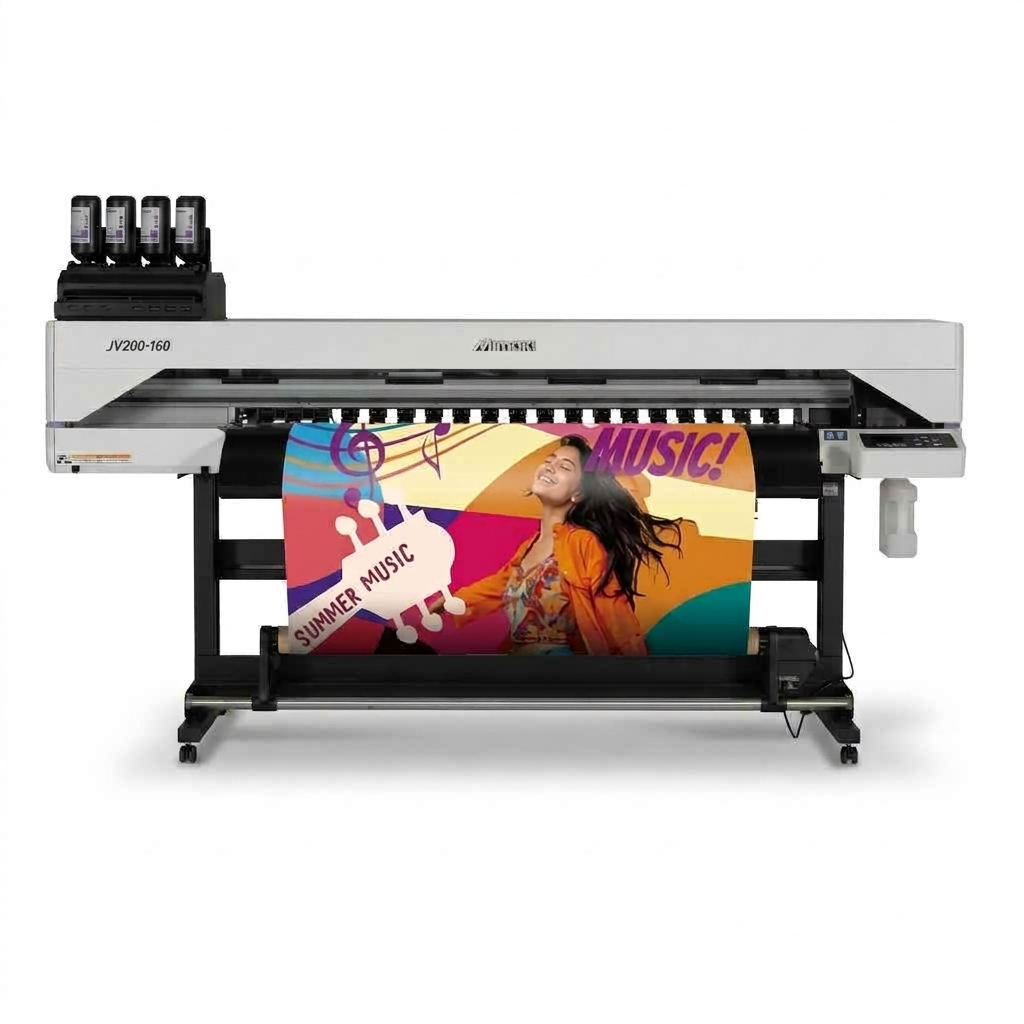

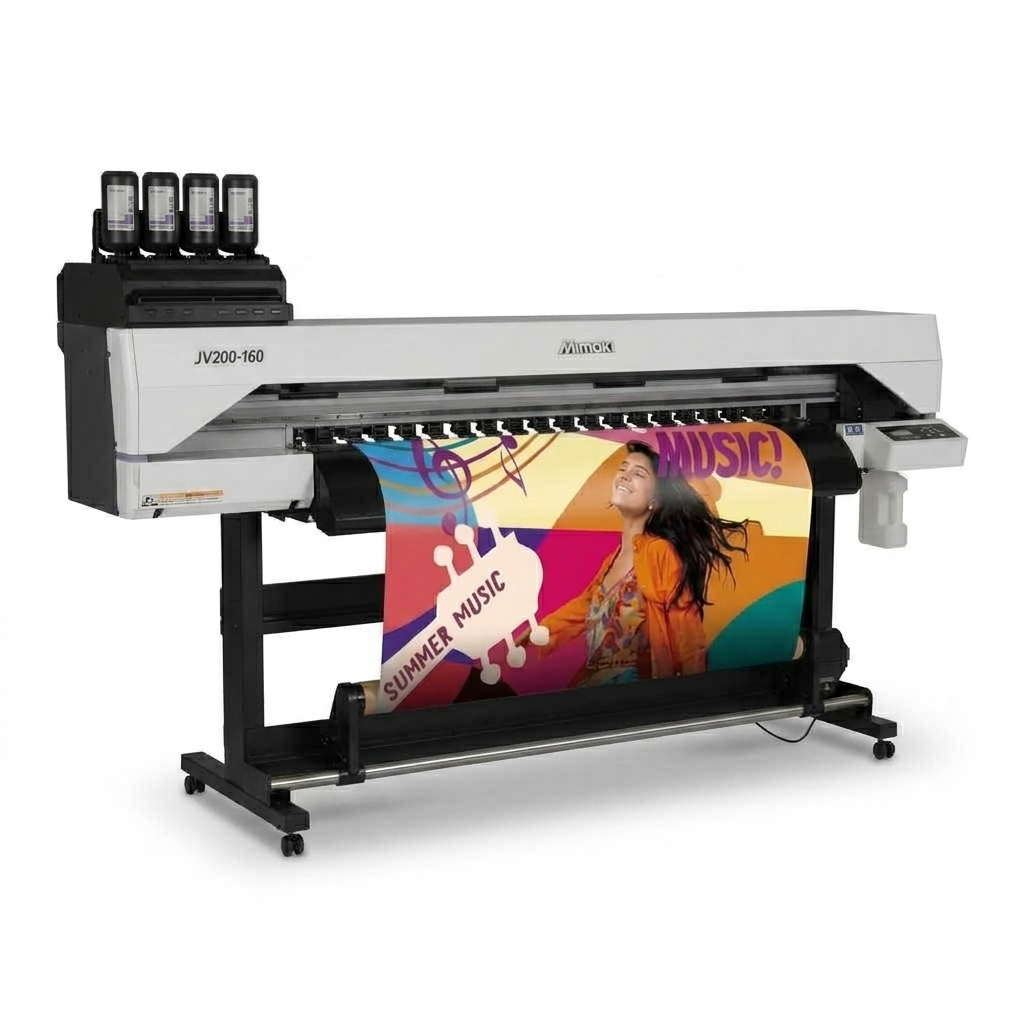

The Mimaki JV200 Series is an entry-level, 54-inch or 64-inch eco-solvent, roll-to-roll printer designed for high-quality, durable outdoor and indoor signage, banners, and vehicle wraps. Key features include speeds up to 183 sq ft/hr (17m2), high-resolution printing with variable droplet technology, and up to 8-color ink options (including Orange and Light Black) for superior color reproduction, often packaged with RasterLink6 software.
Key Features and Benefits
- High Productivity: Features a high-speed print head capable of high-density printing, offering one of the highest speeds in the entry-level segment.
- Versatile Ink Set: Compatible with Mimaki SS22 eco-solvent inks, providing excellent weather resistance, and supporting up to 8 colors (CMYK, Lc, Lm, Lk, Or) for wider color gamut.
- Reliable Technology: Includes Mimaki Core Technologies like Nozzle Recovery System and Waveform Control.
- User-Friendly: Designed for ease of use, featuring a wide opening cover for easy access, an upward-facing control panel, and easy-to-use software for beginners.
- Mimaki Remote Access: Enables remote operation and monitoring of the printer's status.
Common Applications
- Vehicle Wraps: High-quality output suitable for wrapping vehicles.
- Indoor/Outdoor Signage: Ideal for banners, posters, and backlit displays.
- Labels/Decals: Can handle intricate detail and high-resolution imaging for stickers.
Specifications
| JV200-130 | JV200-160 | |
|---|---|---|
| Printhead | One on-demand piezo print head (single) | |
| Print Resolution | X: 600, 1200 dpi | Y: 600, 900, 1200 dpi | |
| Print Speed (4 color mode) | 183 sqft/hr (17 sqm/hr) | |
| Maximum Print Area | 53.6 in (1361 mm) | 63.4 in (1610 mm) |
| Maximum Media Width | 53.9 in (1371 mm) | 63.8 in (1620 mm) |
| Maximum Media Thickness | Up to 0.04 in (1 mm) | |
| Maximum Media Weight | 55 lbs. (25 kg) | |
| Ink Type | Eco-Solvent inks: SS22 (C, M, Y, K, Lc, Lm, Lk, Or) | |
| Interface | USB 2.0 Hi-speed | Ethernet 1000 BASE-T | |
| Power Supply | AC (100–120V / 200–240V ±10%) × two 50/60Hz ±1Hz | |
| Power Consumption | Max. 1320W x2 | Sleep mode: 4.5W | |
| Operational Environment | Temperature: 68°–86°F (20–30°C) | Humidity: 35–65% RH (Non-condensing) | |
| Dimensions (W × D × H) | 99 × 29.5 × 54 in (2520 × 748 × 1370 mm) | 109 × 29.5 × 54 in (2770 × 748 × 1370 mm) |
| Weight | 286.6 lbs. (130 kg) | 308.6 lbs. (140 kg) |
| Certifications | VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low Voltage, Machinery Directive, RoHS), CB, REACH, Energy Star, RCM, EAC, KC, UKCA | |
| Warranty | Year 1: Mimaki Total Care (full device incl. labor). Years 2–3: Mimaki Parts Plus+ (non-consumable parts + phone support; billable labor/travel). All 3 years cover print heads. Available for US and Canada shipments. | |
