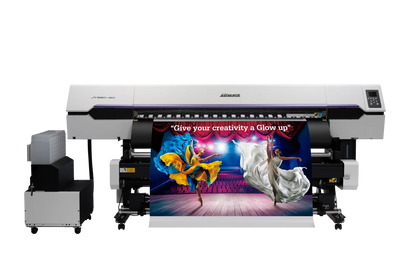

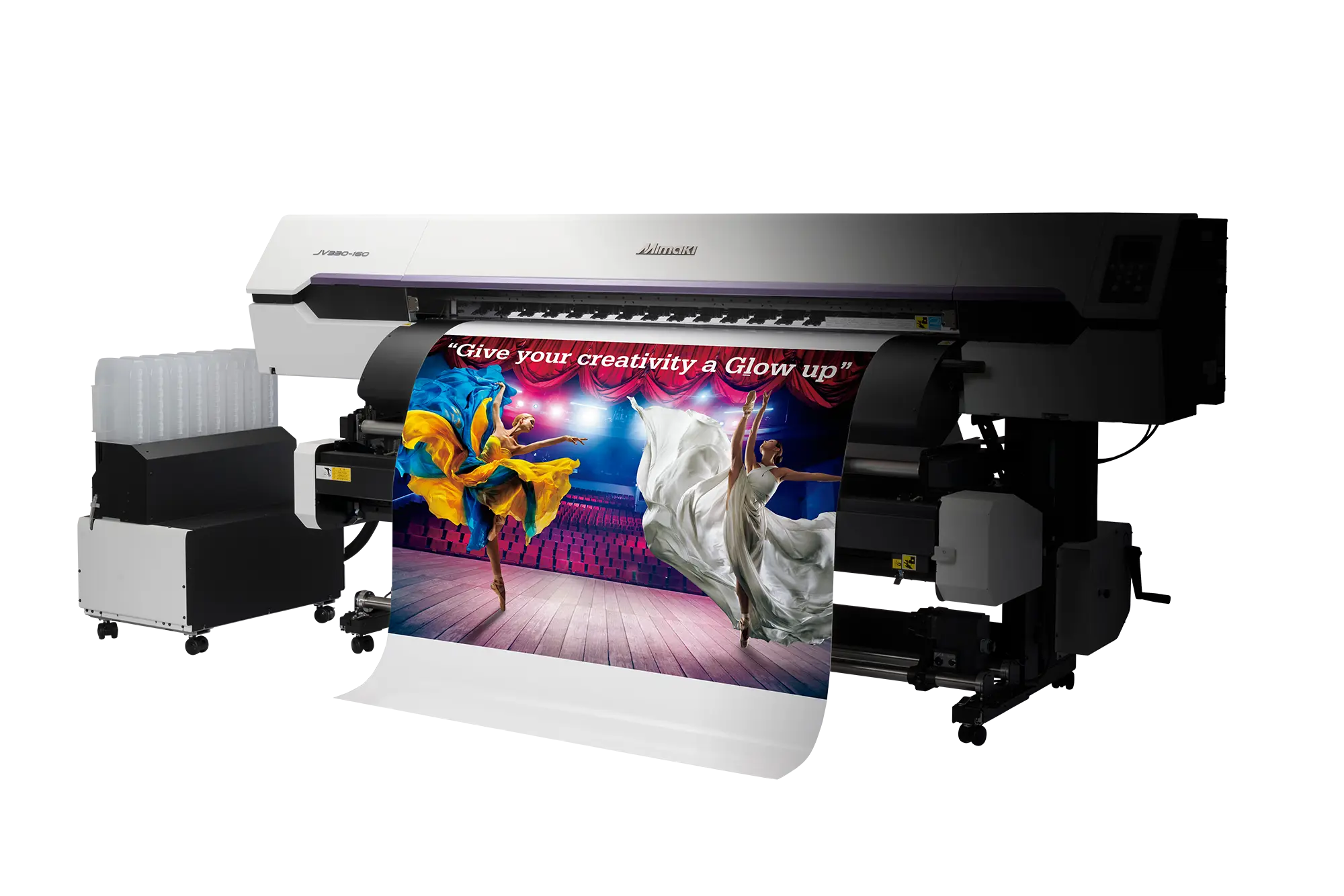

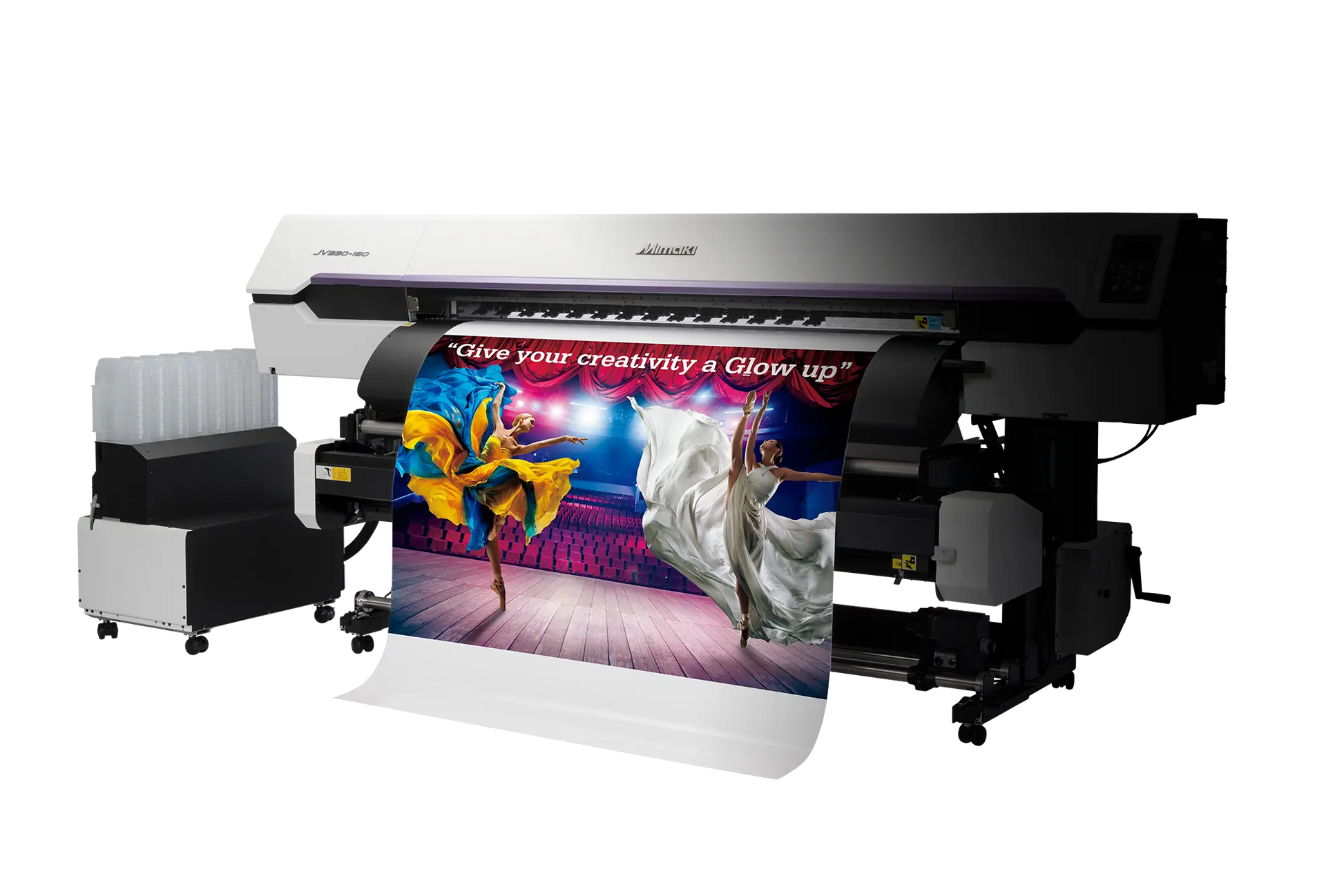

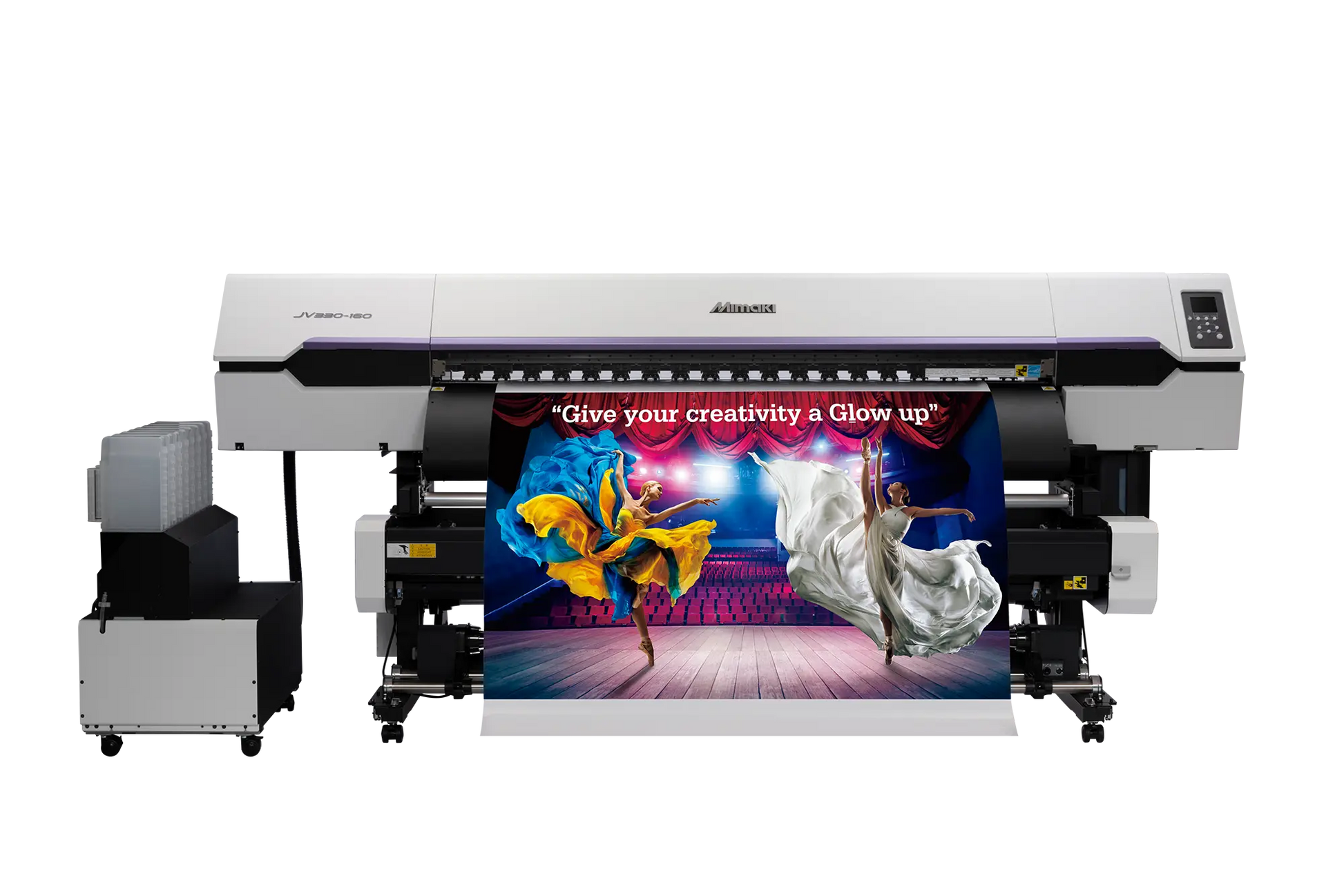

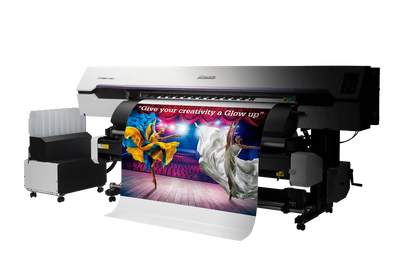

The Mimaki JV330 Series is a flagship eco-solvent roll-to-roll printer designed for high-demand commercial environments, offering a significant leap in speed and precision over previous generations. It is available in two models: the JV330-130 (54-inch) and the JV330-160 (64-inch).
Elevate Your Production with Flagship Efficiency
The JV330 Series redefines what a mid-to-high-end production printer can achieve. Engineered for sign shops and vehicle wrap specialists, this series integrates advanced finishing tools and automation to reduce labor while delivering industrial-scale output.
Key Performance Highlights
- Blazing Production Speeds: Dual staggered printheads deliver throughput up to 1,076.4 sq. ft/hr, making it ideal for quick-delivery jobs and high-volume banners or retail graphics.
- Superior Image Definition: Achieve resolutions up to 1200 dpi. The newly toughened chassis and advanced waveform control improve droplet placement accuracy by up to 650% compared to conventional models, virtually eliminating graininess.
-
Integrated Inline Finishing:
- XY Slitter: Automatically performs horizontal and vertical trimming in-line, reducing manual post-processing and saving valuable floor space.
- V-Shape Cut: Simplifies media winding by cutting a V-shape at the end of the media, allowing for single-point taping to the paper core.

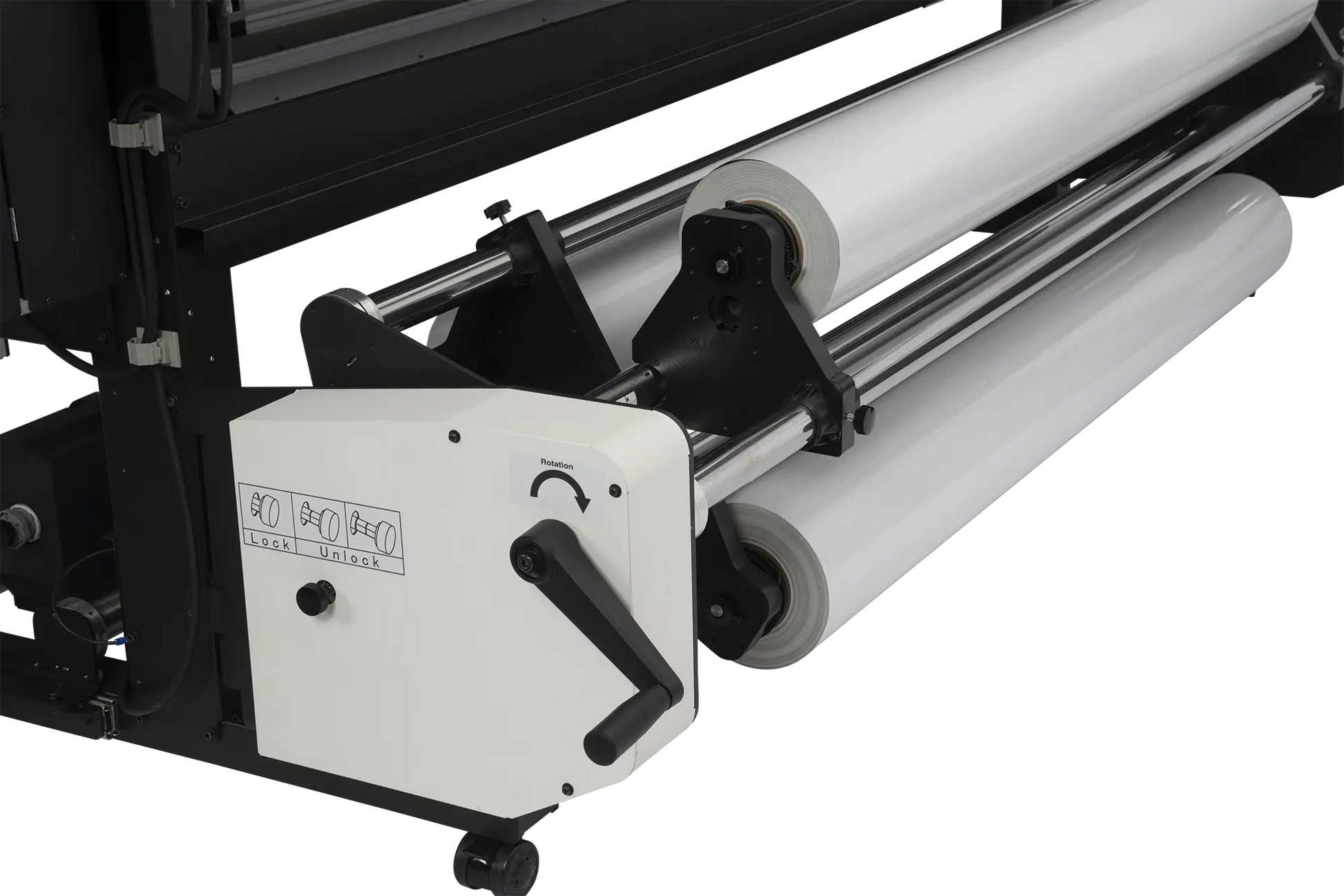

- Enhanced Media Handling: The 3-way Media Changer allows you to mount up to three rolls of media simultaneously (totaling up to 198 lbs) and switch between them easily with a rotation handle.

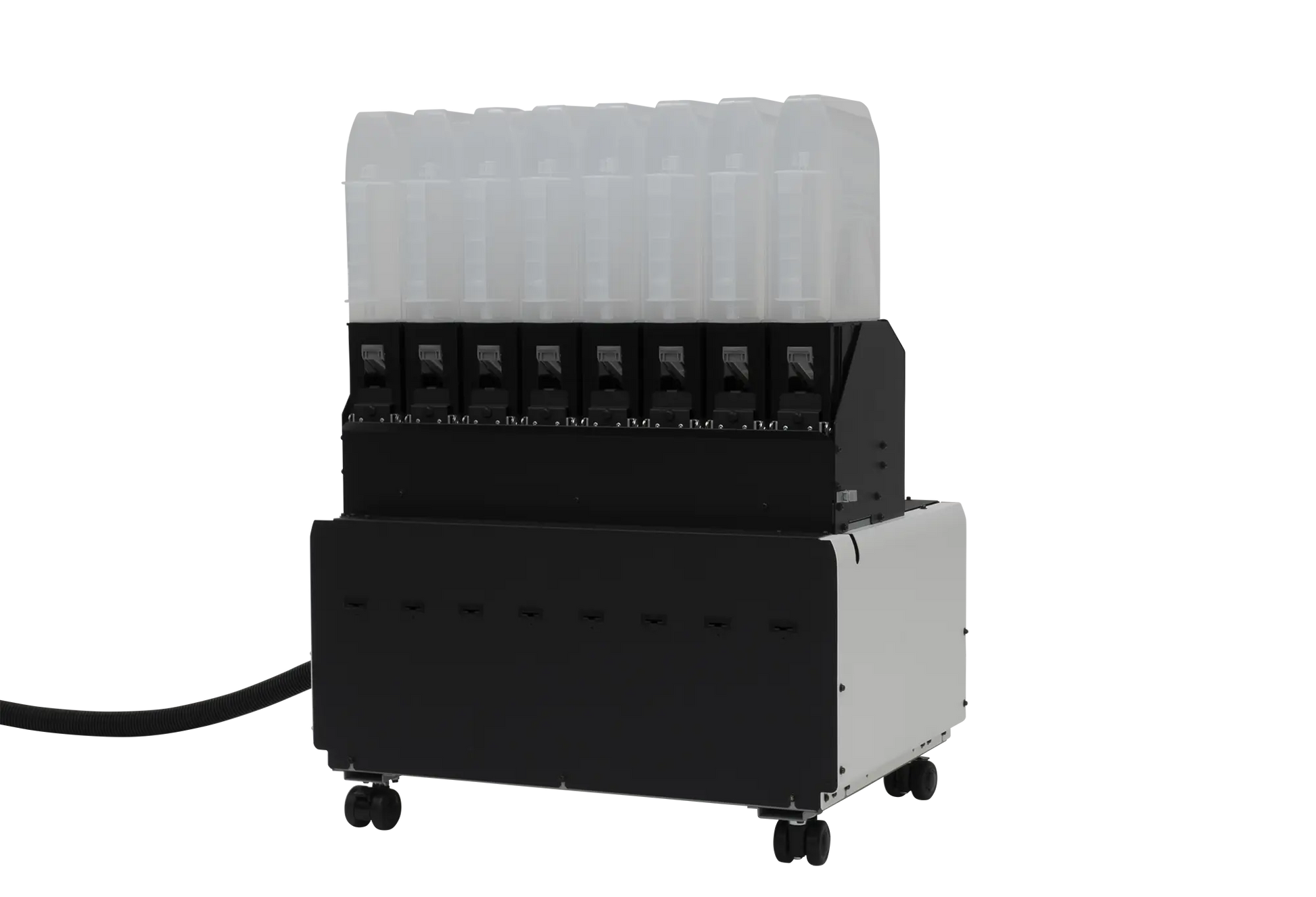

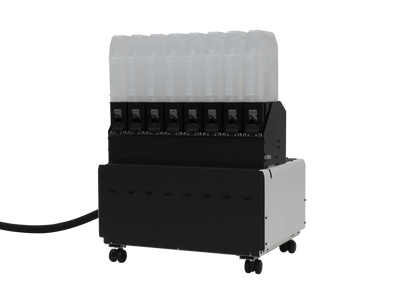

- Vibrant Color Fidelity: Supports Mimaki's SS21 Eco-Solvent inks in up to 8 or 9 color configurations (including Orange, Light Black, and White). The new "Deep Color Natural" profile ensures vivid solids and smooth skin tones.
Core Technologies for Uninterrupted Printing
The JV330 is packed with Mimaki's signature reliability features to minimize downtime:
- MAPS4 (Mimaki Advanced Pass System): Uses an advanced algorithm to disperse ink drops and reduce visible banding.
- NCU & NRS: The Nozzle Check Unit and Nozzle Recovery System automatically detect and compensate for clogged nozzles.
- MWDT (Mimaki Weaving Dot Technology): Compensates for head misalignment to ensure smooth, consistent color even at high speeds.
- Mimaki Remote Access (MRA): Monitor printer status and operate the control panel wirelessly from your smartphone or PC.
Ideal Applications
- Vehicle Wraps & Fleet Graphics: Durable, high-impact visuals with industry-leading weather resistance.
- Signage & Banners: High-speed output for indoor/outdoor signs and promotional graphics.
- Exhibition & POP Displays: Sharp detail and vibrant color for retail environments.
Specifications
| Printhead | On-demand piezo head (2 staggered printheads) |
| Print Resolutions | 600 dpi, 800 dpi, 900 dpi, 1200 dpi |
| Print Speed (4 Color Mode) | Up to 1,076.4 sq ft/hr (100.00 m²/h) |
| Maximum Print Area | 53.5″ (1,360 mm) | 63.4″ (1,610 mm) |
| Maximum Media Width | 53.9″ (1,370 mm) | 63.8″ (1,620 mm) |
| Maximum Media Thickness | Up to 0.04″ (1.0 mm) |
| Maximum Media Weight | One roll: Max. 45 kg (99.2 lb) Three rolls: Total 90 kg (198.4 lb) |
| Ink Type | Eco-solvent ink SS21 (C, M, Y, K, Lc, Lm, Lk, Or, W) BS4 (C, M, Y, K) |
| Interface | Ethernet 1000 BASE-T (Recommended) / USB 2.0 Hi-Speed |
| Power Supply | Single phase AC100–120 / 200–240V ±10%, 50/60 Hz ±1 Hz (×2) |
| Power Consumption | Max. 1,440 W or less ×2 / Min. 4.5 W or less (Sleep mode) |
| Operational Environment | Temperature: 20–30 °C (68–86 °F) Humidity: 35–65% Rh (non-condensing) Recommended temp: 20–25 °C (68–77 °F) Dust level: General office level |
| Dimensions (W × D × H) | 2,920 × 1,215 × 1,305 mm (115.0 × 47.8 × 51.4″) | 3,170 × 1,215 × 1,305 mm (124.8 × 47.8 × 51.4″) |
| Weight | JV330-130: 789.2 lb (358 kg) JV330-160: 811.3 lb (368 kg) |
| Certifications | VCCI Class A, FCC Class A, ETL IEC 62368-1, CE Marking (EMC, Low Voltage, Machinery Directive, RoHS), CB, REACH, Energy Star, RCM, EAC, KC, UKCA, GREENGUARD Gold Certificate No. 67174-420 |
| Warranty Information** | **Using Mimaki SS21 or BS4 inks. See details for eligibility. |
