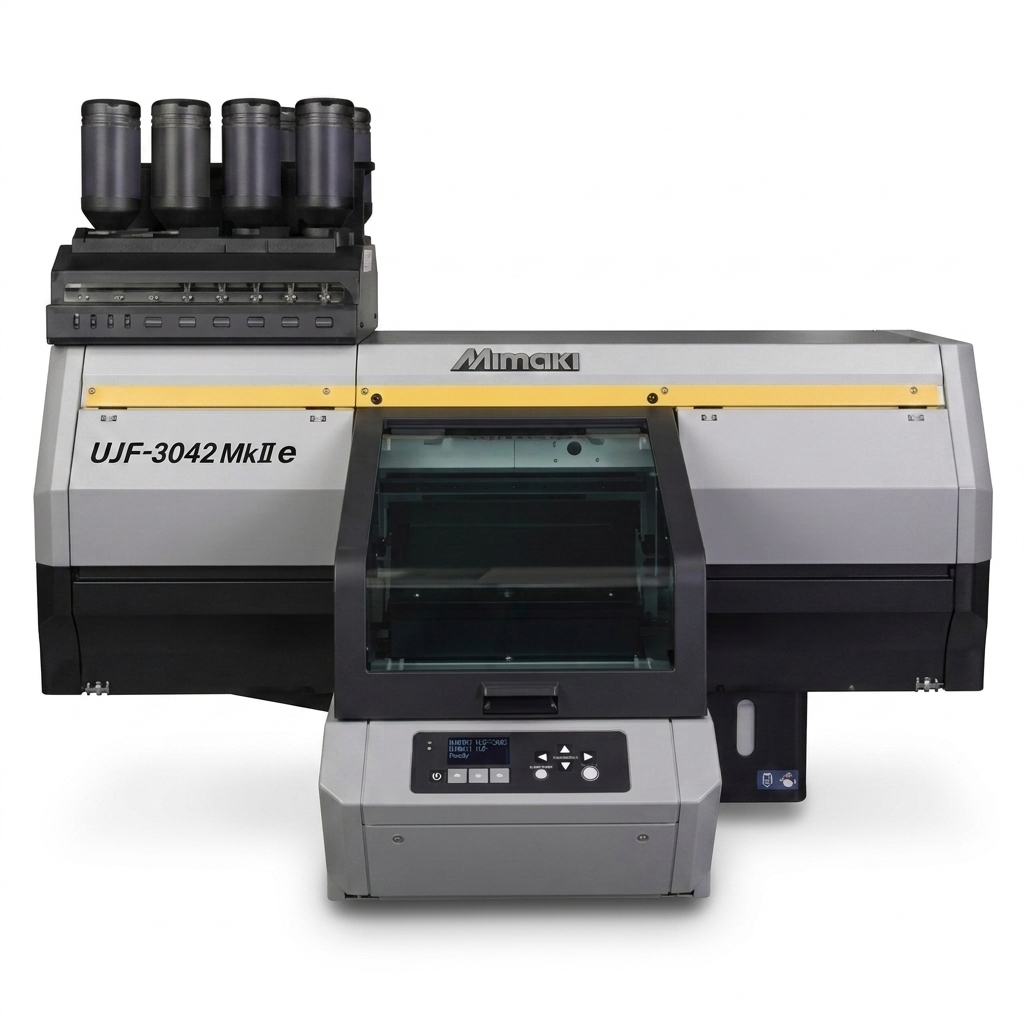

Mimaki UJF-3042MkII UV Flatbed Printer
Compact in size, expansive in capability—the Mimaki UJF-3042MKII is built for businesses ready to move into high-margin, on-demand printing without the footprint of a full production system.
Designed for versatility, this desktop flatbed lets you print directly onto a wide range of materials—plastics, metals, glass, wood, leather, and more—making it ideal for custom products, signage, awards, promotional items, and industrial applications. With support for substrates up to 6 inches thick, it opens the door to applications most printers simply can't handle.
At the core of the UJF-3042MKII is Mimaki's advanced UV-LED technology, delivering vibrant color, exceptional detail, and instant curing for faster turnaround times. Add in white ink, clear ink, and primer options, and you gain the ability to produce layered graphics, textured finishes, spot gloss effects, and premium, tactile prints that command higher margins.
You can choose the configuration that fits your business:
-
6-color (UJF-3042MKiie): A streamlined setup ideal for high-quality color production with efficient operation
-
8-color (UJF-3042MKIIEXe): Expanded ink set with additional channels for enhanced versatility, smoother gradients, and advanced effects
Engineered for reliability and ease of use, the enclosed design reduces dust contamination while improving print consistency. Automated maintenance features keep downtime low, while Mimaki's RasterLink RIP software ensures intuitive workflow control from file to finished product.
Why it stands out:
- Print directly on rigid and specialty items up to 6" thick
- Produce high-value effects: spot gloss, textures, and multi-layer prints
- UV-LED curing for instant handling and faster production
- Compact footprint—perfect for shops with limited space
Available in 6-color or 8-color configurations to match your needs
Whether you're expanding into personalization, prototyping, or premium short-run production, the UJF-3042MKII delivers the flexibility and performance to grow your business—without overcomplicating your workflow.
Specifications
| Printhead | Three on-demand piezo heads in a staggered array |
| Print Resolutions | Maximum: 1200 x 1200 dpi |
| Print Speed (4 color mode) | 26.7 ft²/hr (2.5 m²/hr) |
| Maximum Print Area | 11.8″ x 16.5″ (300 x 420 mm) |
| Maximum Media Area | 14″ x 18″ |
| Maximum Media Thickness | Up to 6.02″ (153 mm) |
| Maximum Media Weight | 11.0 lbs. (5.0 kg) |
| Ink Type | Rigid: LH-100 | Flexible: LUS-120, LUS-150 |
| Interface | Ethernet 1000BASE-T, USB 2.0 Hi-Speed |
| Power Supply | Single-phase AC100–240V, ±10%, 50/60 Hz ±1 Hz |
| Power Consumption | AC100V: 1,000W or less |
| Operational Environment | Temperature: 68°–86°F (20–30°C) | Humidity: 35–65% RH (non-condensing) |
| Dimensions (W × D × H) | 53.4″ x 50.8″ x 33.7″ (135.6 x 129 x 85.6 cm) |
| Weight | 297.6 lbs. (135 kg) |
| Certifications | VCCI Class A / FCC Class A / ETL UL 60950-1 / CB / CE Marking (EMC, Low Voltage, Machinery Directive, RoHS) / REACH / Energy Star / IEC60825-1 |
