Unlock New Revenue Streams with Powerful Direct-to-Object Printing

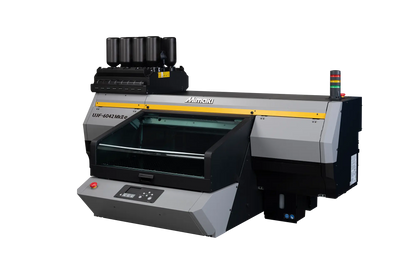

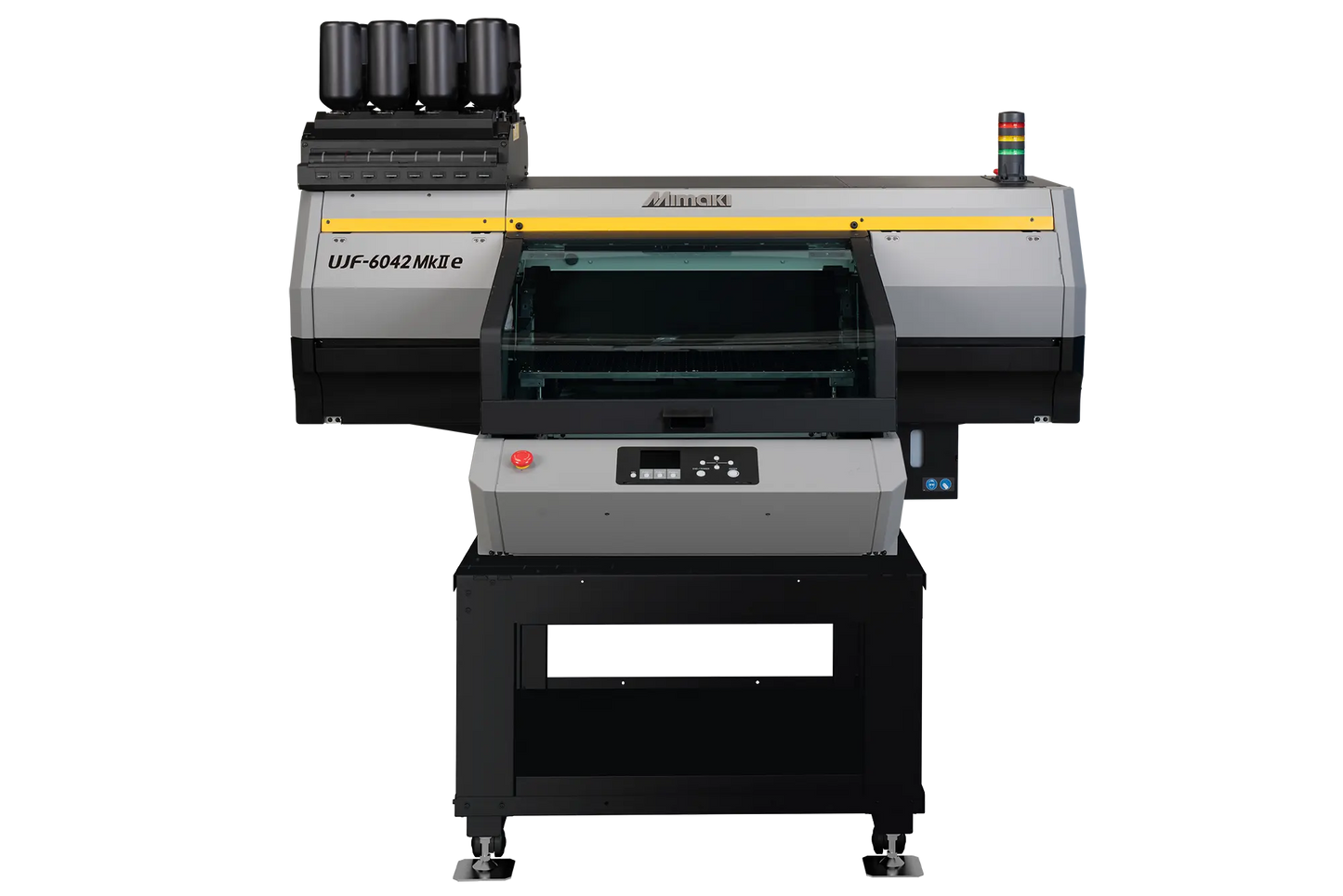

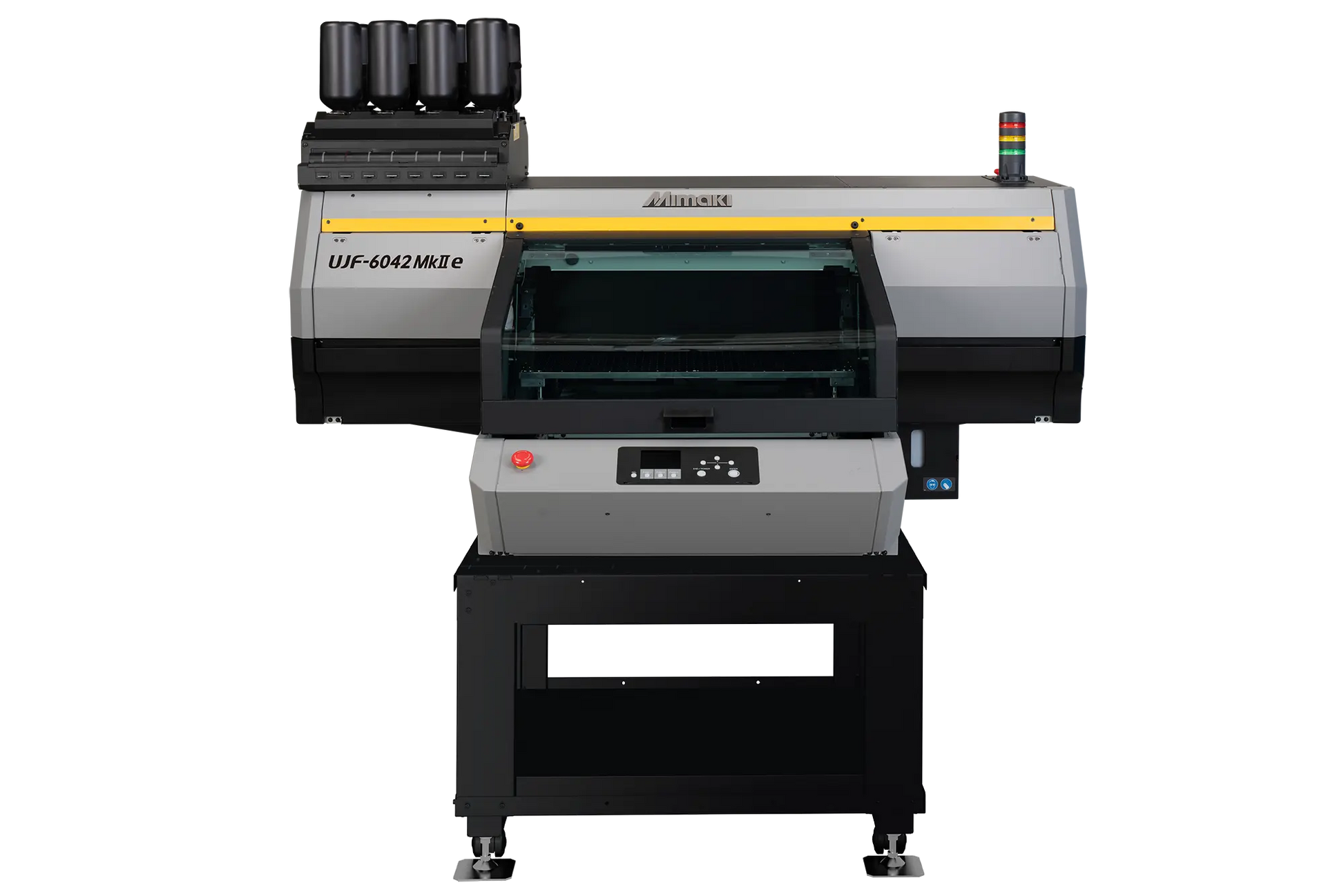

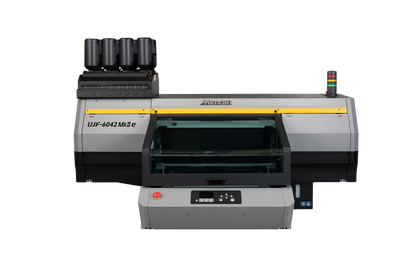

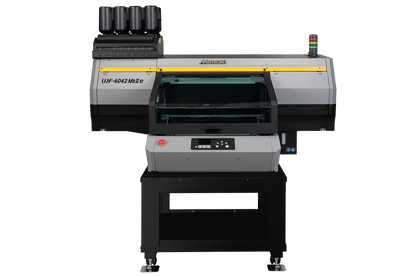

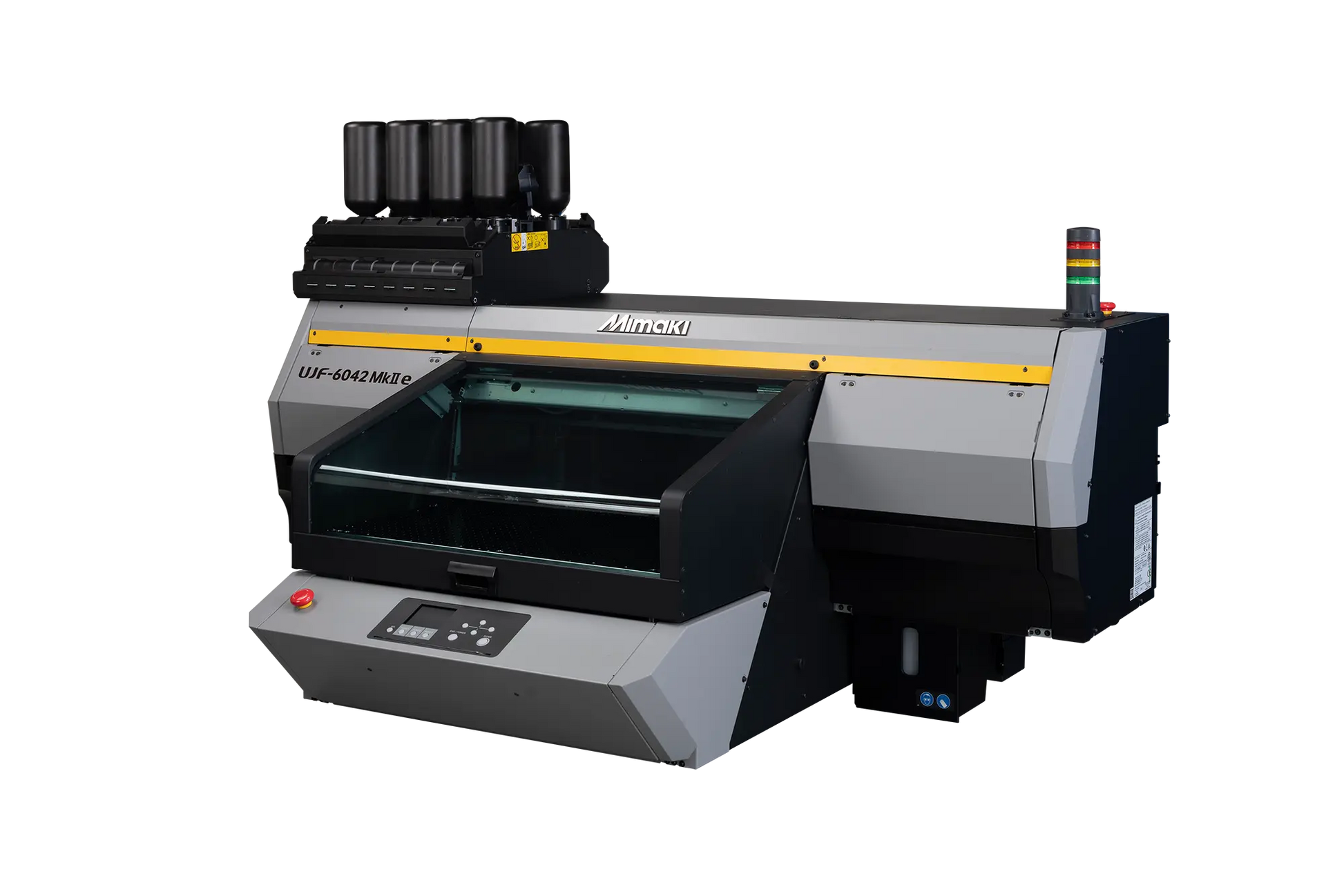

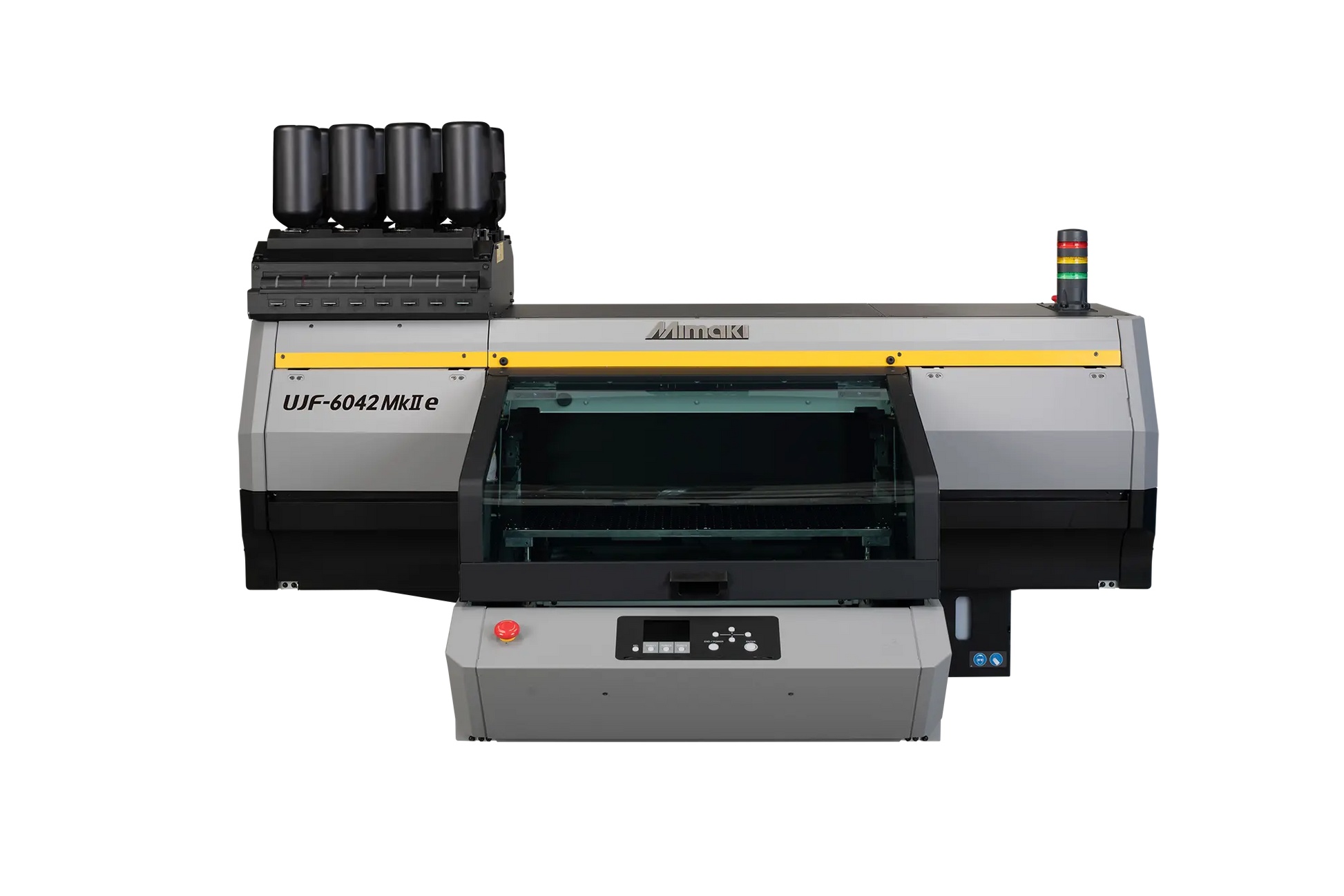

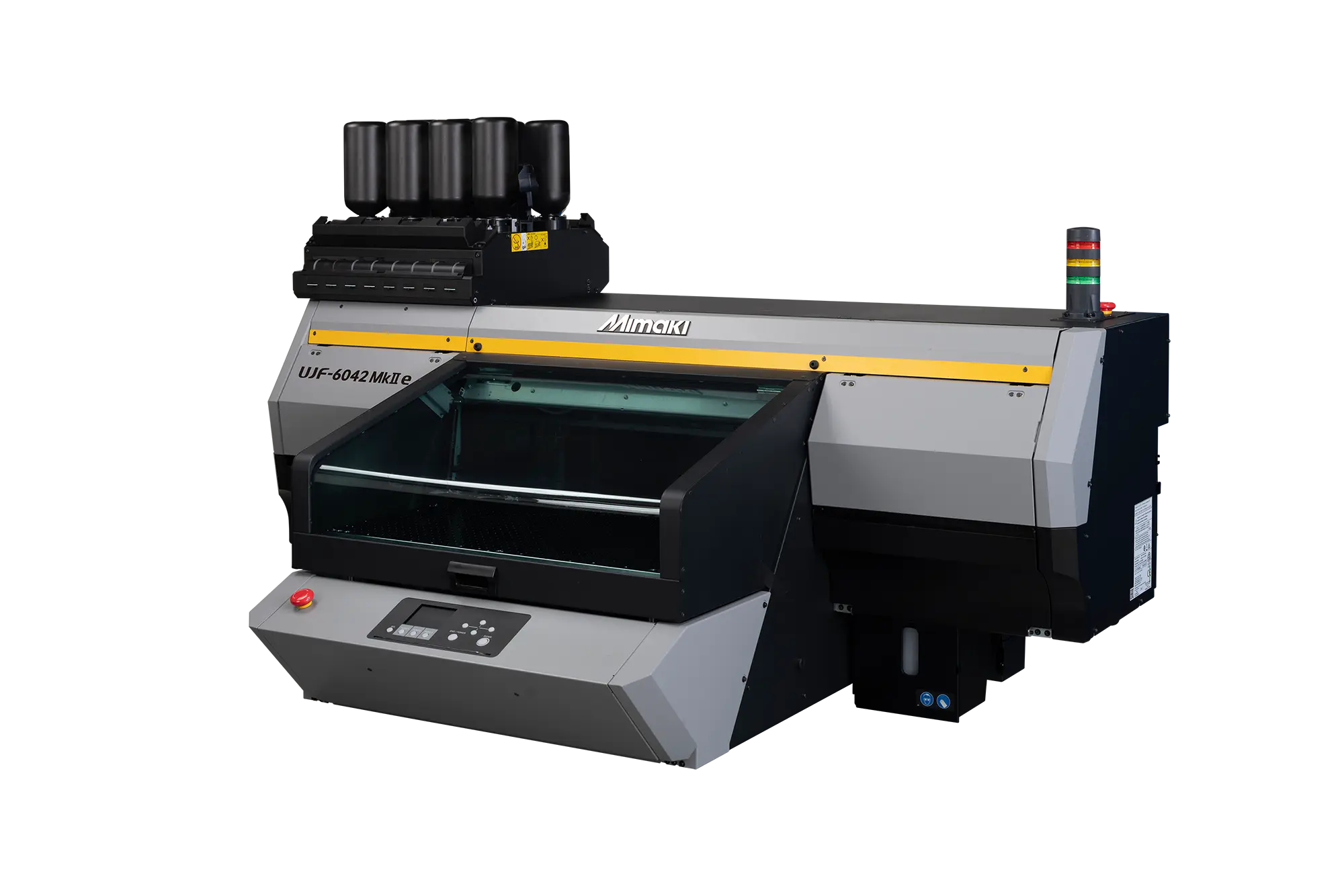

Transform the way you produce custom products with this high-performance tabletop flatbed printer—built to help you print more, faster, and with greater precision than ever before. Whether you're creating promotional items, awards, signage, or one-of-a-kind personalized goods, this printer gives you the flexibility to say "yes" to more customer requests—and grow your business.
With a spacious 16.5" x 24" print area and the ability to print on objects up to 6" thick, you can take on a wide variety of jobs without limitations. From flat substrates to dimensional items, this machine is your all-in-one solution for high-margin customization.
Designed for productivity, the staggered printhead technology allows you to print multiple layers—including color and spot finishes—simultaneously, reducing turnaround times and increasing output. And with 2.5D textured printing capabilities, you can create premium, tactile finishes that command higher prices and set your products apart from the competition.
Reliability is built in. Enhanced automatic maintenance features keep your printer running smoothly, while the enclosed print area protects your work from dust and environmental interference—so you can deliver consistent, professional-quality results every time.
Not only is it powerful—it's also environmentally responsible. Using low-VOC, GREENGUARD Gold certified UV-LED inks, you can confidently operate in a variety of environments while reducing your environmental impact.

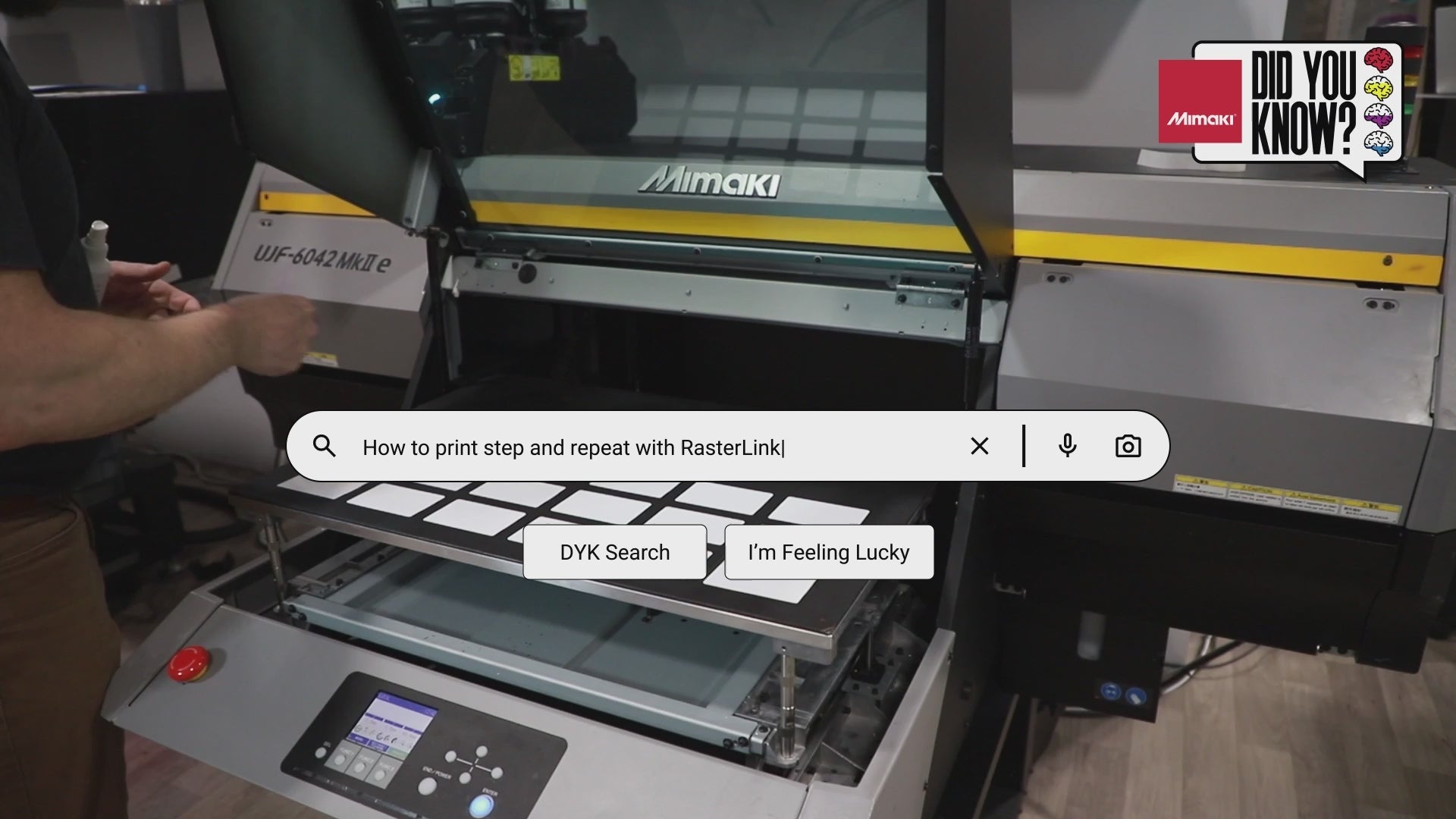

Plus, with included RasterLink7 RIP software and MDL automation support, you can streamline your workflow, reduce manual steps, and scale your production with ease. Pair it with a desktop 3D printer to create custom jigs and fixtures, unlocking even more efficiency and creative potential.
Why This Printer Stands Out:
This isn't just a printer—it's a business growth engine.
Specifications
| Printhead | Four on-demand piezo heads in a staggered array |
| Print resolution | Maximum: 1200 x 1200 dpi |
| Print speed | UJF-6042 MkII e – as many as 468 objects per hour* |
| Maximum print area | 23.6" x 16.5" (600 x 420 mm) |
| Maximum thickness | up to 6.02" (153 mm) |
| Maximum media weight | 17.1 lbs. (8.0 kg) |
| Ink Type/Color |
LH-100 UV: C, M, Y, K, Lc, Lm, W, Clear LUS-120 UV: C, M, Y, K, Lc, Lm, W, Clear LUS-150 UV: C, M, Y, K, W PR-200 UV Primer |
| Ink Package size | 1 liter & 250 ml bottles* standard (*LH-100 & LUS-120 only) |
| Flatbed table |
Single-zone, pin register, jig compatible vacuum table High precision ball screw mechanism assists with accurate table movement |
| Certifications |
VCCI class A / FCC class A / ETL IEC 62368-1 CE Marking (EMC, Low voltage, Machinery directive, and RoHS) CB / REACH / Energy Star / EAC / RCM |
| Interface | Ethernet 1000BASE-T USB2.0 Hi-speed |
| Power supply | Single-phase AC100-240V, ±10%, 50/60Hz ±1Hz |
| Operational environment |
Temperature 68° – 86° F (20–30° C) Humidity: 35–65 % RH (Non condensing) |
| Dimensions (W x D x H) | 65.6" x 50.8" x 33.7" (166.6 x 129 x 85.6 cm) |
| Weight | 330.7 lbs. (150 kg) |
