Graphtec CE8000 Vinyl Cutter

From $1,395.00

Graphtec CE8000 Vinyl Cutter

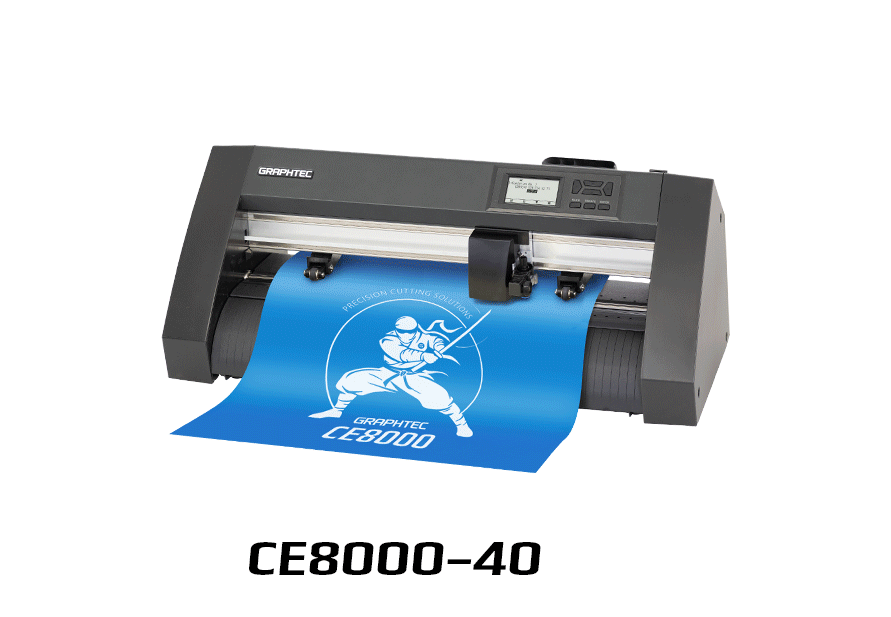

CE8000-40
$1,395.00
$1,395.00

The Graphtec CE8000 Series is a professional-grade roll-fed cutting plotter line engineered to deliver exceptional precision, speed, and reliability for signage, apparel decoration, print-and-cut graphics, labels, decals, and industrial cutting applications. Designed for production environments that demand accuracy and workflow efficiency, the CE8000 Series combines advanced cutting technology with intuitive operation to support a wide range of materials including vinyl, heat transfer film, reflective media, cardstock, paint mask, and specialty films.

Equipped with Graphtec’s renowned ARMS (Advanced Registration Mark Sensing) technology, the CE8000 Series provides highly accurate contour cutting for printed graphics, automatically compensating for skew and distortion to ensure precise alignment across long production runs. Enhanced connectivity options including USB, Ethernet, and wireless LAN support flexible workflow integration, while Graphtec Studio 2 and Cutting Master plug-ins offer seamless compatibility with Adobe Illustrator and CorelDRAW.

The CE8000 Series also features improved media handling, barcode data management, offline cutting capability via USB flash drive, and advanced tangential emulation for clean, sharp corners and intricate detail cutting. Available in multiple widths, the CE8000 is built to support both small businesses and high-volume production environments with dependable performance and consistent output quality.

The CE8000-130AP 50" Apparel Pattern Cutter model is specifically designed for the apparel and textile industry, offering precision cutting for paper patterns, marker production, and template creation. Optimized for fashion design and garment manufacturing workflows, the CE8000AP provides smooth, accurate cutting on lightweight pattern materials while improving production speed and reducing manual trimming processes. Its specialized configuration makes it an ideal solution for apparel manufacturers, designers, and textile production facilities seeking efficient digital pattern cutting capabilities.

The CE8000-130AKZ model is engineered for advanced automotive window tint and paint protection film (PPF) applications. Featuring enhanced media control and optimized cutting performance for thicker and specialty films, the CE8000AKZ is designed to deliver highly accurate cuts for complex vehicle patterns and high-detail installations. Its precision tracking, clean cutting performance, and compatibility with automotive design software make it a powerful solution for tint shops, vehicle wrap professionals, and automotive aftermarket production environments seeking reliable, repeatable results.

New Feature Highlights:

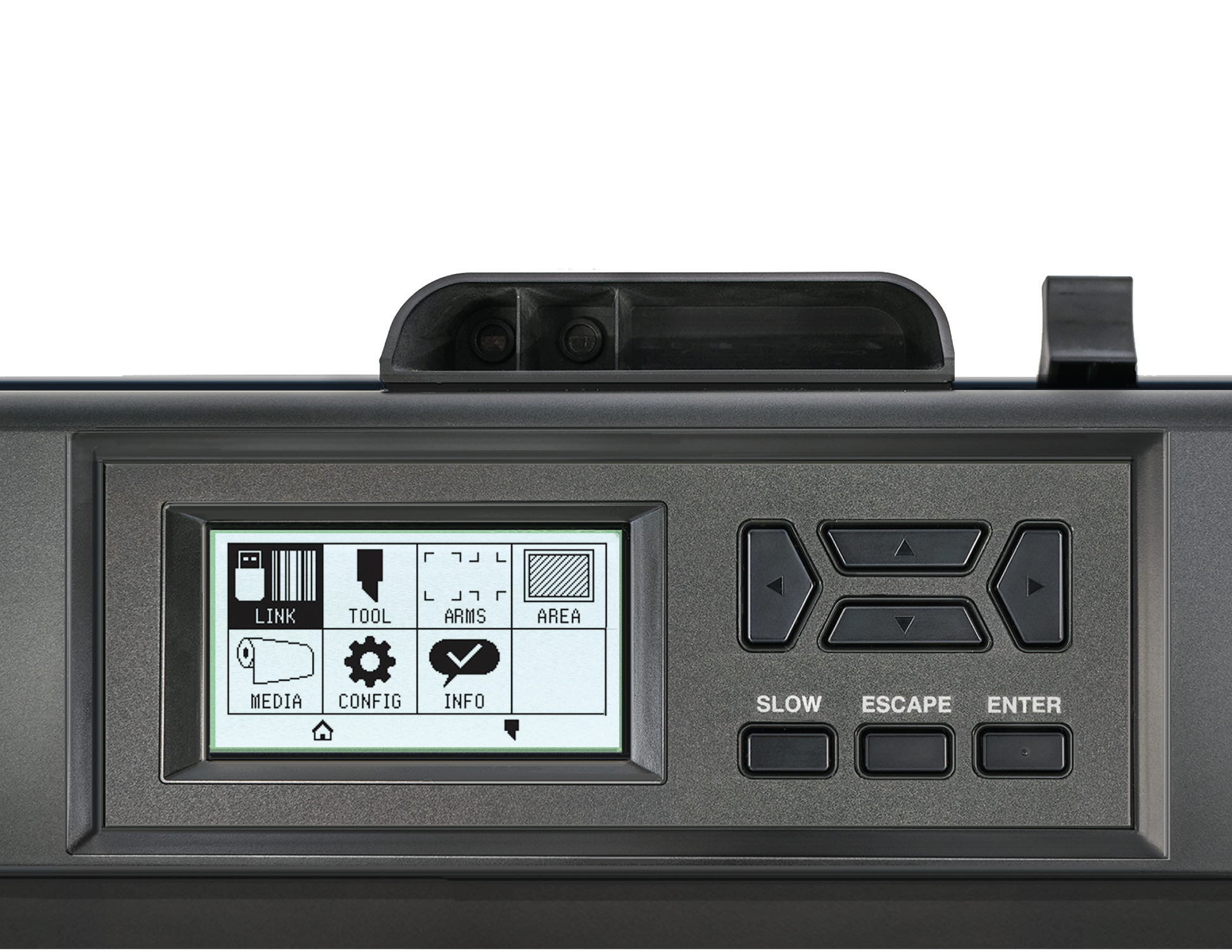

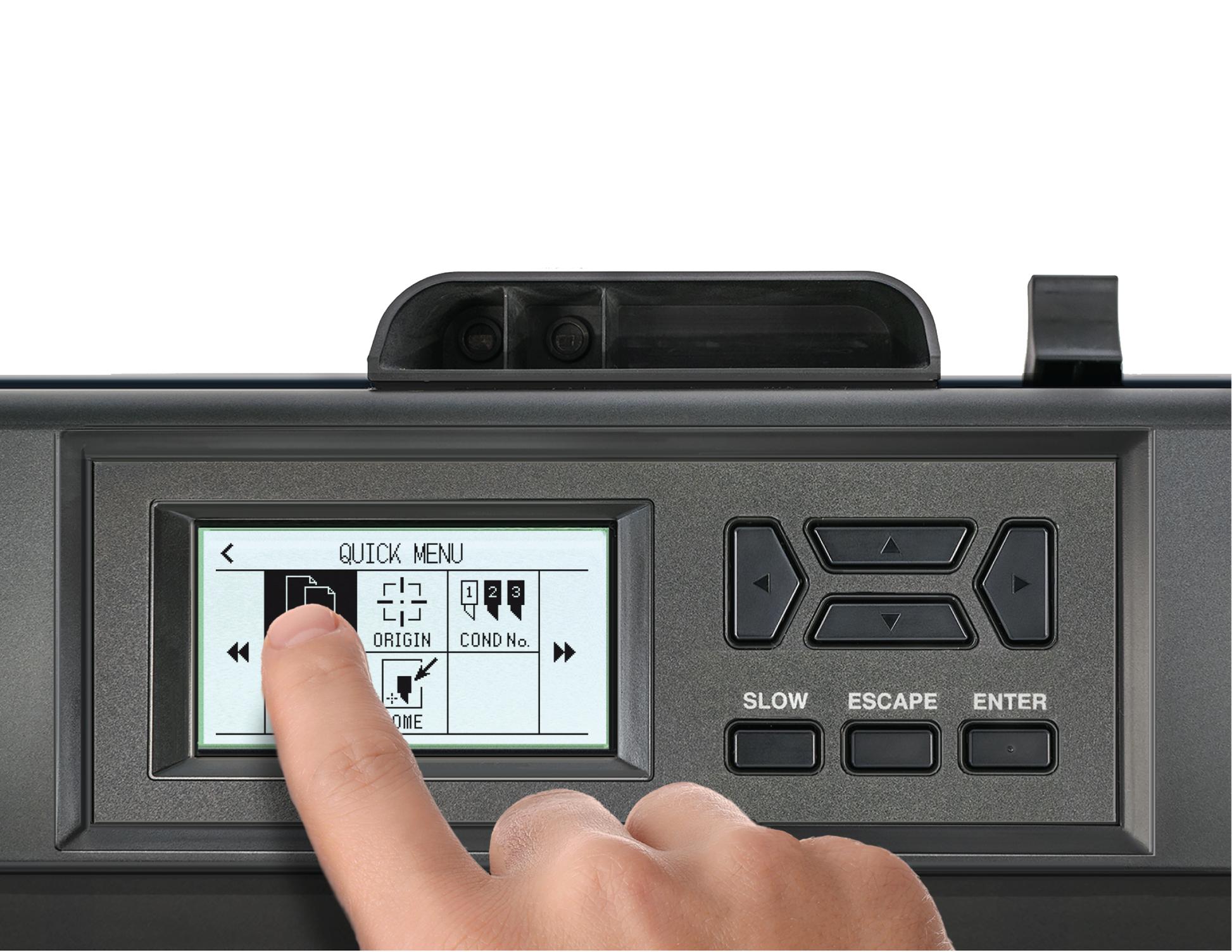

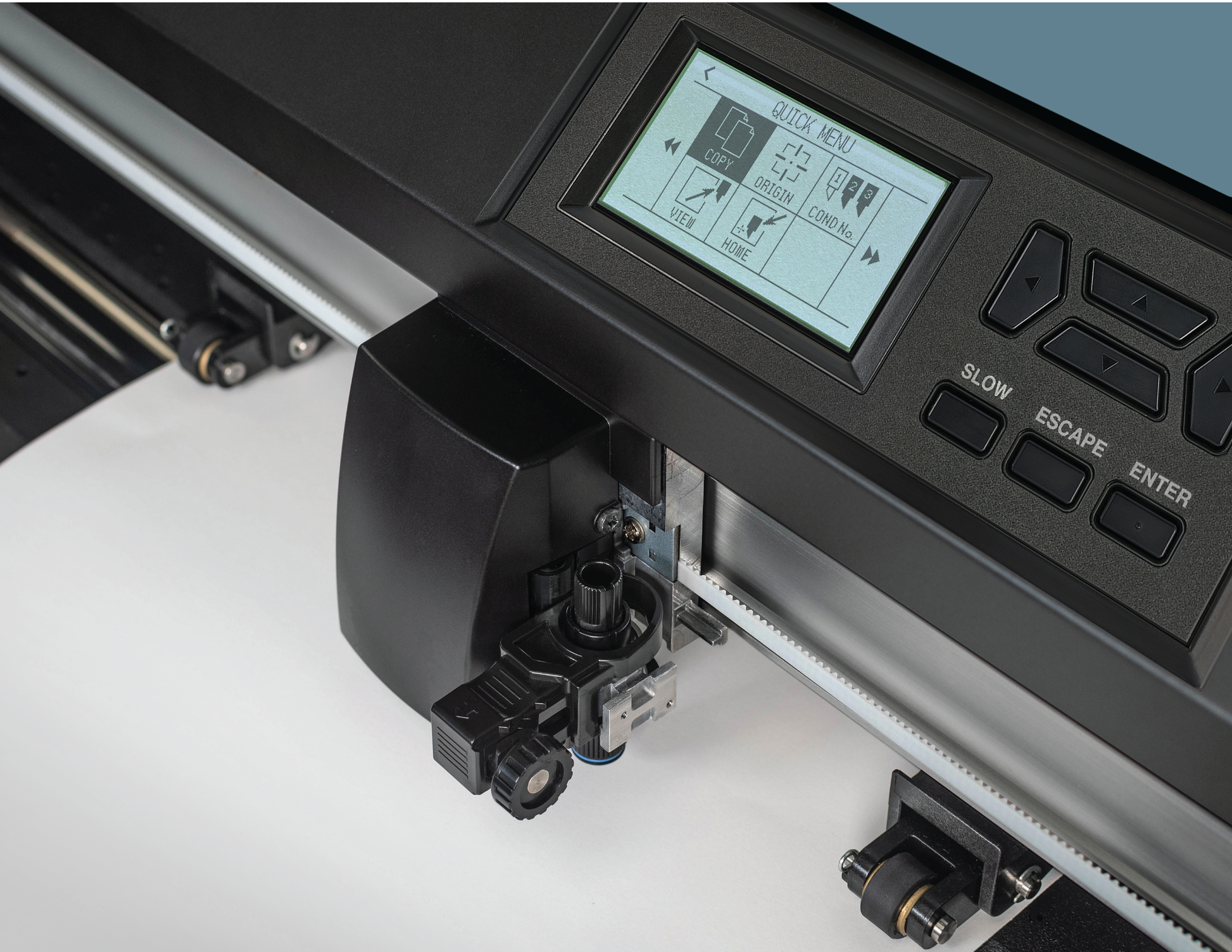

  • A NEW TOUCH PANEL with MECHANICAL KEYS
    gives users more flexibility with it’s Blind Touch Operation enabling the operator to continually keep eyes on media while feeding.

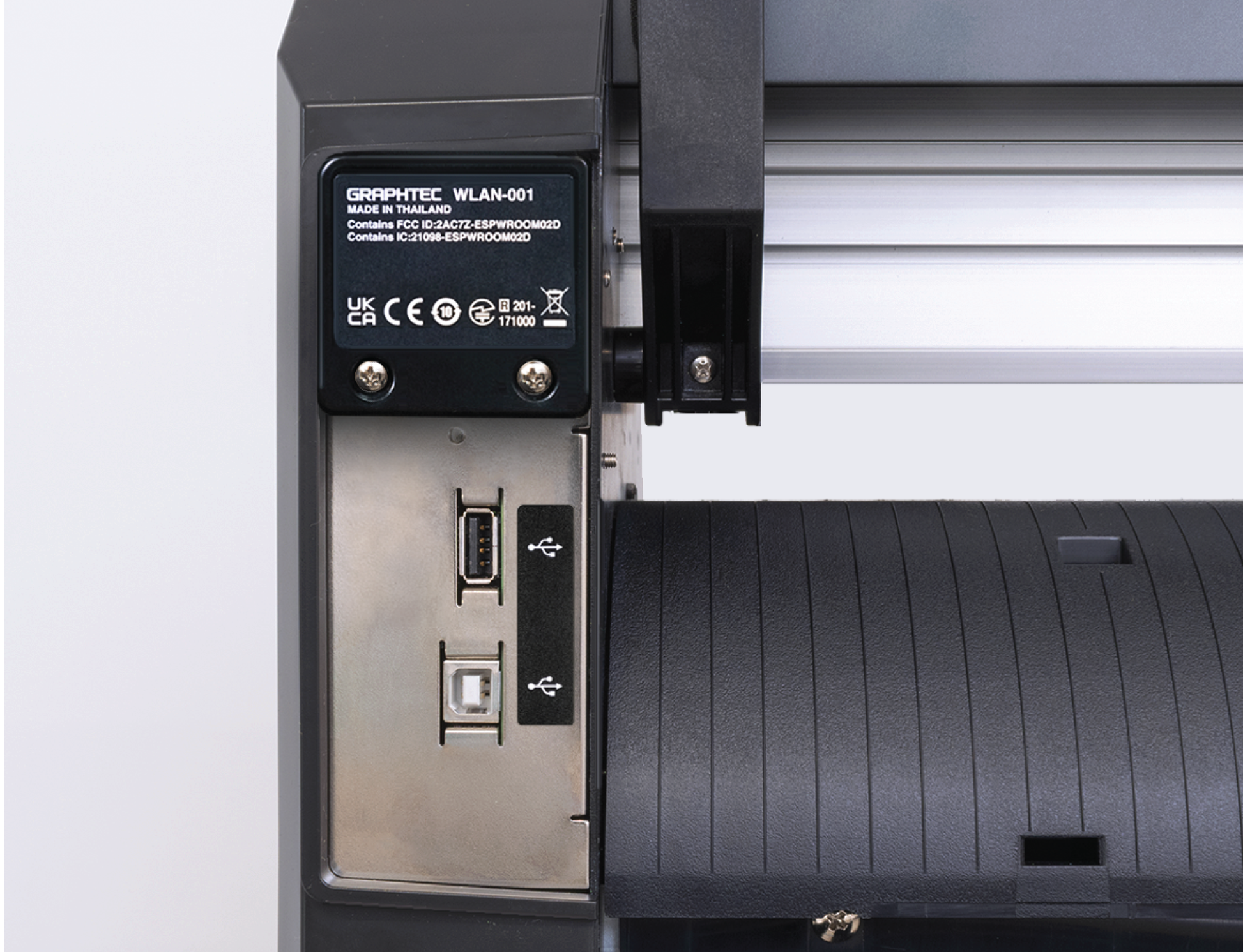

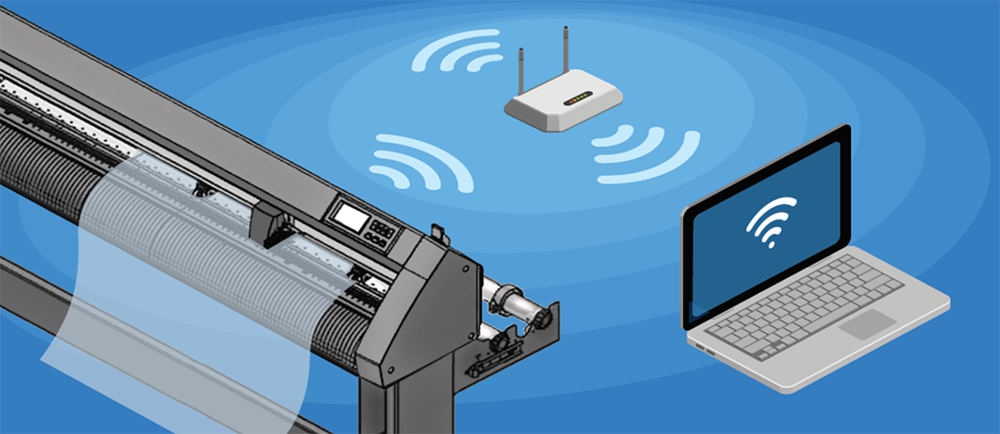

  • NEW (OPTIONAL) Wireless LAN:
    The CE8000 includes a (OPTIONAL) wireless LAN connection option which improves flexibility of installation locations.

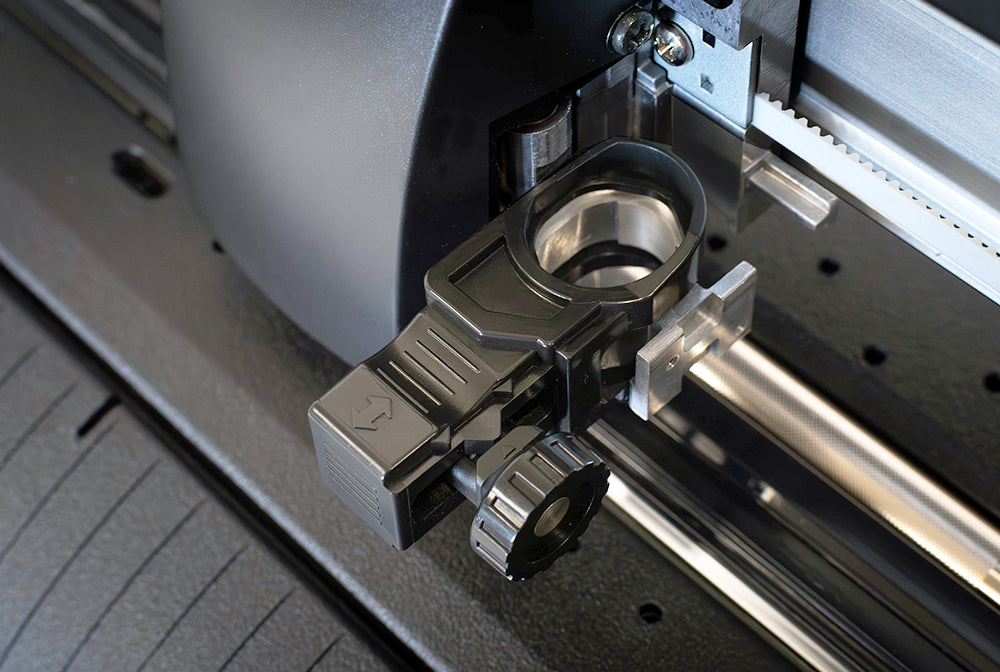

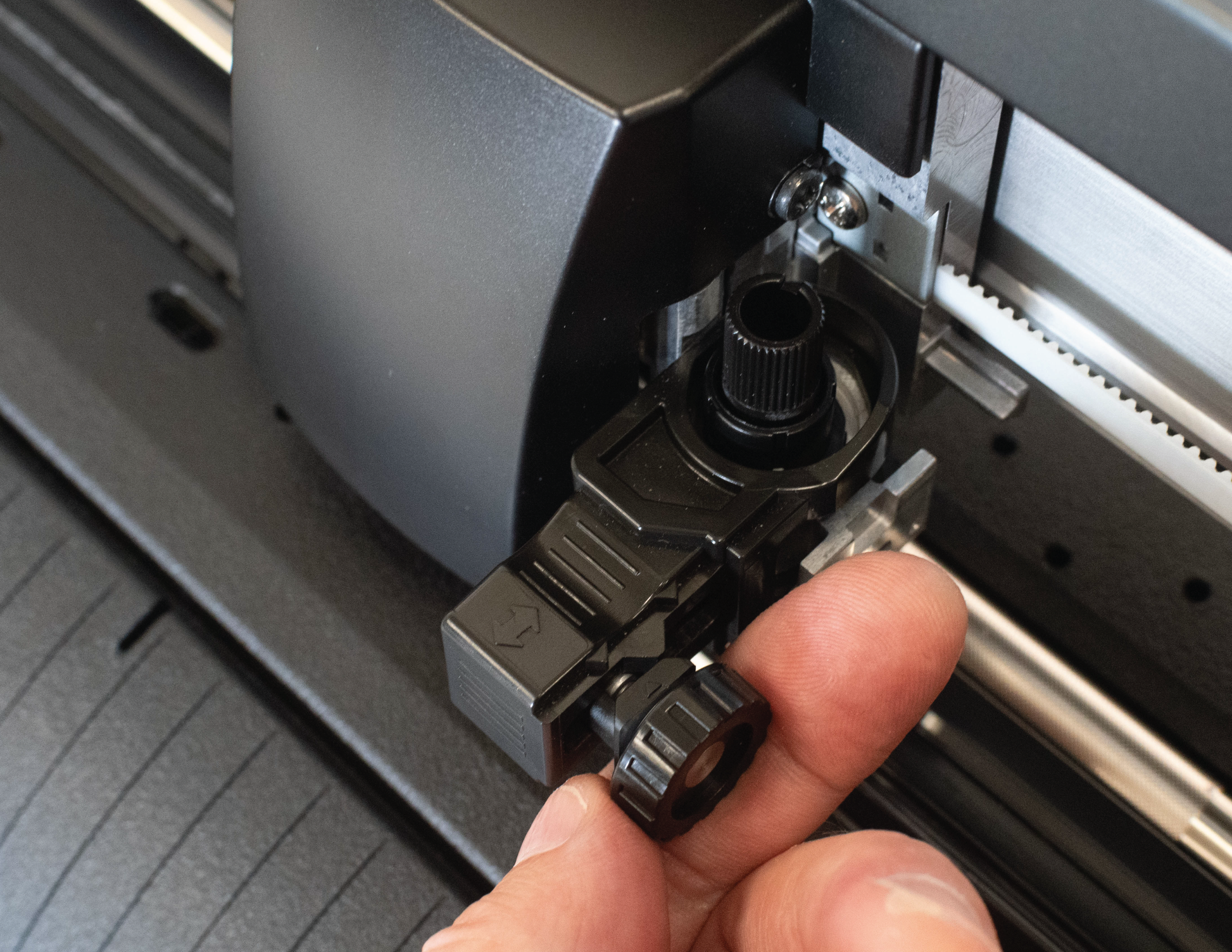

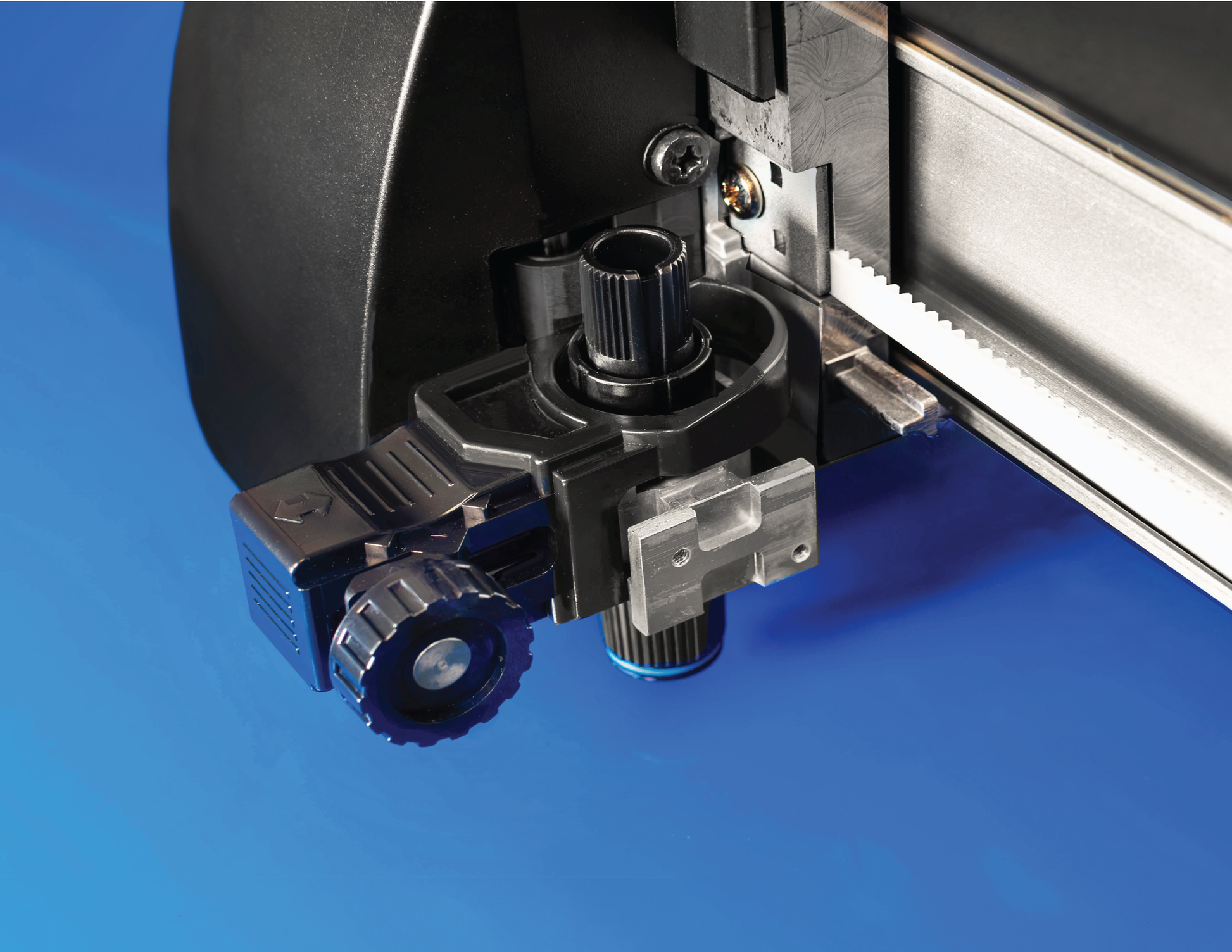

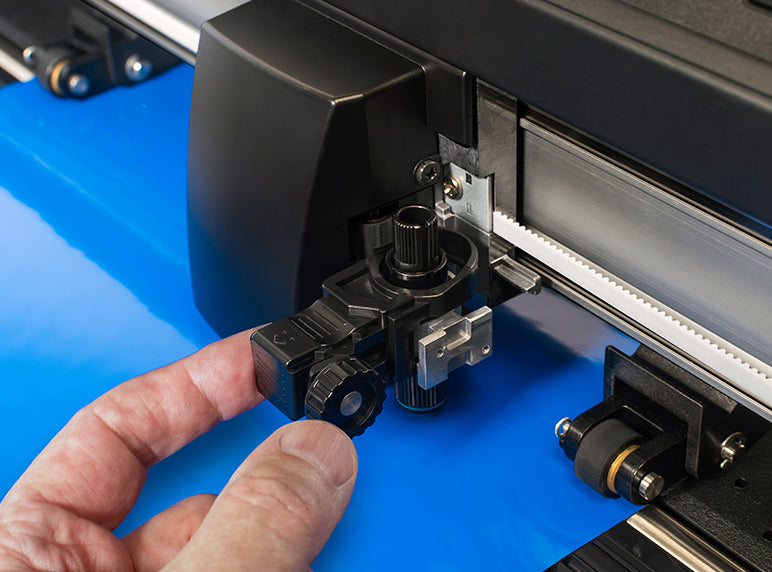

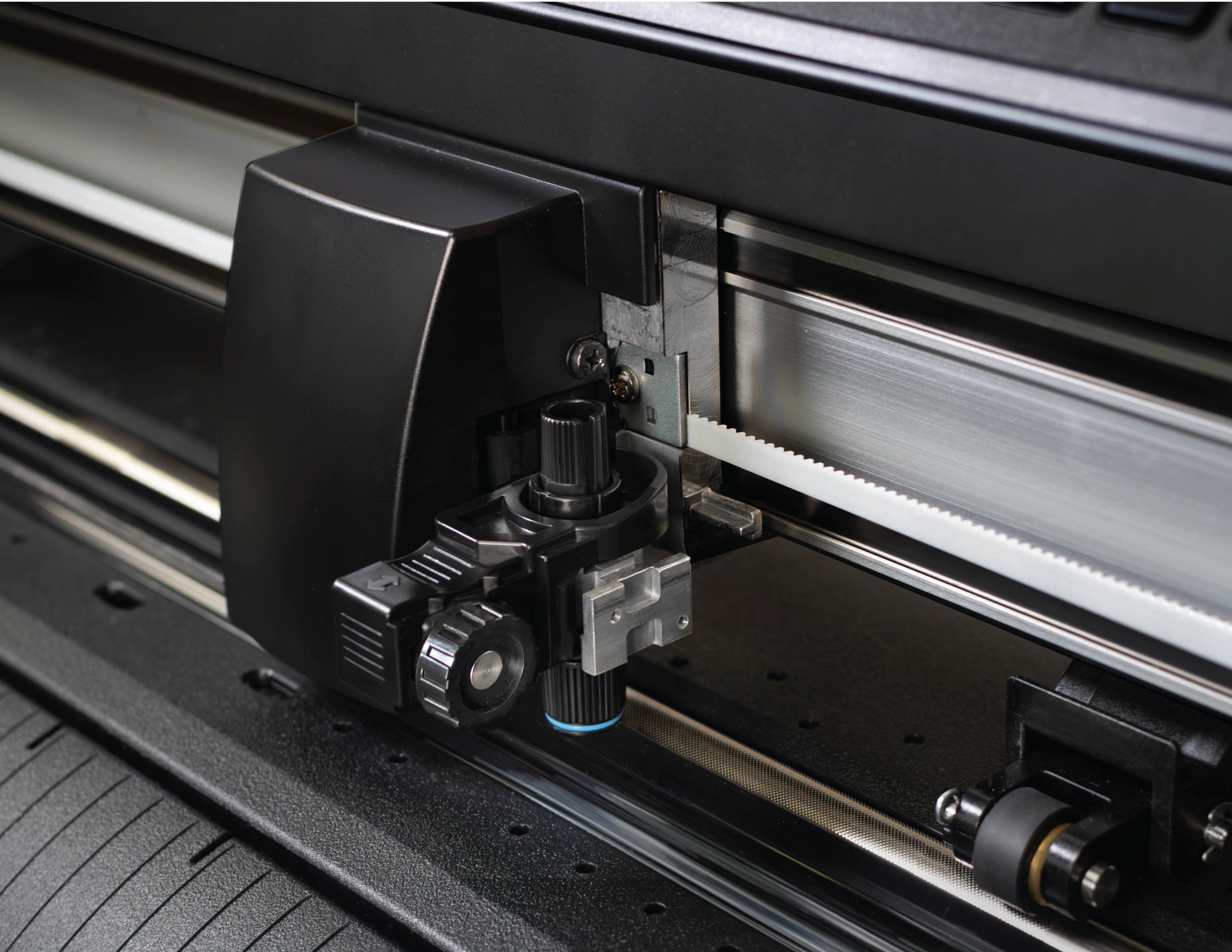

  • NEW Tool Holder:
    Improved design makes it easier to change tools and blade position by sliding the stopper forward and back.
  • Pressure Adjustable Push Rollers along with newly developed Media Set Assist Function help to hold your media stable and prevent feeding problems.
  • EMAIL NOTIFICATION:
    Completion and Error Notifications can be sent to to users by e-mail
  • NEW FAN MEDIA ASSIST
    The CE8000 internal fan automatically turns on as sensors recognize media to support feeding

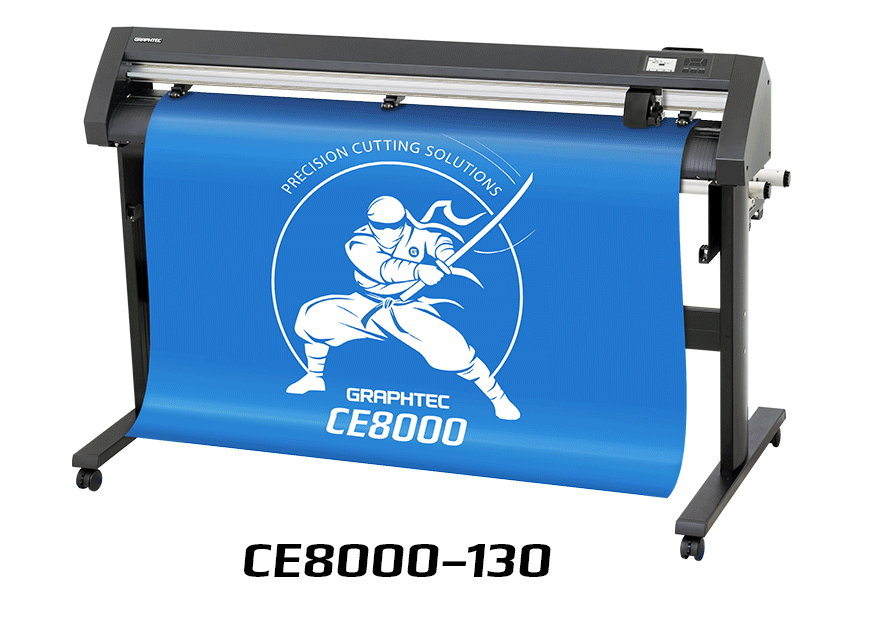

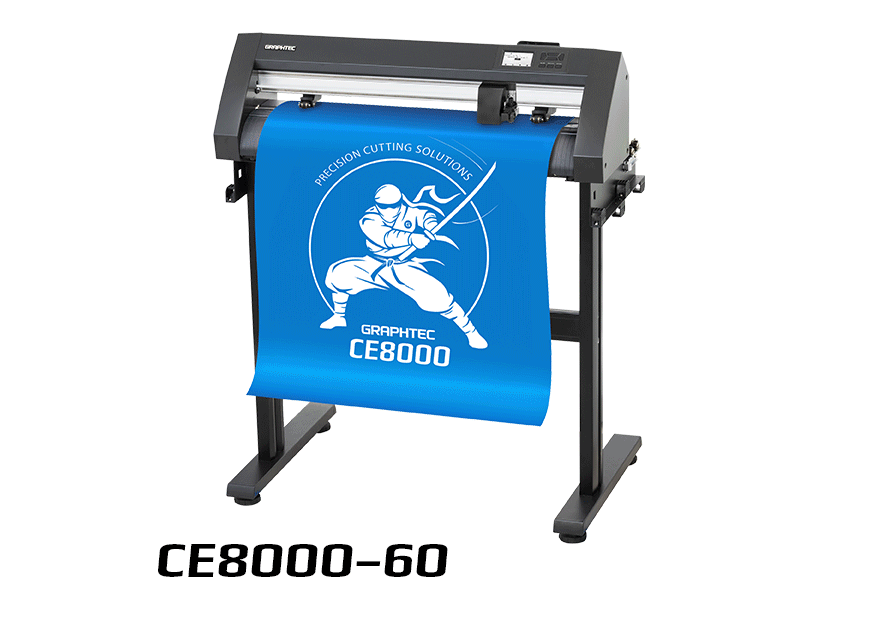

Specification CE8000-40 CE8000-60 CE8000-130
Configuration Grit roller with digital servo drive system

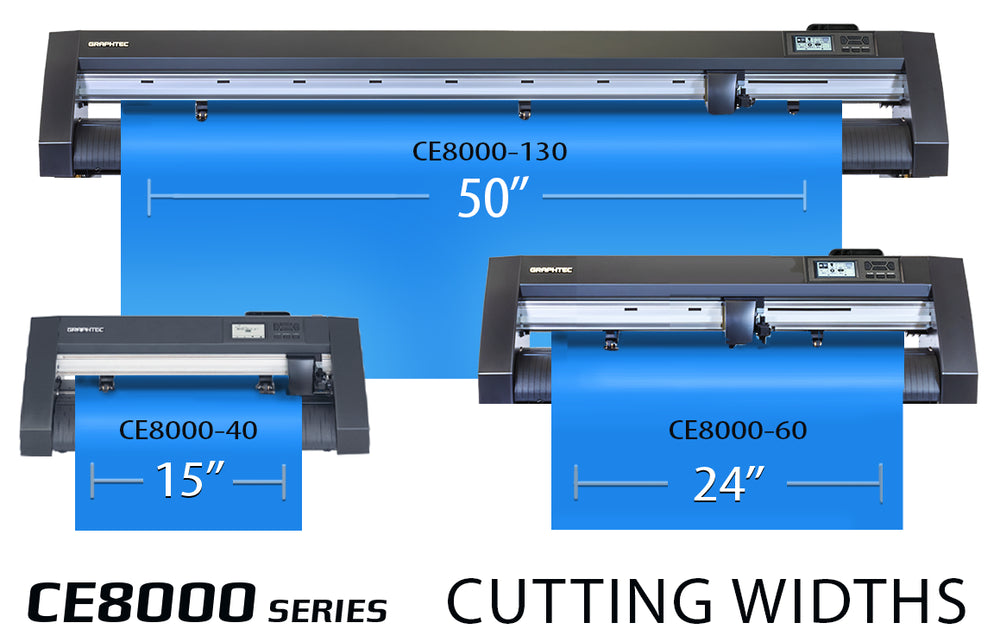

Maximum Cutting Area (W × L) 15" × 164' 24" × 164' 50" × 164'
Cutting Area of Guaranteed Accuracy 14" × 79" 23" × 79" / 23" × 16.4' *1 *2 50" × 79" / 49" × 16.4' *1 *2
Mountable Media Width 2" – 19" 2" – 30" 2" – 54"
Number of Push Rollers 2 rollers 3 rollers
Maximum Cutting Speed 24"/s, in all directions 36"/s, at 45° direction 39"/s, at 45° direction
Maximum Acceleration Max. 21.2 m/s² (2.2G) at 45° direction 45.60' (13.9 m/s²) at 45° direction
Maximum Cutting Force 4.41 N (450 gf)
Minimum Character Size Approx. 5 mm (0.016") alphanumeric (depending on character font and type of media)
Programmable Resolution GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm  |  HP-GL™: 0.025 mm
Repeatability Max. 0.1 mm in plot up to 2 m (*1)
Mountable Number of Tools 1 tool
Blade Type Supersteel
Pen Type Oil-based ballpoint, Water-based fiber-tip pen
Media Type Self-adhesive marking film (vinyl, fluorescent, reflective) excluding high-intensity reflective film, up to 25 mil (.63 mm); Stencil material
Interface USB 2.0 (Full Speed)  |  Ethernet 10BASE-T/100BASE-TX  |  Wireless LAN IEEE 802.11b/g/n (optional) *5
Buffer Memory 2 MB
Command Sets GP-GL / HP-GL™ (set by command or auto-detect)
Display Touch Panel Screen (240 × 128 dot), supports 10 languages
Registration Mark Sensing System Optical sensor (ARMS 8.0); Segment area and multiple marks compensation; 4-point axis alignment; Auto mark detection
Alignment Accuracy Maximum 0.3 mm with printed image (when reading specified registration marks)
Power Source 100–120 V / 200–240 V AC (auto-switch), 50/60 Hz
Power Consumption 120 VA
Operating Environment 10–35 °C, 35–75% R.H. (non-condensing)
Guaranteed Accuracy Environment 16–32 °C, 35–70% R.H. (non-condensing)
External Dimensions (W × D × H) Approx. 26.65" × 17.76" × 10.5" Approx. 35.5" × 23" × 42.4" Approx. 65" × 32" × 42.3"
Weight (Approx.) 24.25 lbs (11 kg) 46.3 lbs (21 kg) 106 lbs (40 kg)
Compatible OS Windows 11 / 10 / 8.1 (64-bit editions)  |  macOS 10.12 (Sierra) to 13 (Ventura)
Included Software (Download) Graphtec Studio 2, Cutting Master 5 for Windows and Mac
Warranty 2-Year Warranty
Safety Standards PSE, UL/cUL, CE mark
EMC Standards VCCI Class A, FCC Class A, CE mark
