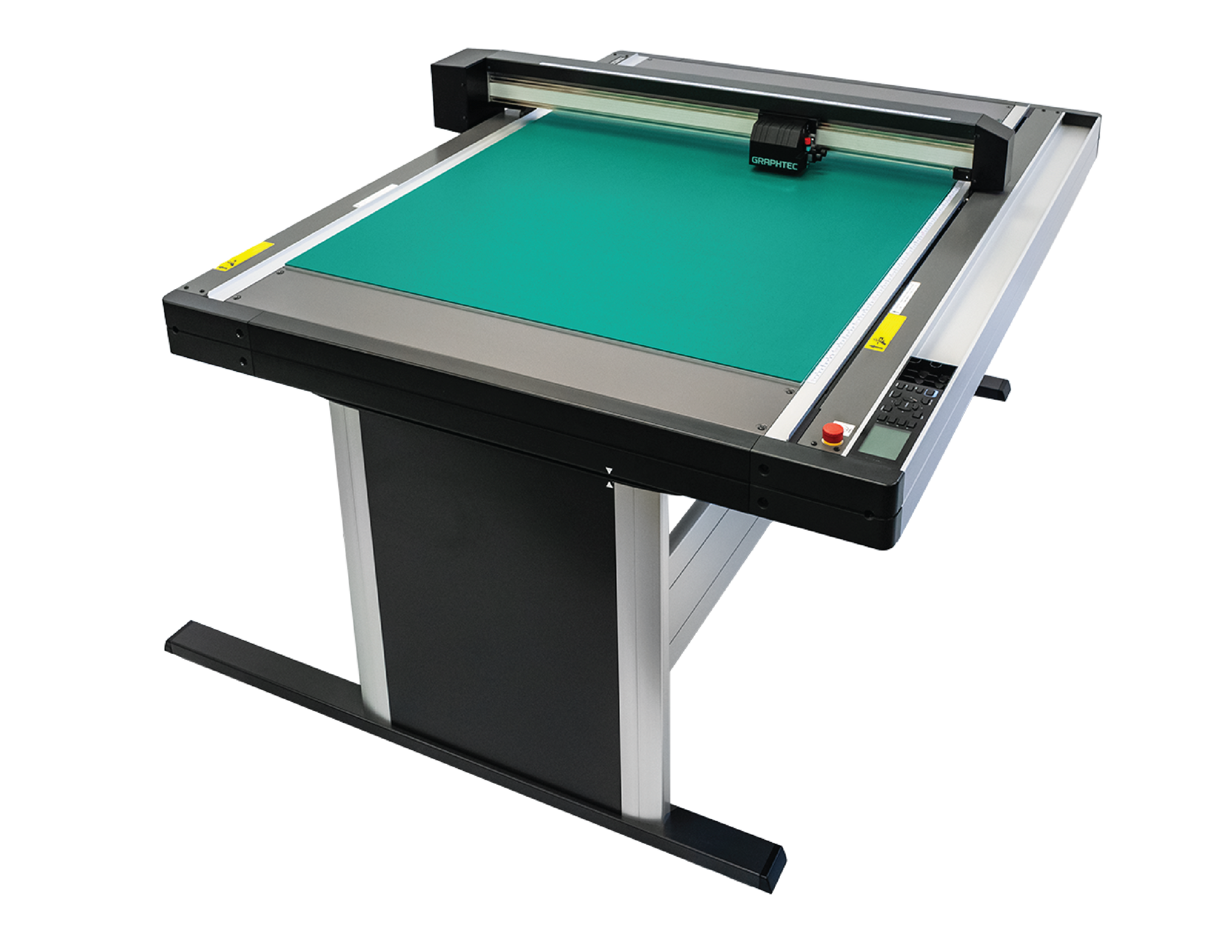

Graphtec FCX2000 Flatbed Cutter

From $14,500.00

Graphtec FCX2000 Flatbed Cutter

FCX2000-60VC
$14,500.00
$14,500.00

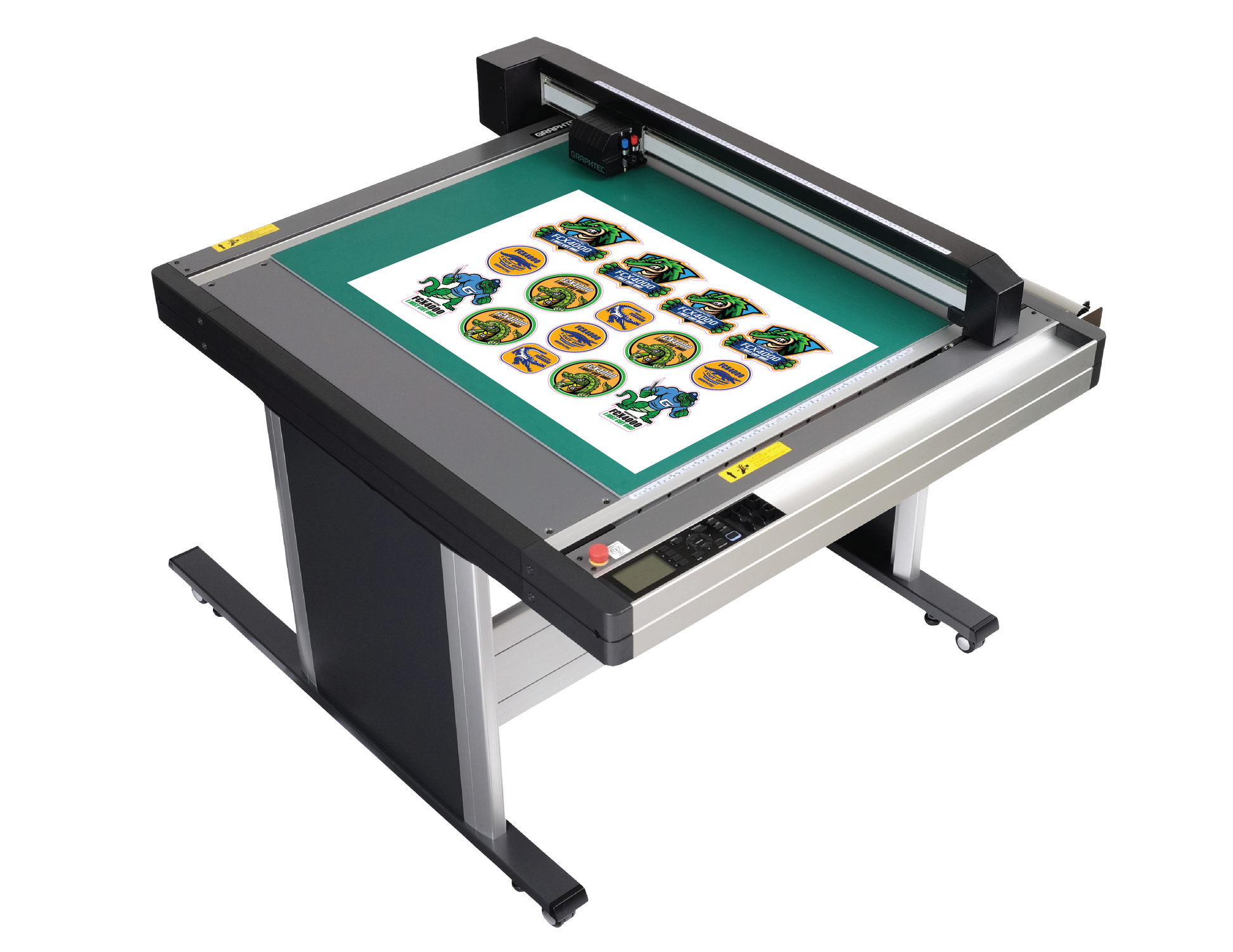

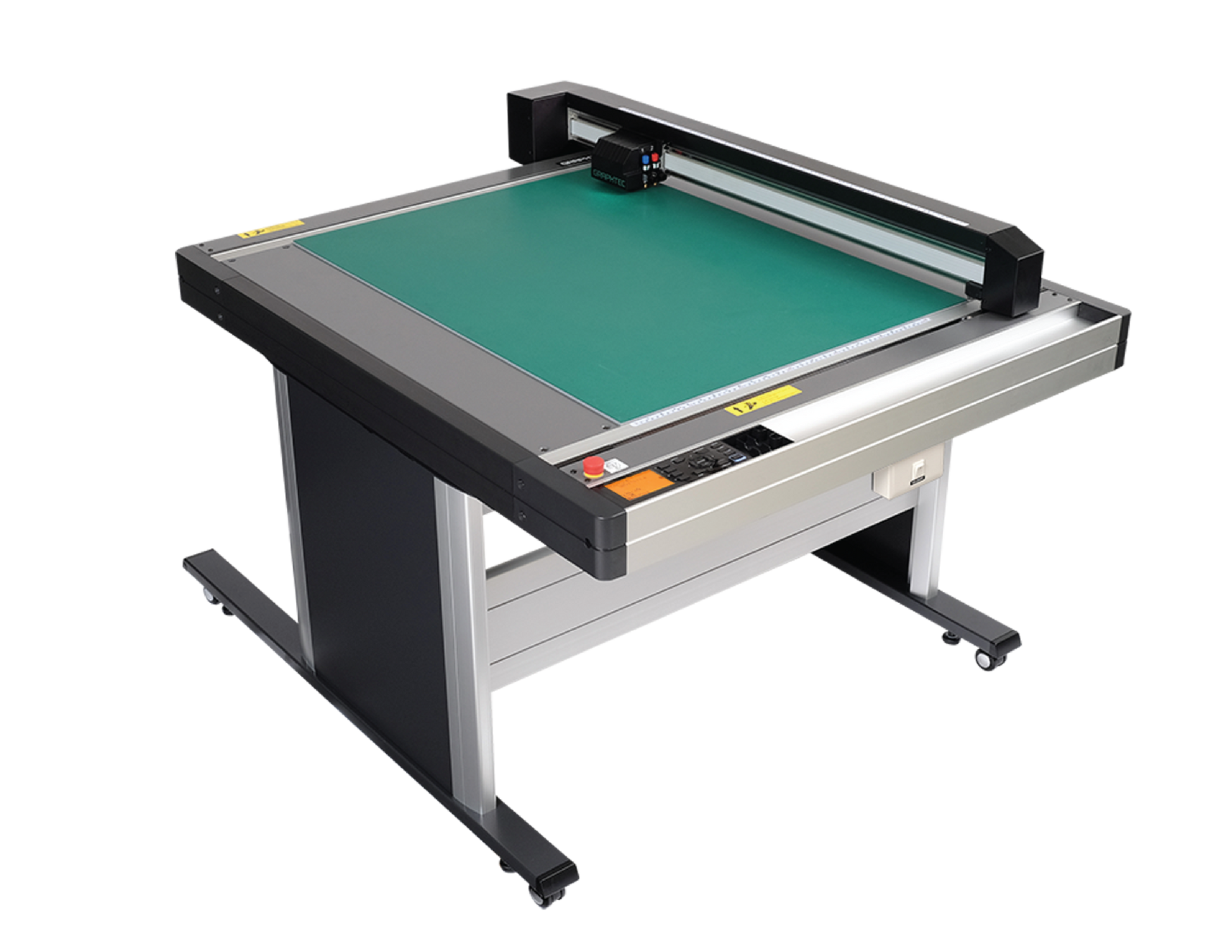

Graphtec FCX2000 VC Flatbed Cutter

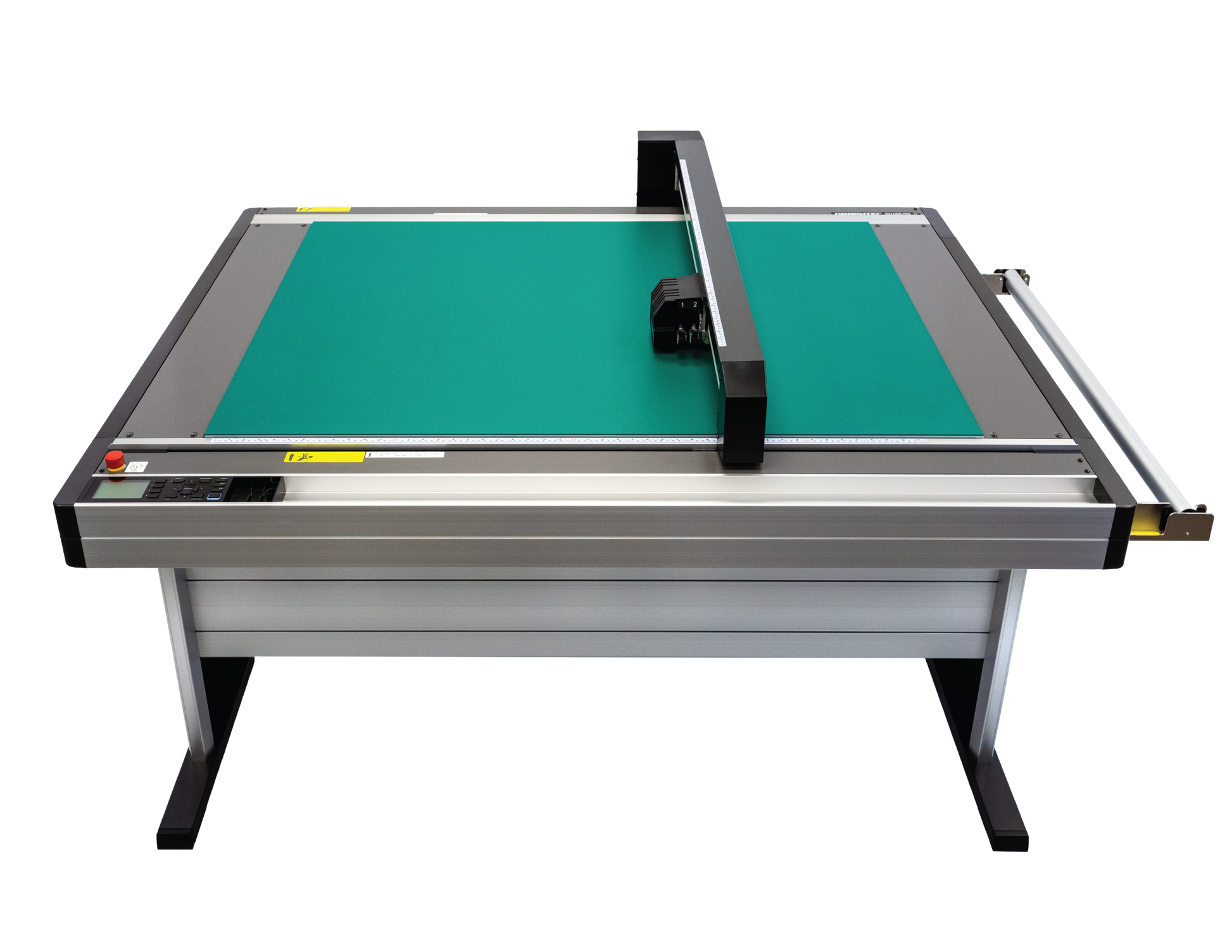

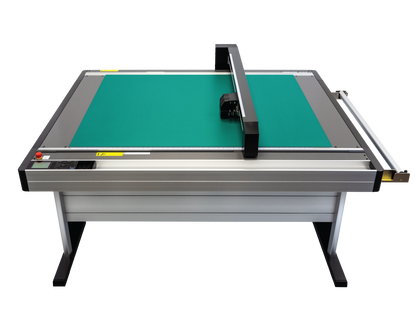

The Graphtec FCX2000 Series is a professional-grade flatbed cutting plotter engineered for precision cutting, creasing, and contour cutting across a wide range of rigid and flexible materials. Designed for packaging prototypes, short-run production, signage, labels, and specialty graphics applications, the FCX2000 delivers exceptional accuracy, speed, and versatility without the need for traditional cutting dies.

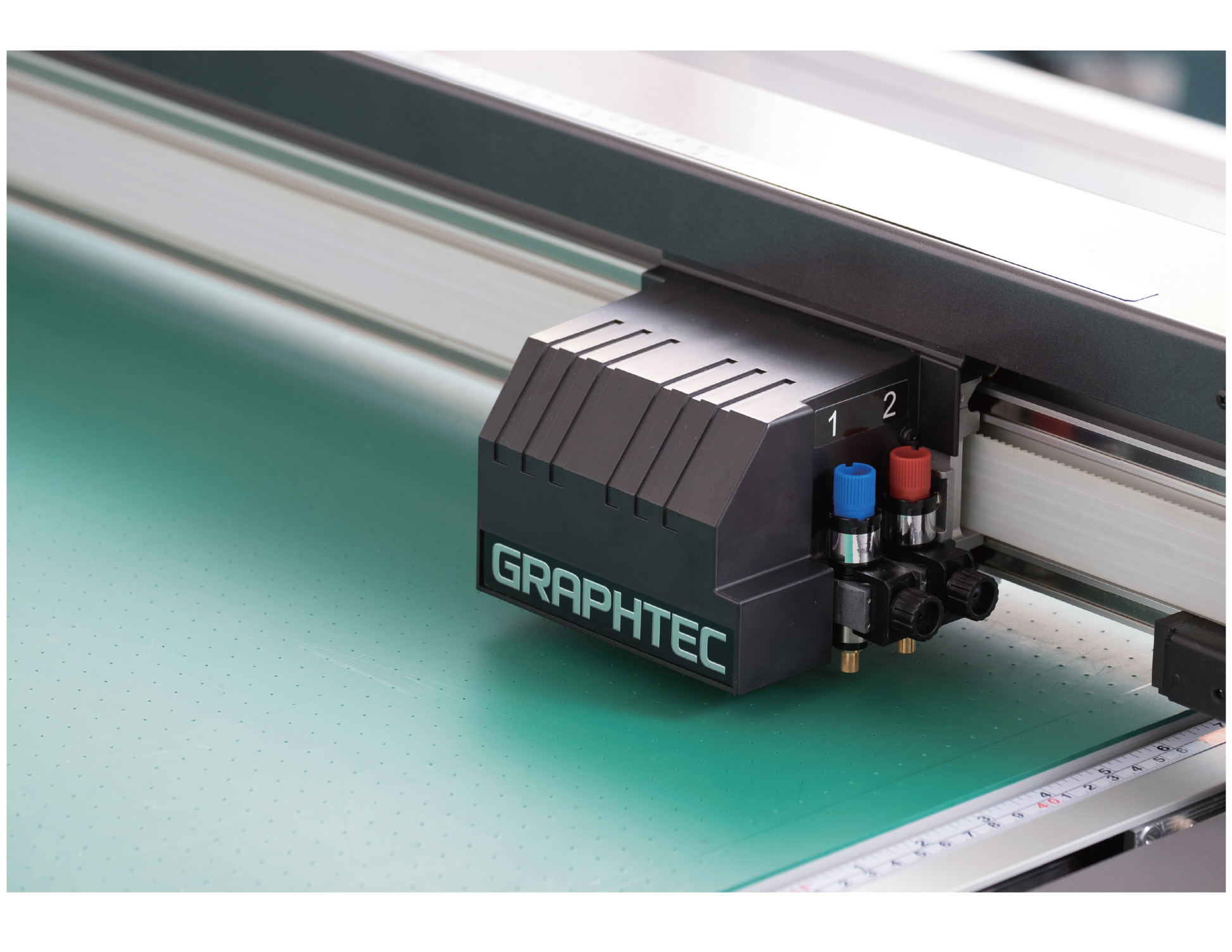

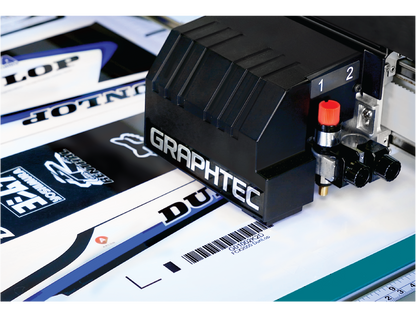

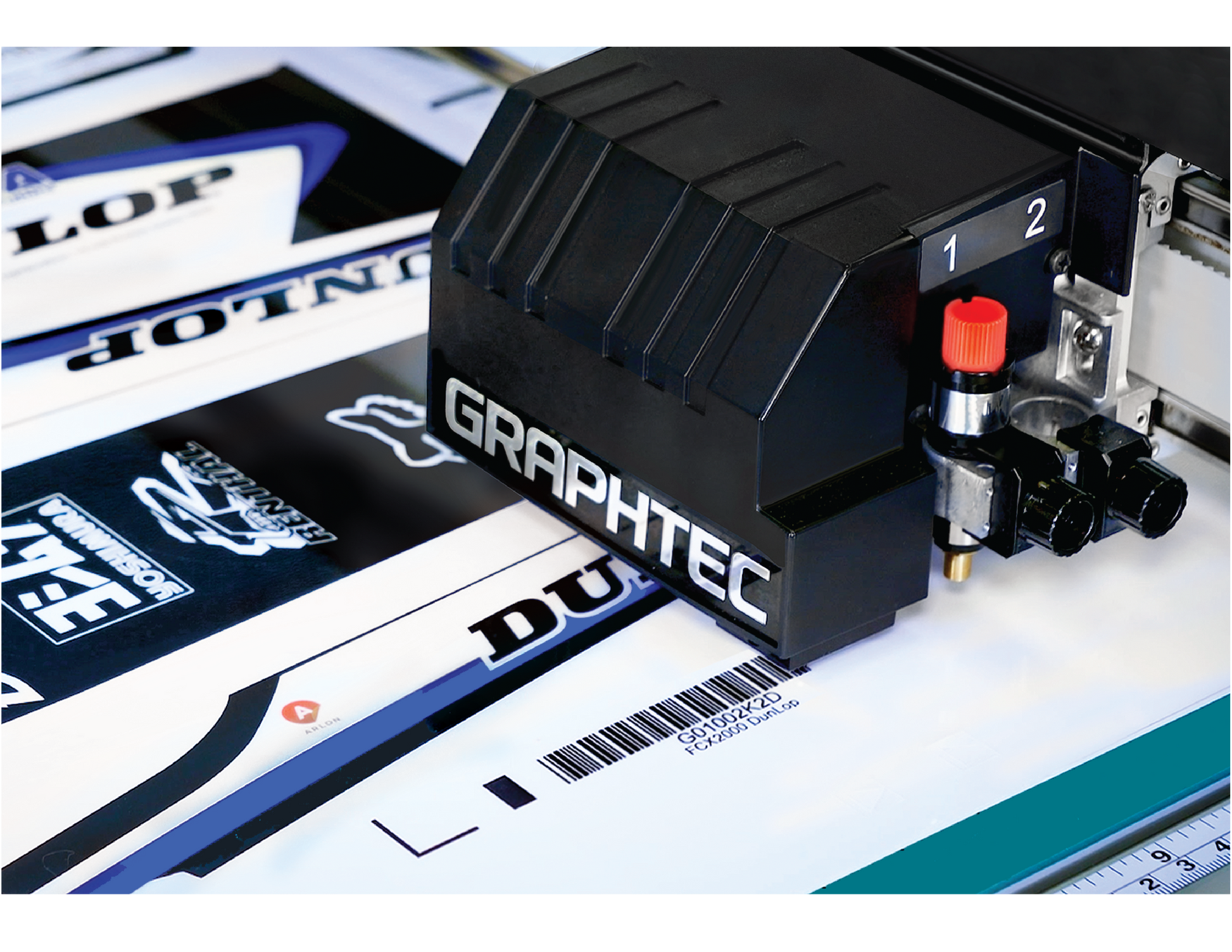

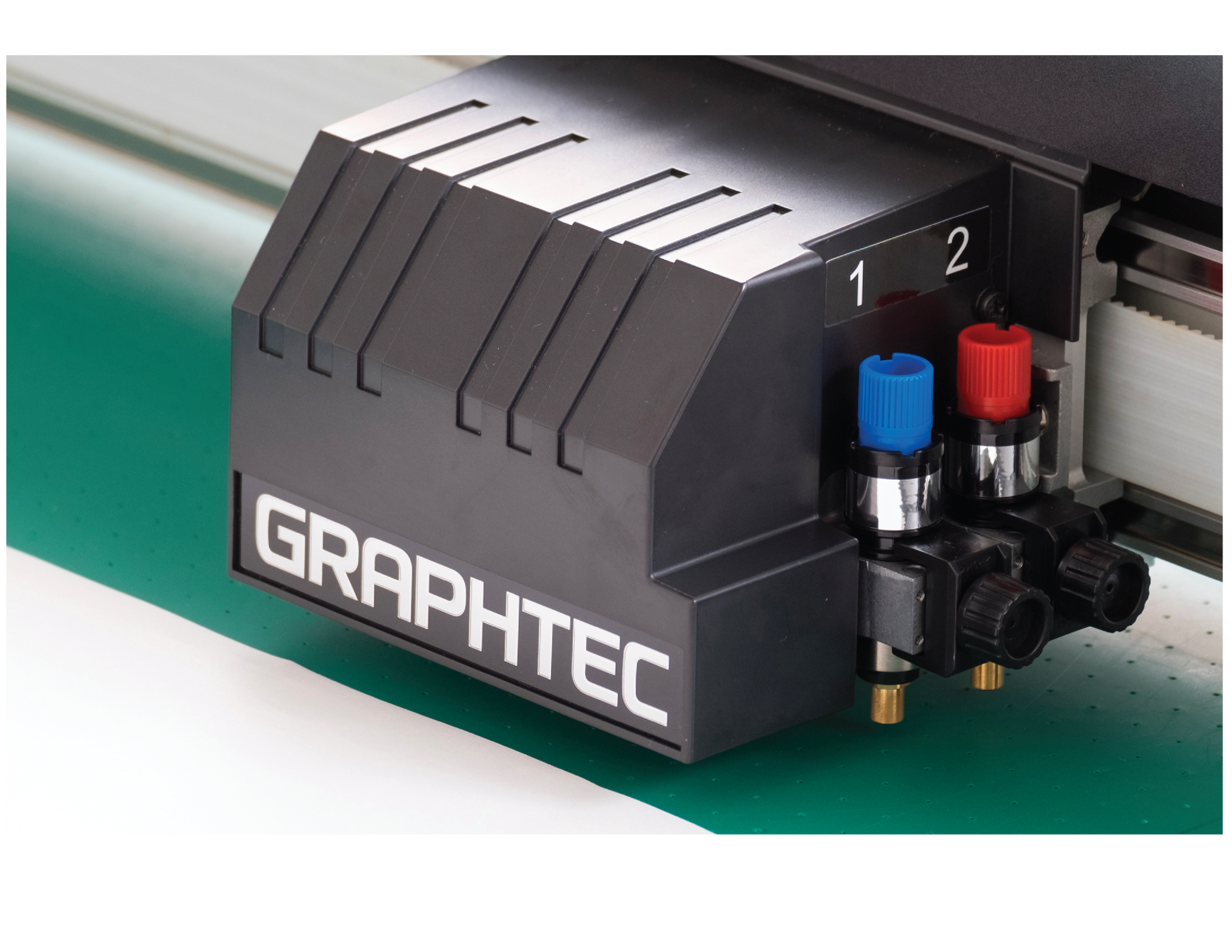

Equipped with Graphtec's advanced ARMS (Advanced Registration Mark Sensing) technology, the FCX2000 ensures precise contour cutting of pre-printed graphics by automatically compensating for distortion in both X and Y directions. Its dual tool head design provides up to 1000gf of cutting force and cutting speeds up to 400mm/s, allowing operators to efficiently process materials such as corrugated cardboard, chipboard, foam board, vinyl, rubber sandblast, reflective film, and more.

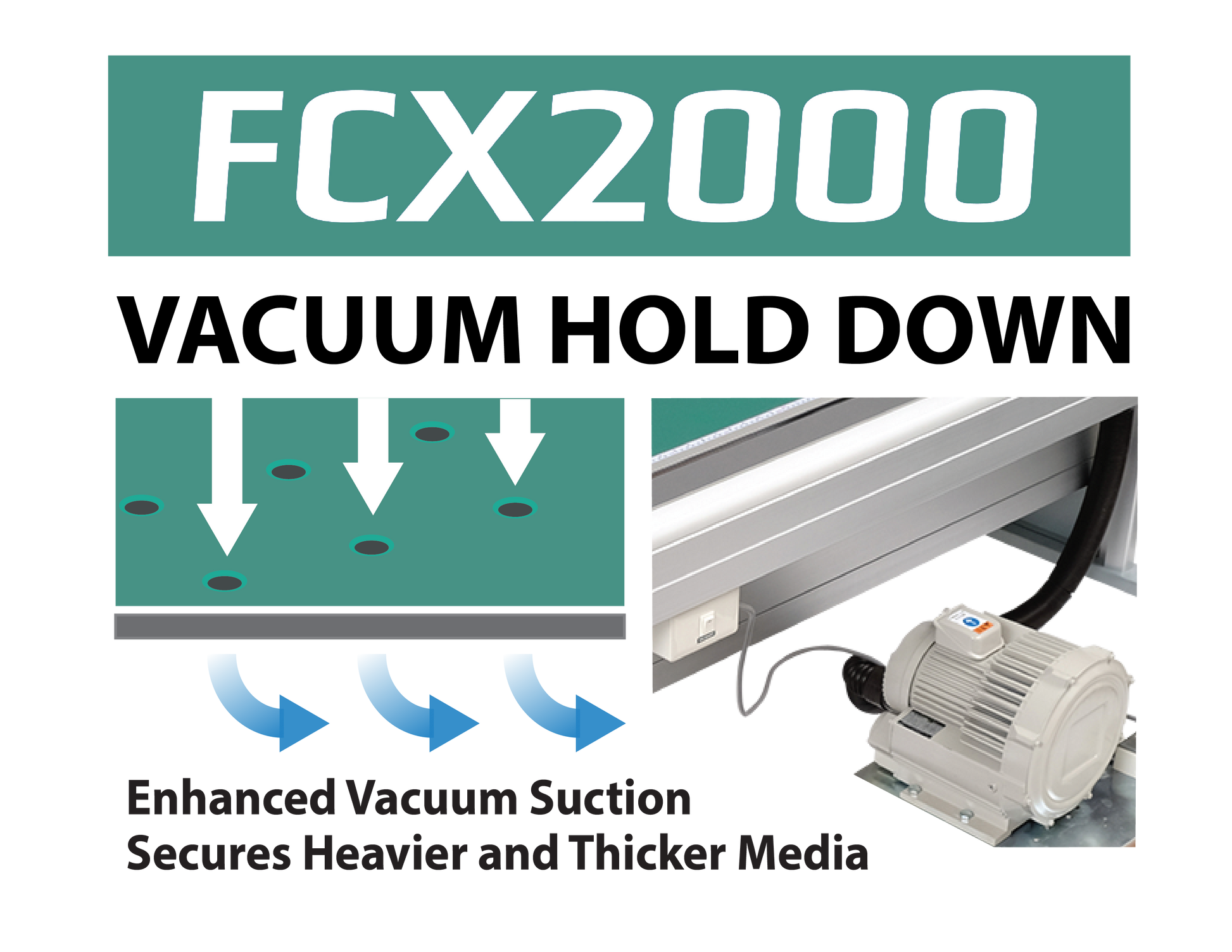

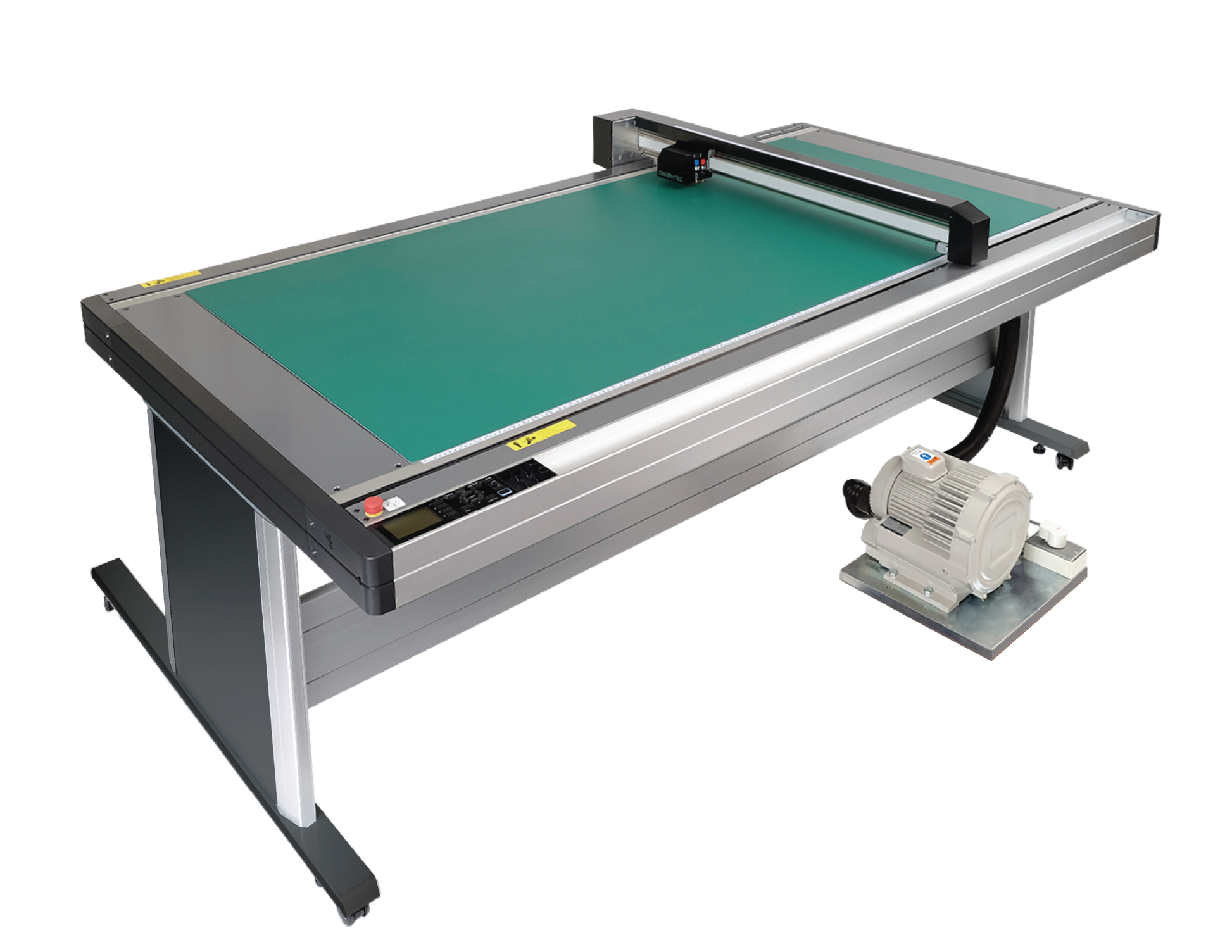

The FCX2000 also features vacuum hold-down capability for enhanced material stability (vacuum pump sold separately), offline USB operation for simplified workflows, and compatibility with Graphtec Studio 2 and Cutting Master plug-in software for seamless integration with Adobe Illustrator and CorelDRAW. Available in multiple table sizes, the FCX2000 Series offers a scalable solution for businesses seeking high-quality digital finishing, reduced material waste, and increased production efficiency.

Specifications

Specification FCX2000-60VC FCX2000-120VC FCX2000-180VC
Configuration Digital servo system, Flatbed

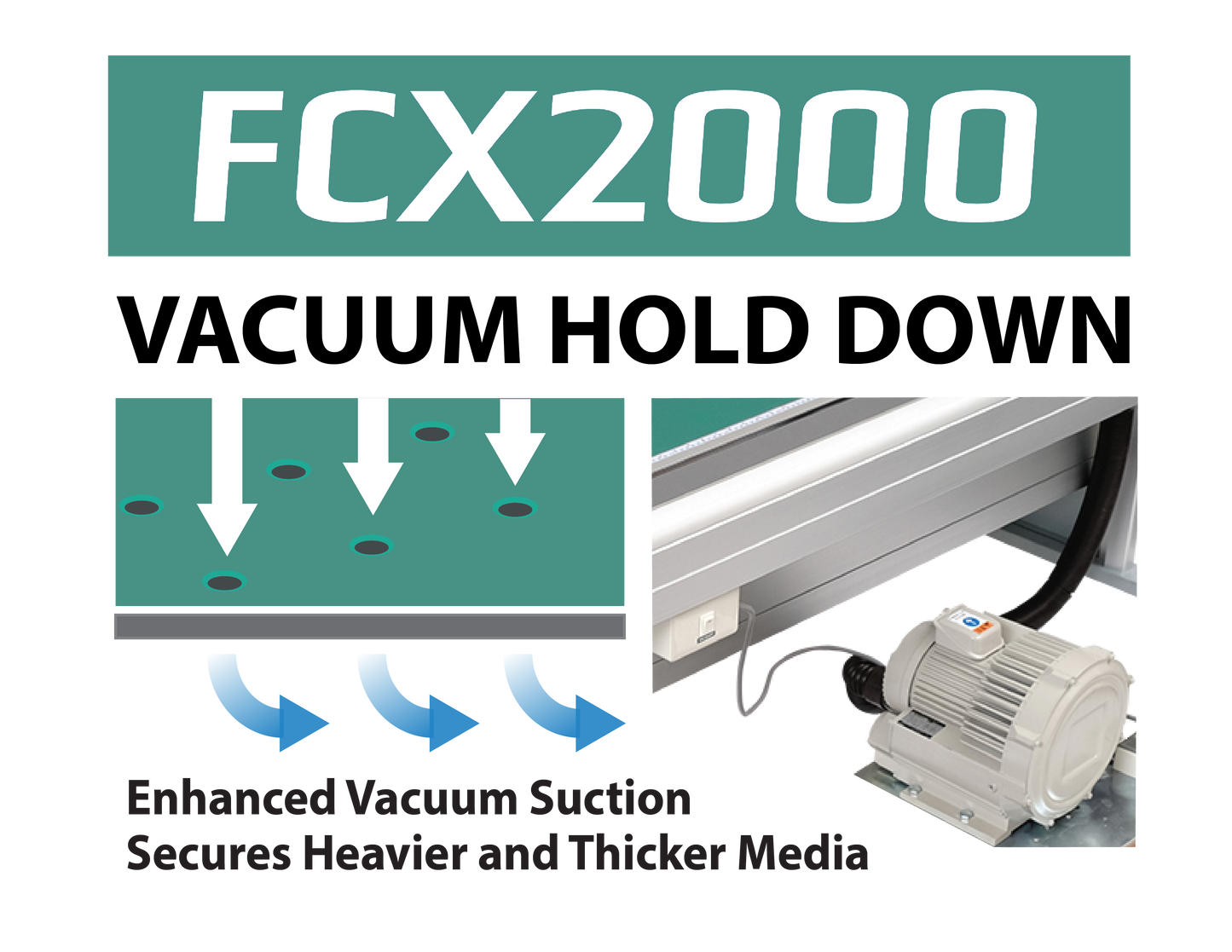

Media Hold-Down Method Vacuum suction

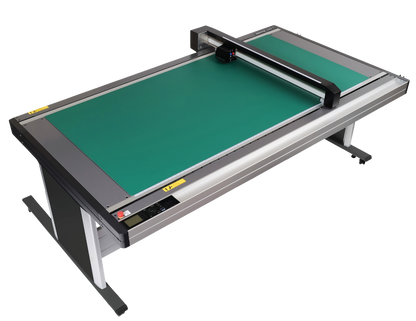

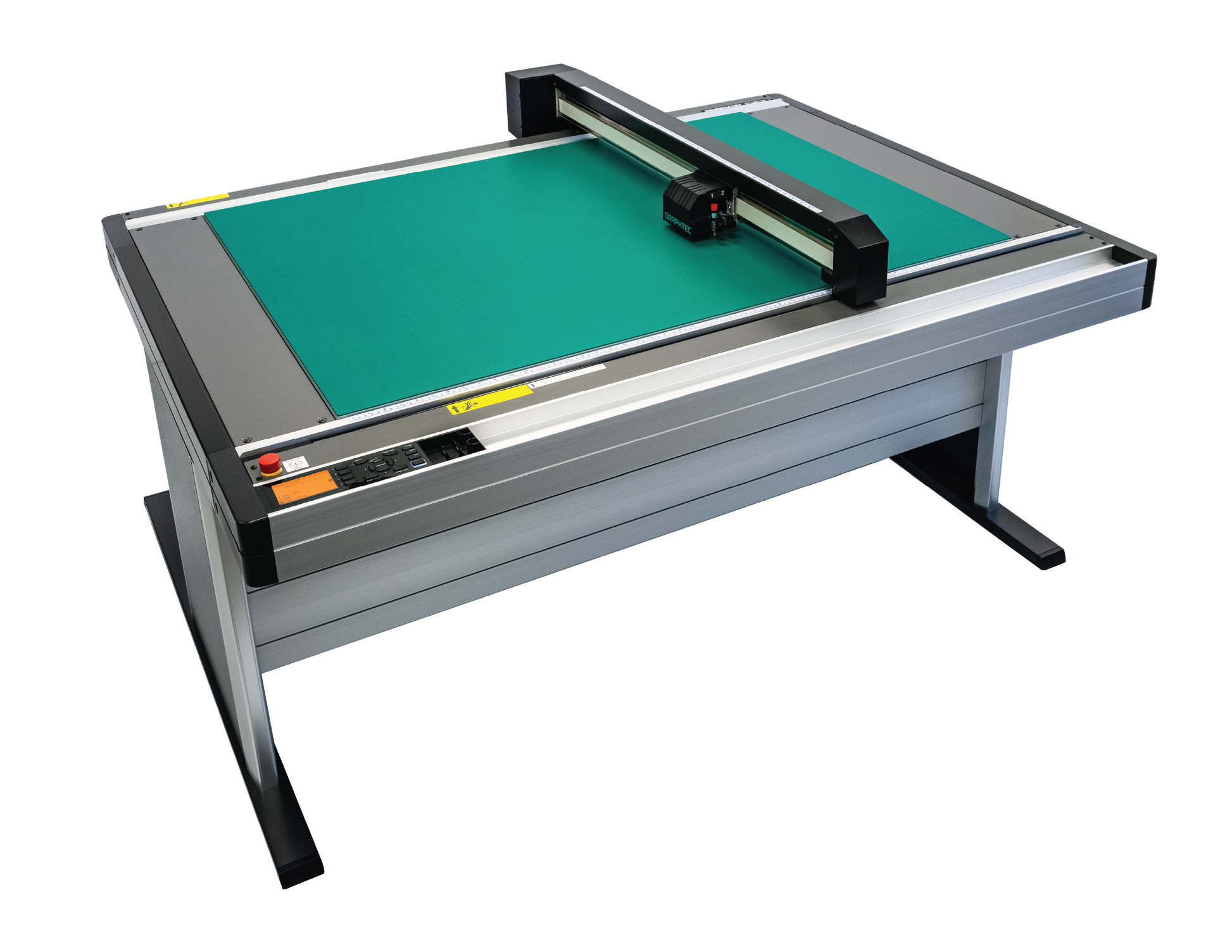

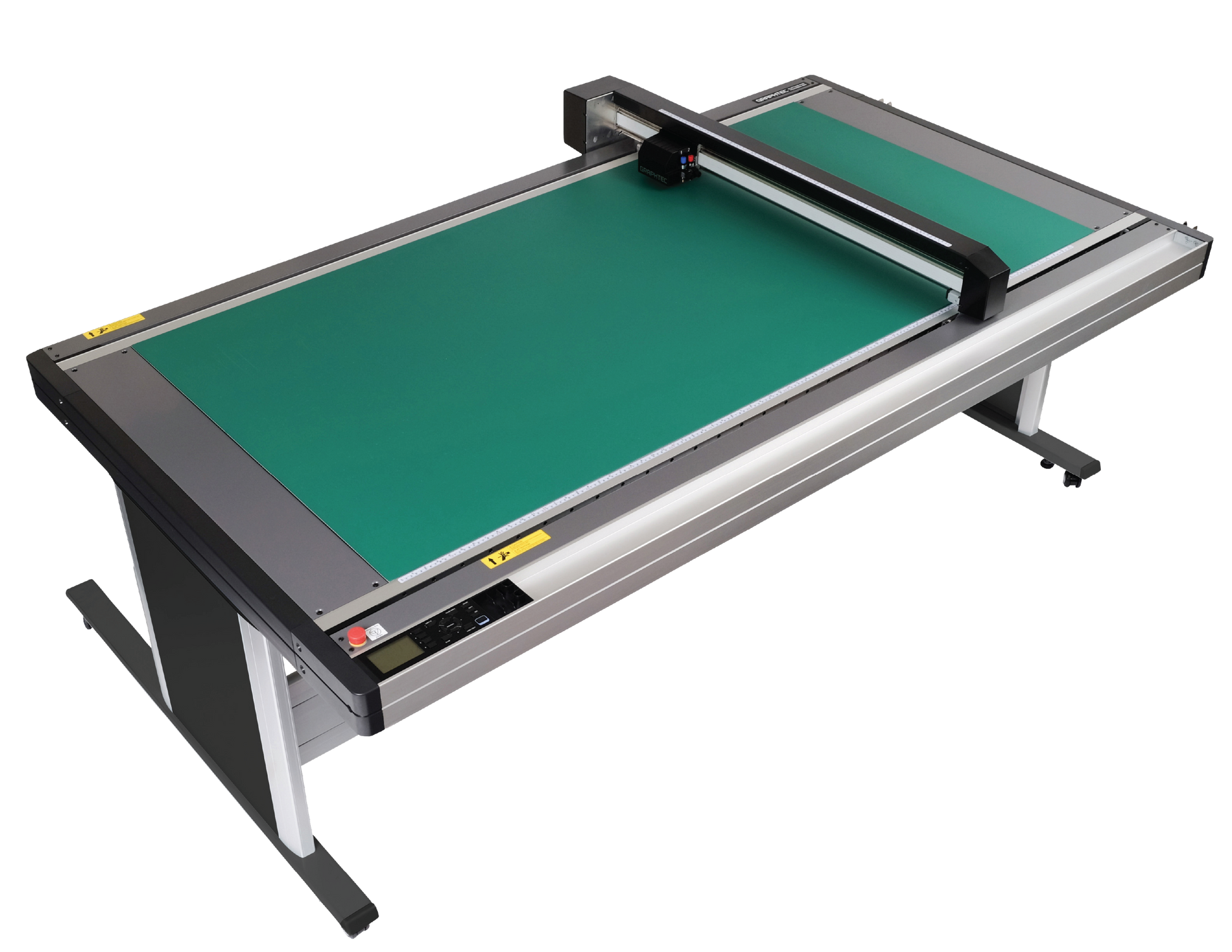

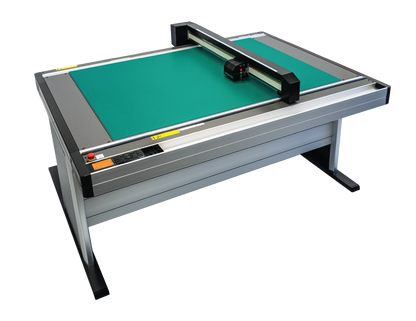

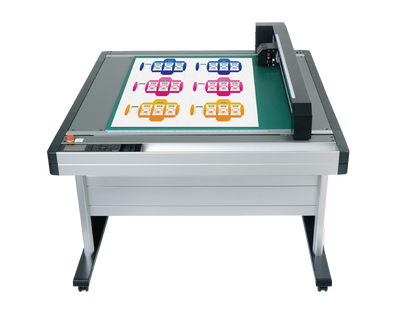

Effective Cutting Area 24 in x 36 in (610mm x 920mm) 47.2 in x 36 in (1,200mm x 920mm) 70.8 in x 36 in (1,800mm x 920mm)
Mountable Media (Y-axis) 3 ft 1.4 in (950mm)

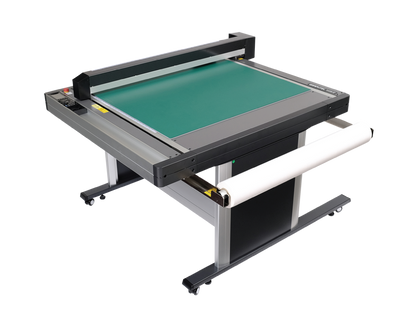

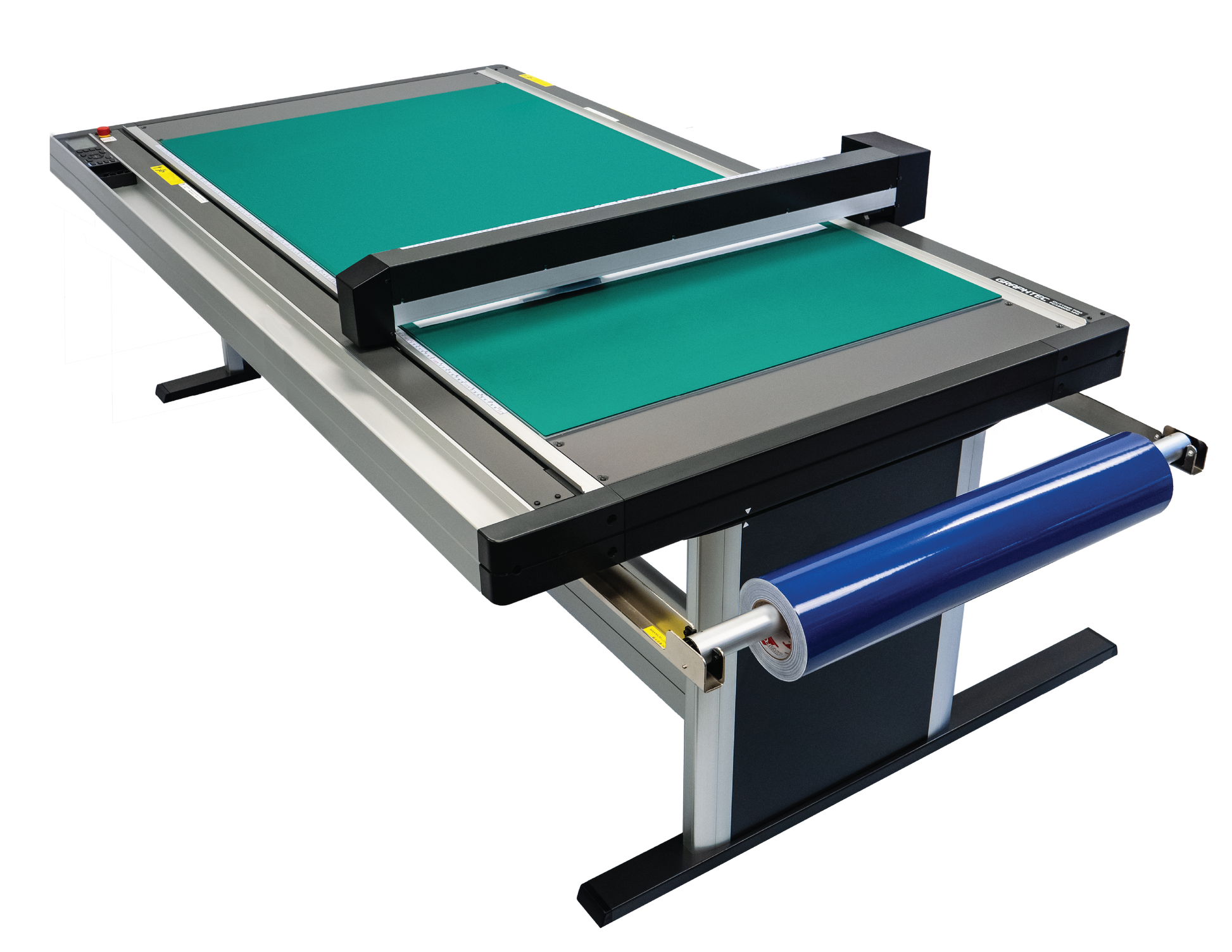

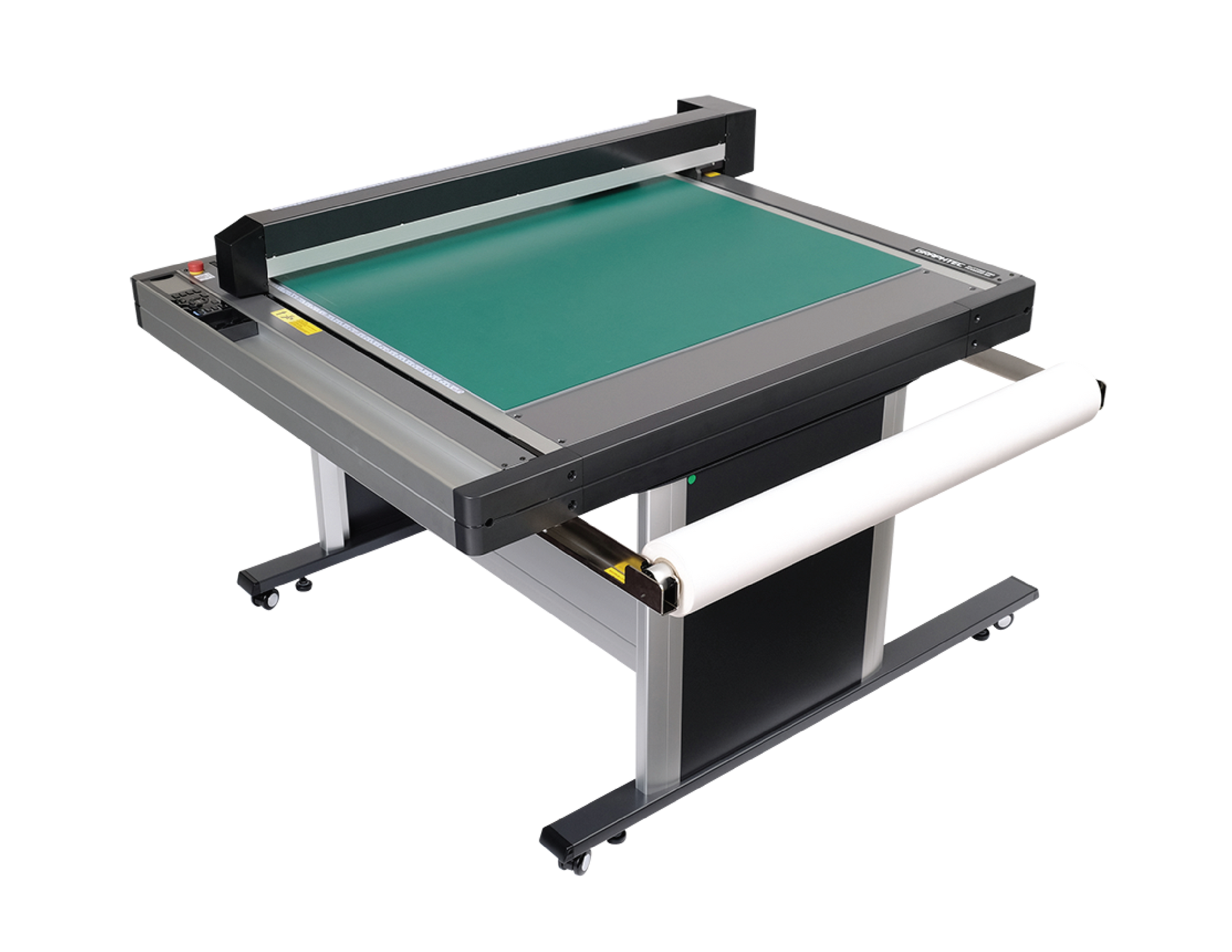

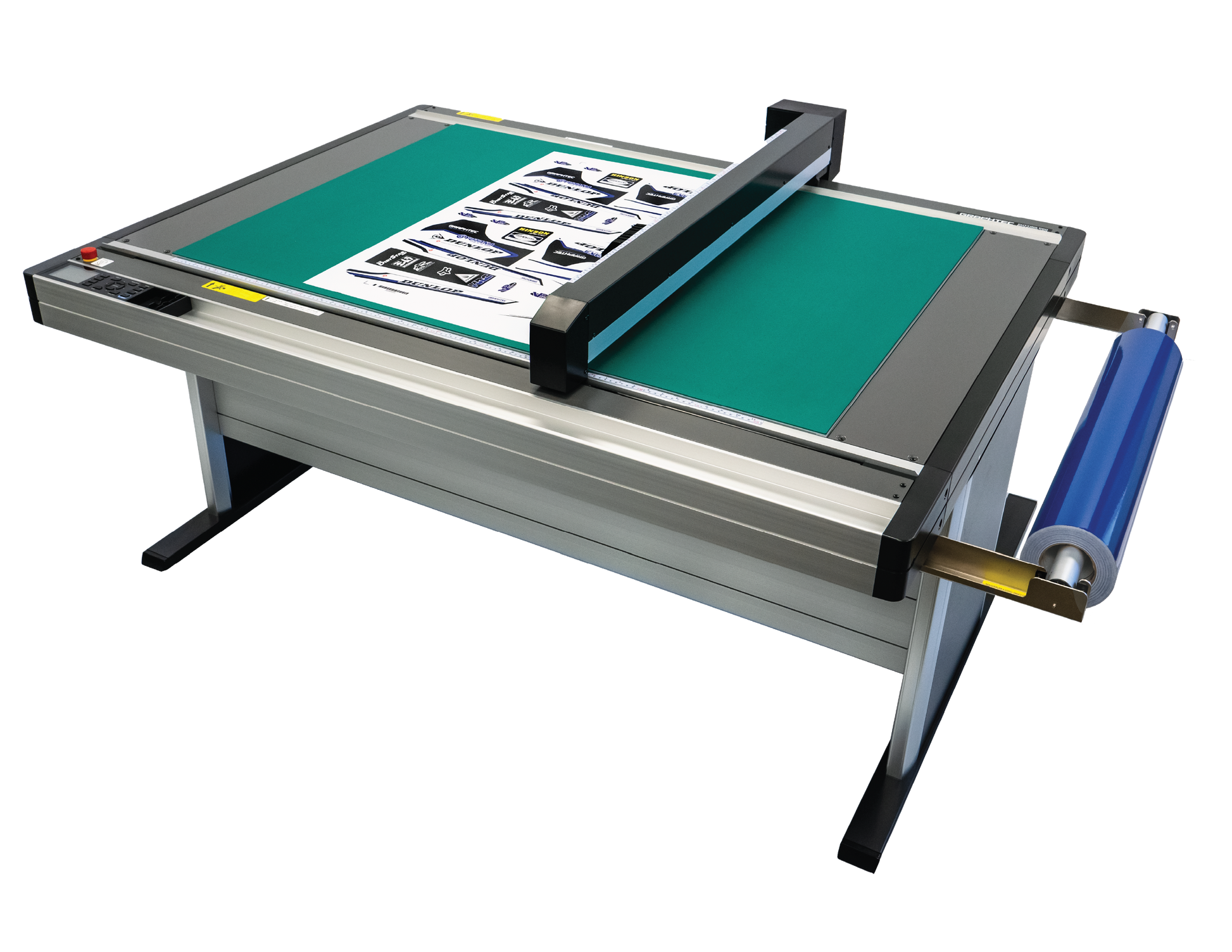

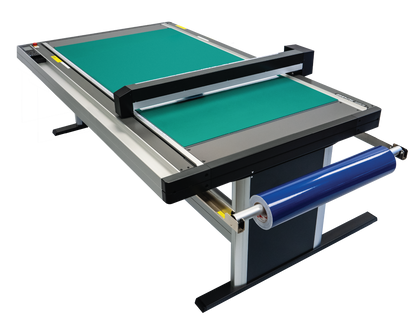

Roll Media Support Roll media stocker (manual), supported media width up to 950 mm, weight up to 5 kg
Maximum Cutting Speed 1 ft 3.7 in/sec (400 mm/sec) (1 to 40 cm/s in 16 steps), in all directions
Cutting Force Tool 1: Max. 4.9 N (500 gf)  |  Tool 2: Max. 9.8 N (1 kgf)
Cutting Force Settings Tool 1: in 40 steps  |  Tool 2: in 40 steps
Minimum Character Size Approx. 10 mm square (varies with character font and media)
Programmable Resolution GP-GL mode: 0.1 / 0.05 / 0.025 / 0.01 mm  |  HP-GL™: 0.025 mm
Distance Accuracy Max. 0.1% of the distance moved or 0.1 mm, whichever is larger (in plotting mode)
Perpendicularity Max 0.5 mm / 900 mm (in plotting mode)
Repeatability Max 0.1 mm (excluding contraction of media, in plotting/cutting mode)

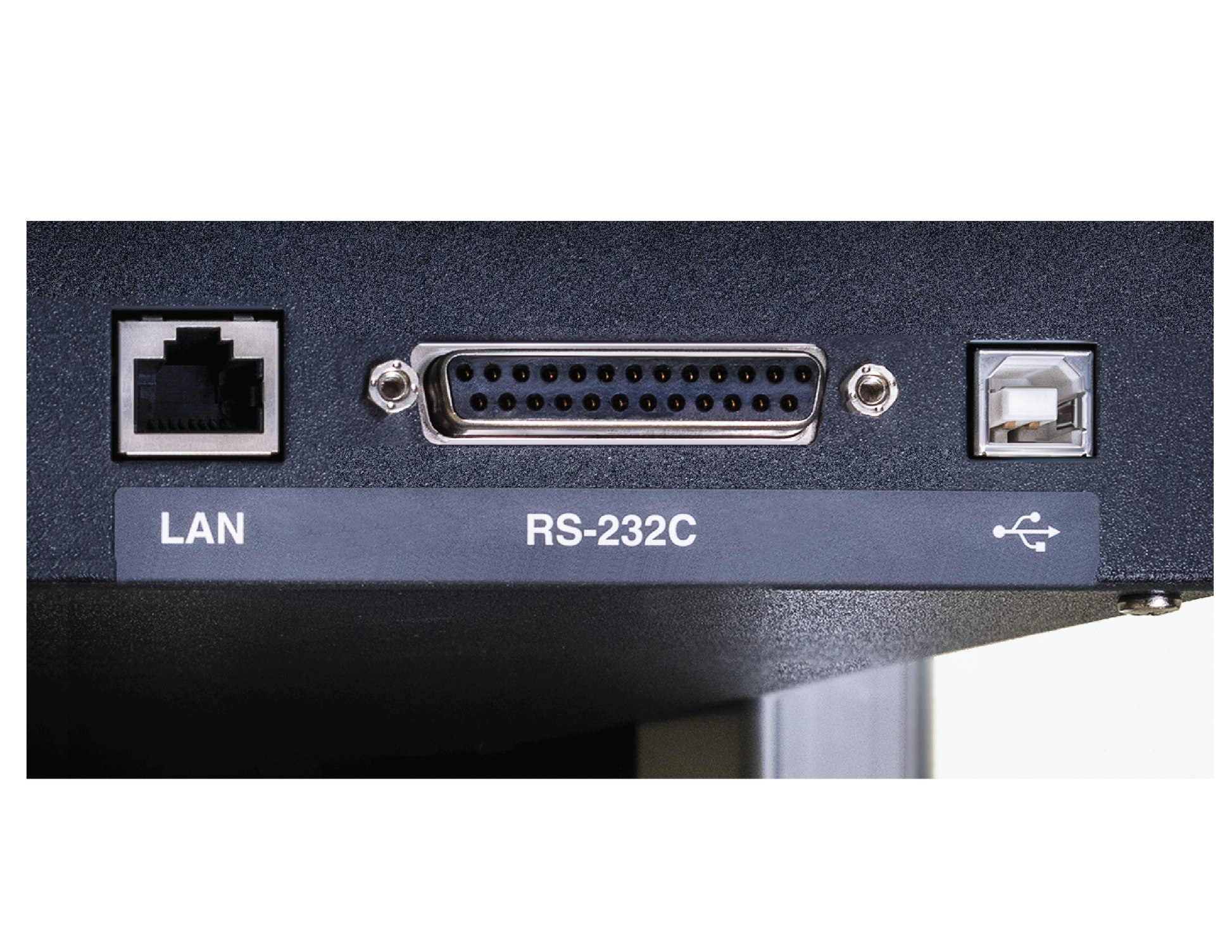

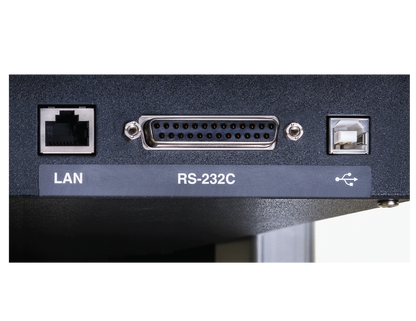

Standard Interfaces RS-232C, USB2.0 (High-Speed), and Ethernet (10BASE-T/100BASE-TX)
Buffer Memory 2 MB
Command Sets GP-GL and HP-GL™ emulation (set by menu, or selects automatically by received data)

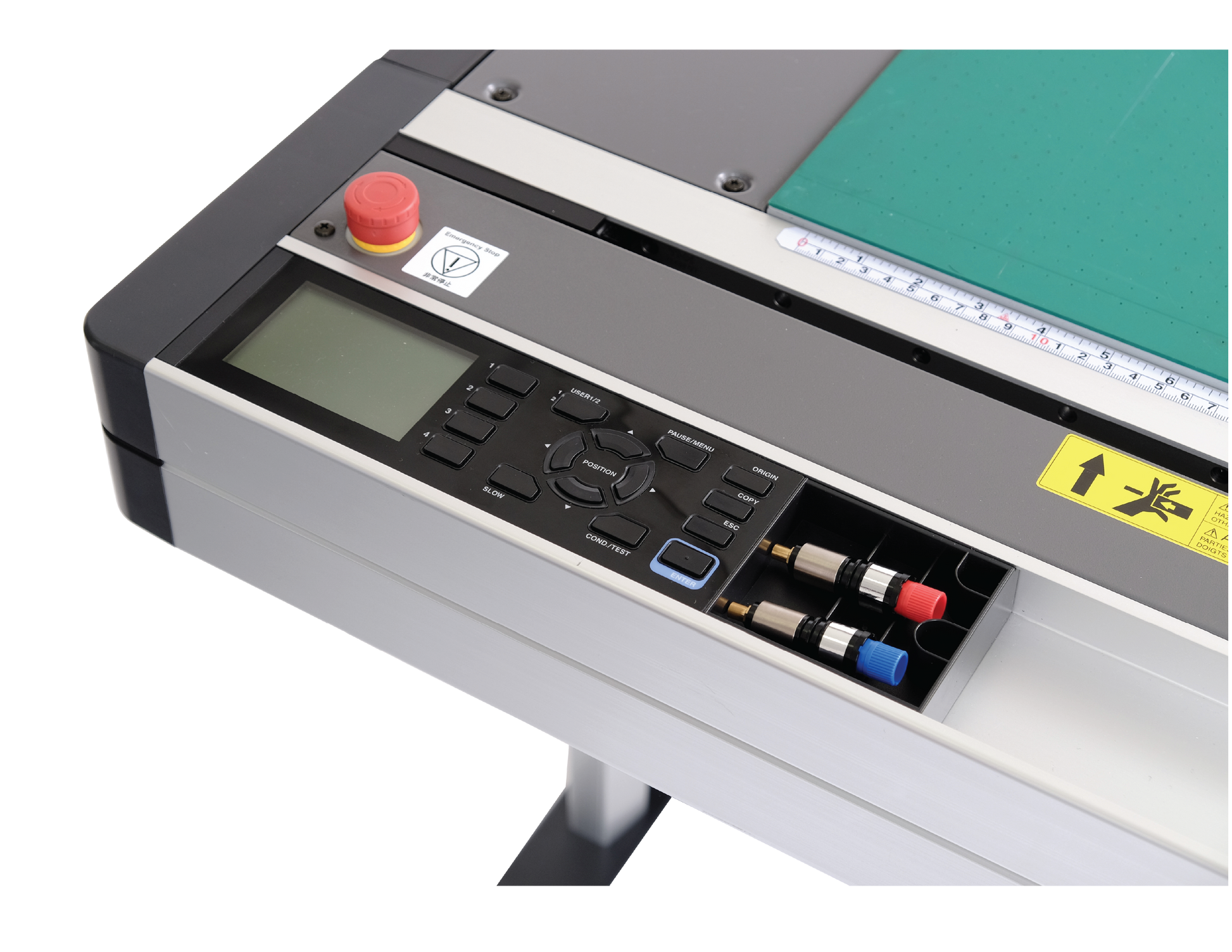

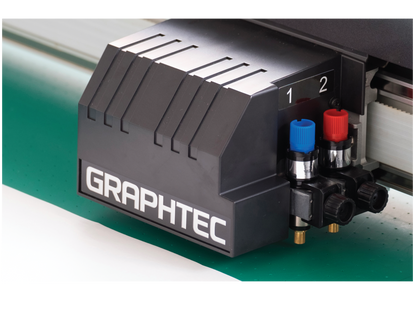

Number of Tools Two tools
Tool Types Cutting blade (supersteel), Pen (oil-based ballpoint), Creasing/scoring tool
Other Features ARMS, Reverse side Cutting/Creasing using ARMS, ARMS Copy function, Creasing, Cutting/creasing in multiple passes
Power Source 100 to 240 VAC, 50/60 Hz (Auto switching)
Power Consumption Max. 140 VA

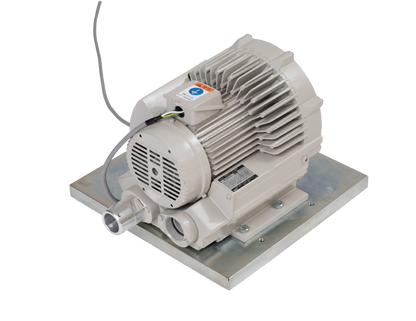

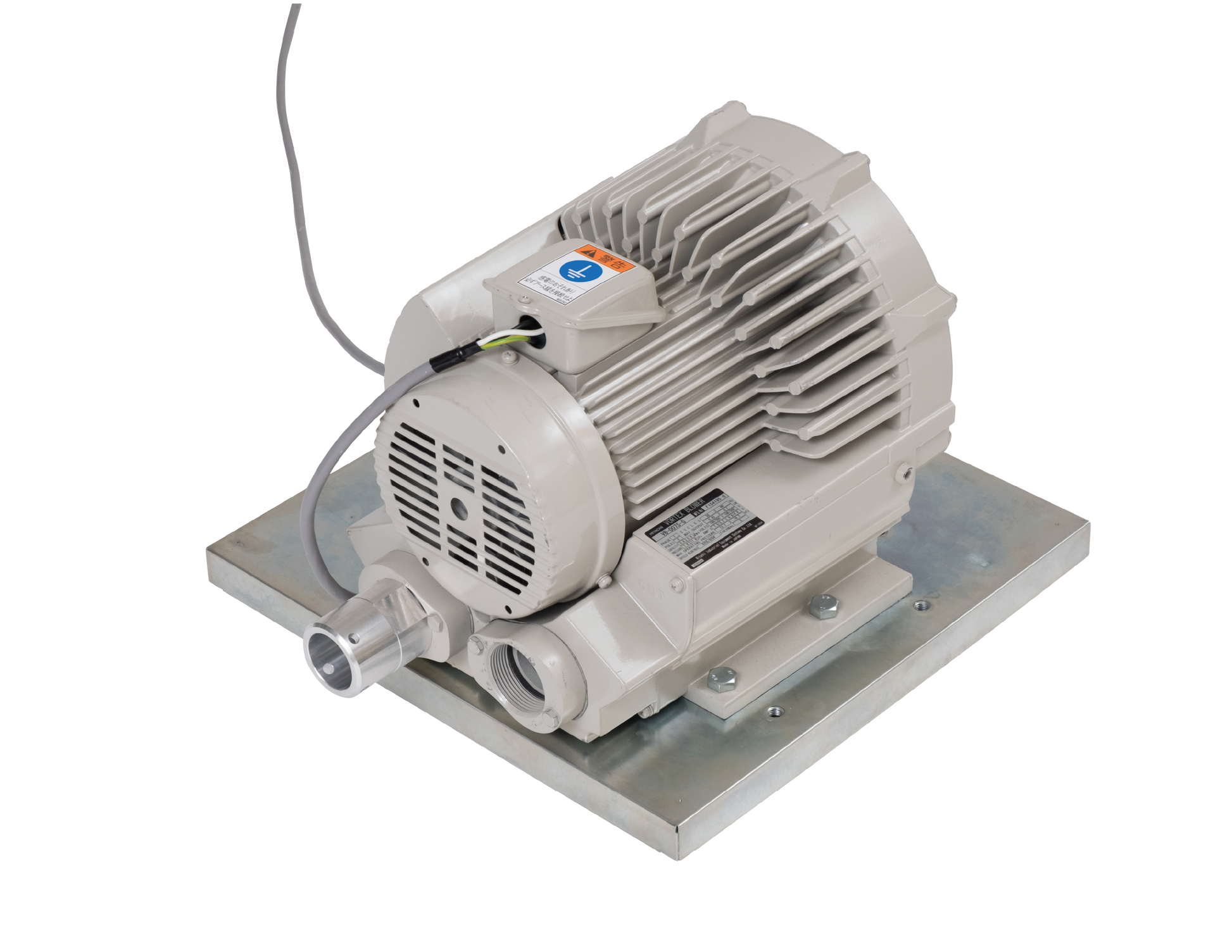

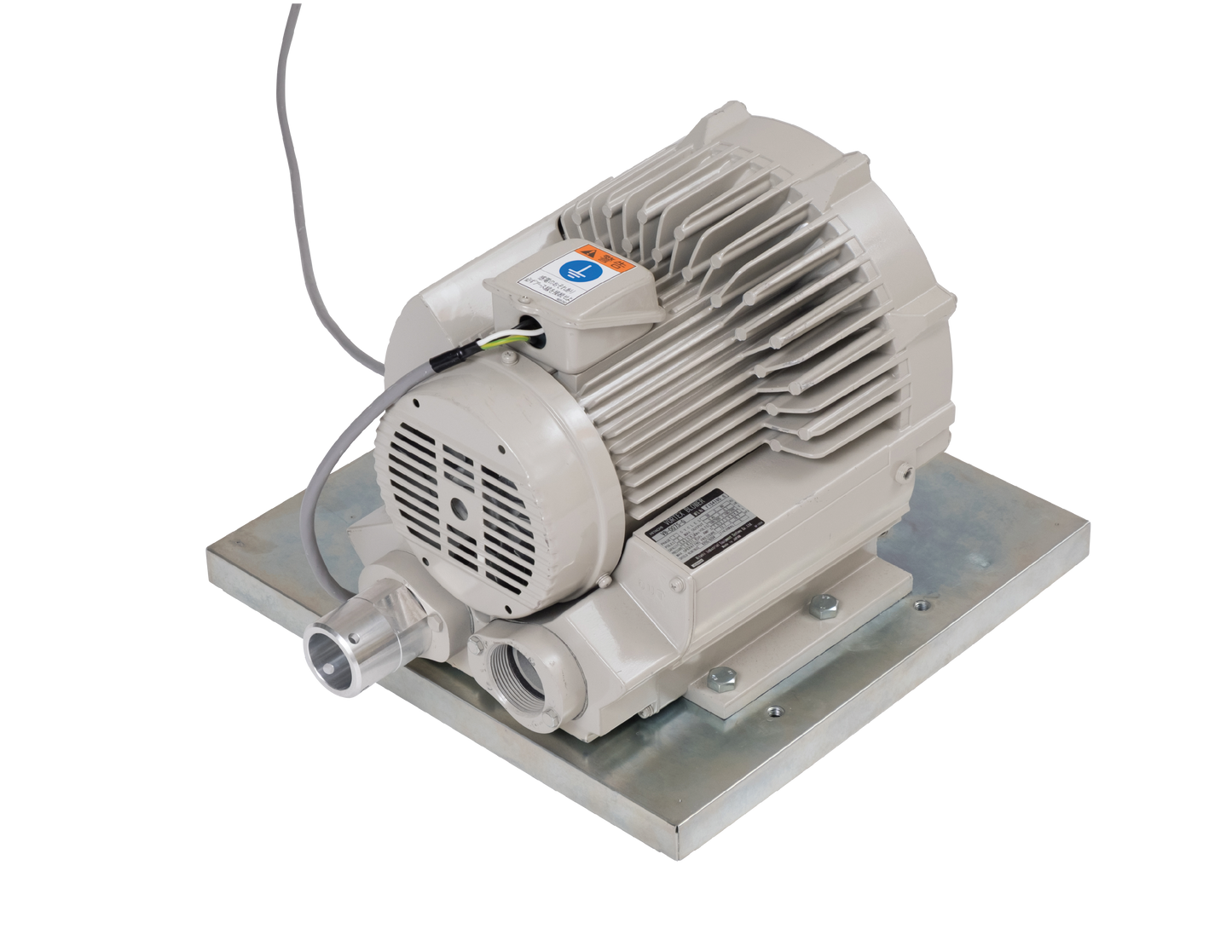

Pumps 110V: 1.5 HP  |  220V: 2.5 HP
Operating Environment Temperature: +10 to +35 °C  |  Humidity: 35 to 75% RH (non-condensing)
Guaranteed Accuracy Environment Temperature: +16 to +32 °C  |  Humidity: 35% to 70% RH (non-condensing)
External Dimensions [W x D x H] (Approx.) W 52.9 x D 55.4 x H 36.6 in
(1344 x 1409 x 930 mm) incl. stand		 W 76.1 x D 55.4 x H 36.6 in
(1934 x 1409 x 930 mm) incl. stand		 W 99.7 x D 55.4 x H 36.6 in
(2534 x 1409 x 930 mm) incl. stand
Weight (Approx.) 167.5 lb (incl. stand) 218.2 lb (incl. stand) 225.7 lb (incl. stand)
Compatible OS Windows 11 / 10 / 8.1 (64-bit)  |  macOS 10.12 (Sierra) to 10.13 (Ventura)
Included Software Graphtec Studio 2, Cutting Master 5 Plug-in for Windows and Mac
Warranty 2-Year Warranty
Safety Standards UL60950-1/cUL, CE marking (Low Voltage and EMC)
EMC FCC-A, EN55032-A
