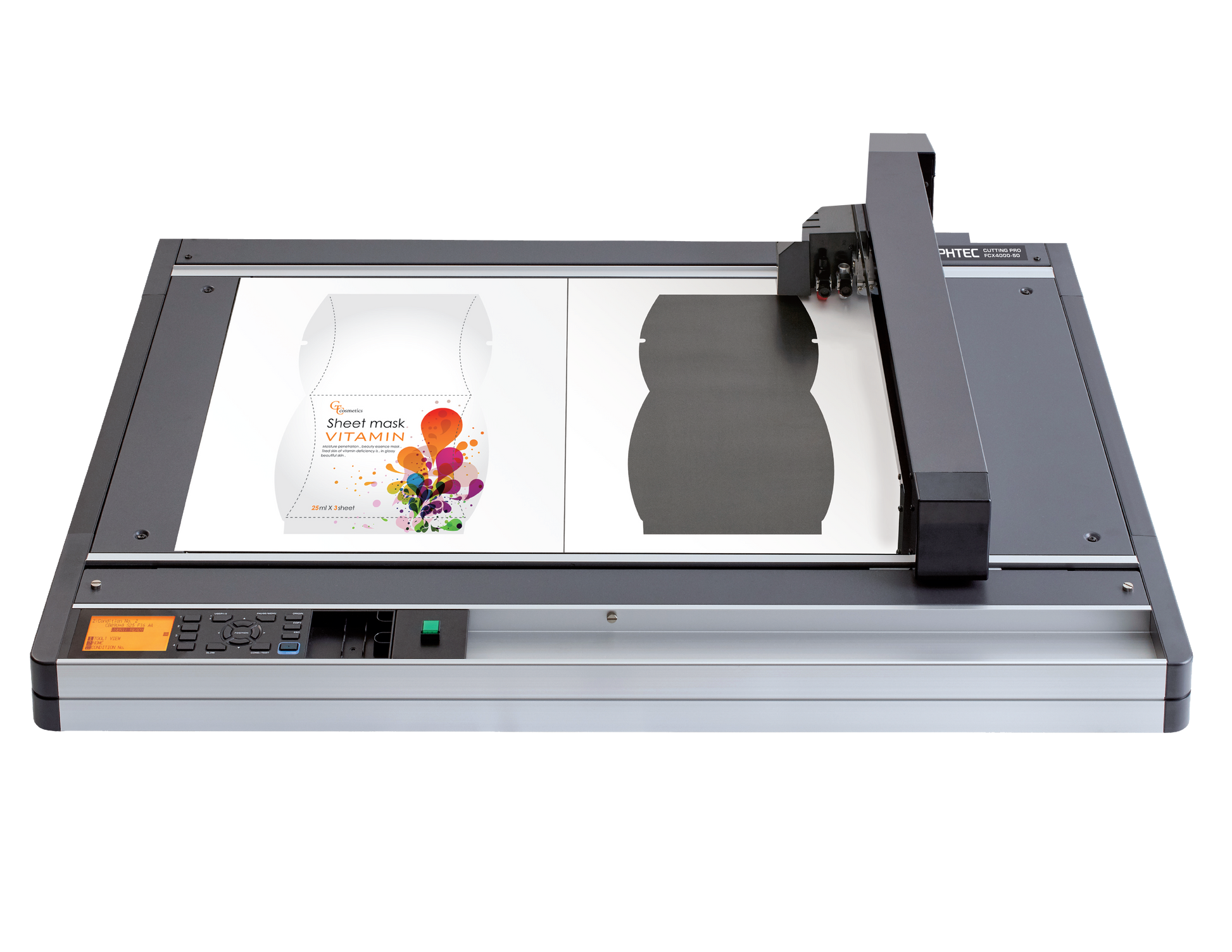

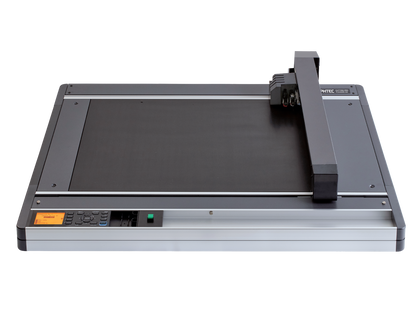

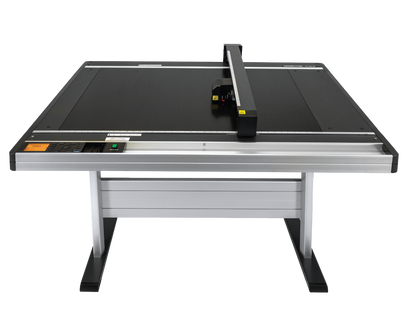

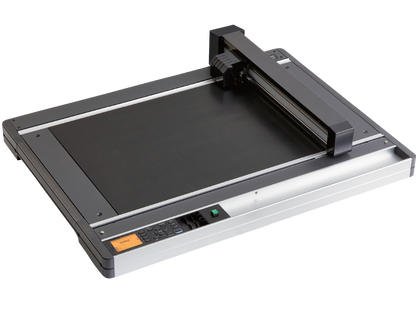

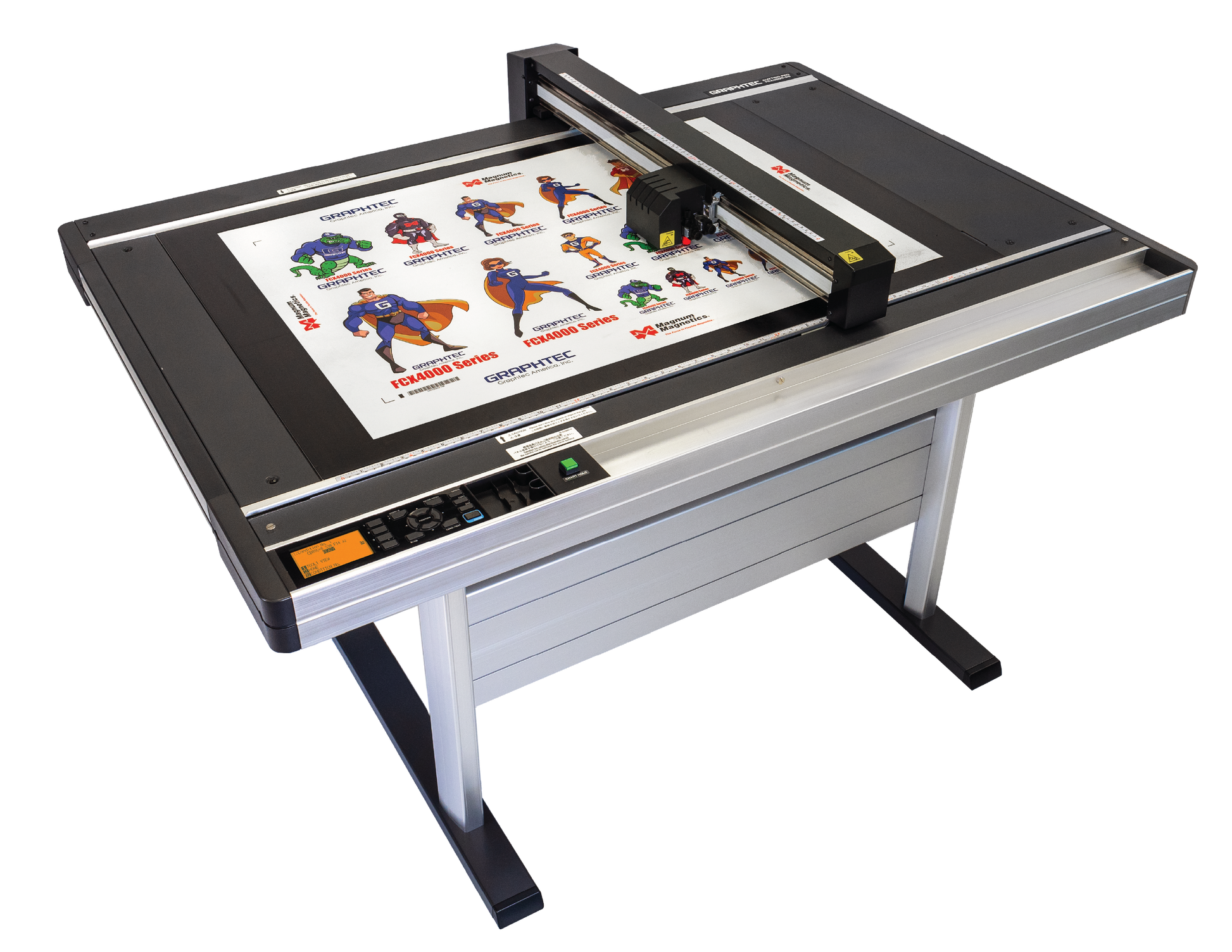

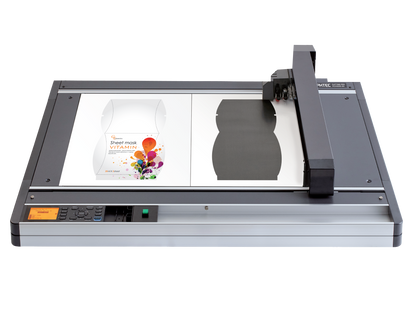

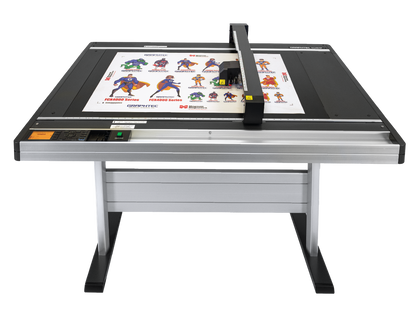

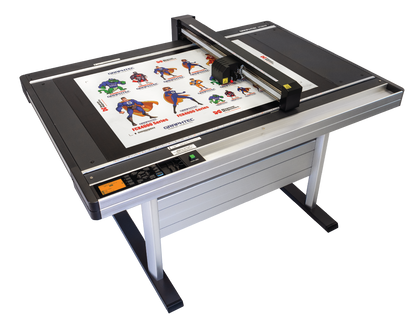

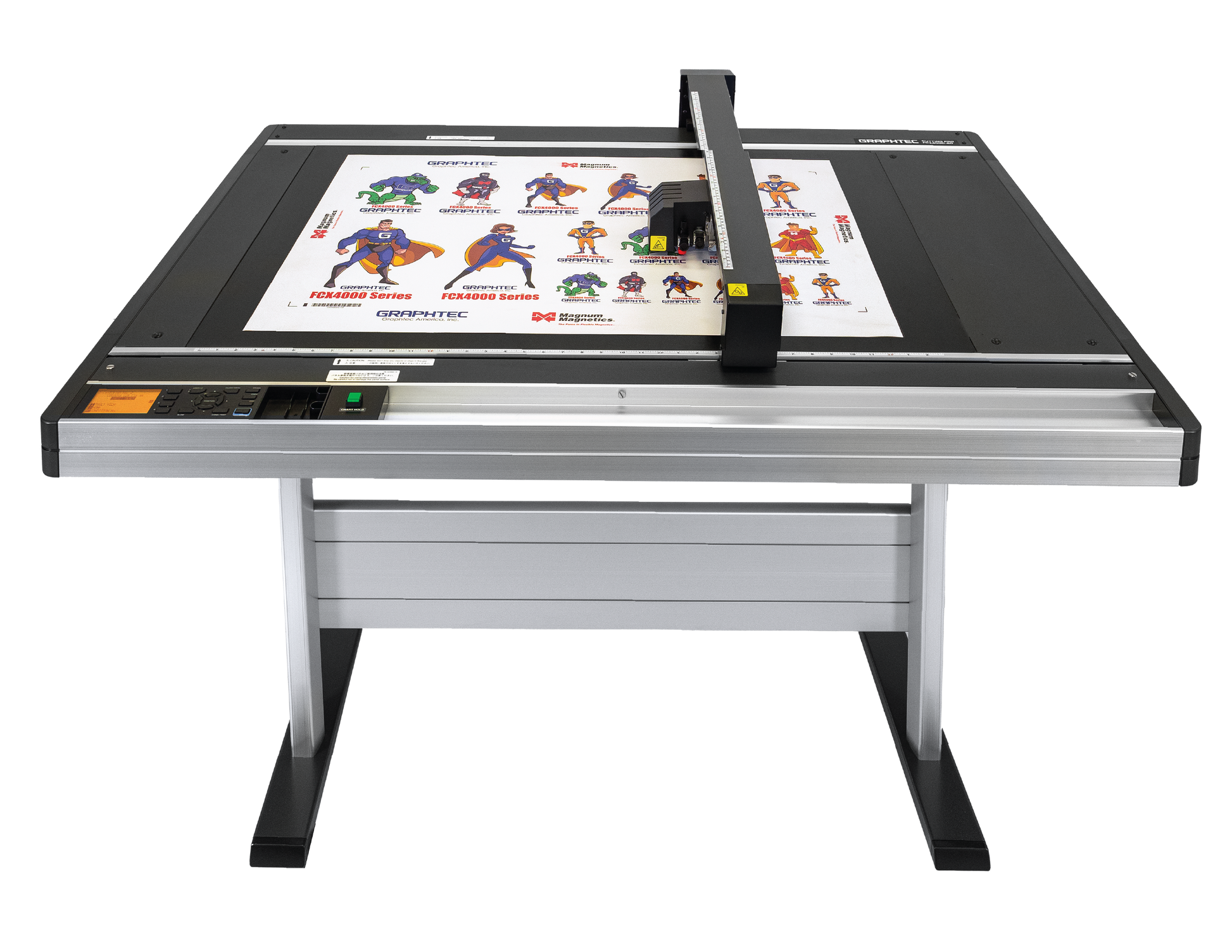

Graphtec FCX4000 Flatbed Cutter
From $9,995.00
Graphtec FCX4000 Flatbed Cutter
FCX4000-50
Couldn't load pickup availability
The Graphtec FCX4000 Series is a high-performance flatbed cutting system designed for advanced digital finishing applications that require exceptional precision, productivity, and material versatility. Engineered for packaging design, prototyping, signage, industrial fabrication, and short-run production, the FCX4000 combines robust cutting power with intelligent automation to streamline complex workflows and eliminate the need for traditional dies.

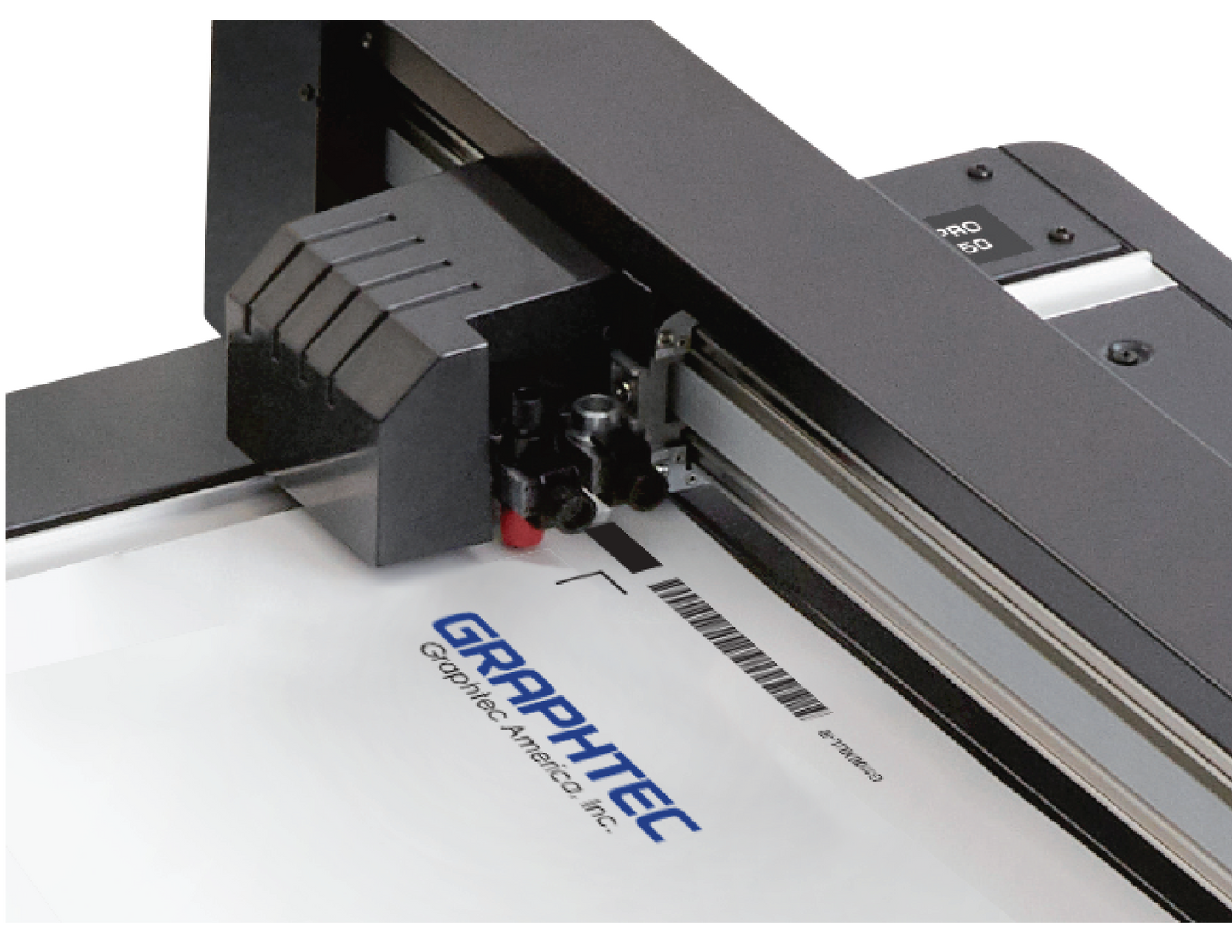

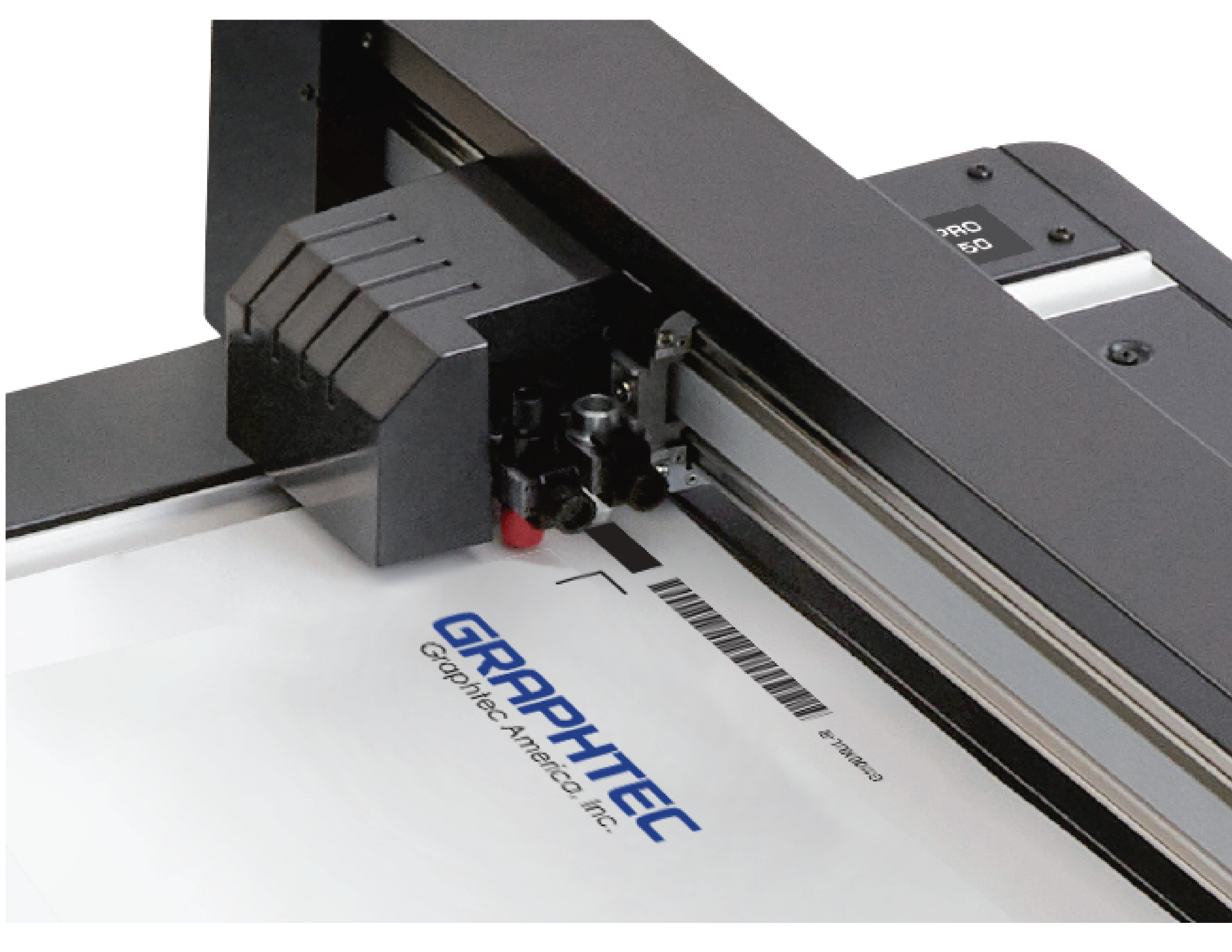

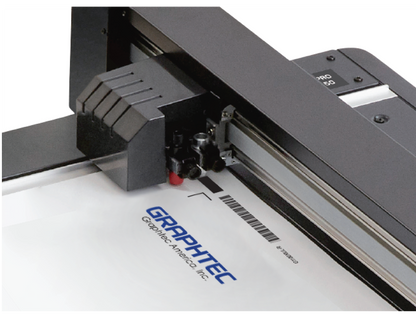

Featuring Graphtec's enhanced ARMS (Advanced Registration Mark Sensing) technology, the FCX4000 delivers highly accurate contour cutting and alignment for printed graphics, even on distorted or laminated media. Its advanced tool system supports a wide variety of applications including kiss cutting, through cutting, creasing, perforating, and plotting on materials such as corrugated board, plastics, rubber, foam, magnetic media, vinyl, and composite substrates.
The FCX4000 Series is built for industrial-level performance, offering increased cutting force, expanded work areas, and high-speed operation to maximize throughput while maintaining superior cut quality. Integrated vacuum hold-down technology ensures stable media handling, while intuitive software compatibility with Graphtec Studio 2 and Cutting Master provides seamless workflow integration with leading design platforms including Adobe Illustrator and CorelDRAW.
Available in multiple configurations to support varying production environments, the FCX4000 delivers a scalable and efficient solution for businesses seeking precision digital cutting, reduced setup costs, and enhanced operational flexibility.
Specifications
| Specification | FCX4000-50ES | FCX4000-60ES |
|---|---|---|
| Configuration | Digital servo system, Flatbed | |

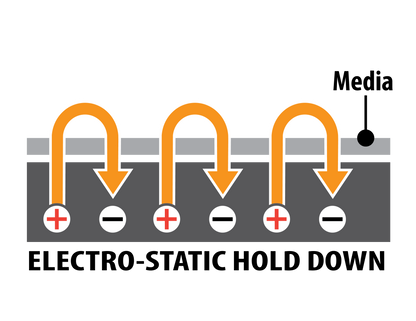

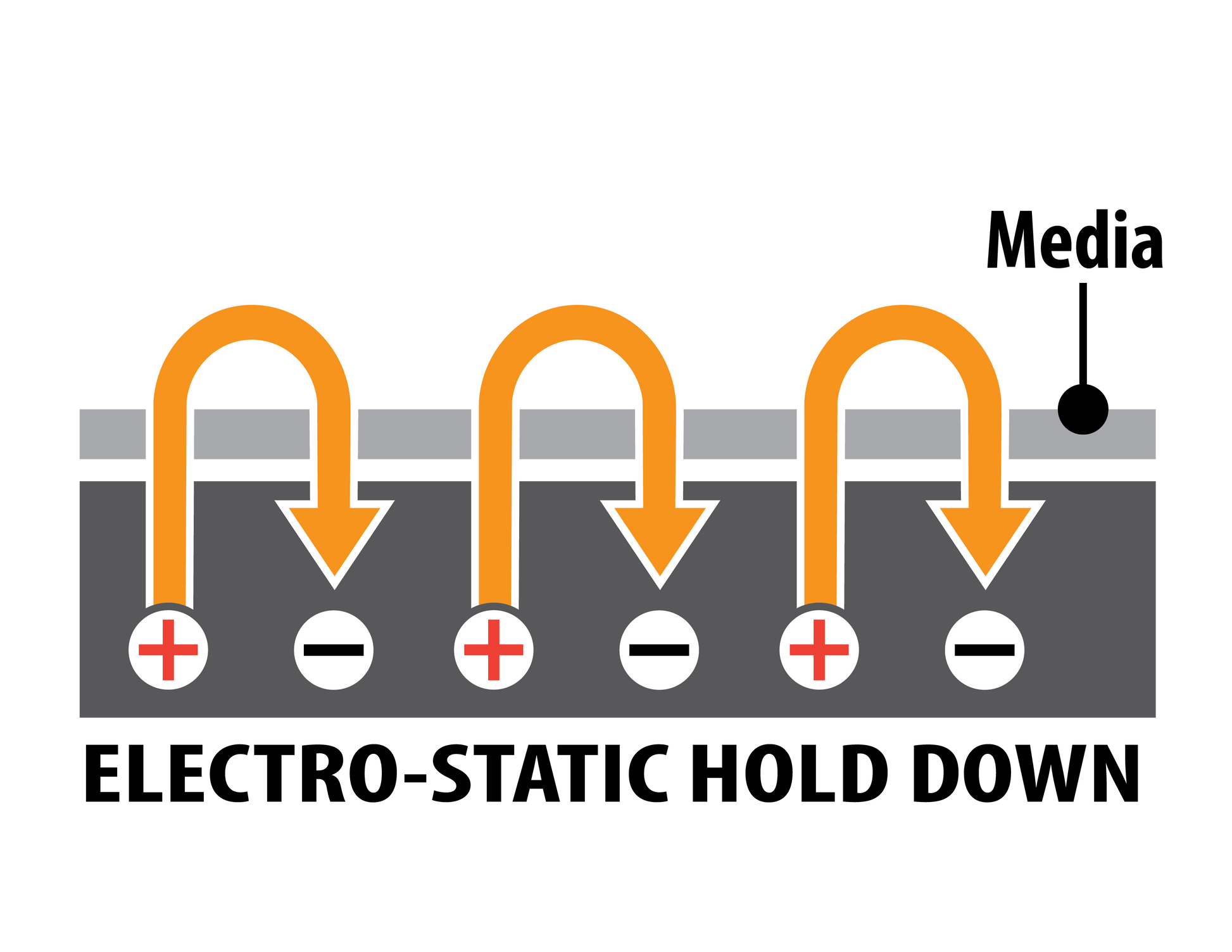

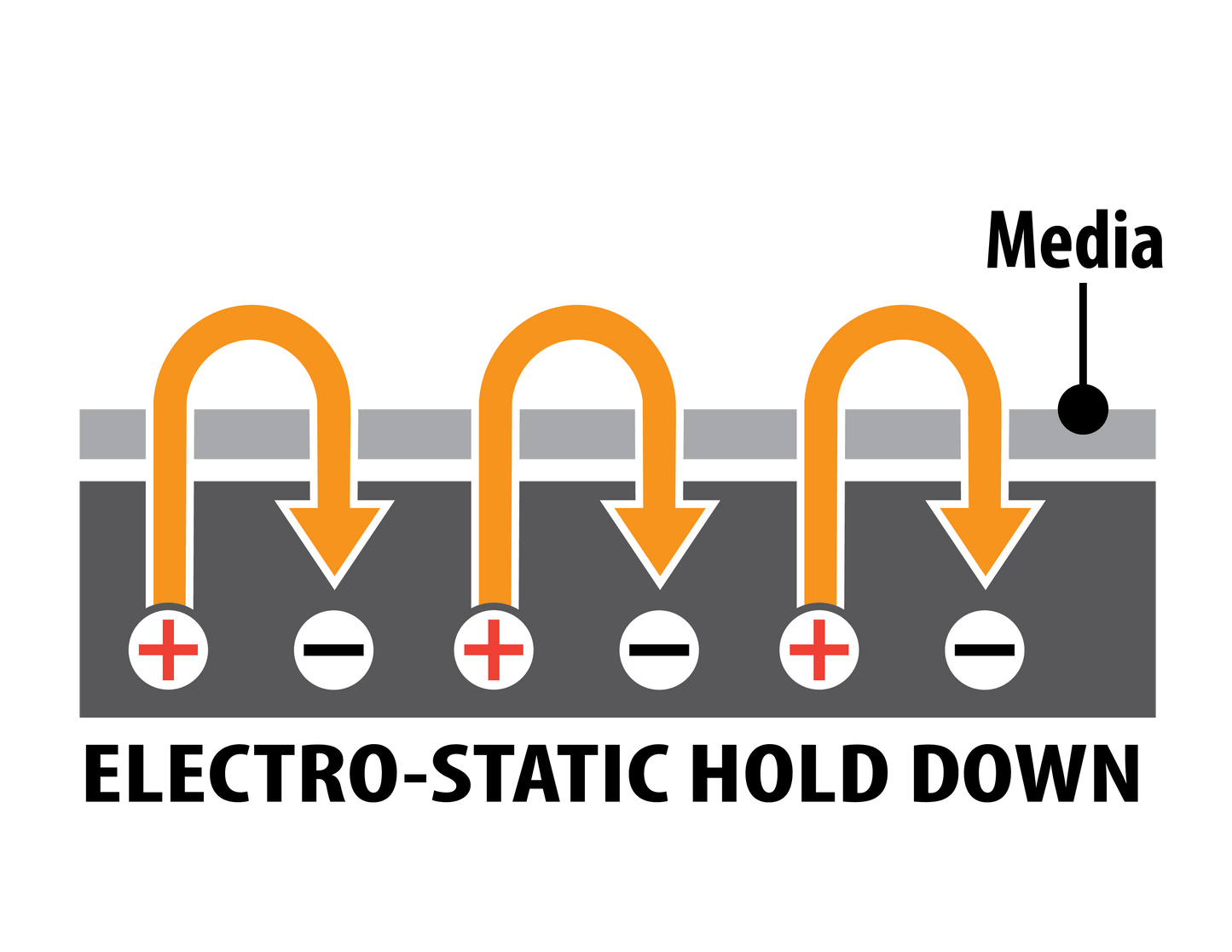

| Media Hold-Down Method | Electrostatic panel | |

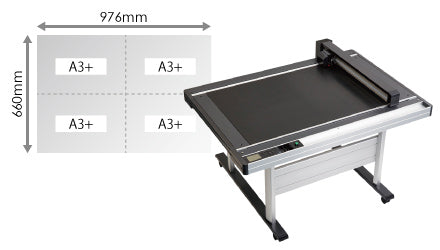

| Effective Cutting Area | W 25.98" x H 19.21" | W 38.4" x H 25.9" |
| Mountable Media (Y-axis) | 21.10" | 27.97" |
| Maximum Cutting Speed | 29.5"/s (1 to 75 cm/s in 23 steps) | |
| Cutting Pressure | Tool 1: Max. 5.88 N (600 gf) | Tool 2: Max. 5.88 N (600 gf) | |
| Cutting Force Settings | Tool 1: in 48 steps | Tool 2: in 48 steps | |
| Minimum Character Size | Approx. 10 mm square (varies with character font and media) | |
| Mechanical Resolution | 0.005 mm (5 µm) | |
| Programmable Resolution | GP-GL mode: 0.1 / 0.05 / 0.025 / 0.01 mm | HP-GL™ *1: 0.025 mm | |
| Distance Accuracy | Max. 0.2% of the distance moved or 0.1 mm, whichever is larger (excluding contraction of media, in plotting/cutting mode) *2 | |
| Perpendicularity | Max 0.3 mm / 16.93" (excluding contraction of media, in plotting/cutting mode) | Max 0.4 mm / 24.01" (excluding contraction of media, in plotting/cutting mode) |
| Repeatability | Max 0.1 mm (excluding contraction of media, in plotting/cutting mode) *2 | |

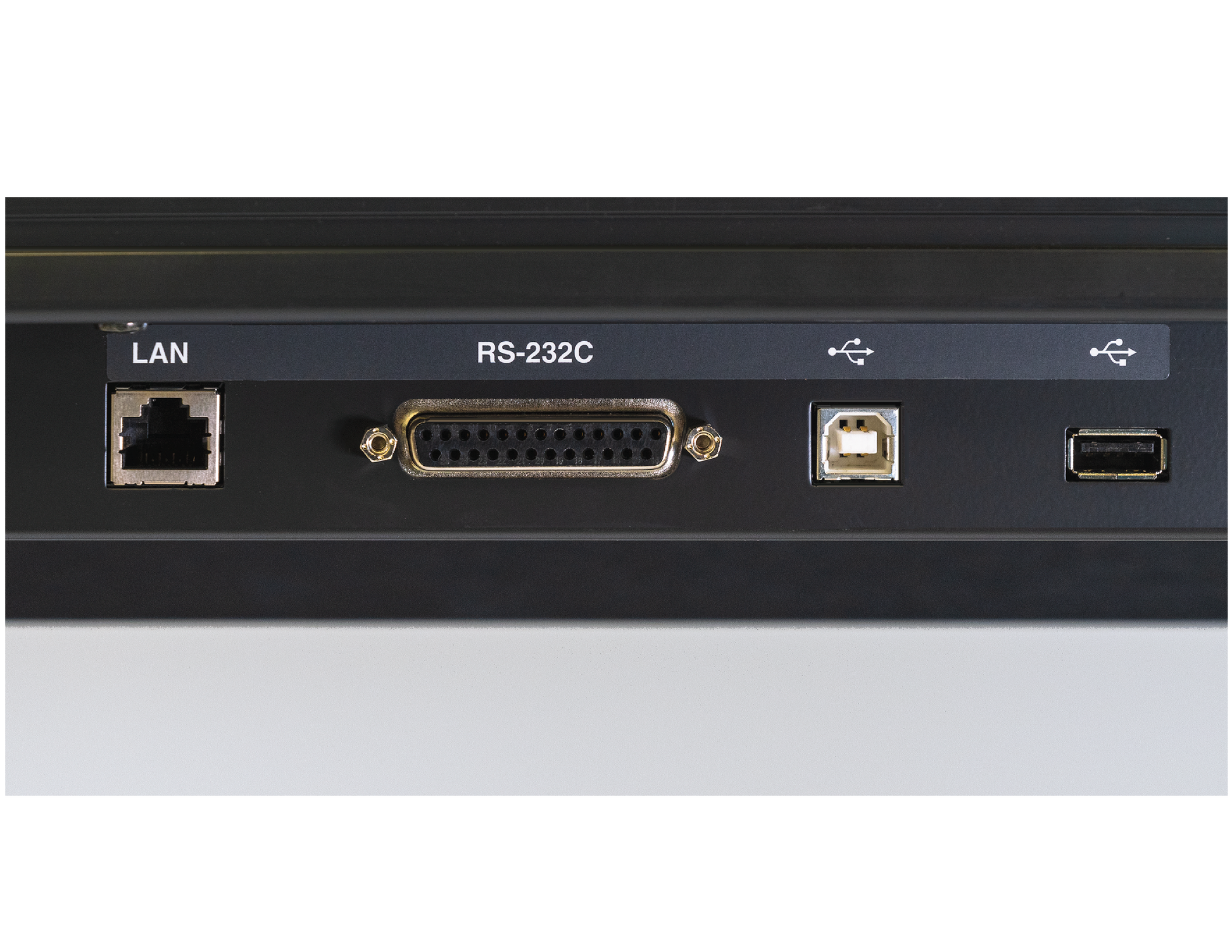

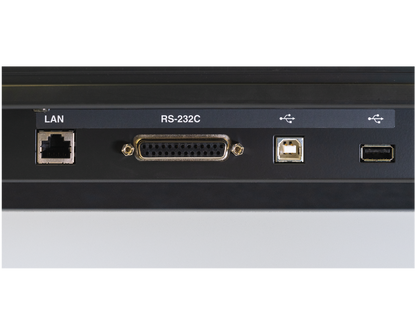

| Standard Interfaces | USB2.0 (Full Speed) / RS-232C / Ethernet (10BASE-T/100BASE-TX) | |
| Buffer Memory | 2 MB | |
| Command Sets | GP-GL / HP-GL™ / AUTO (Automatic switching in GP-GL and HP-GL™) | |

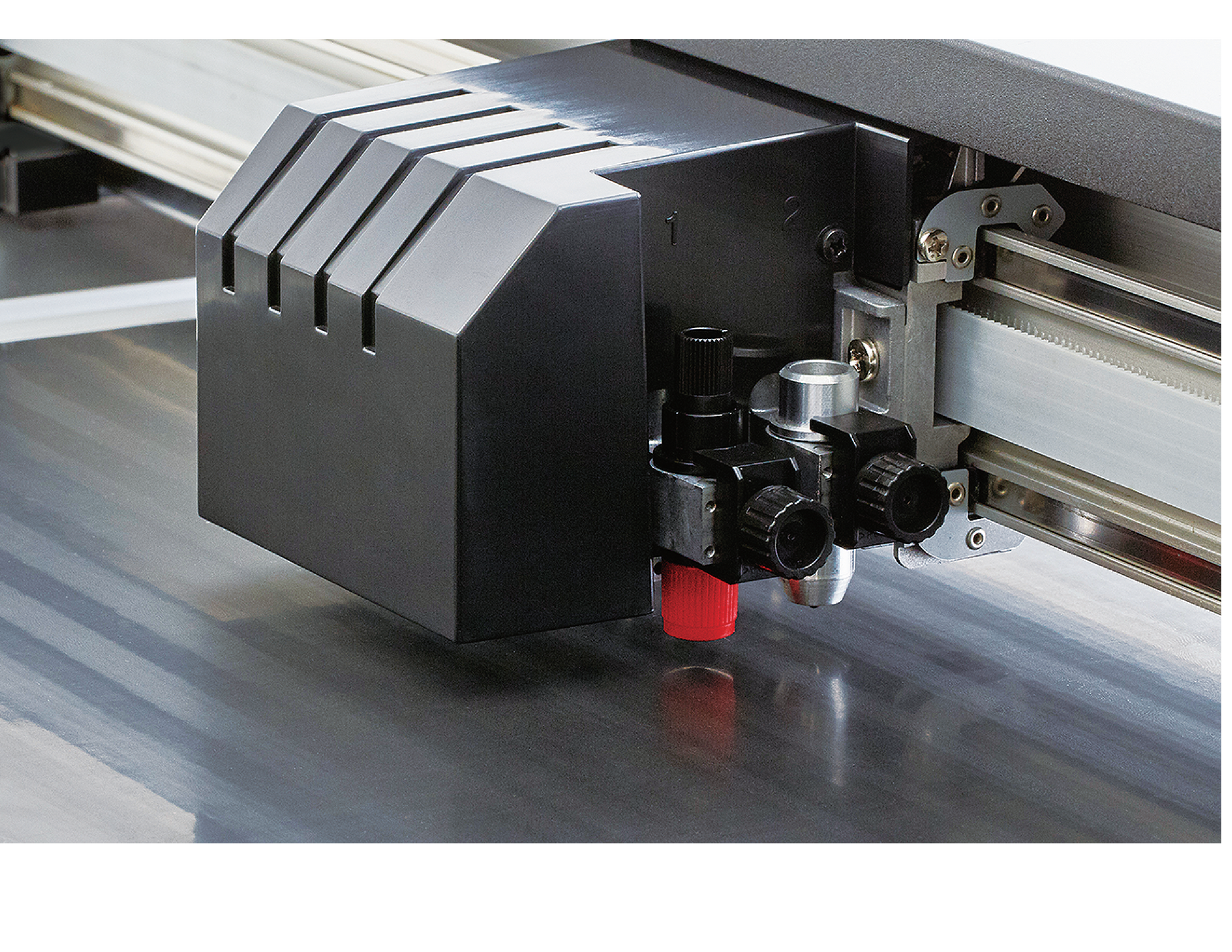

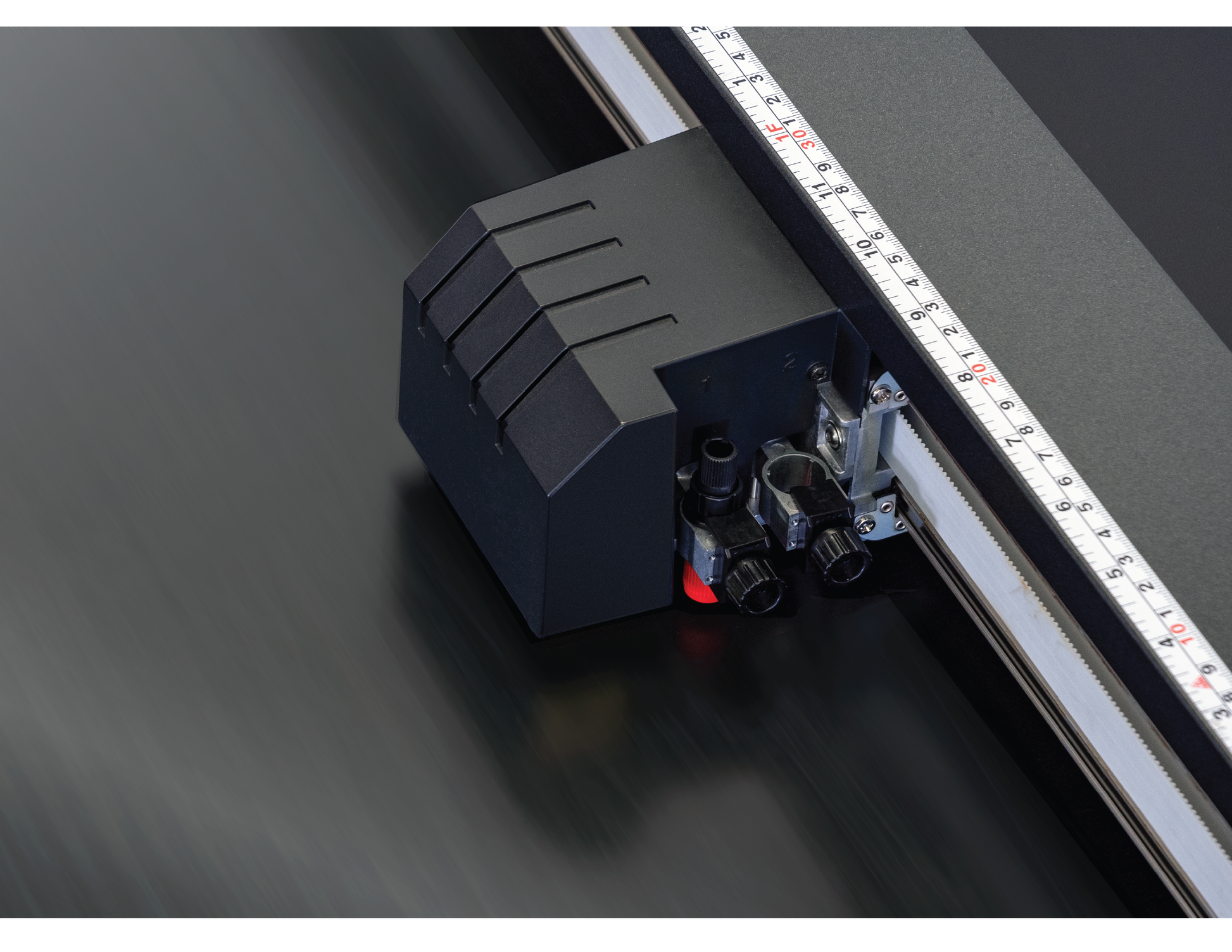

| Number of Tools | 2 tools | |
| Tool Types | Cutter blade (supersteel), Pen (oil-based ballpoint), Creasing/Scoring tool | |

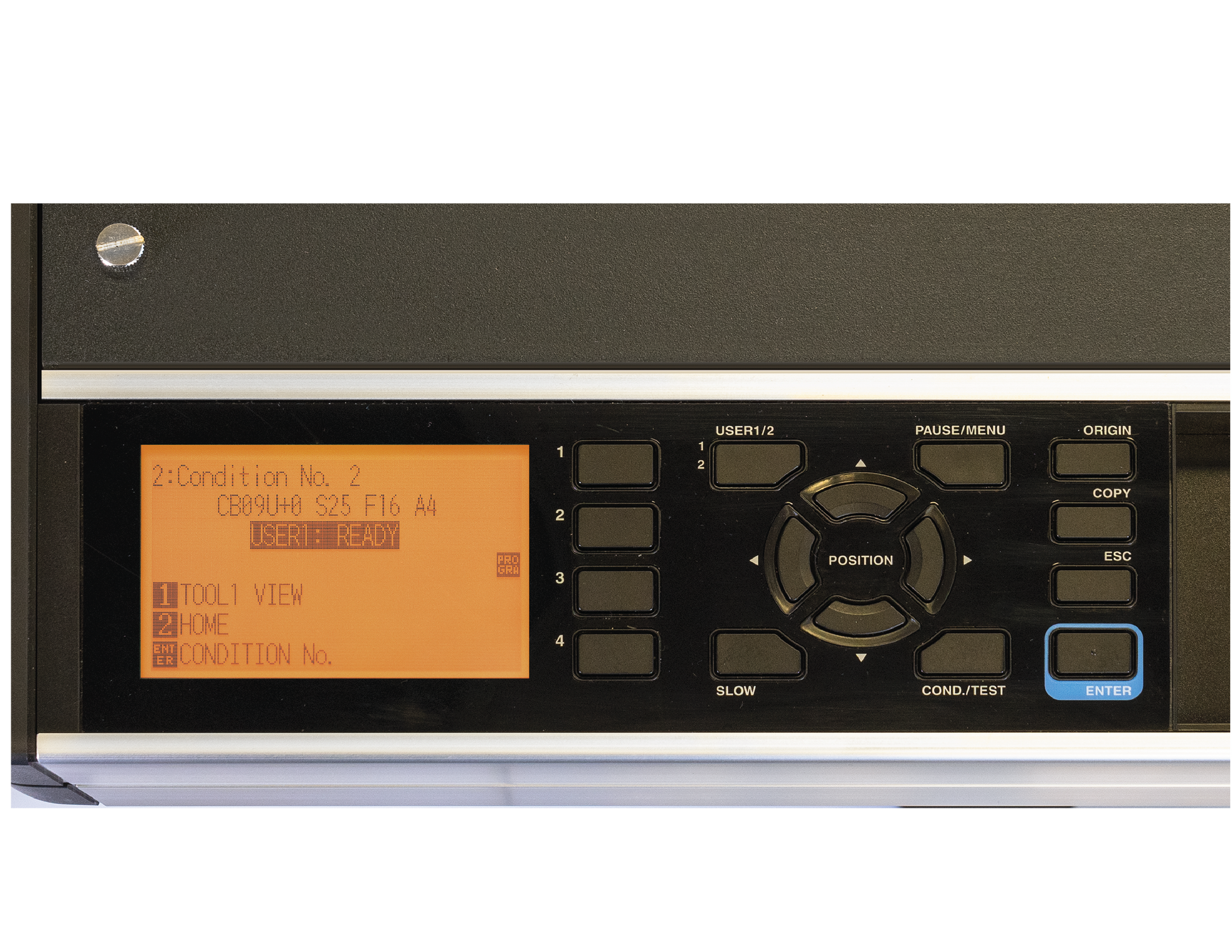

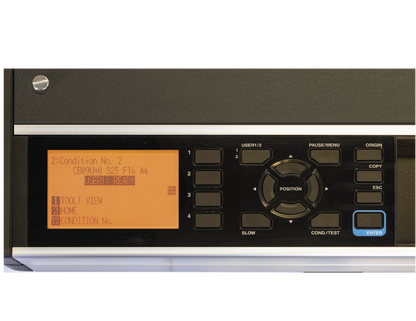

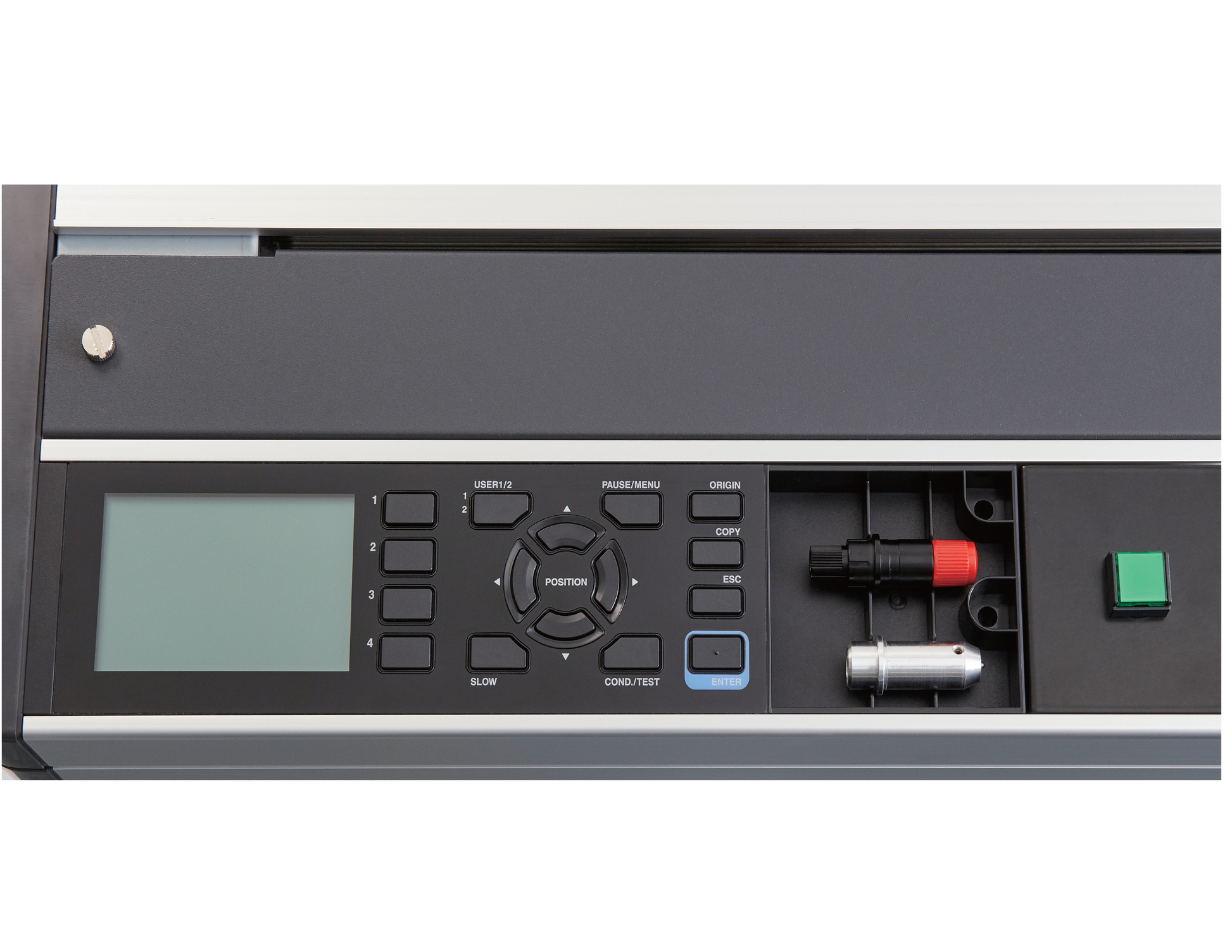

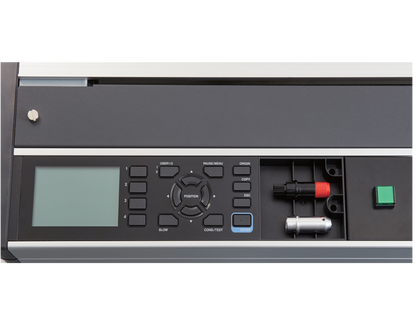

| Operating Panel | 3.7-inch graphical LCD | |
| New Features | Dual configuration, Creasing in the curve, Perforation cutting (force control), Data management via barcode, Offline cutting via USB memory, Blade wear indicator, Cutting object size confirmation, Draft mode (higher throughput in arc) | |
| Power Supply | 100 to 240 V AC, 50/60 Hz (Auto switching) | |
| Power Consumption | Max. 120 VA | |
| Operating Environment | Temperature: 10 to 35 °C | Humidity: 35 to 75% RH (non-condensing) | |
| Guaranteed Accuracy Environment | Temperature: 16 to 32 °C | Humidity: 35% to 70% RH (non-condensing) | |

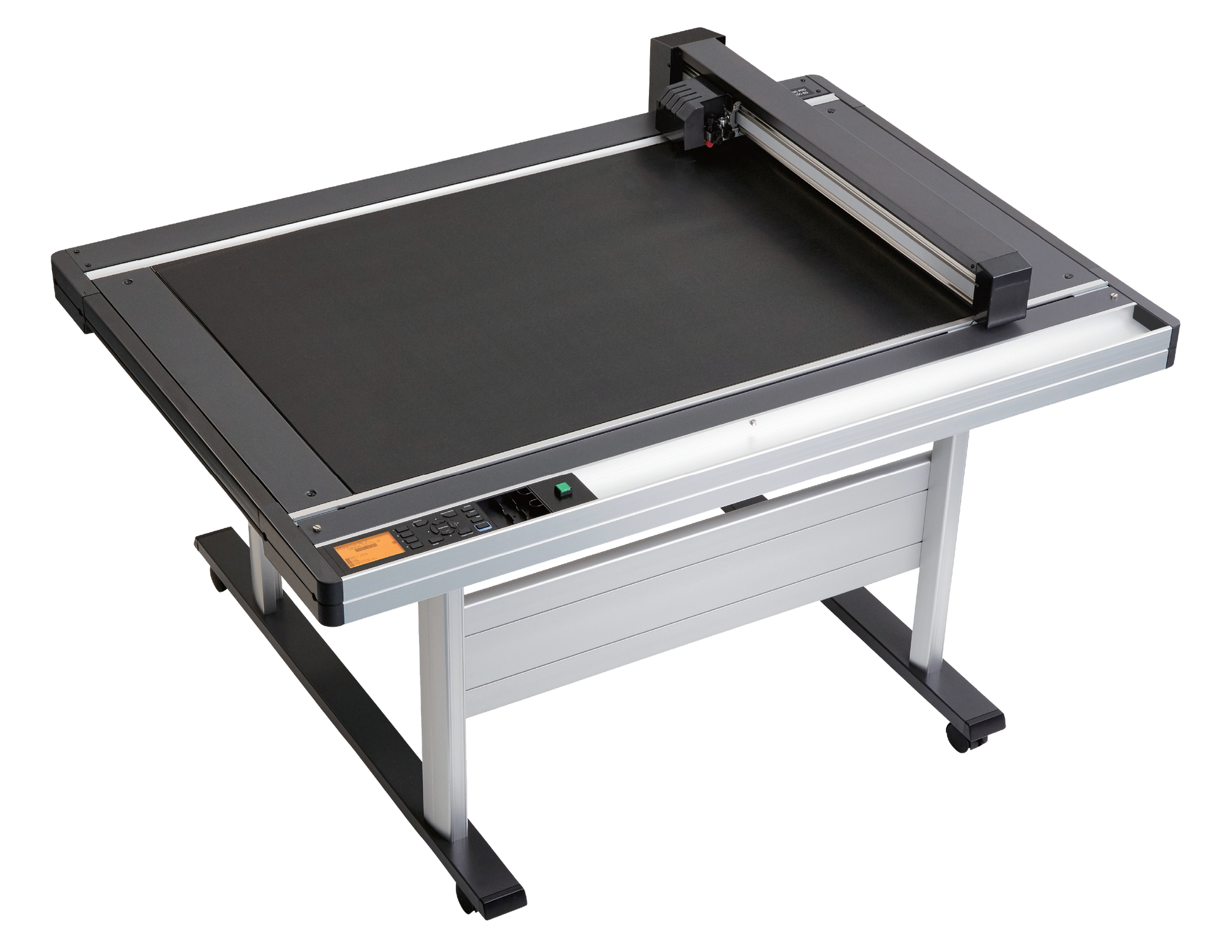

| External Dimensions [W x D x H] *3 | W 42.87" x D 35.31" x H 8.03" | W 55.31" x D 42.08" x H 8.03" (incl. stand: W 55.31" x D 43.18" x H 35.27") |
| Weight (Approx.) | 63.93 lbs (29 kg) | 83.77 lbs (38 kg) (incl. stand: 121.25 lbs / 55 kg) |
| Compatible OS *4 *5 | Windows 11 / 10 / 8.1 (64-bit) | macOS 10.12 (Sierra) to 10.13 (Ventura) | |
| Included Software *6 | Graphtec Studio 2, Cutting Master 5 Plug-in for Windows and Mac | |
| Warranty | 2-Year Warranty | |
| Safety Standards | UL/cUL, CE mark | |
| EMC | VCCI Class A, FCC Class A, CE mark (EN55032, others) | |
*1. HP-GL is a trademark of HP Inc.
*2. When operated with Graphtec specified media and conditions.
*3. Dimensions do not include protrusions.
*4. For more information about Windows and Mac compatibility, please check the Graphtec website or contact your local representative.
*5. The FCX4000-60ES stand is optional and sold separately.
*6. Software is available for download from the Graphtec website.
