GEO KNIGHT 16X20 AIR SWINGER

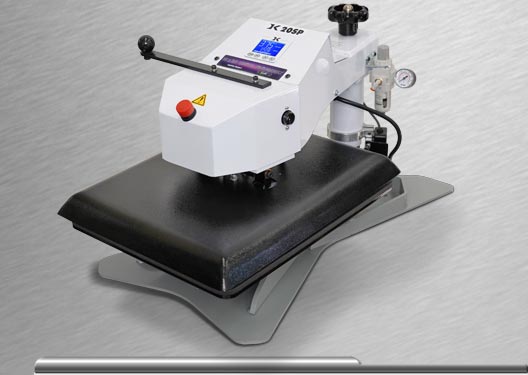

The Geo Knight DK20SP Automatic Digital Swinger is a 16" x 20" air-operated heat press designed for high-volume industrial production. It offers the same precision as the manual DK20S but adds push-button automation to maximize efficiency and ensure consistent pressure across large production runs. [1, 2, 3]

• Automatic Air Operation: A push-button system handles the closing and opening of the press, reducing operator fatigue and ensuring repeatable pressure settings.
• 3,000 lbs of Force: Capable of applying massive pressure, making it ideal for demanding applications like DTF transfers, heavy-duty sublimation, and thick patches.
• All-Thread™ Table Loading: Features a rotatable and threadable lower platen, allowing you to easily "dress" garments from the front or back to avoid pressing through both layers.
• SuperCoil-Microwinding™ Technology: High-density heating elements provide edge-to-edge temperature consistency and fast recovery times between cycles.
• Advanced Digital Controller: Includes 70 programmable presets, a dual pre-press timer, and a resettable odometer to track production counts.

• Platen Size: 16" x 20" (41 x 51 cm).
• Temperature Range: 32°F – 600°F (±2°F accuracy).
• Air Requirements: Requires a compressor with at least a 7-gallon tank and 100 PSI capability.
• Substrate Thickness: Accommodates materials up to 2" thick, such as wood, tiles, and plaques.
• Electrical: 1800 Watts / 15 Amps / 120V (220V optional for international use).

• Heat Platen: Lifetime warranty.
• Frame: 5-year warranty.
• Controller: 3-year warranty.
• Parts/Entire Press: 1-year warranty.
