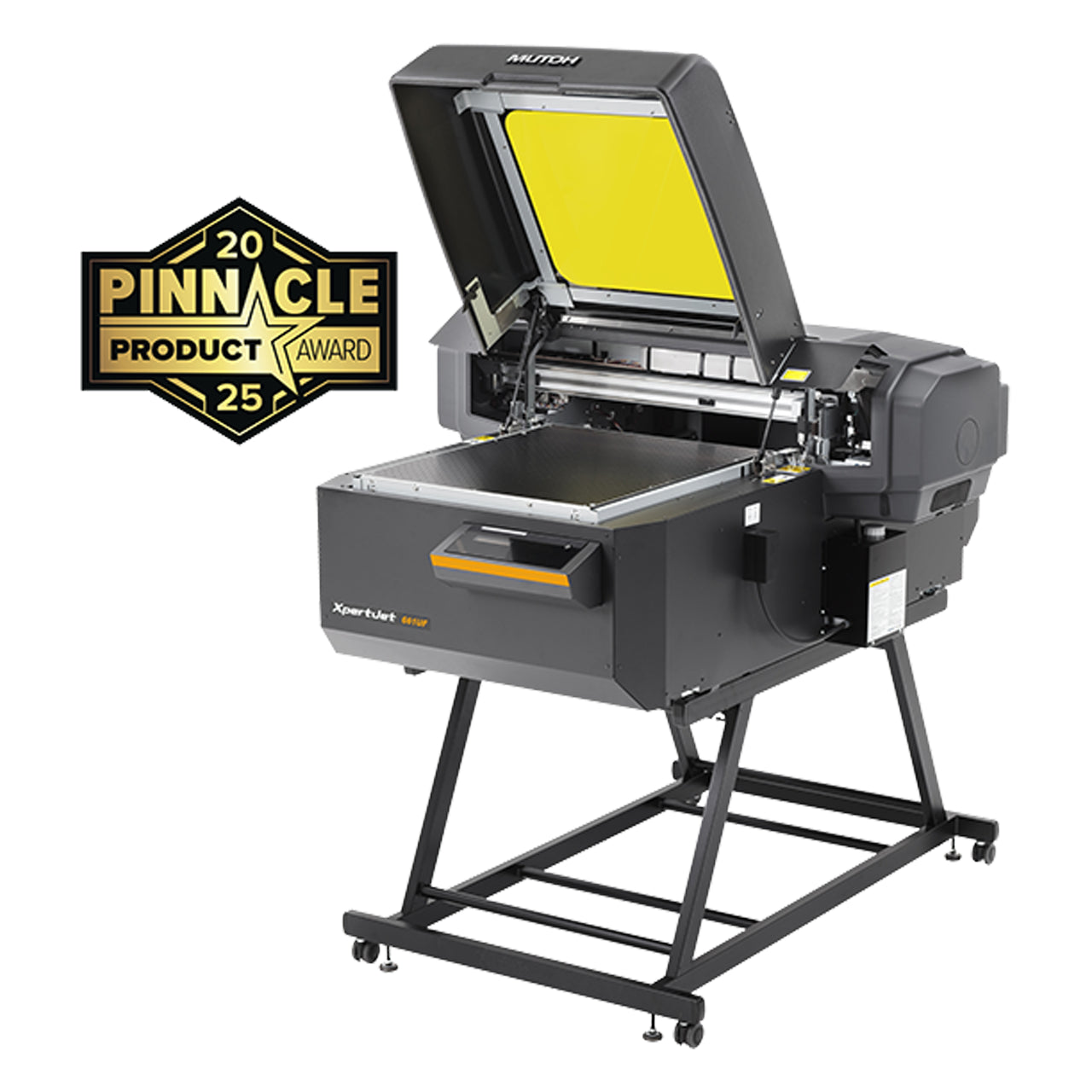

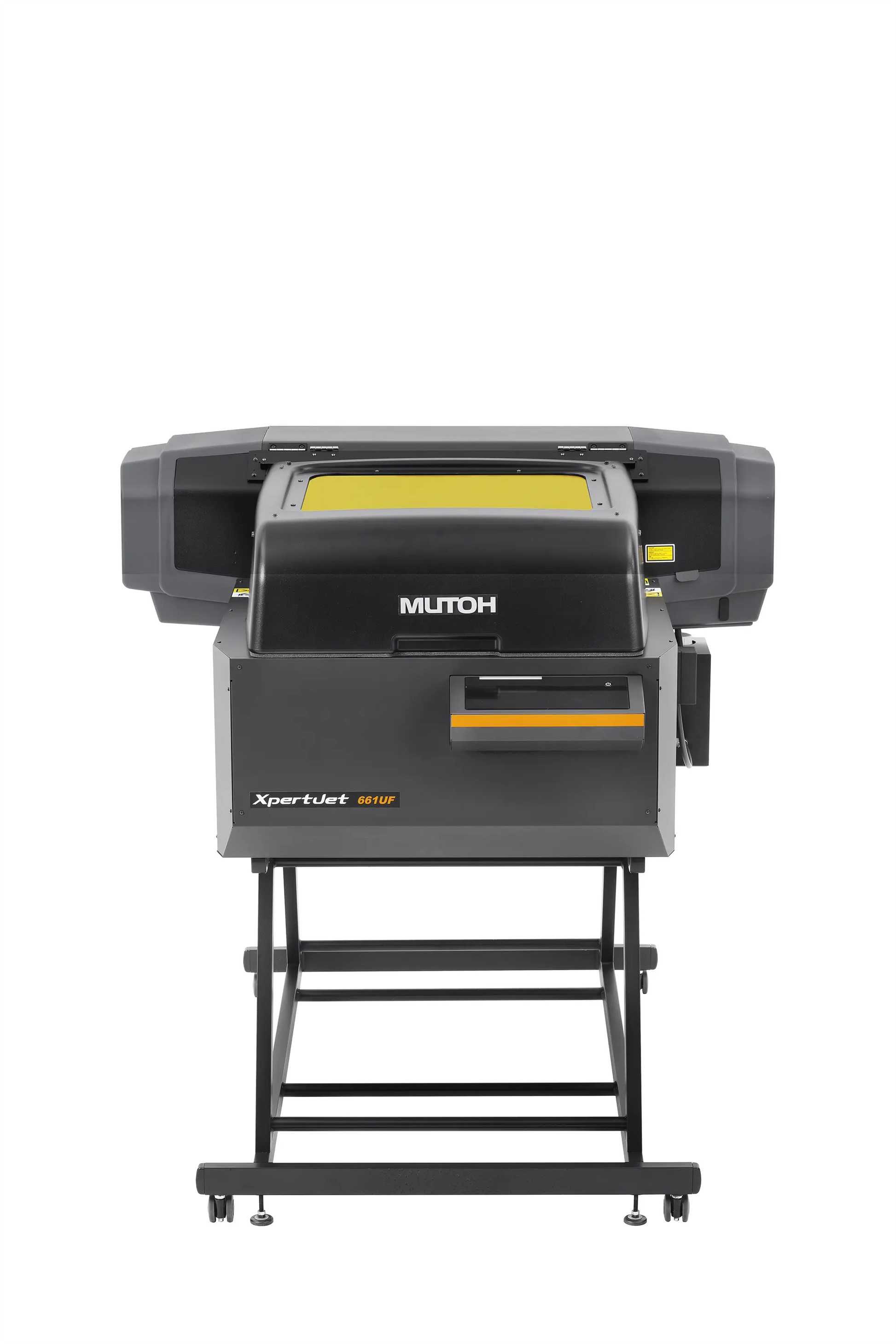

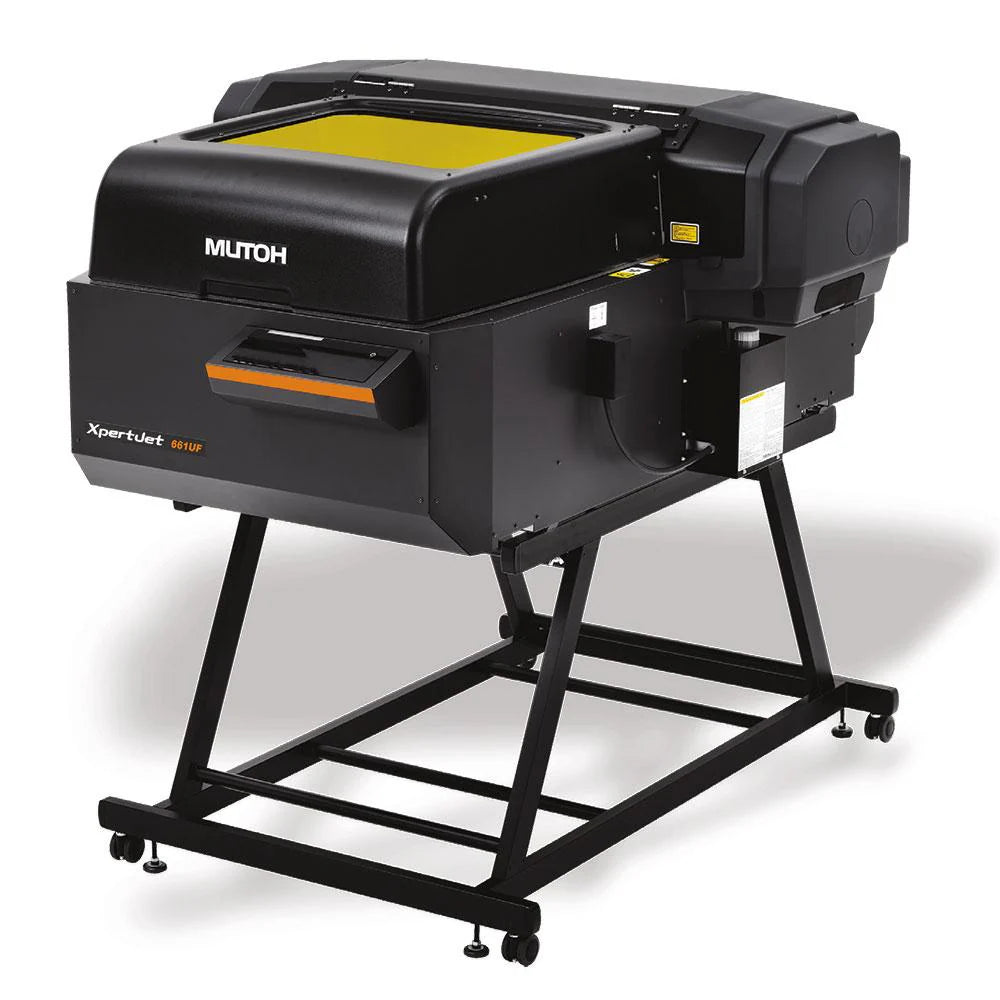

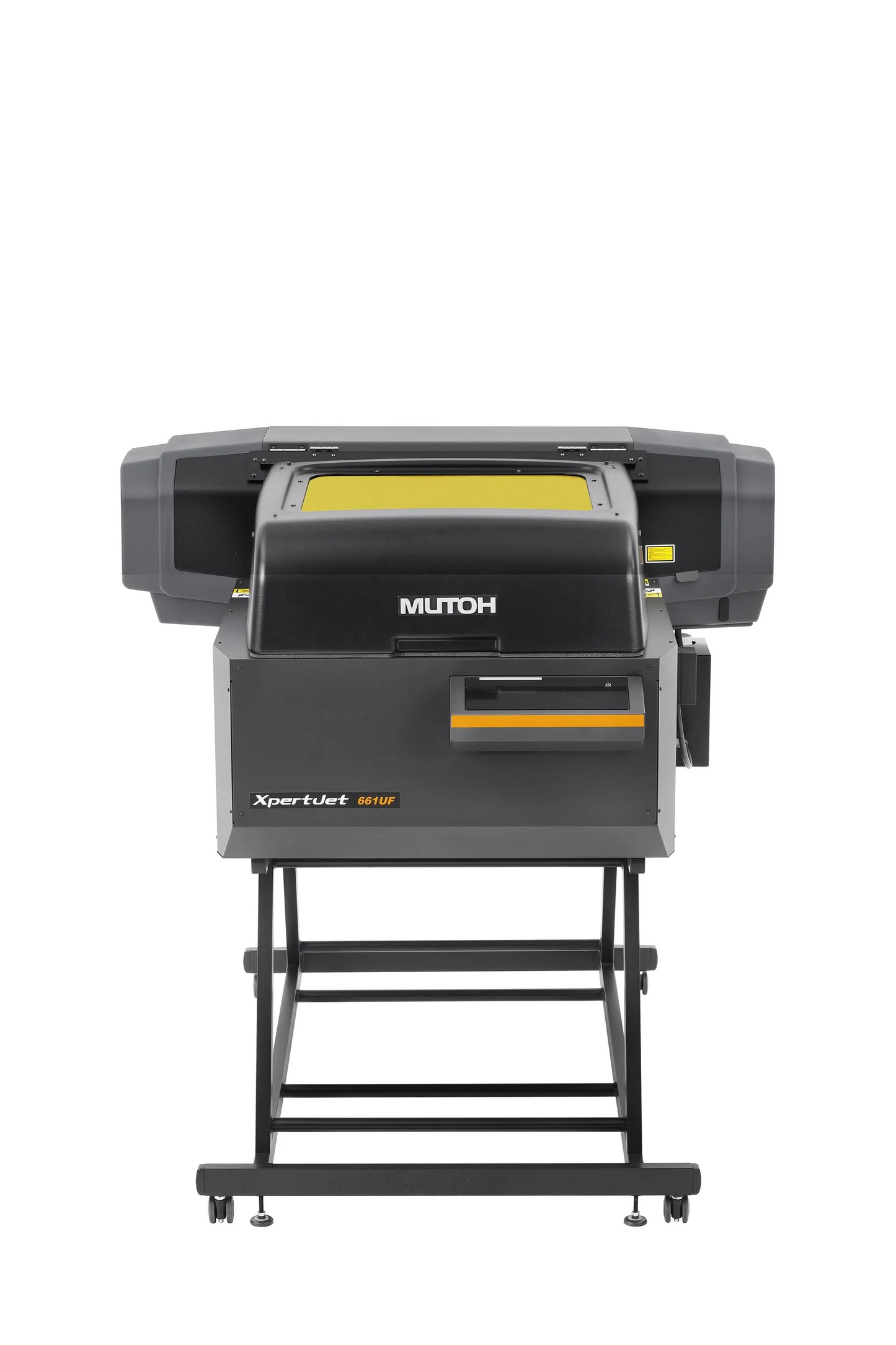

The Ultimate UV-LED Flatbed Solution Elevate your production with high-value, textured prints and unmatched versatility. The Mutoh XpertJet 661UF
is a powerhouse A2+ UV-LED flatbed printer designed for businesses looking to expand into high-margin, short-run personalization and industrial labeling. From ADA-compliant Braille to high-gloss decorative tiles, this printer delivers professional, retail-ready results every time.
Why Choose the XpertJet 661UF
- Stunning Textured Effects: Thanks to Local Dimming Control (LDC), you can print glossy, semi-glossy, and matte varnish finishes simultaneously with CMYK and white in a single pass. Perfect for creating 2.5D textures that customers can see and feel
- Effortless Substrate Handling: Print directly on items up to 5.91 inches (150 mm) thick. The built-in vacuum table secures lightweight materials, while the laser-assisted Automatic Table Height Adjustment ensures perfect focus on every object
- Premium Ink Configuration: Uses CMYK + White + Varnish. Use white ink as a base for vibrant colors on dark or transparent materials, and use varnish for spot gloss or protective layering
- Complete Software Suite Included: Every unit comes bundled with Mutoh’s VerteLith™ RIP and FlexiDESIGNER Mutoh Edition 21 (a $2,199.00 value), giving you professional-grade color management and layout tools right out of the box
Top Money-Making Applications
- Personalized Promos: Pens, phone covers, USB drives, and golf balls\
- Signage & Awards: ADA-compliant Braille signage, nameplates, and crystal awards
- Giftware & Decor: Printed tiles, "Save the Date" magnets, and custom drinkware (requires optional Rotary Unit)
XpertJet 661UF Full Specifications
| Printing Systems | On-demand piezo drive system |
| Set Media Size (WxD) | 20.5 in x 24.5 in |
| Set Media Height | 0–5.91 in |
| Set Media Weight | 13.23 lbs. |
| Max Printable Size (WxD) | 19.02 in x 23.39 in |
| Height Adjustment | Automatic |
| Ink Type | UV-LED Ink (UH21 ink / US 11 ink) |
| Ink Set | 4 colors (C, M, Y, K) | 6 colors (C, M, Y, K, White, Varnish) |
| Ink Capacity | 220mL ink cartridge (CMYK, White, Varnish) |
| Ink Slots | 6 |
| Stand | Included | Working Height: 48.11 in |
| Print Resolution | 1440 / 1080 / 720 dpi (Total 6 modes) |
| Interface | Ethernet (10BASE-T / 100BASE-TX) |
| Power Requirements | AC 100–120V ± 10%, 50/60Hz ± 1Hz |
| Operation Noise | Standby: 49dB or less | Printing with vacuum table: 69dB or less |
| Printable Environment | Temperature: 68–89.6°F | Humidity: 40–60% RH (non condensing) |
| Power Consumption | Sleep Mode: 20W or less | Ready to Print: 40W or less | Operation: 300W or less |
| Dimensions (WxDxH) & Weight | 46.77 in x 64.06 in x 23.78 in (cover closed) | Weight: 286.60 lb 46.77 in x 64.06 in x 47.01 in (front cover opened) |
| Printer Driver | Bundled |
| RIP Software | VerteLith™, bundled with FlexiDESIGNER MUTOH Edition 21, a $2,199.00 value |
| Rotary Unit | Optional |
