Beyond Flat Prints
Stand out with tactile 2.5D textures and innovative 5-layer printing. Create double-sided window graphics with different designs on each side or stunning backlit displays that transform when the lights go on.

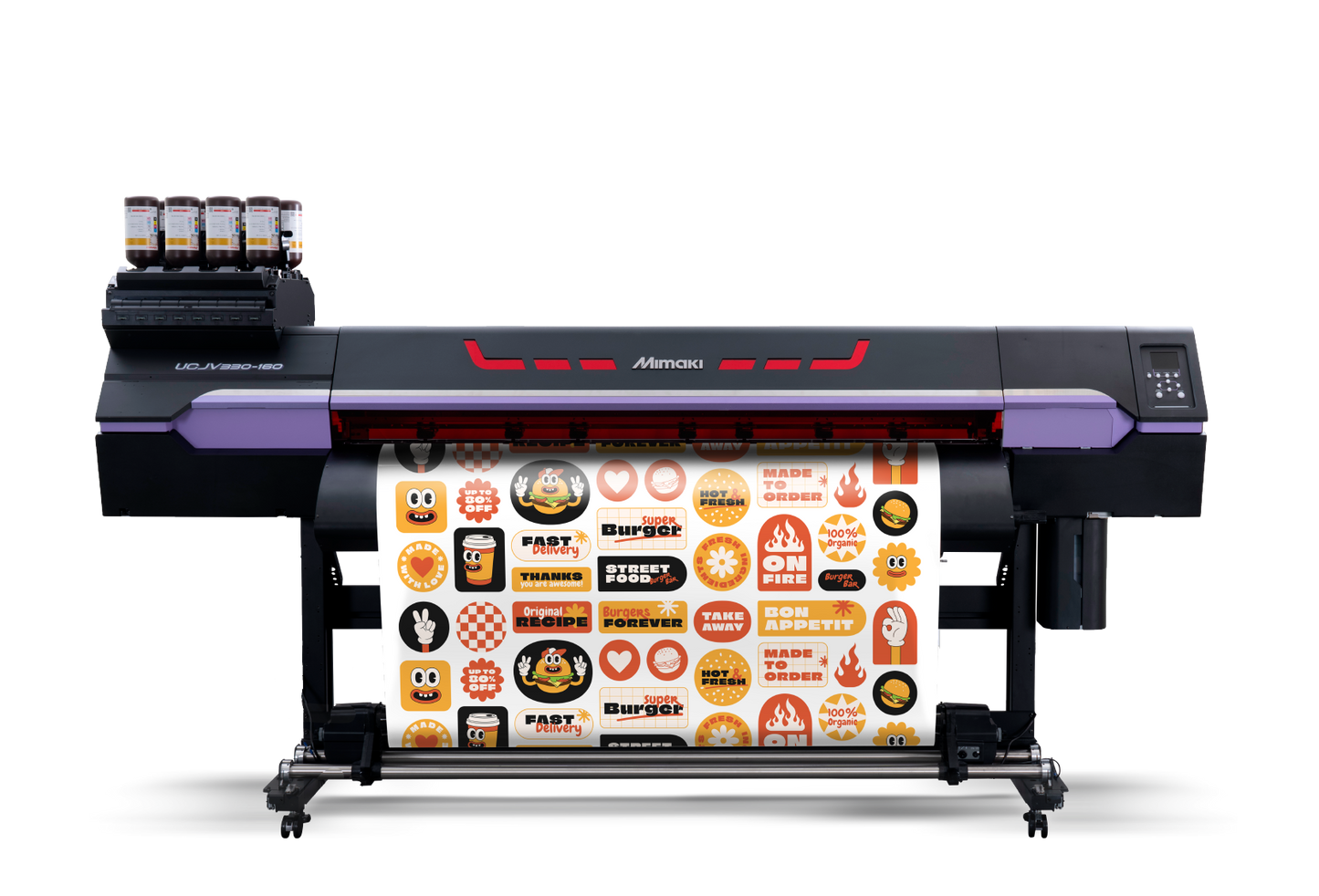

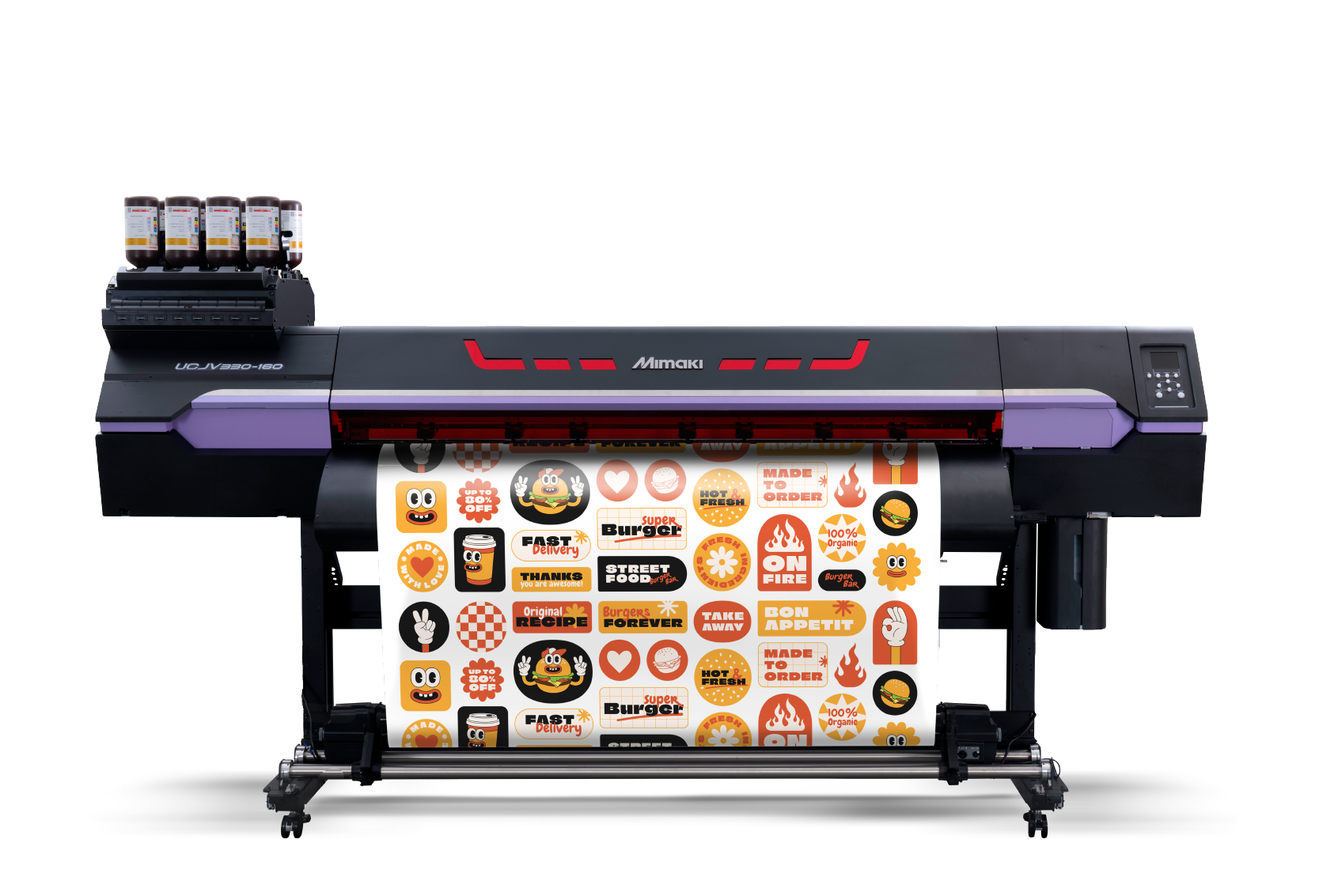

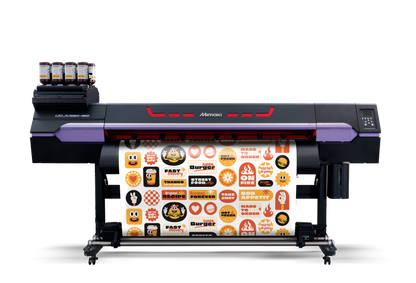

Mimaki UCJV330 UV Printer/Cutter
Mimaki UCJV330 Series UV-LED Cut-and-Print Device
The Future of Versatile Production: Precision Printing & Instant Finishing.
The Mimaki UCJV330 Series is a powerhouse roll-to-roll UV-LED device designed to lead the way in high-quality, high-speed production. Combining advanced printing technology with integrated cutting capabilities, this series allows you to move from design to finished product faster than ever before. Whether you are producing backlit signage, intricate decals, or textured 2.5D prints, the UCJV330 delivers exceptional results on an unmatched range of substrates.
Why the UCJV330 Series Stands Out:
- Instant Drying & Finishing: UV-curable ink requires zero drying time. Prints can be immediately laminated, cut, or shipped, significantly shortening your turnaround times.
- Exceptional Image Quality: Newly developed ink ejection technology reduces color irregularities—even in high-speed modes—to ensure vibrant, smooth results every time.
- Creative Versatility: Capable of up to 5-layer printing, enabling double-sided prints and stunning backlit signage that changes appearance when illuminated.
- Unrivaled Media Compatibility: Print on almost anything—from translucent and transparent films to cloth, paper, PET, and polyurethane.
- Integrated Precision Cutting: Cut detailed designs instantly with updated software that supports continuous printing and cutting of full media rolls.
Specifications
| Print System | |
| Printhead | Two staggered on demand piezo print heads |
| Print Resolution | Y: 600dpi, 1200dpi | X: 600dpi, 1200dpi, 1800dpi |
| Print Speed (4 color mode) | Up to 430.5 SqFt/Hr (40.00 m²/h) |
| Maximum Print Width | UCJV330-130: 53.5 in (1360 mm) UCJV330-160: 63.4 in (1610 mm) |
| Maximum Media Width | UCJV330-130: 53.9 in (1370 mm) UCJV330-160: 63.8 in (1620 mm) |
| Ink | |
| Ink Type / Color | C, M, Y, K, Lc, Lm, W, Cl |
| Ink Package Size | 1L Bottle |
| Media | |
| Media Thickness | Up to 0.03 in (1.0 mm) |
| Rolled Media Weight | Max 45 kg (99.2 lbs) or less |
| Compliance & Certifications | |
| Certifications | VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, REACH, Energy Star, RCM, KC, UKCA |
| Connectivity & Environment | |
| Interface | Ethernet 1000 BASE-T (Recommended) / USB 2.0 Hi-speed |
| Power Supply | Single phase AC100–120V ±10% / 12A Single phase AC200–240V ±10% / 6A, 50/60 Hz ± 1 Hz |
| Power Consumption | Max. 1,440 W or less |
| Operational Environment | Temperature: 20–30°C (68–86°F) Humidity: 35–65% Recommended temperature: 20–25°C (68–77°F) Dust level: General office level |
| Physical | |
| Dimensions (W x D x H) | UCJV330-130: 103.9 in x 31.5 in x 58.3 in (2,640mm x 800mm x 1,480mm) UCJV330-160: 113.8 in x 31.5 in x 58.3 in (2,890mm x 800mm x 1,480mm) |
| Weight | UCJV330-130: 478.4 lbs. (217 kg) UCJV330-160: 500.4 lbs. (227 kg) |
Why Buy from Beacon Graphics?
When you purchase your Mimaki CJV200 from Beacon Graphics, you're backed by more than just industry-leading equipment. Our experienced team can help you choose the right configuration, recommend compatible media and inks, and provide the support you need to get the most from your investment.

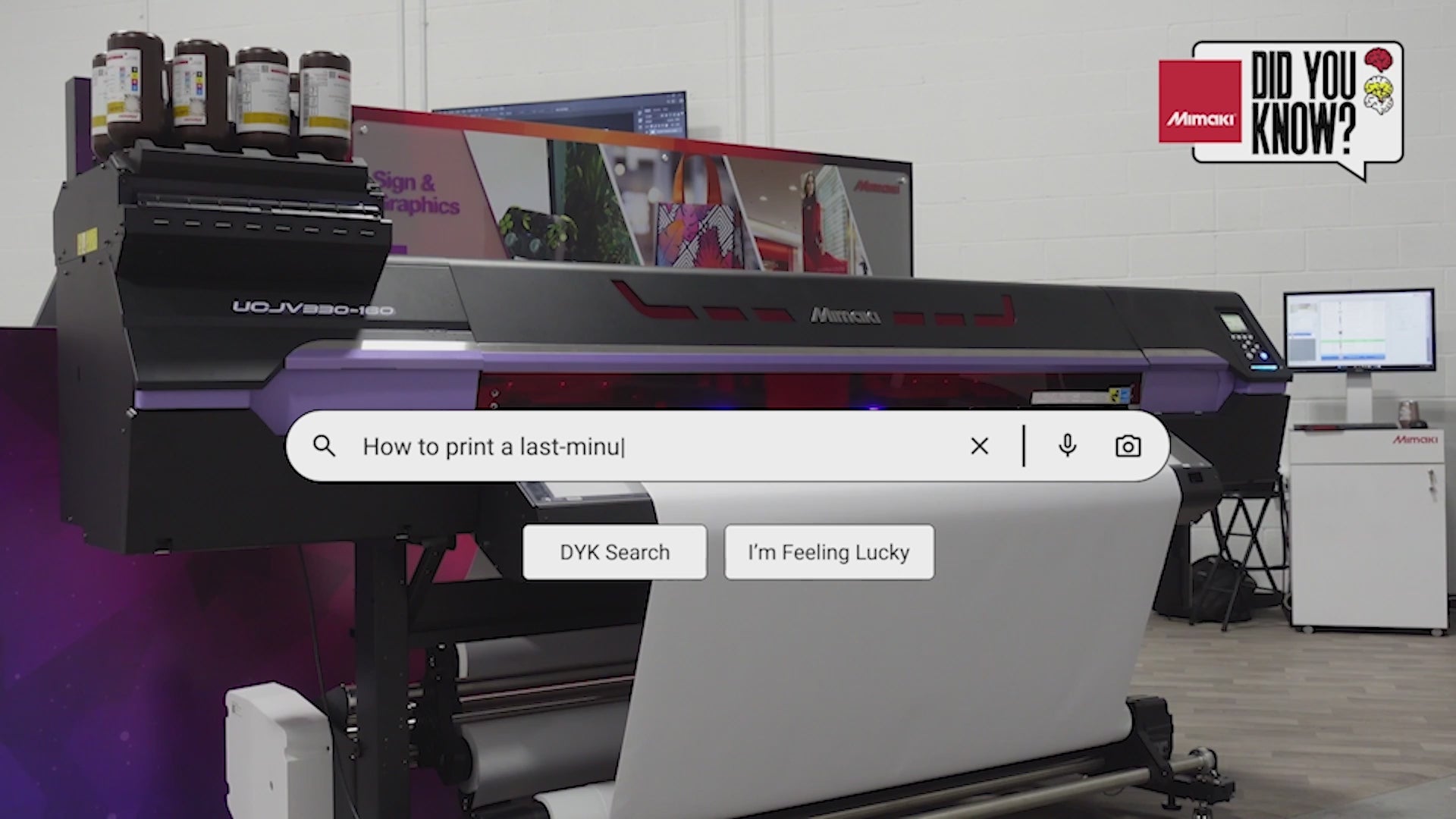

Load video: Highlight Video
