Fusion IQ Heat Press

$2,850.00

Skip to product information
1 of 3

Fusion IQ Heat Press

XF


Regular price $2,850.00
Sale price $2,850.00 Regular price

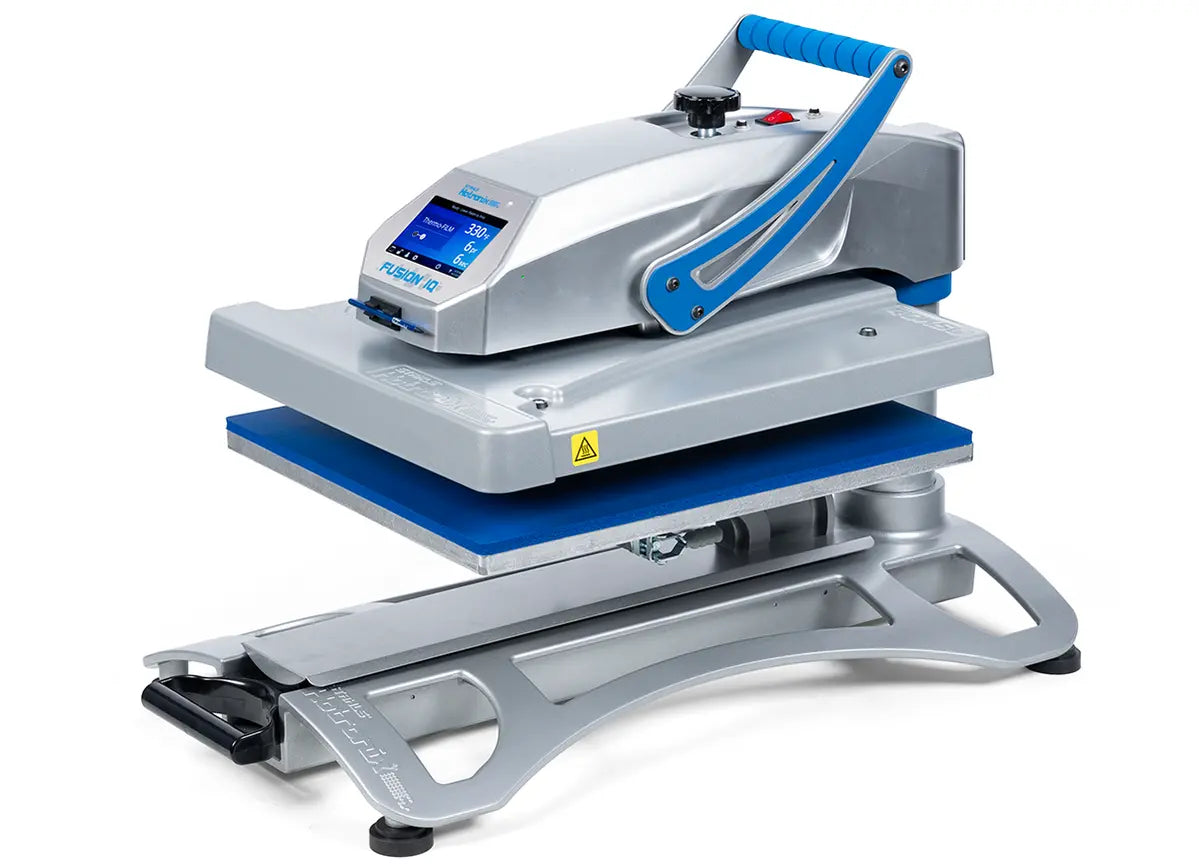

The Hotronix® Fusion IQ® is a 16" x 20" professional-grade heat press widely considered the industry standard for versatility. It is a "hybrid" machine, featuring a unique dual-motion design that allows it to operate as both a draw press (pulling the lower platen out like a drawer) and a swing-away press (swinging the top platen away to the side).

Key Features

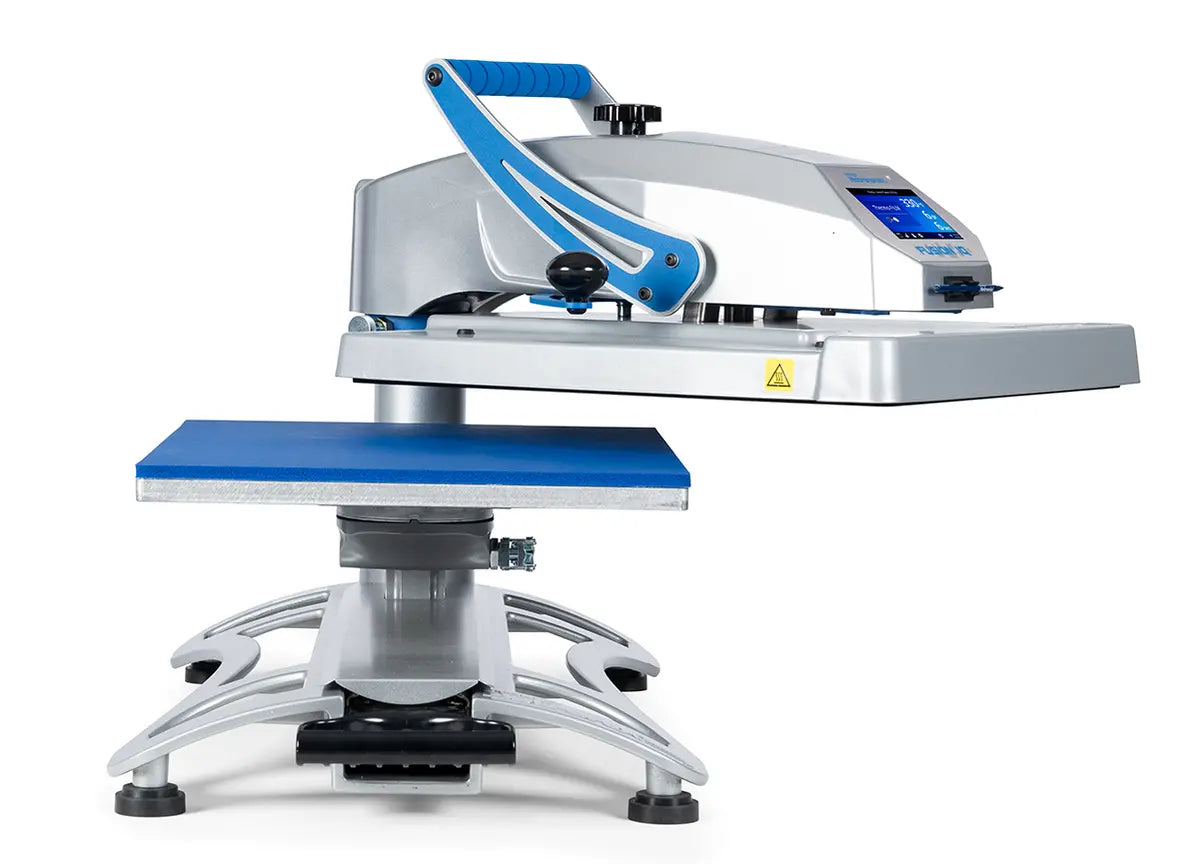

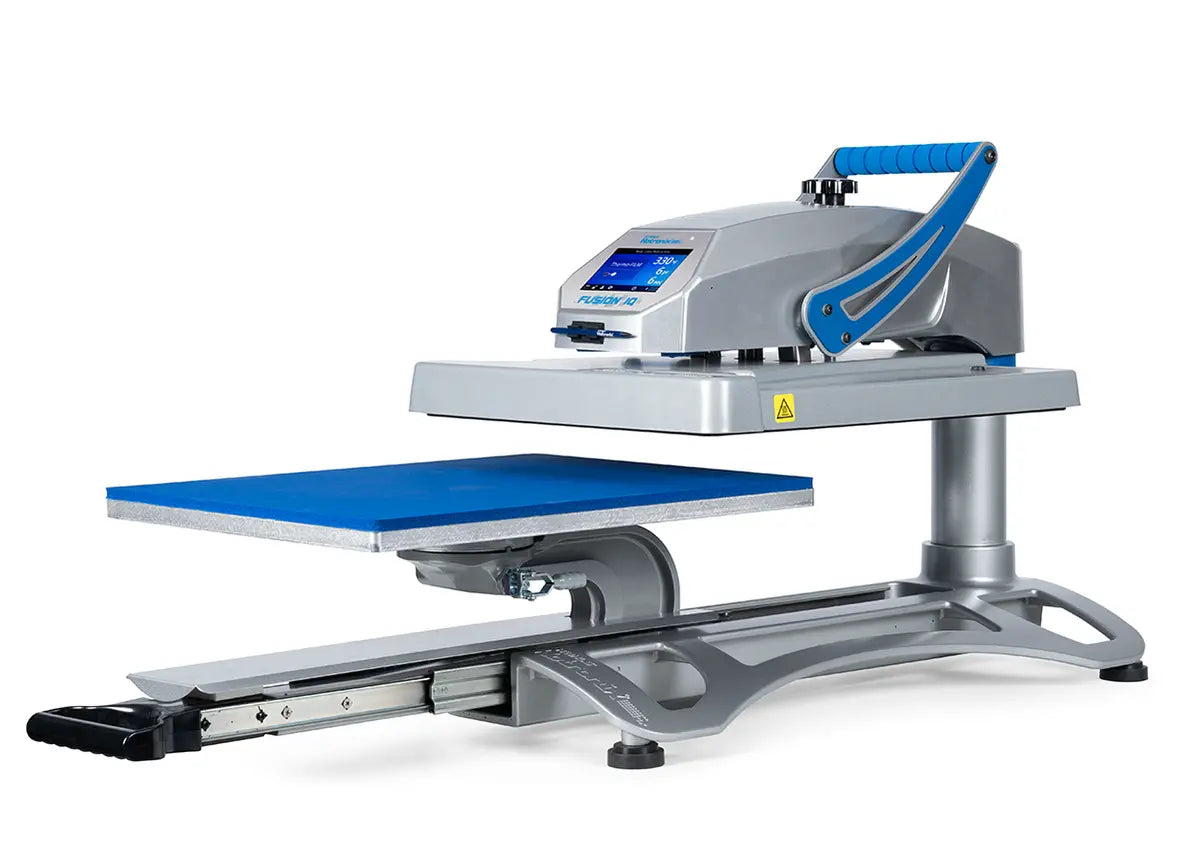

  • Dual-Function Motion: You can pull the lower platen toward you for a heat-free workspace or swing the upper platen 360° to accommodate thicker items or unique layouts.
  • Threadability™: The cantilevered lower platen allows you to slide garments completely over the base, making it easy to decorate one side of a shirt without interference from the other.
  • Fusion IQ® Touchscreen: This advanced controller offers a high-resolution display, unlimited programmable presets, and Wi-Fi connectivity to track production stats and manage settings via the Hotronix Cloud.
  • Quick-Change Platens: Features a "no-tool" system for swapping out the standard 16" x 20" platen for smaller sizes (sleeves, legs, youth sizes) in seconds.
  • Cast Aluminum Frame: Built for heavy-duty daily use with a 3/4" thick heat platen for superior heat retention.

Technical Specifications

  • Platen Size: 16" x 20" (41 x 51 cm).
  • Temperature Range: Up to 430°F (221°C).
  • Electrical: 120V (1800W / 15A) or 240V (3500W / 15A).
  • Weight: 137 lbs (shipping weight 150 lbs).
  • Opening: Swing-away or Draw-style.

Warranty

  • Heating Element: Lifetime warranty.
  • Framework: 5-year warranty.
  • Circuit Board: 2-year warranty.
  • Parts & Labor: 1-year warranty.
