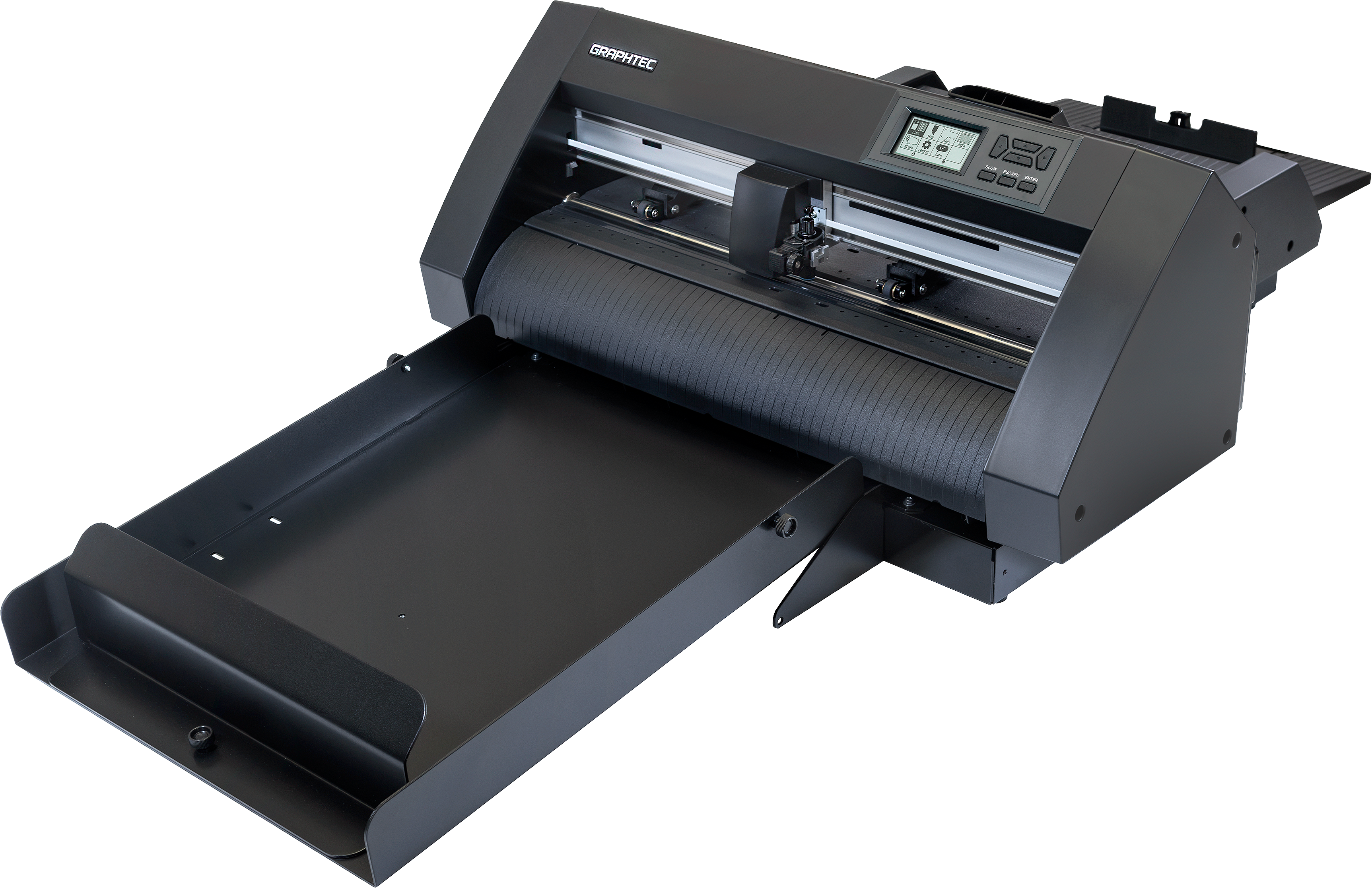

Graphtec CE8000 Cutter with Auto Sheet Feeder
The Graphtec CE8000 Cutter with Auto Sheet Feeder pairs the CE8000-40 with the ASF1-30 automatic feeding system for unattended cut-sheet production. It is designed for labels, cards, short-run sheeted graphics, and other high-volume cut-sheet workflows where automatic feeding and registration are critical.
CE8000-ASF Specifications
| Specification | Details |
|---|---|
| Cutting Speed | Max. 24"/s (600 mm/s) in all directions |
| Acceleration | Max. 21.2 m/s² (2.2G) at 45° direction |
| Cutting Force | Max. 450 gf (4.41 N) |
| Supported Media | Up to 350 g/m² (handled by automatic feeder unit) |
| Supported Sheet Sizes | 8.5" x 11" / 11" x 17" / 12" x 18" / 13" x 19" |
| Capacity of Exit Tray | Up to 150 sheets or up to 1.125" height (varies by material, thickness, and condition) |
| Condition Settings | Dual configuration – 2 user / 8 separate condition settings |
| Display | Touch panel screen (240-dot × 128-dot) |
| Barcode / DataLink | Yes |
| Interface | USB 2.0, Ethernet 10BASE-T / 100BASE-TX, Wireless LAN (optional) |
| Command Mode | GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm; HP-GL: 0.025 mm |
| Design Software | Cutting Master 5 plug-in for Adobe Illustrator 24 (Mac & PC) CorelDRAW Studio 24 and above (PC only) Graphtec Studio 2 standalone (Mac & PC) |
| Supported OS | Mac OS 10.13 / Windows 10, 8.1, 7 |
| Power Source | 100 to 240 V AC |
| Power Consumption | Up to 100W |
| Operating Environment | Temperature: 50°F – 86°F (10°C – 30°C) Humidity: 35–70% RH (non-condensing) |
| Dimensions | Table Edge Mount (tray at 45°): 26.65" x 48.43" x 12.83" Desktop Flat Mount: 26.65" x 53.54" x 12.83" |
| Weight | Total: 54.67 lbs | Cutter: 24.25 lbs | Auto Feeder Unit: 15.87 lbs | Paper Output Tray: 13.23 lbs |
| Compatible Standards | Main body: cNus (UL/cUL), CE mark, FCC AC adapter: UL, cUL, CE mark, FCC, PSE, CCC RoHS Directive |
