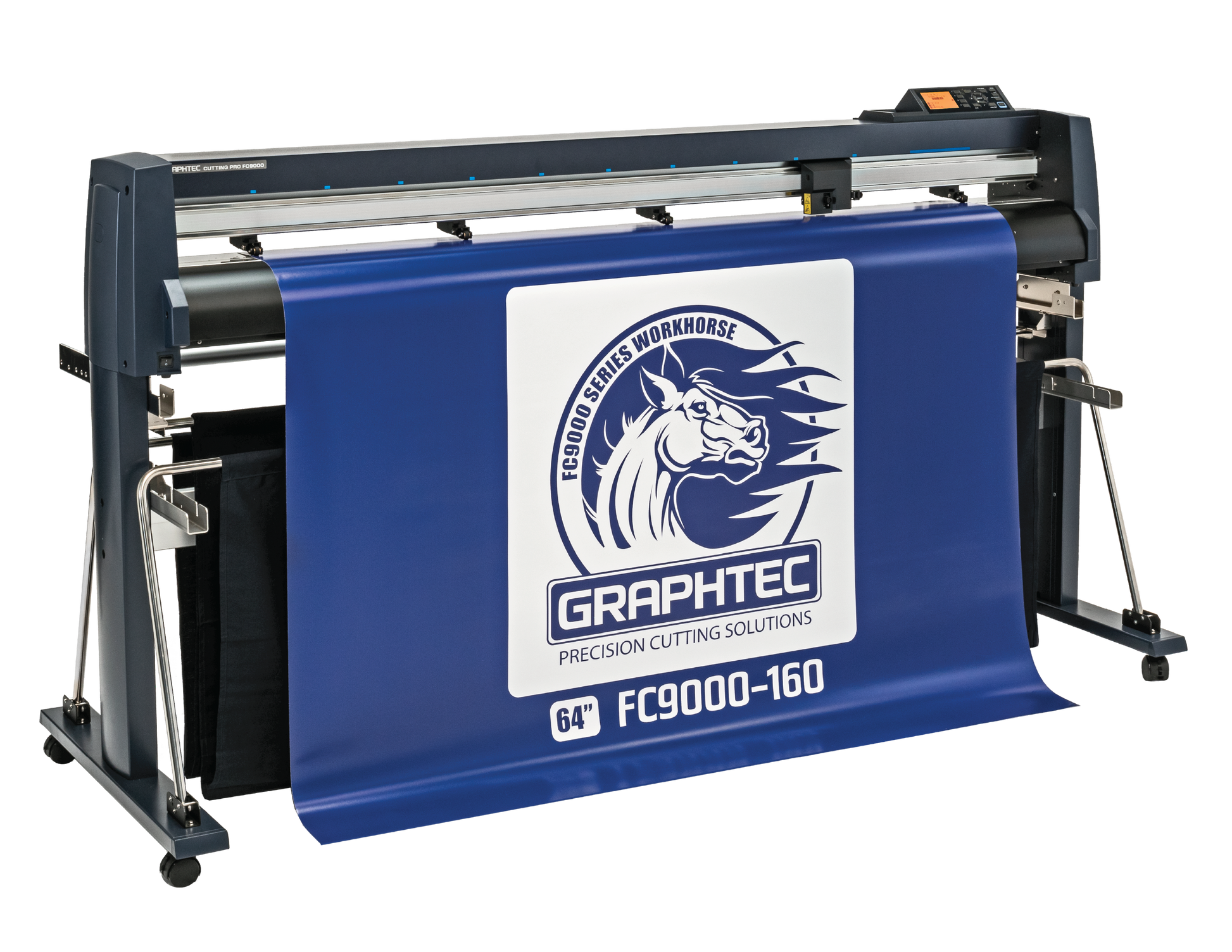

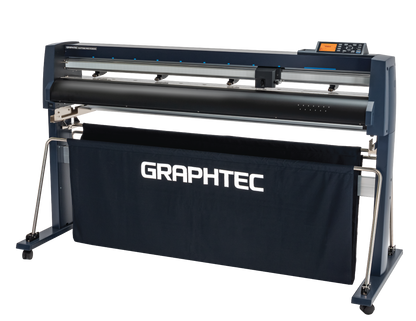

Graphtec FC9000 Cutter

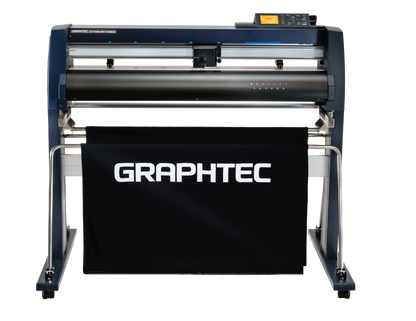

FC9000-75
Regular price
$4,495.00
Sale price
$4,495.00
Regular price
Unit price
per
Couldn't load pickup availability

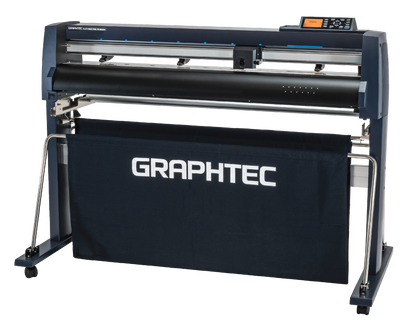

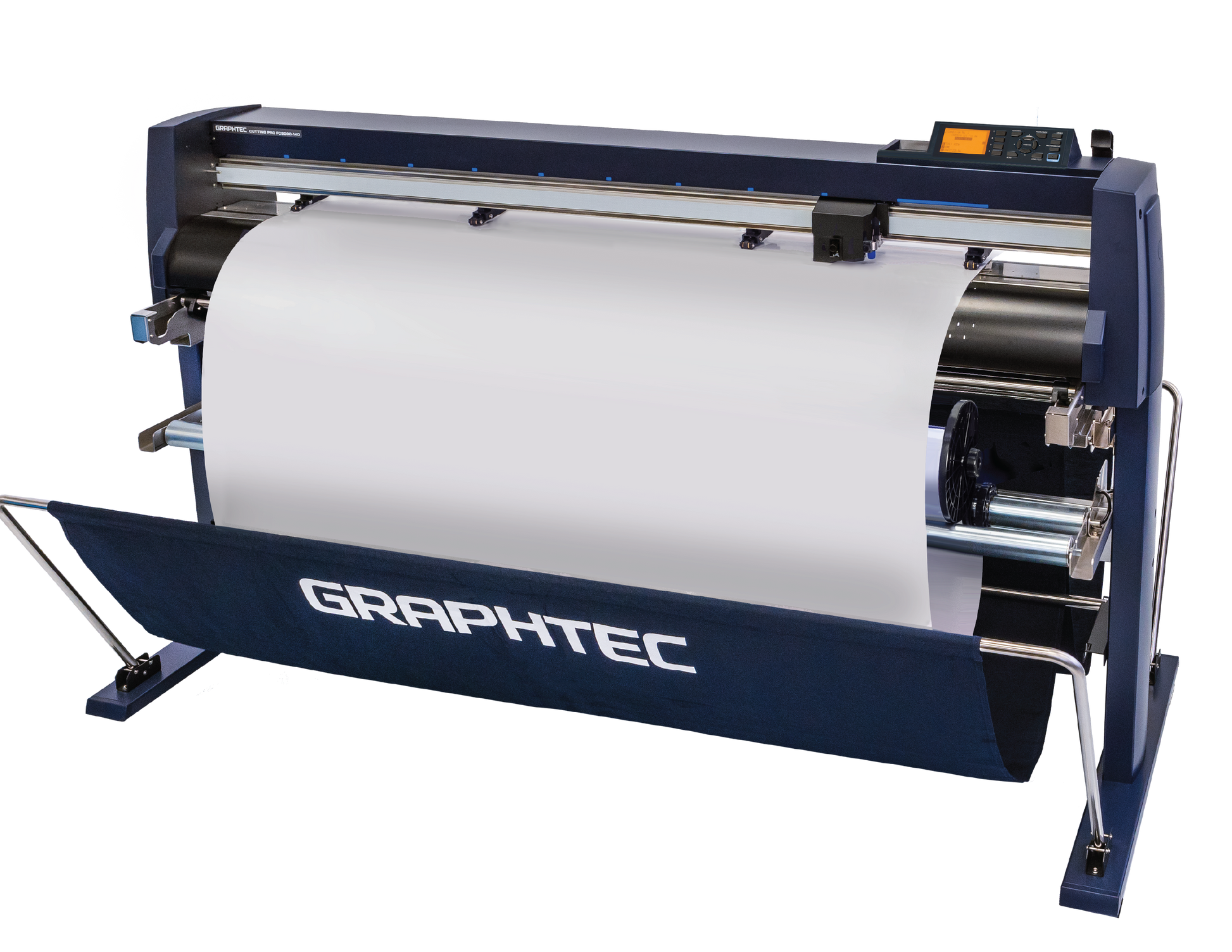

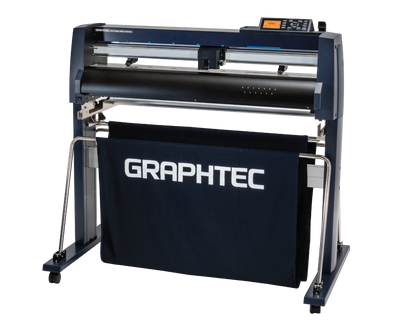

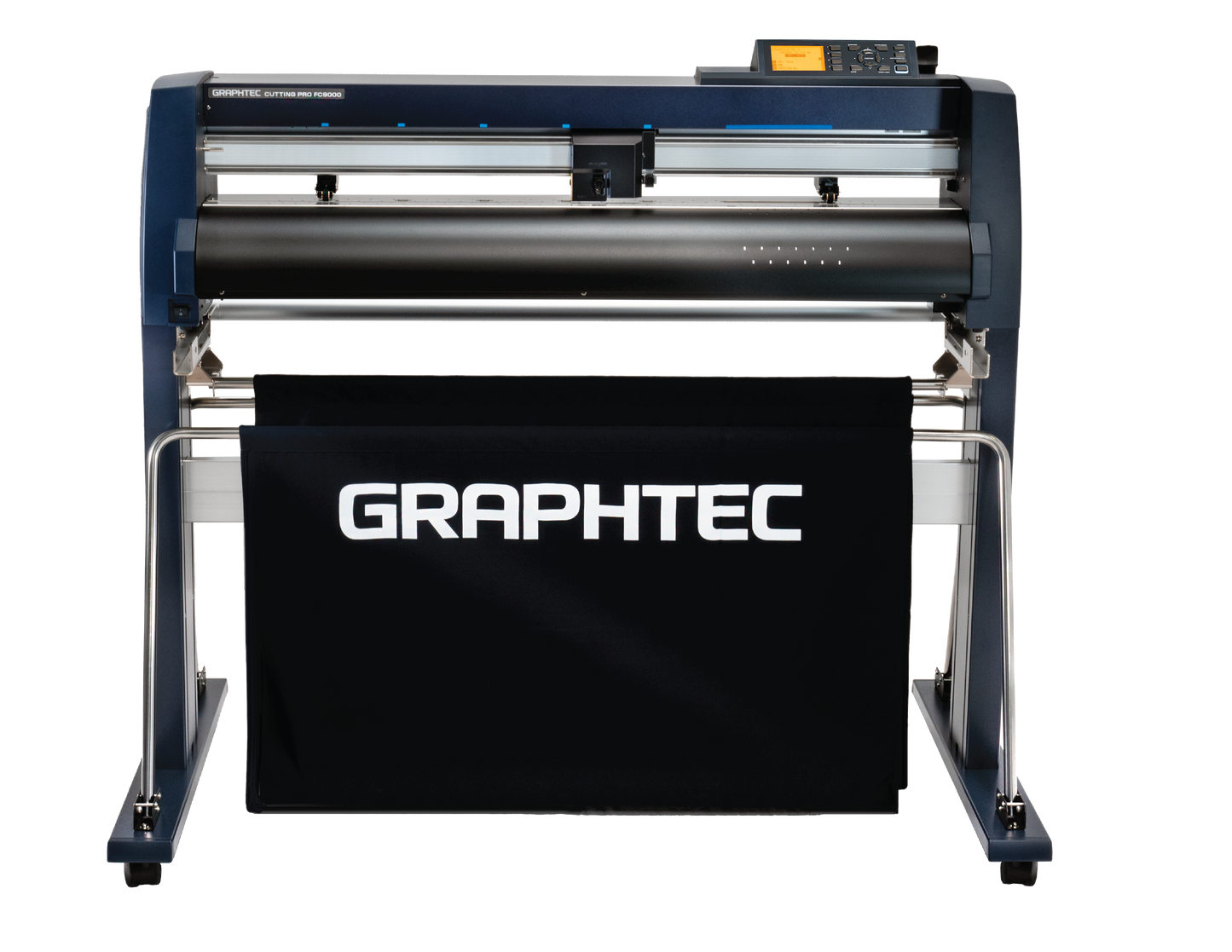

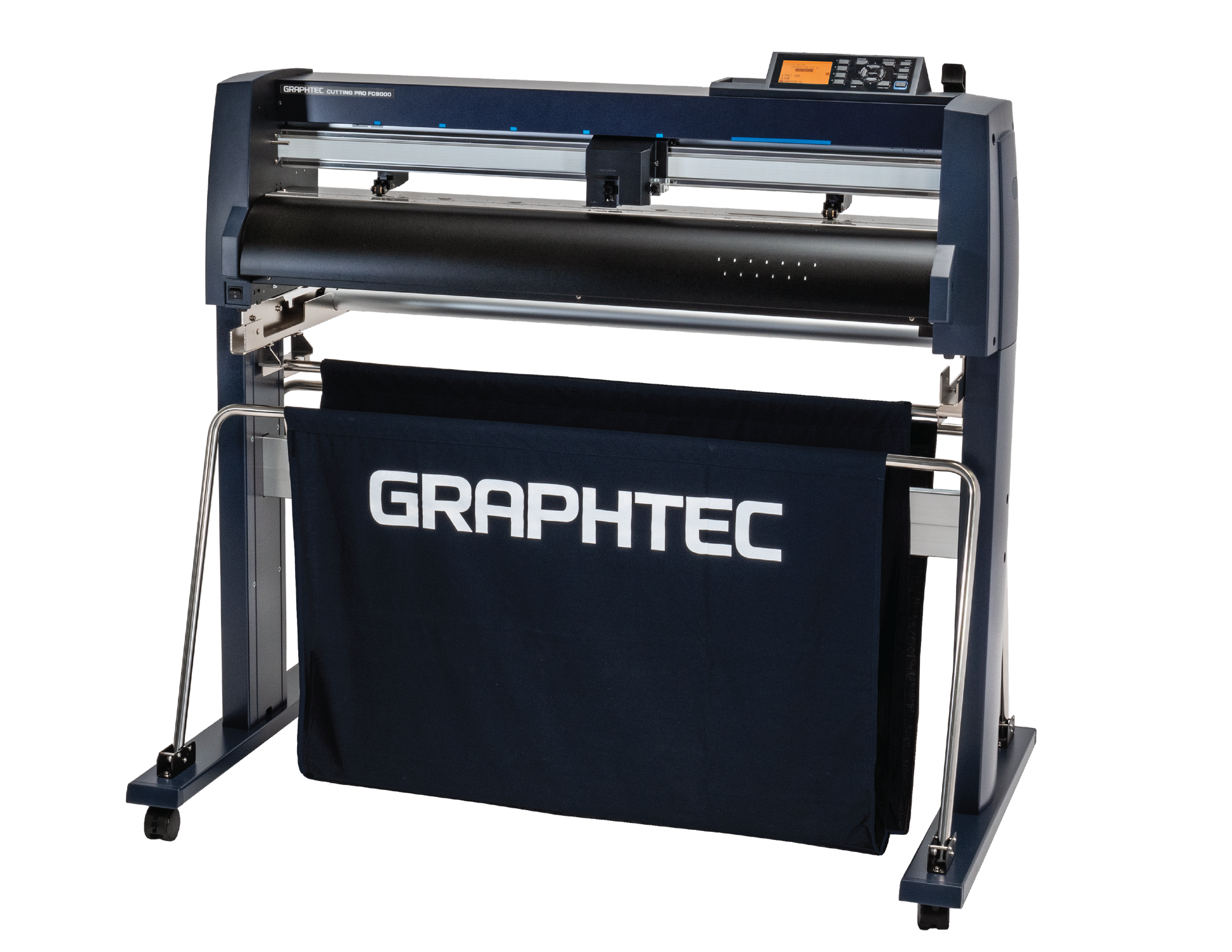

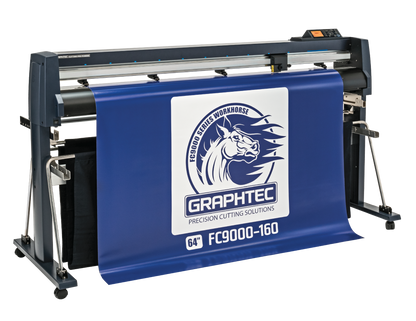

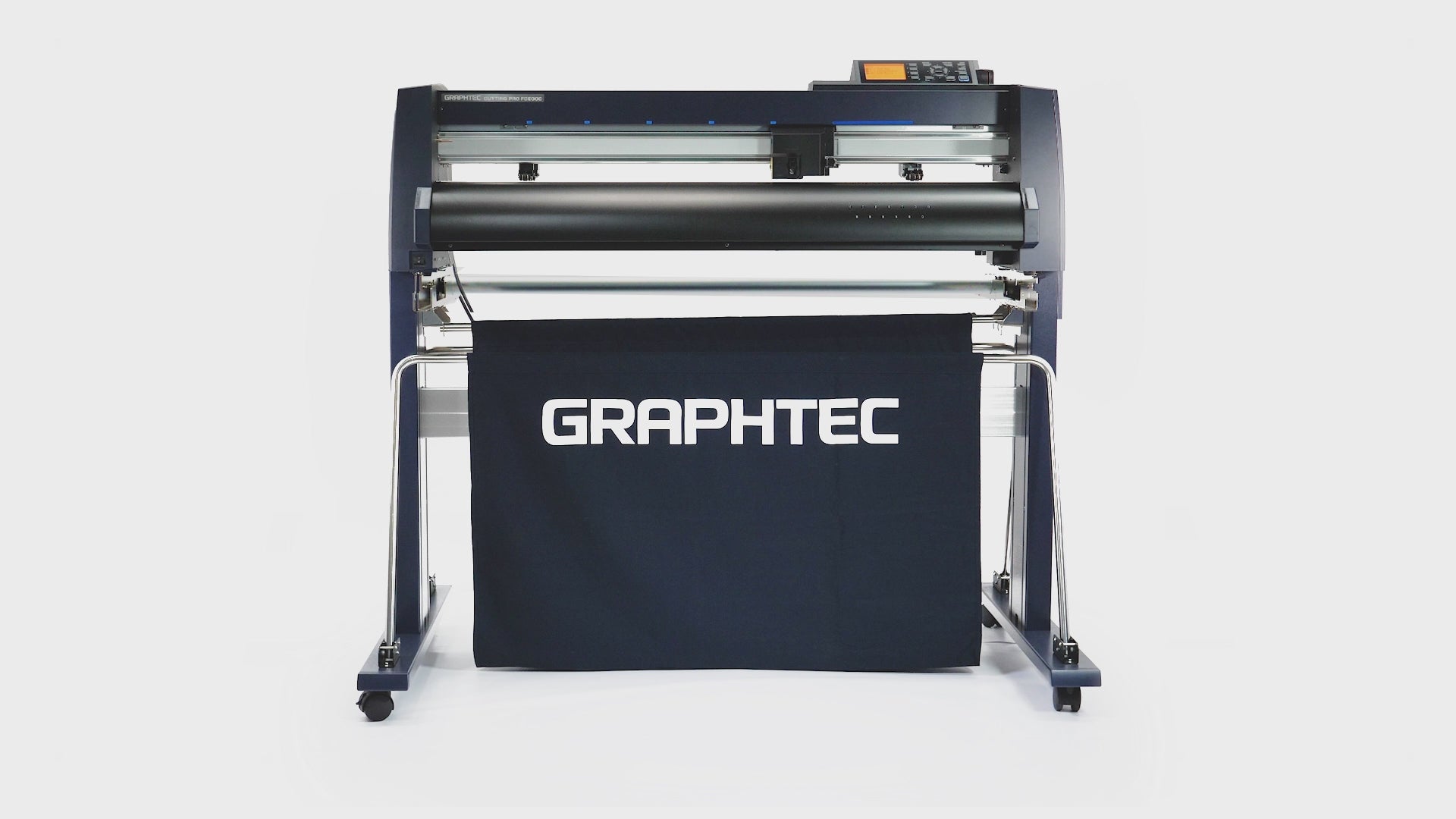

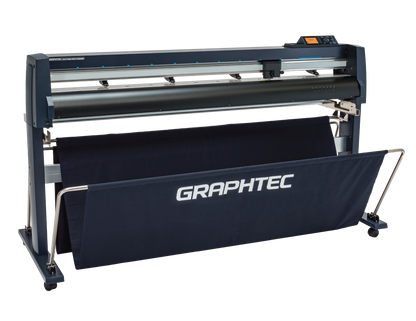

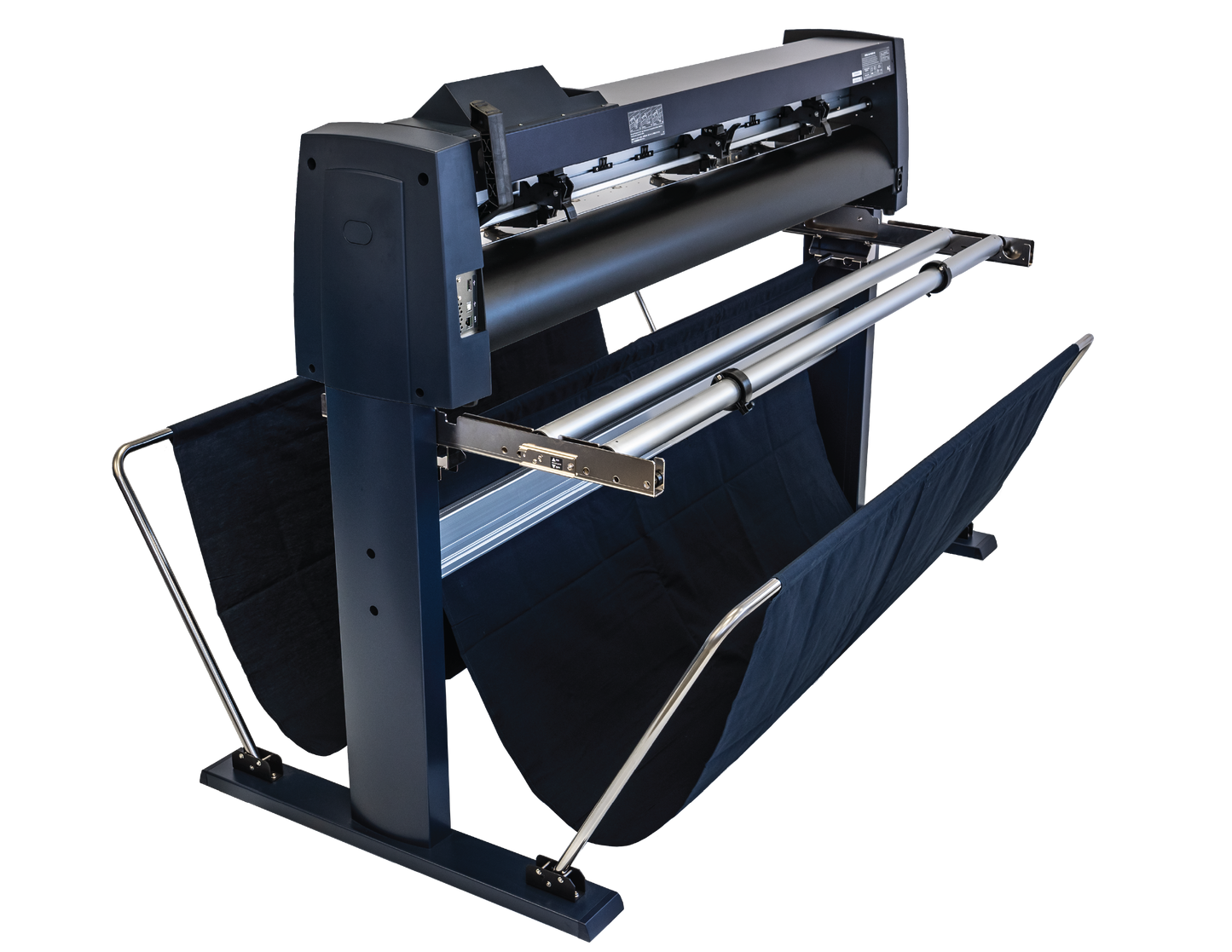

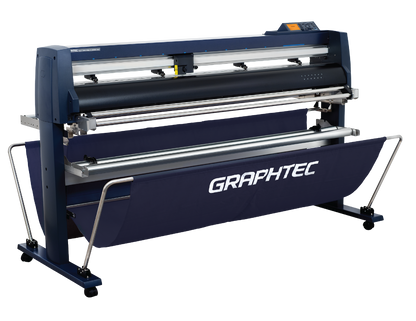

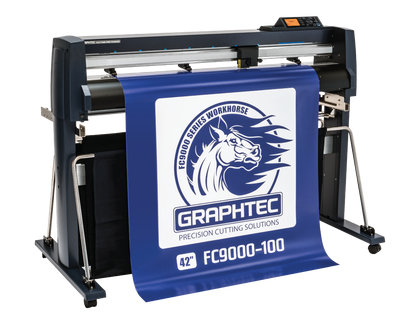

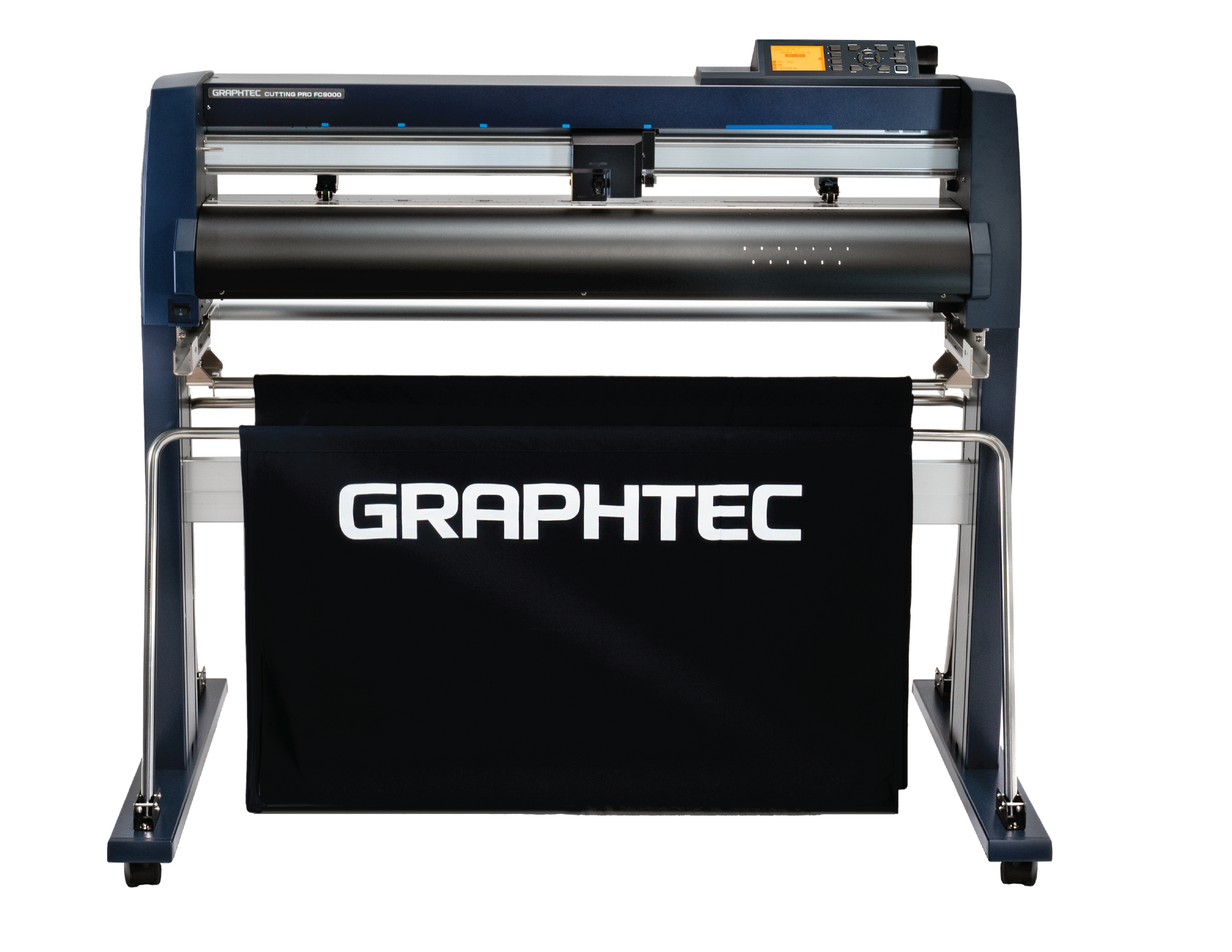

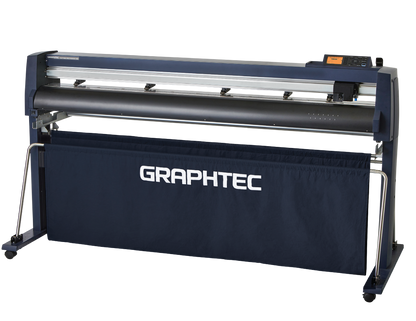

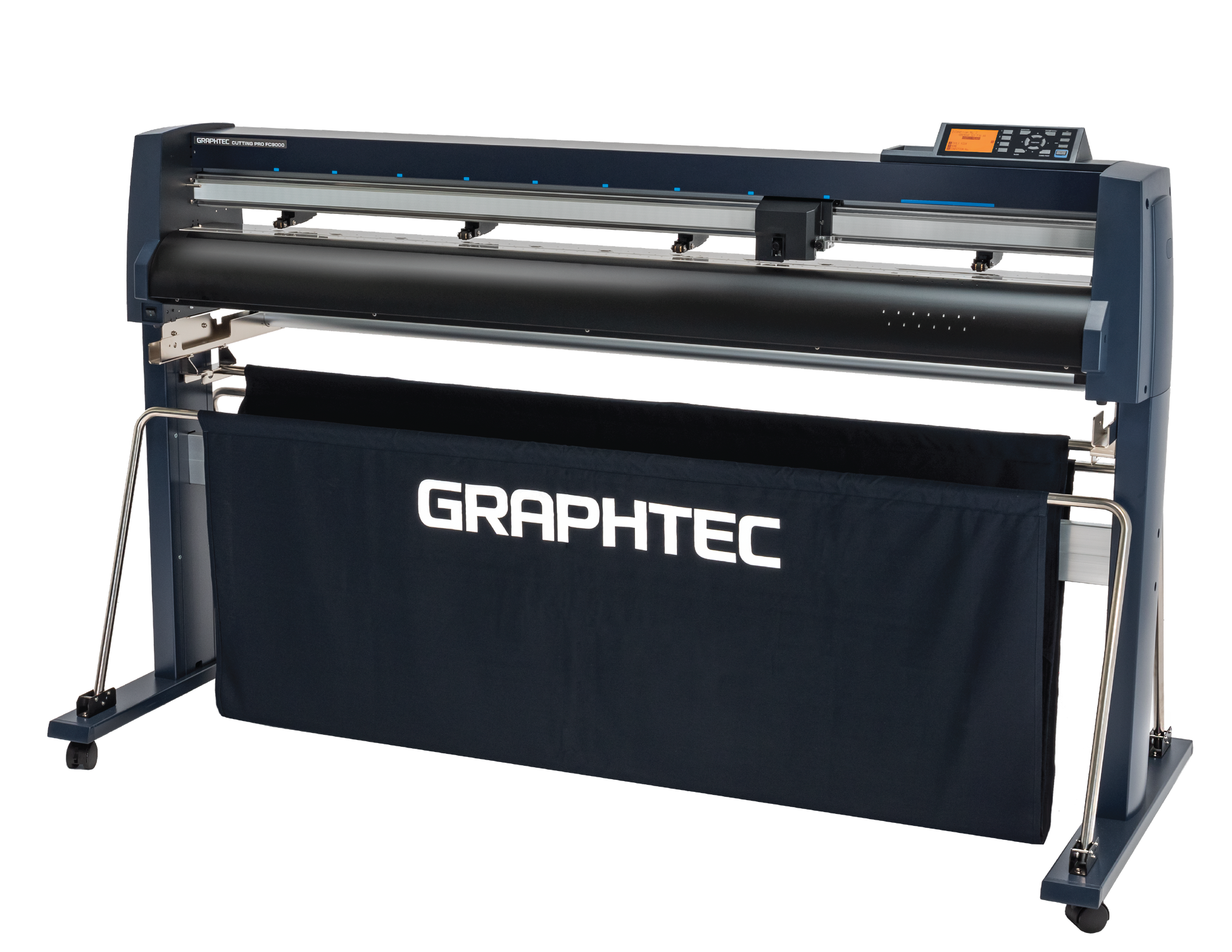

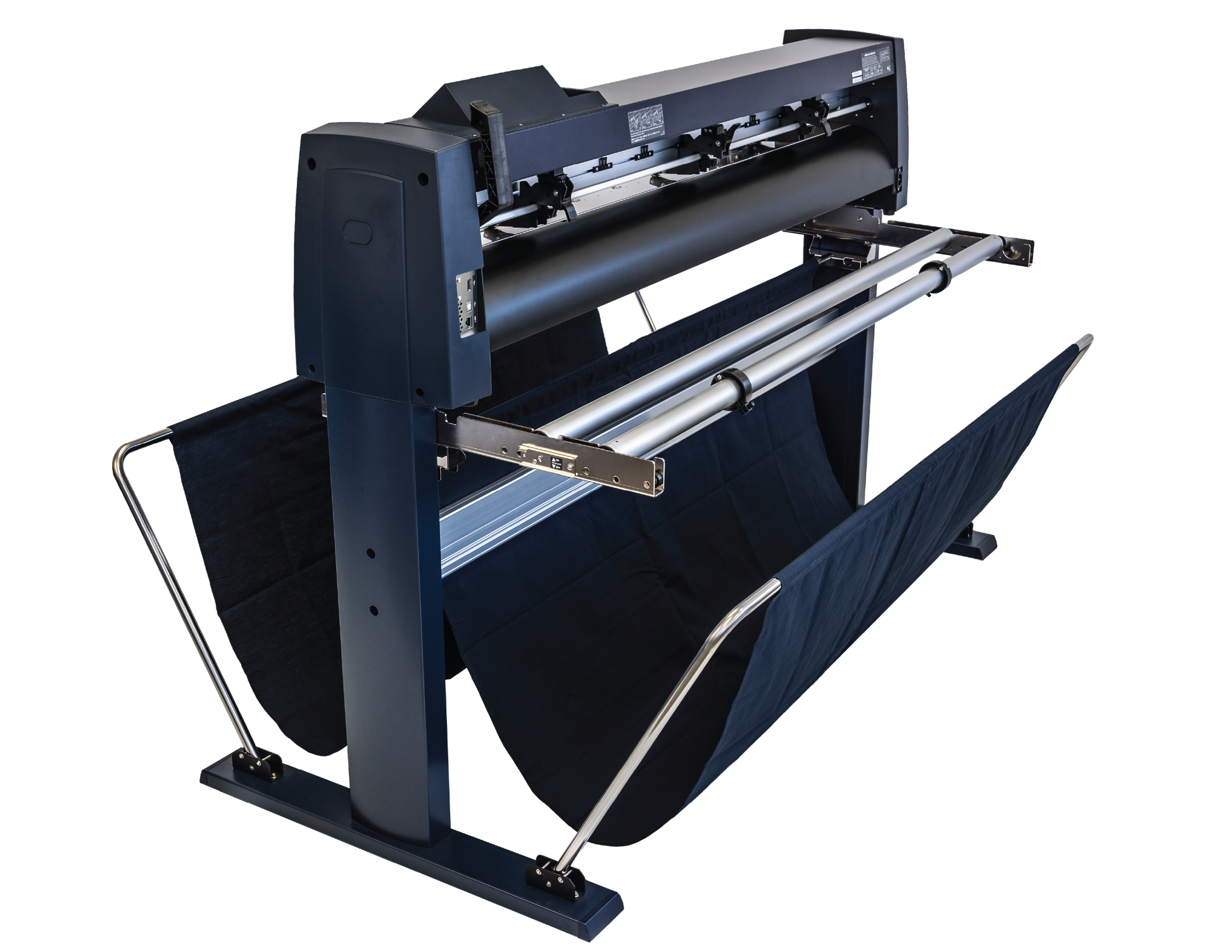

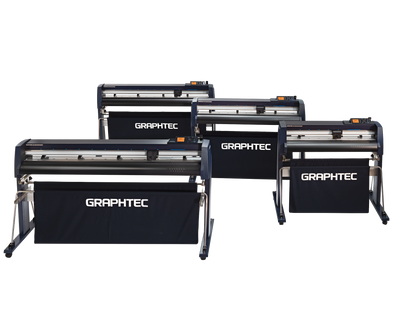

Graphtec FC9000 Cutter
The Graphtec FC9000 series is a professional roll-fed cutter line built for high-accuracy finishing across signage, apparel, and automotive workflows. Its improved rigidity, media handling, and ARMS registration system make it a strong choice for demanding print-and-cut and production cutting environments.
- Flagship roll-fed cutter for signage, apparel, and automotive work
- Graphtec ARMS registration system for print-and-cut workflows
- High cutting speed with servo precision

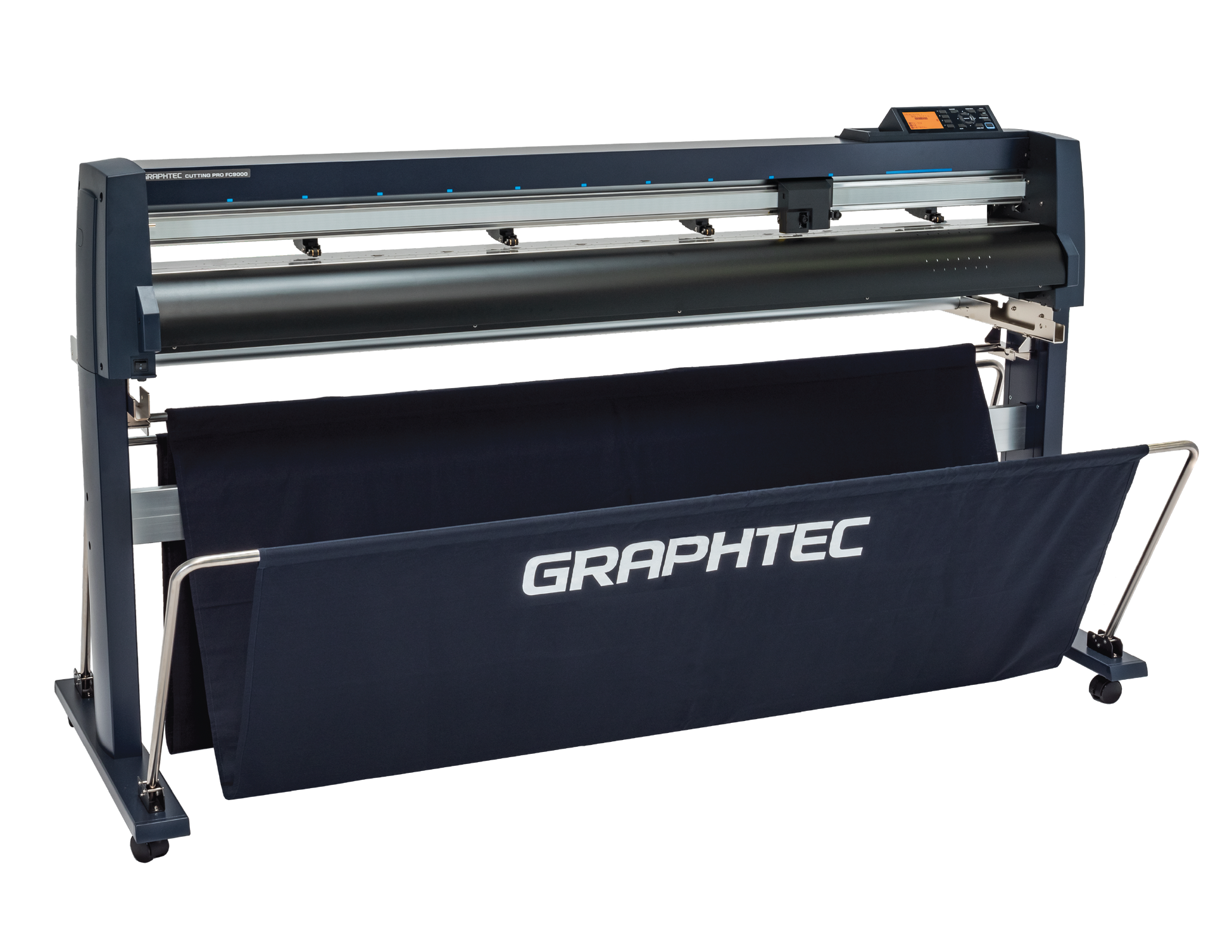

- Stand and basket included on the listed models
Specifications

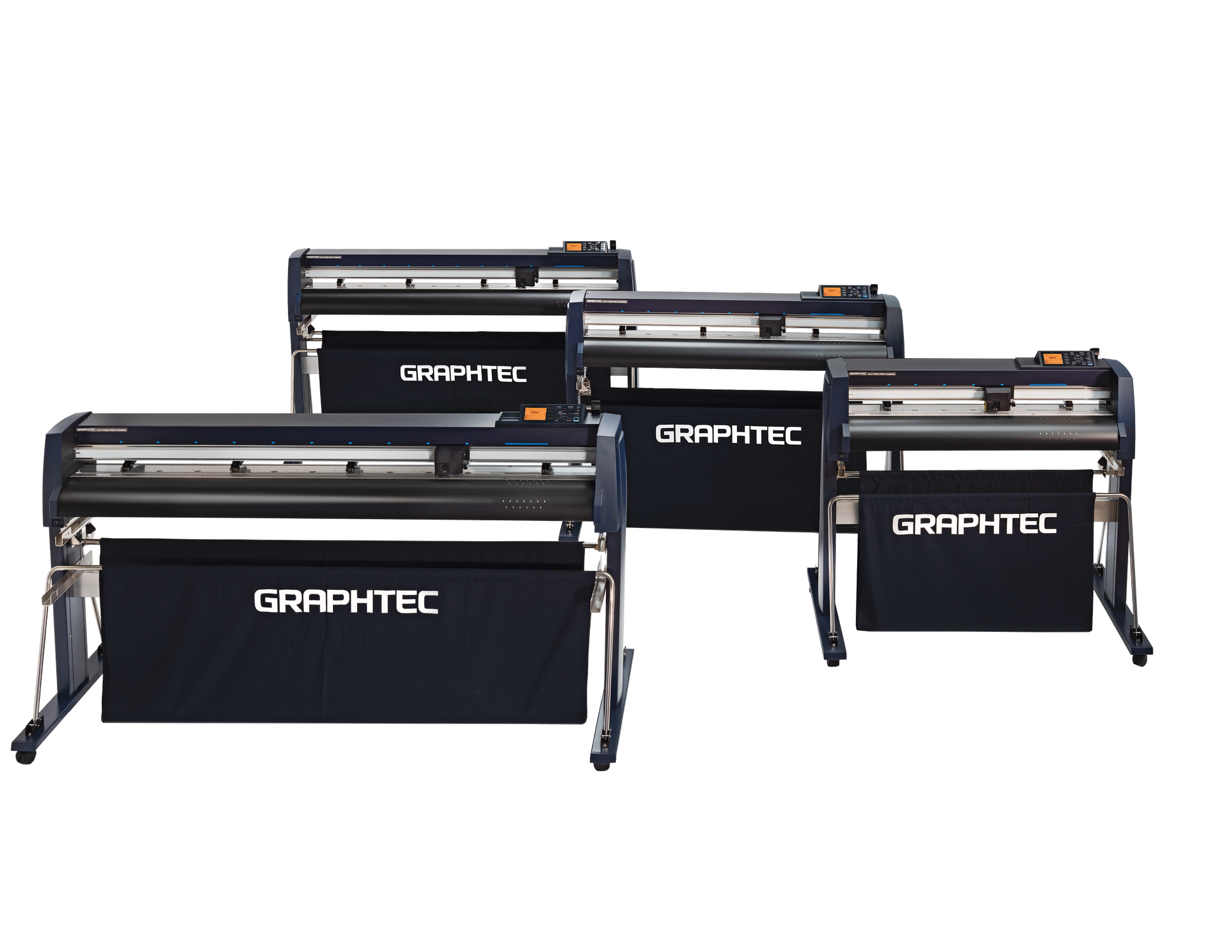

Model Comparison
| Specification | FC9000-75 | FC9000-100 | FC9000-140 | FC9000-160 |
|---|---|---|---|---|
| Max. Cutting Area (W × L) | 30" × 164 ft (762 mm × 50 m) |
42" × 164 ft (1067 mm × 50 m) |
54" × 164 ft (1372 mm × 50 m) |
64" × 164 ft (1626 mm × 50 m) |
| Guaranteed Precision Cutting Area | 29.21" × 50 ft | 41" × 32 ft 35.2" × 50 ft |
53" × 32 ft 35.2" × 50 ft |
63" × 32 ft 35.2" × 50 ft |
| Mountable Media Width | Min. 1.96" / Max. 36.22" | Min. 1.96" / Max. 48.19" | Min. 1.96" / Max. 60.20" | Min. 1.96" / Max. 72.83" |
| Max. Cross Cut Width | 30" | 42" | 54" | 64" |

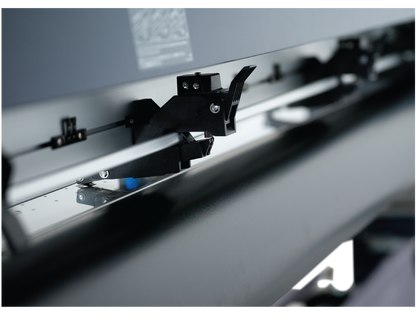

| Number of Push Rollers | 2 | 3 | 4 | 4 |
| External Dimensions (W × D × H) | 50" × 28" × 48" (1270 × 711 × 1219 mm) |
61.8" × 28" × 48" (1570 × 715 × 1219 mm) |
73.6" × 28" × 48" (1870 × 711 × 1219 mm) |
84" × 28" × 48" (2133 × 711 × 1219 mm) |
| Weight (incl. stand & basket) | 108 lbs. | 123 lbs. | 141 lbs. 178 lbs. w/ take-up |
154 lbs. 195 lbs. w/ take-up |
Shared Specifications (All Models)
| Specification | Details |
|---|---|
| Configuration | Grit rolling plotter |
| CPU | 32-bit CPU |
| Drive Method | Digital servo drive |
| Max. Cutting Speed | 58.5 in/s (45° direction) / 41.3 in/s (axis direction) |
| Cutting Force | Max. 600 gf in 48 steps |
| Axial Acceleration | Max. 39.2 m/s² (4G) in 8 steps |

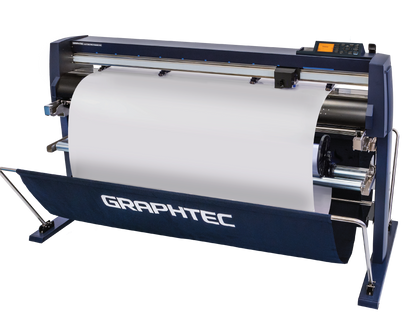

| Compatible Roll Media Diameter | Min. 2.99" / Max. 7.8" (max. 6.29" with included flange) |
| Mechanical Resolution | 0.005 mm |
| Programmable Resolution | GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm; HP-GL™: 0.025 mm |
| Distance Accuracy | Max. 0.1 mm or 0.1% of plotted length |
| Repeatability | Max. 0.1 mm in plots up to 2 m (excluding media expansion/contraction) |
| Minimum Character Size | Approx. 5 mm alphanumeric (varies by font and media) |
| Mountable Tools | 1 tool standard (blade, pen, or pouncing tool); 2 tools with optional second penholder |
| Blade Types | Supersteel (0.9 mm or 1.5 mm diameter) |
| Pen Type | Oil-based ballpoint pen |
| Pouncing Tool | Steel pin 1.2 mm diameter (requires optional PPA 33-TP12) |
| Media Types | Self-adhesive marking film (vinyl, fluorescent, reflective, high-intensity reflective) up to 0.25 mm; automotive protection and window tinting film; sandblast resist rubber up to 1 mm |
| Compatible Paper for Pouncing | Regular paper 0.06 to 0.13 mm thick |

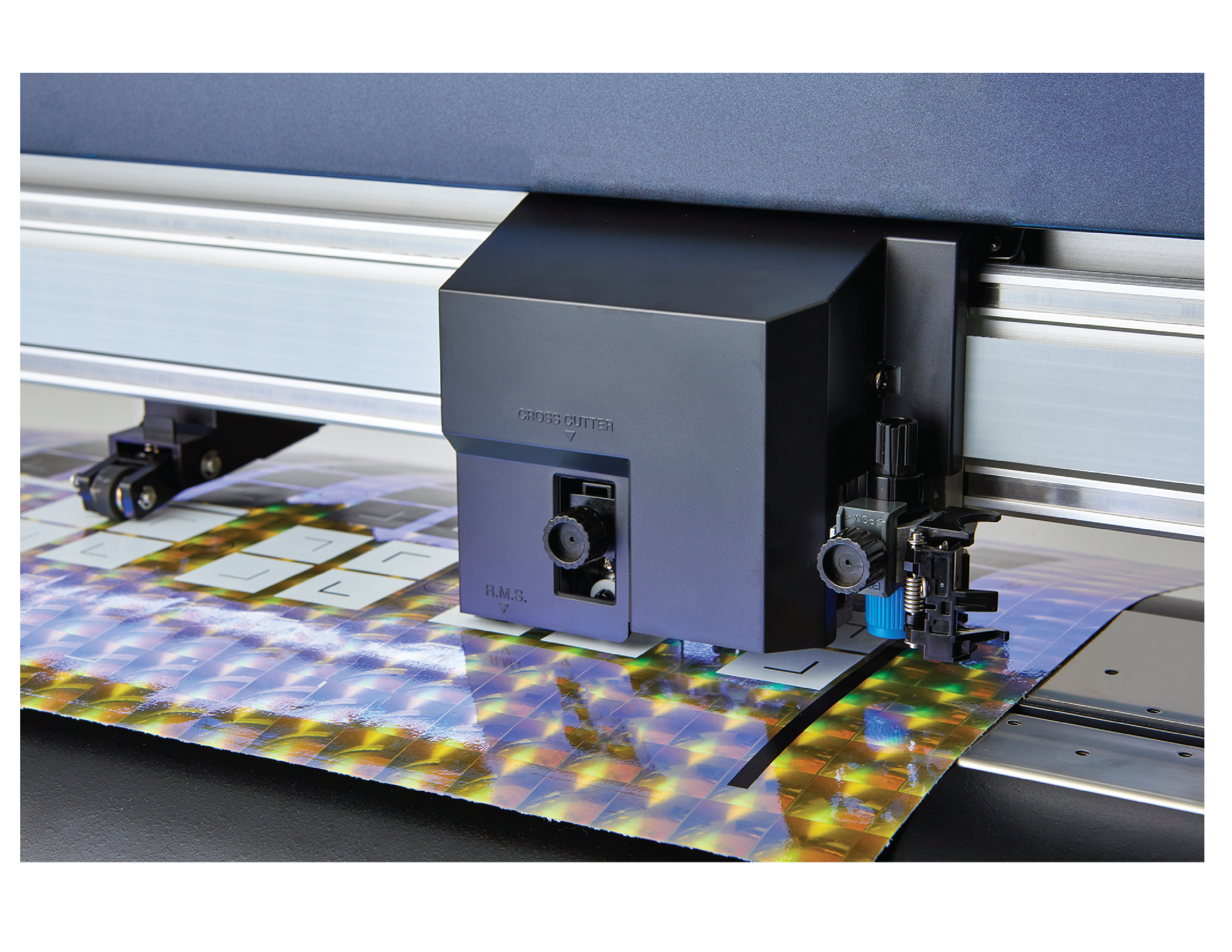

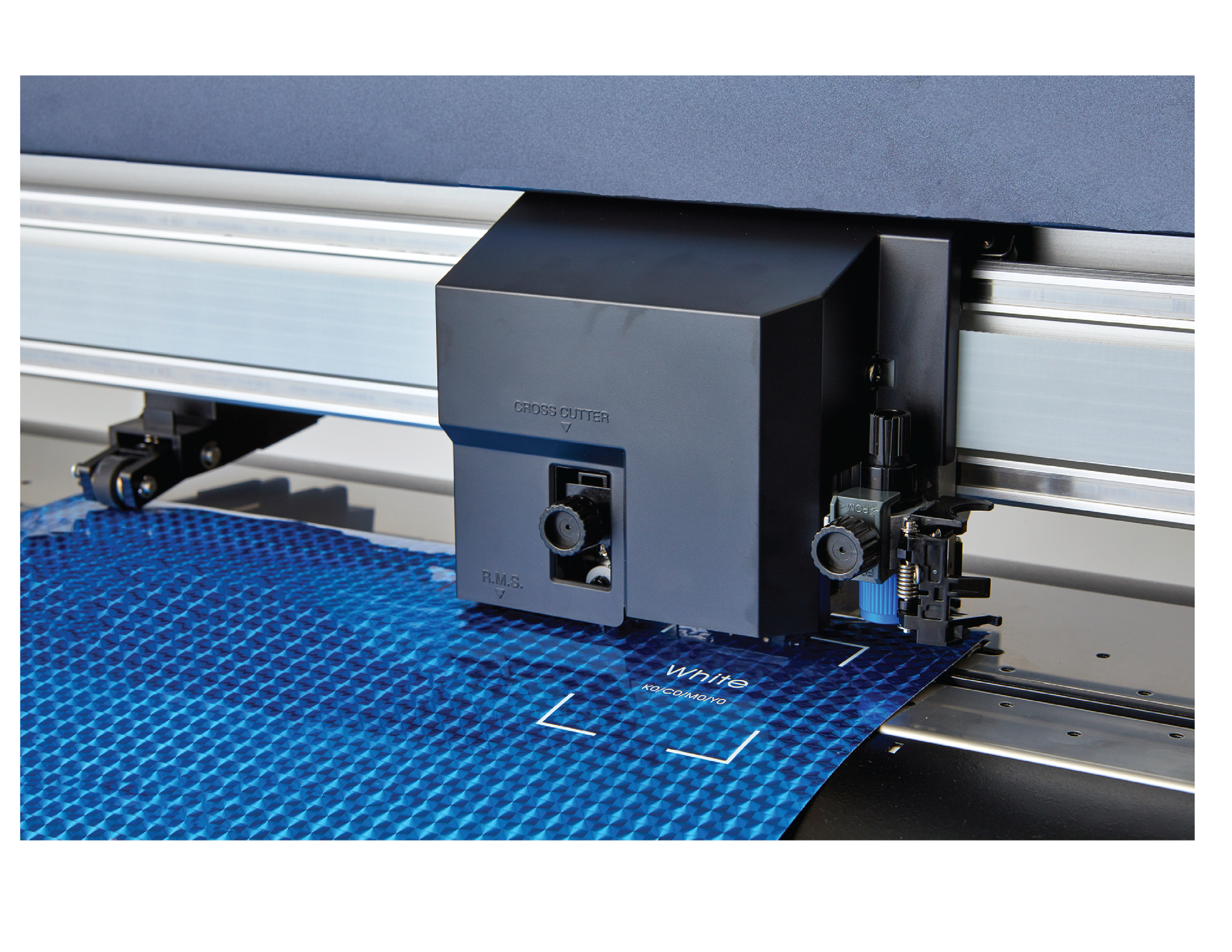

| Cross-Cutter | Built into tool carriage |
| Perforation Cutting | Supported (force control) |

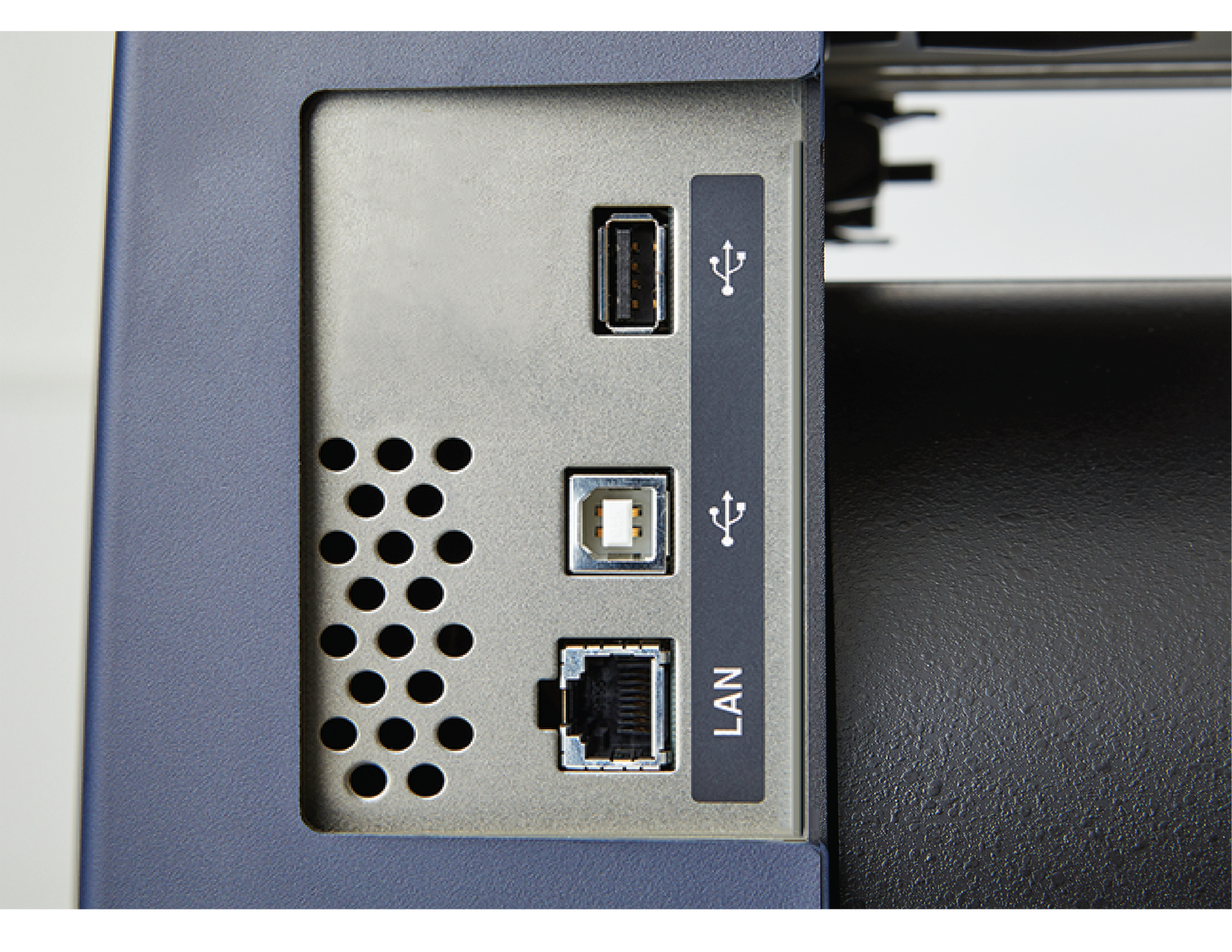

| Interface | USB 2.0 (Full Speed), Ethernet 10BASE-T / 100BASE-TX |
| Buffer Memory | 2 MB |
| Command Sets | GP-GL / HP-GL™ emulation (auto-select or menu-set) |
| Condition Settings | Dual configuration – 2 user / 8 separate condition settings per user |

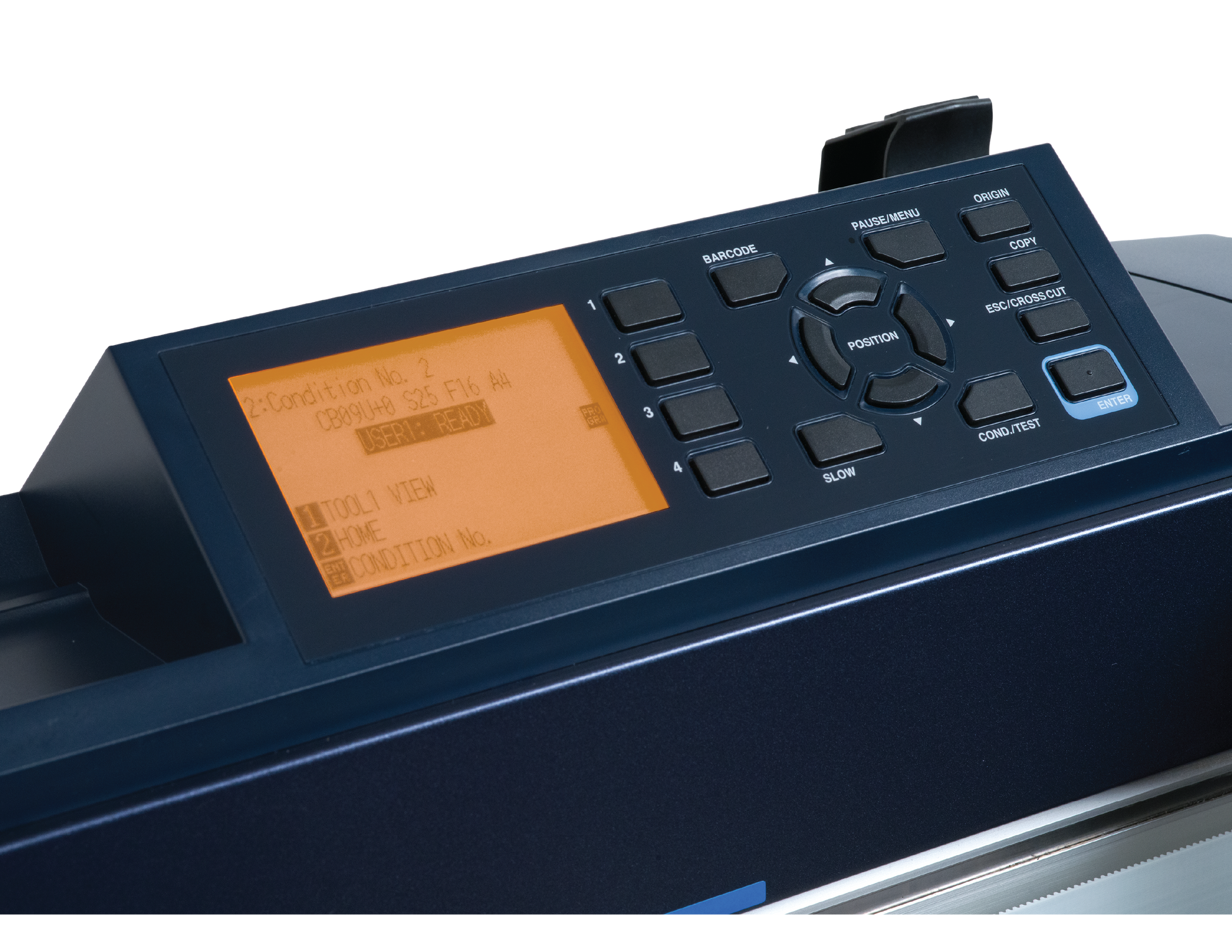

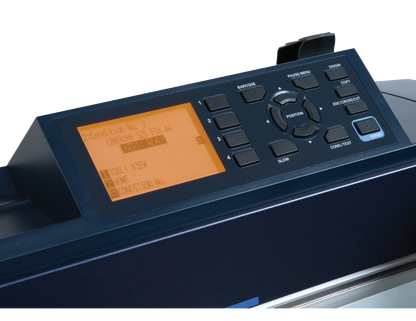

| Display | Graphic LCD, 3.7-inch with backlight |
| Power Source | 100 to 240 V AC, 50/60 Hz |
| Operating Environment | 50°F – 95°F, 35–75% R.H. (non-condensing) |
| Guaranteed Accuracy Environment | 60°F – 89°F, 35–70% R.H. (non-condensing) |
| Included Software | Graphtec Studio 2, Cutting Master 5 plug-in (Windows & Mac) |
| Compatible OS | Windows 11 / 10 / 8.1 (64-bit); macOS 10.12 (Sierra) to 13 (Ventura) |
| Warranty | 3-year warranty |
| Safety | PSE, UL/cUL, CE mark |
| EMC | VCCI Class A, FCC Class A, CE mark |
*Operated with Graphtec specified cutting conditions and media. Media setting conditions apply. HP-GL is a registered trademark of Hewlett-Packard Company. Software available for download from Graphtec’s website. Weight includes stand and basket.
