Expanded 8-Color Sublimation with Fluorescent Ink Capability
The Mimaki TS200 Series goes beyond standard CMYK sublimation with an available 8-color ink set that adds Orange, Violet, Fluorescent Pink, and Fluorescent Yellow. The result is brighter color, smoother gradients, and more vibrant output for apparel, soft signage, décor, and promotional products.

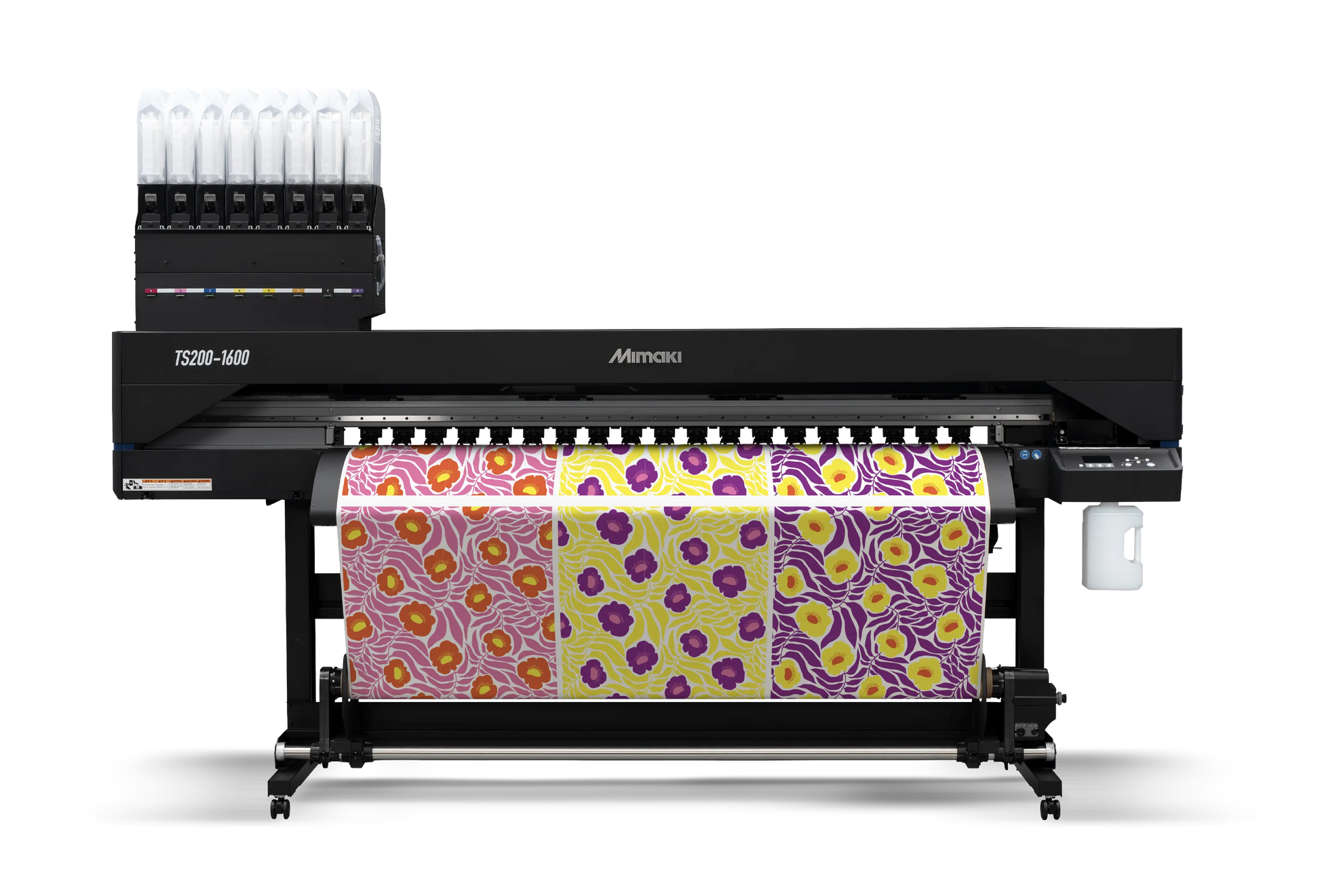

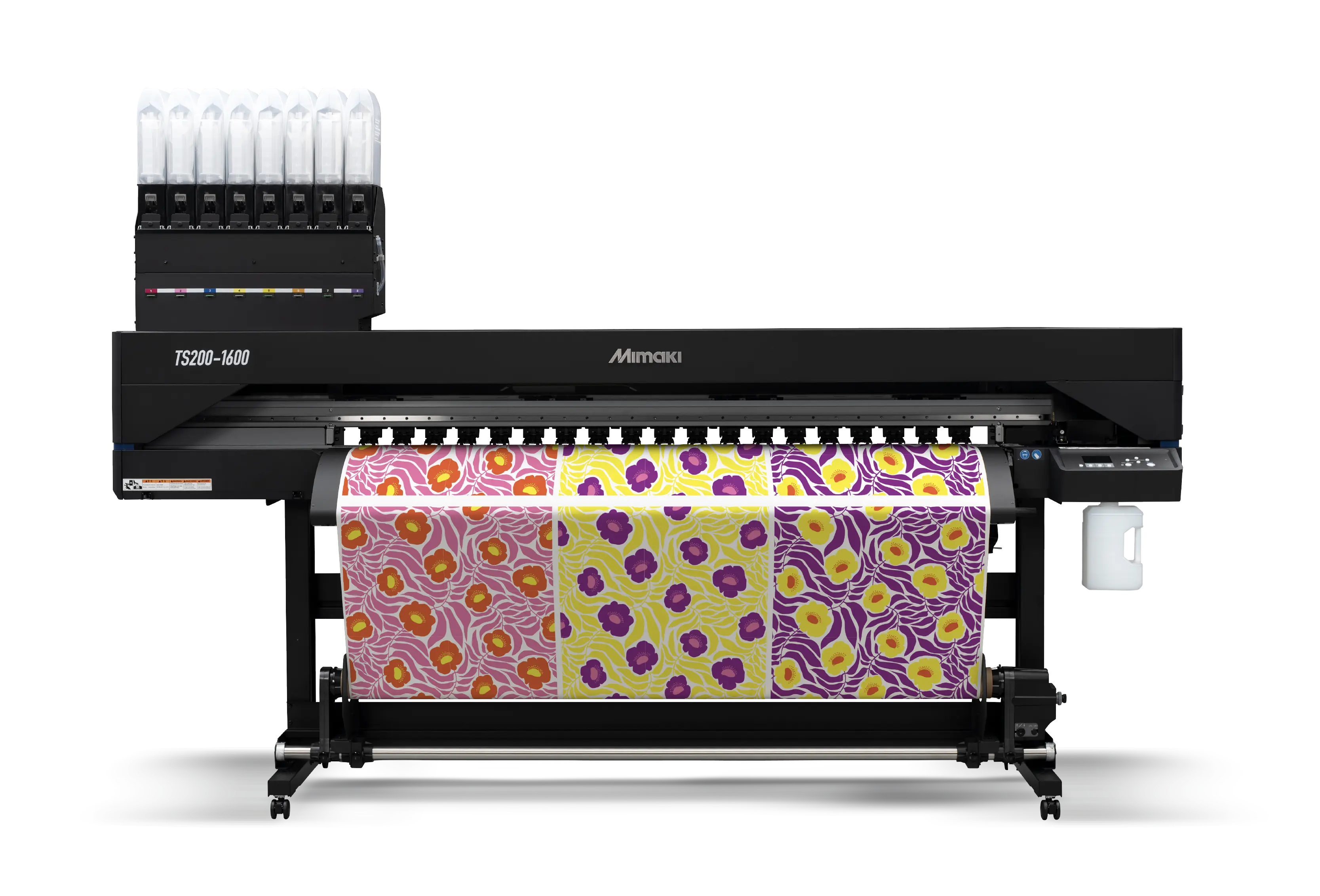

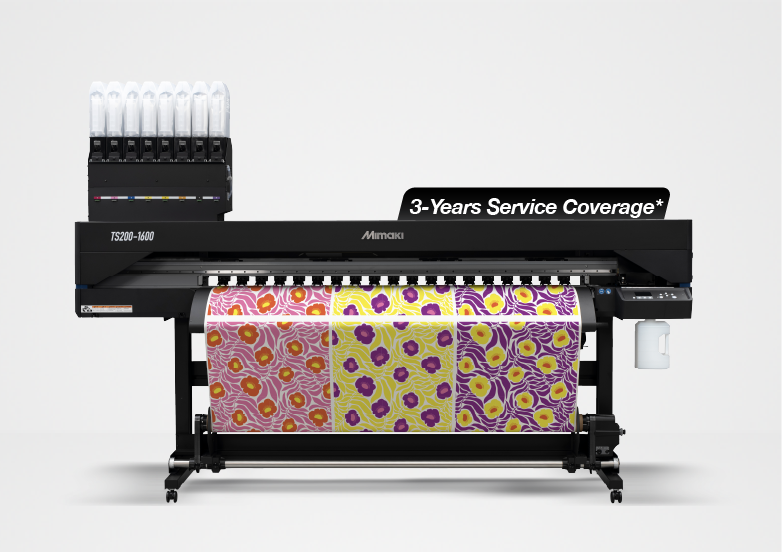

Mimaki TS200 Series Sublimation Printer
Mimaki TS200 Series Sublimation Printer
The Mimaki TS200 Series is a 64" dye-sublimation transfer printer designed for shops that want to expand into apparel, soft signage, promotional products, décor, and custom textile production without jumping straight into a high-end industrial system. Built around Mimaki's proven 330-series imaging technology, the TS200 delivers smooth gradients, vivid color, and sharp detail in an easy-to-use, production-friendly package.
Available in both 4-color and 8-color configurations, the TS200 supports Mimaki Sb411 sublimation inks, including an expanded-gamut ink set with Orange, Violet, Fluorescent Pink, and Fluorescent Yellow for brighter, more eye-catching output. That makes it a strong fit for sportswear, fashion, soft signage, personalized gifts, and other applications where color impact matters.
With a maximum print width of approximately 63.3", speeds up to 753 sq. ft./hr. in 4-color mode, and convenient 2-liter ink packs, the Mimaki TS200 gives growing sublimation businesses a practical balance of quality, productivity, and operating efficiency.
Key Features
- 64" dye-sublimation transfer printer for textile and coated-substrate applications
- Up to 753 sq. ft./hr. print speed in 4-color mode
- 4-color or 8-color ink configurations available
- Expanded color options with Orange, Violet, Fluorescent Pink, and Fluorescent Yellow
- Uses Mimaki Sb411 sublimation inks in economical 2L ink packs
- Powered by imaging technology from Mimaki's higher-end 330 Series
- Ideal for sportswear, apparel, soft signage, décor, promotional products, and custom gifts
Technical Specifications
| Specification | Details |
|---|---|
| Printhead | Single, on-demand, piezo print head |
| Print Resolution | Y: 300, 600, 900 dpi | X: 600 dpi |
| Print Speed (4 color mode) | 753.5 sqft/hr (70 sqm/hr) |
| Ink Type/Color (Sb411) | 4-color: Bl, M, Y, K | 8-color: Bl, M, Y, K, Vi, Or, Fy, Fp |
| Maximum Print Width | 63.3 in (1610 mm) |
| Maximum Media Width | 63.7 in (1620 mm) |
| Media Thickness | 0.039 in (1.0 mm) |
| Roll Weight | 55.1 lbs (25.0 kg) standard | 99.2 lbs (45.0 kg) with foot leveling kit (Opt-J0502) |
| Ink Package Size | 2L ink pack |
| Certifications | VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, Energy Star, RCM, KC, UKCA |
| Interface | Ethernet 1000BASE-T (Recommended), USB 2.0 Hi-Speed |
| Power Supply | AC100–120V / 200–240V ±10%, 3A, 50/60Hz ±1Hz |
| Power Consumption | Max. 250 W or less |
| Operational Environment | Temperature: 68–86°F (20–30°C) | Humidity: 35–65% |
| Dimensions (W × D × H) | 109 × 29.4 × 63.8 in (2770 × 748 × 1623 mm) |
| Weight (uncrated) | 341.7 lbs (155.0 kg) |
| Warranty | One year Mimaki Total Care warranty; two years Mimaki Parts Plus+ warranty |
