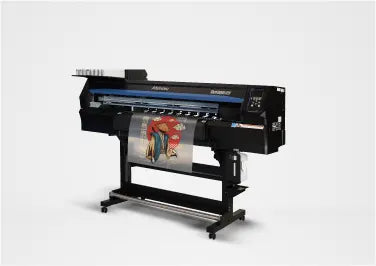

Mimaki TxF300 DTF Printer
Mimaki TxF300 Series DTF Printers
Build your apparel-transfer production around the Mimaki TxF300 Series. These professional direct-to-film printers combine a staggered, dual-printhead design with CMYK plus white pigment inks and Mimaki’s reliability technologies to produce detailed, vibrant transfers for light and dark fabrics.
From custom T-shirts and teamwear to tote bags and promotional textiles, the TxF300 Series lets you create full-color designs for cotton, polyester and mixed fabrics. Print your artwork onto DTF film, apply hot-melt powder, cure the transfer and heat-press it onto your finished item. Fabric suitability depends on the film, powder and transfer settings, so test your selected materials before production.
Choose the format that fits your production

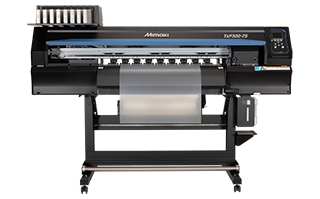

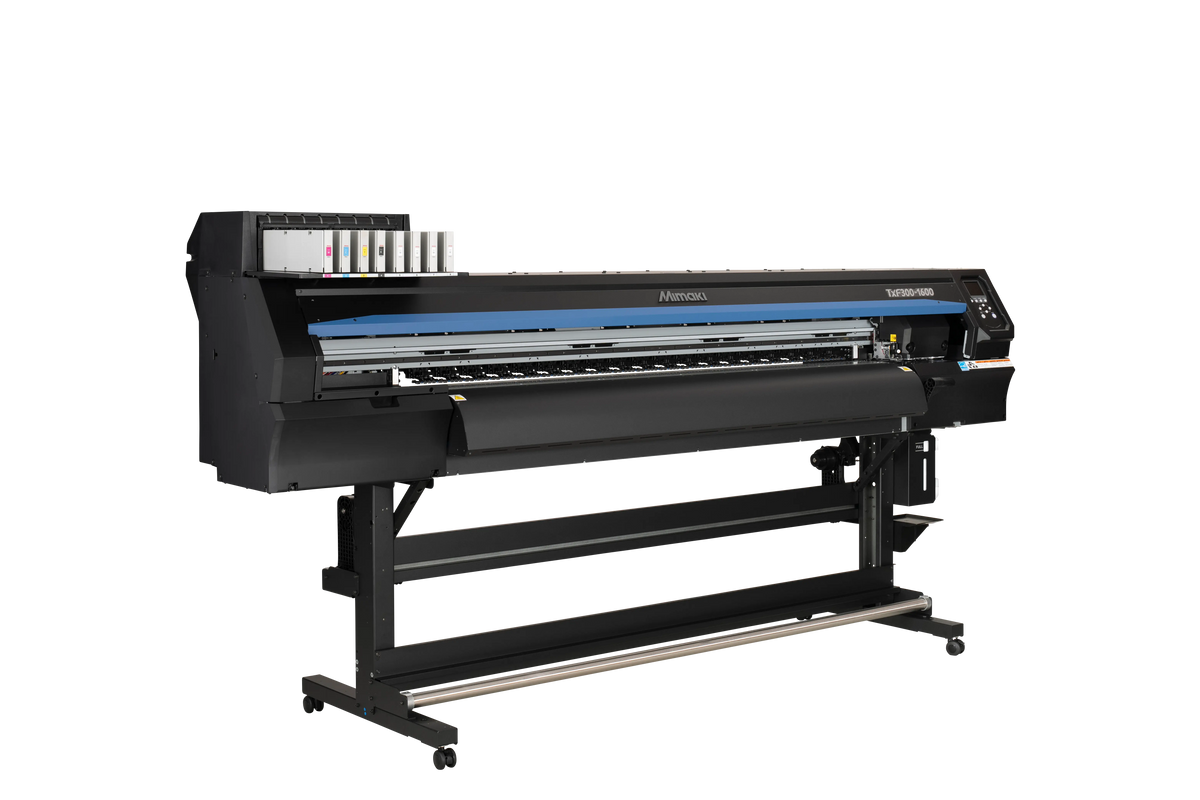

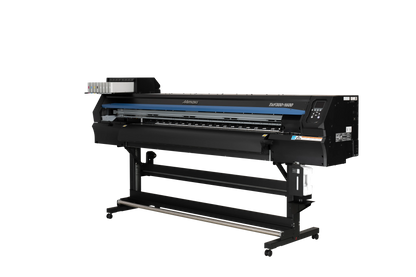

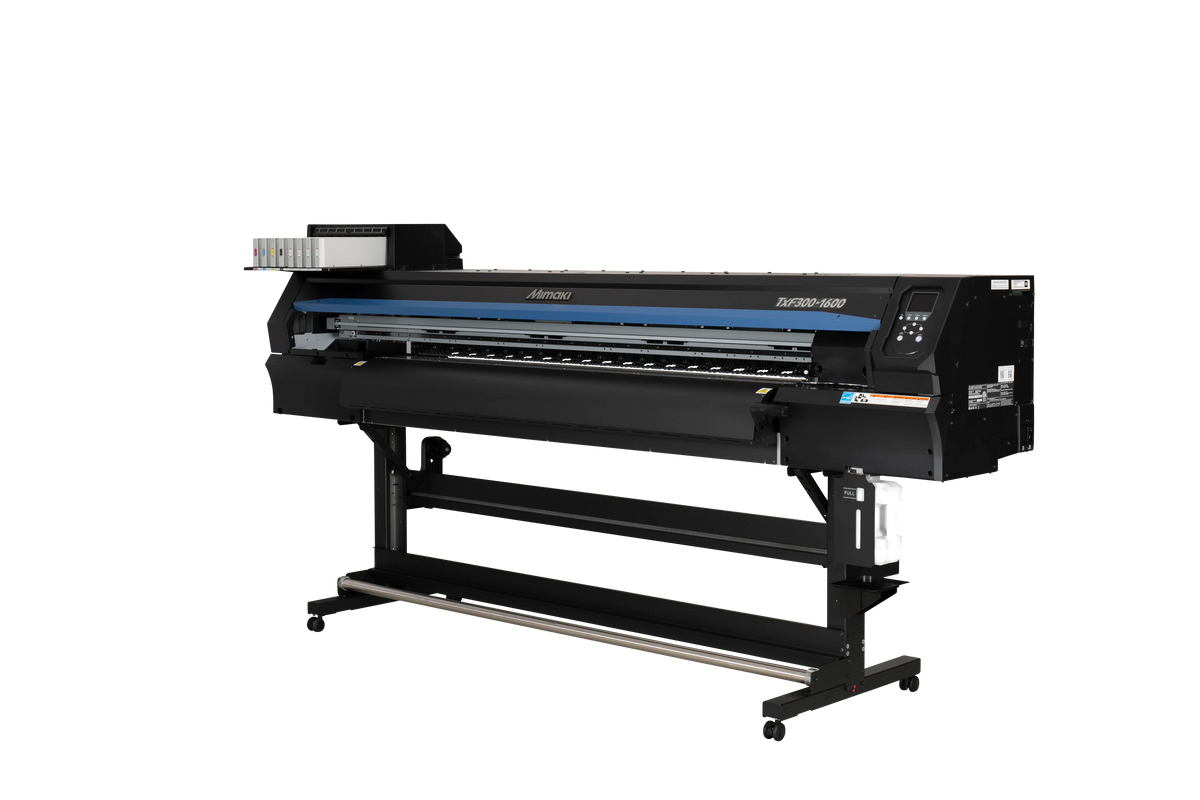

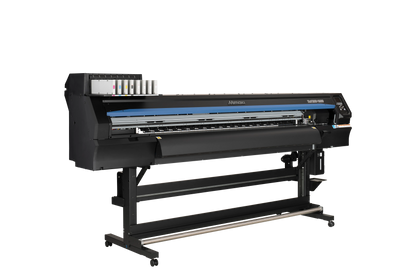

The TxF300-75 provides a maximum printing width of 31.50 inches (800 mm). The wider TxF300-1600 accommodates media up to 63.78 inches (1,620 mm), giving you room for larger layouts and expanded textile applications. Contact Beacon Graphics to confirm the model and package that best suit your workflow.
Designed to keep jobs moving
- Dual-head production platform: Two staggered on-demand piezo printheads with variable-droplet technology support detailed color and white-ink printing.
- Stable white-ink delivery: Mimaki Circulation Technology Version 2 circulates white ink through the ink path, including the damper, to help reduce settling, frequent cleaning and ink waste.
- Automatic nozzle checks: The Nozzle Check Unit detects nozzle defects and initiates automatic cleaning to help reduce wasted material.
- Nozzle recovery support: The Nozzle Recovery System can compensate for defective nozzles when cleaning cannot restore them. Availability depends on the location and number of affected nozzles.
- Purpose-designed PHT50 inks: Water-based heat-transfer pigment inks provide cyan, magenta, yellow, black and white. The supplied brochure identifies PHT50 inks as ECO PASSPORT certified.
- Tools for personalized orders: RasterLink7 supports variable designs such as names and numbers, along with special-color plate generation for white-ink artwork.
- Remote visibility: Mimaki Remote Access lets you monitor printer status and ink usage and access supported controls from a smartphone or Windows-based PC.
Series specifications
| Specification | Details |
|---|---|
| Printing method | Direct-to-film (DTF) for heat-transfer textile applications |
| Printheads | 2 on-demand piezo heads, staggered arrangement |
| Droplet technology | Variable / grayscale |
| Resolution options | 720 dpi, 1,080 dpi and 1,440 dpi; specification sheet lists 1,440 × 1,440 |
| Minimum dot size | 7 pl |
| Ink series and colors | PHT50 heat-transfer pigment ink: Cyan, Magenta, Yellow, Black and White |
| Ink pack capacity | 600 ml for CMYK; 500 ml for white |
| Ink circulation | White ink only |
| Maximum media thickness | 0.04 in (1.0 mm) |
| Maximum roll diameter | 9.84 in (250 mm) |
| Maximum roll weight | 99.2 lb (45 kg), per series brochure |
| Media core sizes | 2 in and 3 in |
| RIP software | RasterLink7 |
| Interfaces | Ethernet 1000BASE-T and USB 2.0 Hi-Speed |
| Operating temperature | 68–86°F (20–30°C) |
| Operating humidity | 35–65% RH, non-condensing |
| North American warranty | 1 year, per supplied specification sheet; confirm current terms and coverage |
Model comparison
| Specification | TxF300-75 | TxF300-1600 |
|---|---|---|
| Maximum media width | 31.89 in (810 mm) | 63.78 in (1,620 mm) |
| Dimensions (W × D × H) | 77.36 × 27.56 × 54.80 in 1,965 × 700 × 1,392 mm |
109.57 × 27.56 × 54.80 in 2,783 × 700 × 1,392 mm |
| Machine weight | 396.90 lb (180 kg) | 471.87 lb (214 kg) |
Complete your DTF workflow
A complete system also requires compatible DTF film, hot-melt powder, powder application and curing equipment, and a heat press.
