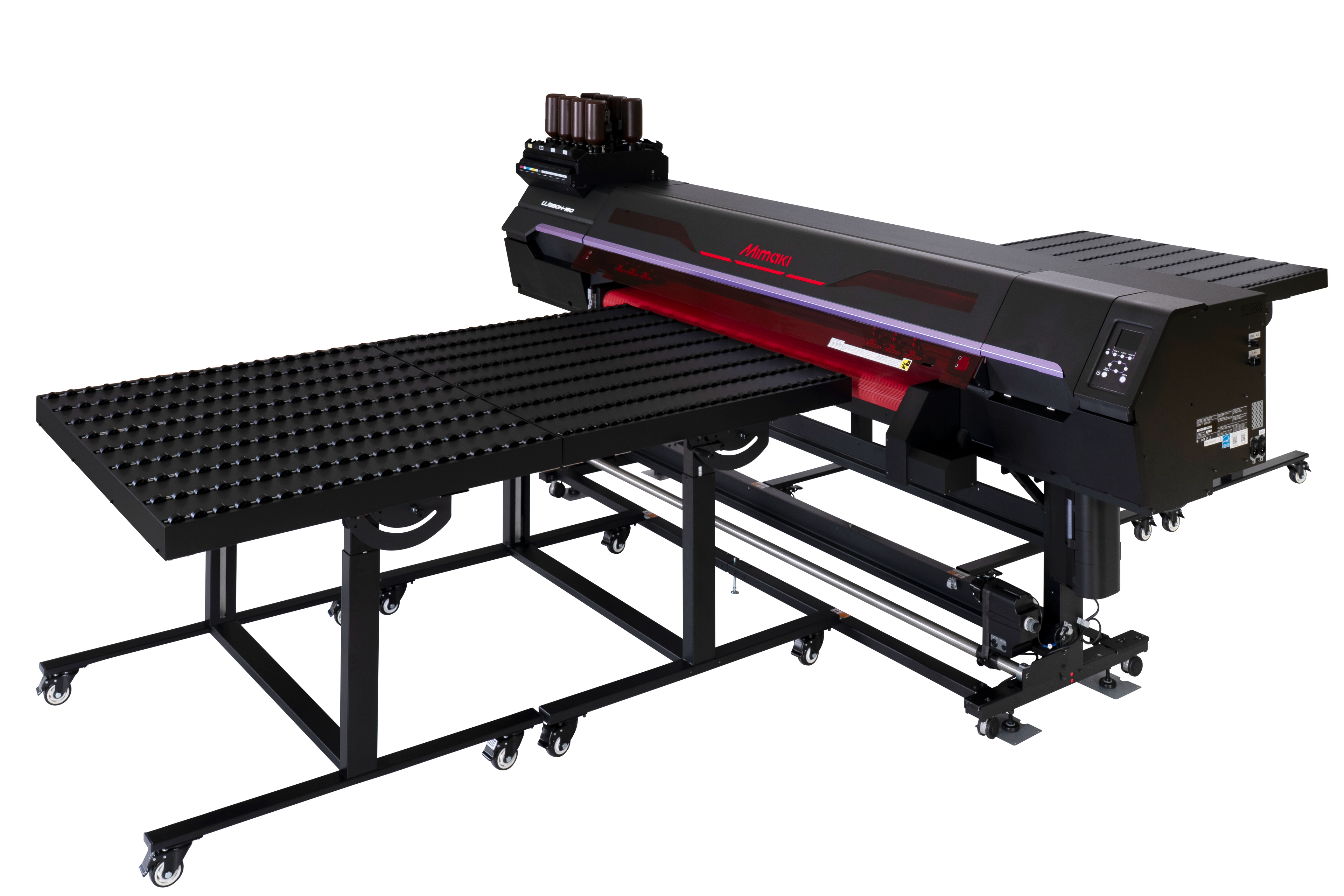

Mimaki UJ330H-160 Hybrid UV Printer
One machine. Endless applications.
The Mimaki UJ330H-160 is a next-generation hybrid UV printer designed to handle both roll media and rigid substrates in a single, space-saving platform. Built on Mimaki's proven 330 Series print engine, it delivers exceptional image quality, production reliability, and the flexibility to bring more work in-house.
From banners and vinyl to rigid boards like acrylic, foam board, and aluminum composite, the UJ330H-160 gives your shop the ability to expand into higher-margin applications without investing in multiple machines.
Key Features
True Hybrid Printing (Roll + Rigid): Seamlessly switch between roll media and rigid boards up to 2" thick—no need for separate equipment.
330 Series Image Quality: High-definition output with smooth gradients, dense solids, and vibrant color for premium graphics.
UV-LED Instant Curing: No warm-up time and immediate handling—faster turnaround and improved workflow efficiency.
Advanced Belt Conveyor System: Stable, mark-free printing on flexible materials like film, fabric, and thin PVC that traditional systems struggle with.
White + Clear Ink Capability: Produce backlit graphics, spot varnish, gloss/matte finishes, and textured effects for high-value applications.
Production Speeds up to 22 m²/hr: Delivers a strong balance of quality and throughput for real-world production environments.
Ideal Applications
- Banners, vinyl, and window graphics
- Rigid signage and display boards
- Retail and POP displays
- Backlit and double-sided graphics
- Textured and specialty print applications
Why the UJ330H-160?
The UJ330H-160 is designed for shops that want to expand capabilities without expanding footprint or complexity. By combining roll and rigid printing into one platform, it allows you to eliminate outsourcing, reduce handling, and take on more profitable work—all while maintaining the print quality Mimaki is known for.
Specifications
| Print System |
| Printhead |
2 heads (staggered) 8 print bars per head |
| Print Resolution |
Y: 600, 1200 dpi | X: 600, 900, 1200, 1800 dpi |
| Print Speed (4 color mode) |
236.8 sqft/hr (22.0 sqm/hr) max |
| Maximum Print Width |
Rigid – 5 ft x 10 ft
Roll – 64 in |
| Media |
| Media Thickness |
Up to 2 in (50 mm) |
| Media Weight |
Rigid – up to 55 lbs. (25 kg)
Roll – up to 99 lbs. (45 kg) |
| Ink |
| Ink Type / Color |
ELS-170 & ELS-175* – CMYK+KYMC / CMKY+Ci +WW / CMYK+Lm+Lc+WW
*LATAM Market Only
*LUS-210 – CCMMYYKK / CCMMYK+WW (*only sold in certain countries) |
| Ink Package Size |
1 L Bottle |
| Connectivity & Power |
| Interface |
(Recommended) Ethernet 1000BASE-T, USB 2.0 Hi-Speed |
| Power Supply |
AC (100–120V / 200–240V ±10%) x2, 50/60Hz ±1Hz |
| Power Consumption |
Maximum – 1600W
Average during operation 800W
Sleep mode 4.5W or less |
| Environment |
| Operational Environment |
Temperature: 68–86°F (20–30°C)
Humidity: 35–65%
Recommended temperature: 68–77°F (20–25°C)
Dust level: General office level |
| Physical |
| Dimensions (W x D x H) |
126.9 in x 30.9 in x 55.9 in / 3,225 mm x 785 mm x 1,420 mm (without tables)
126.9 in x 104.9 in x 55.9 in / 3,225 mm x 2,664 mm x 1,420 mm (with one set of tables)
126.9 in x 185.5 in x 55.9 in / 3,225 mm x 4,712 mm x 1,420 mm (with two sets of tables) |
| Weight |
849 lbs. (385 kg) |
| Options |
Ionizer Bar & Bracket (IUJ330H-160 Ionizer kit) |
| Compliance & Certifications |
| Certifications |
Compliant with 62368-1, IEC
CB, CE (EMC, Low voltage, Machinery directive, and RoHS)
REACH, VCCI Class A, FCC Class A
KRCM, EAC, UKCA, EnergyStarr |
