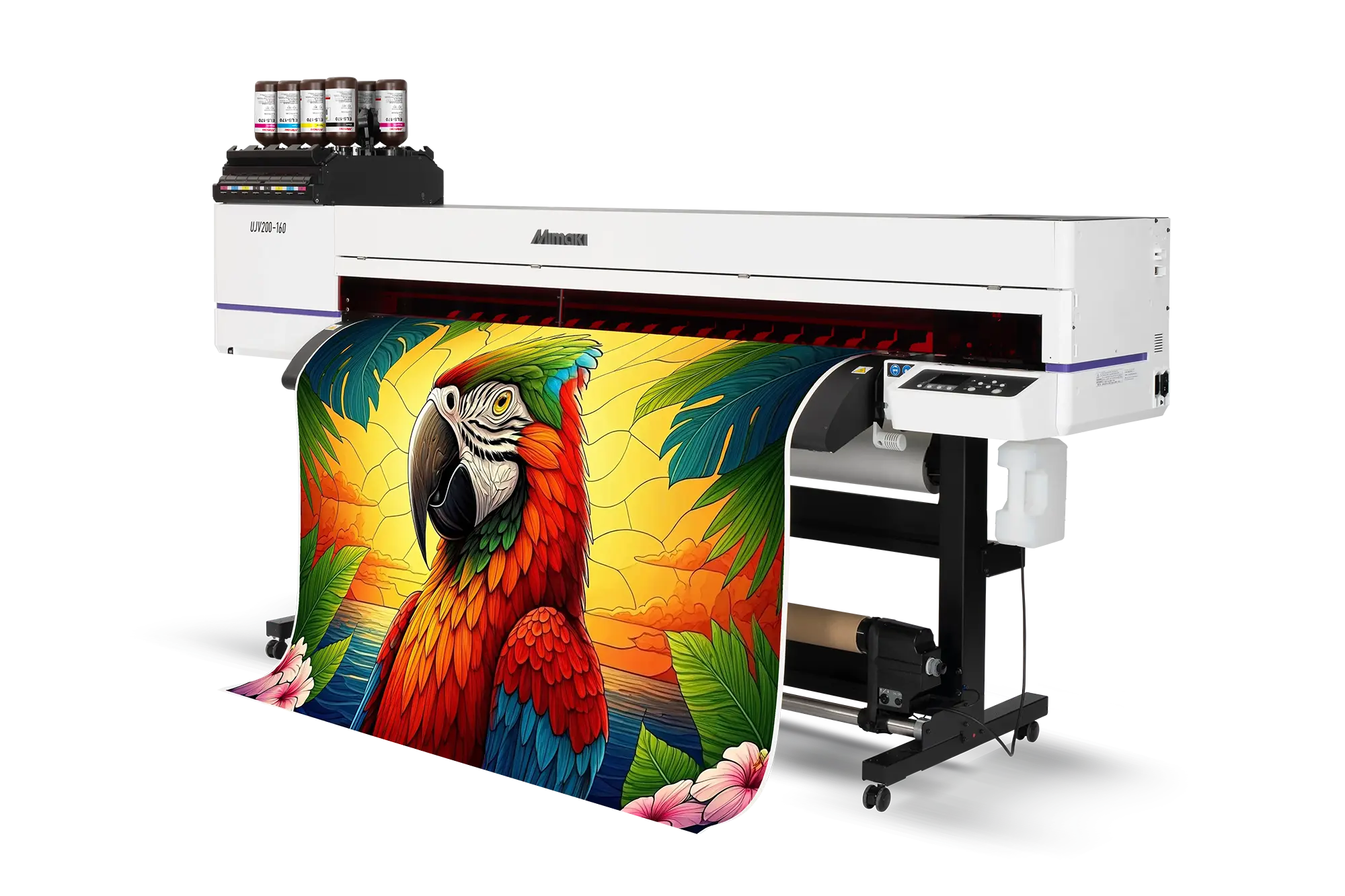

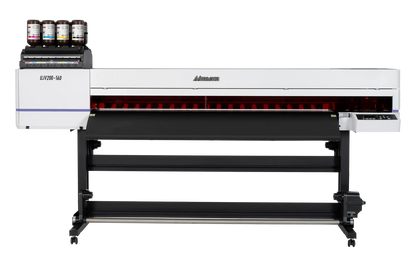

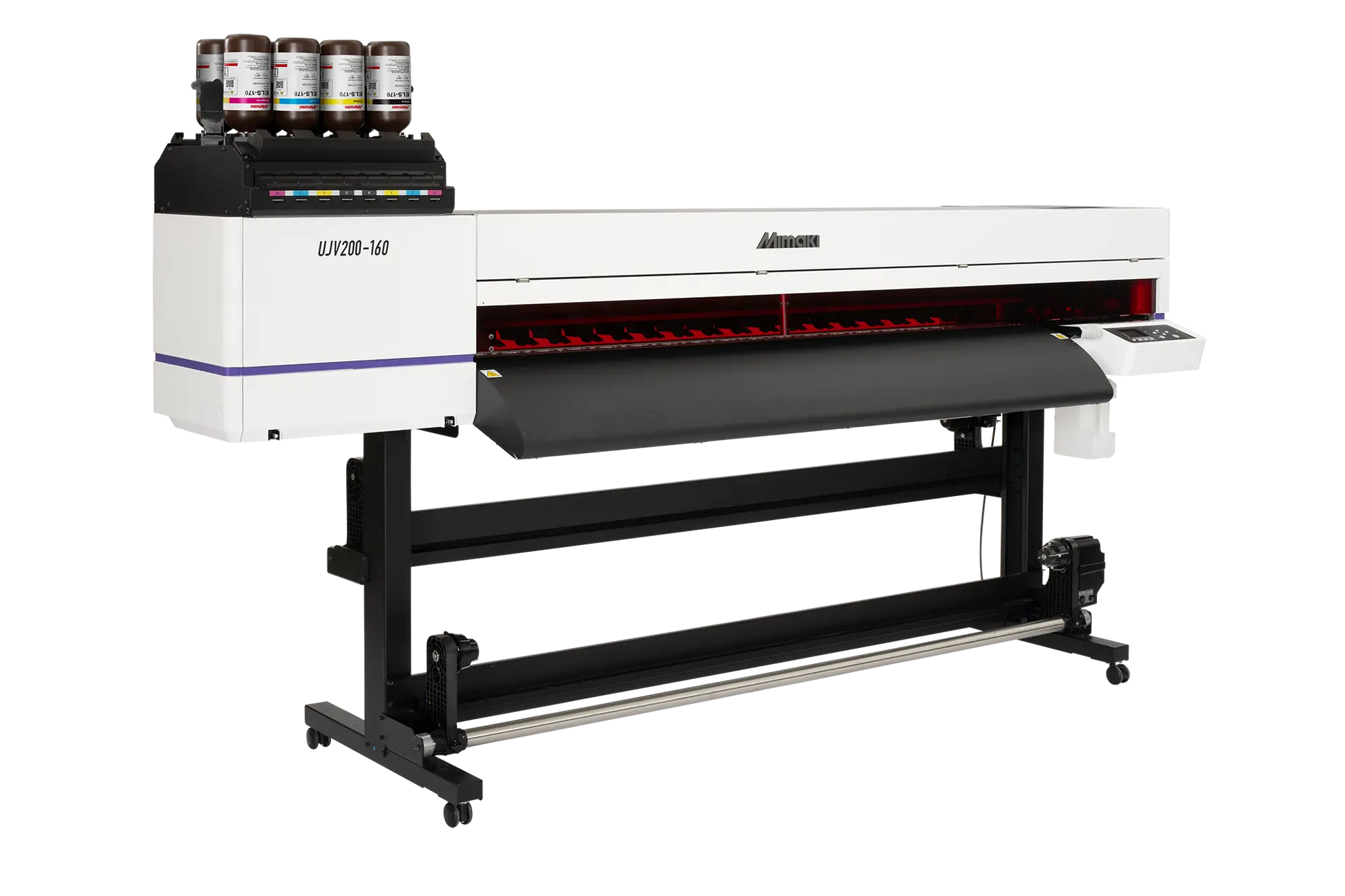

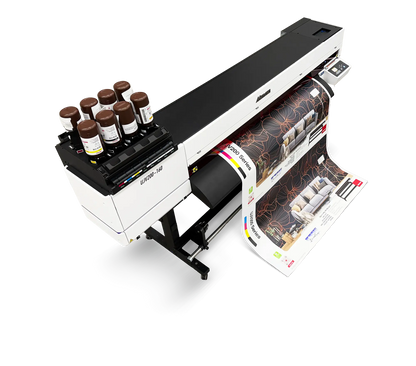

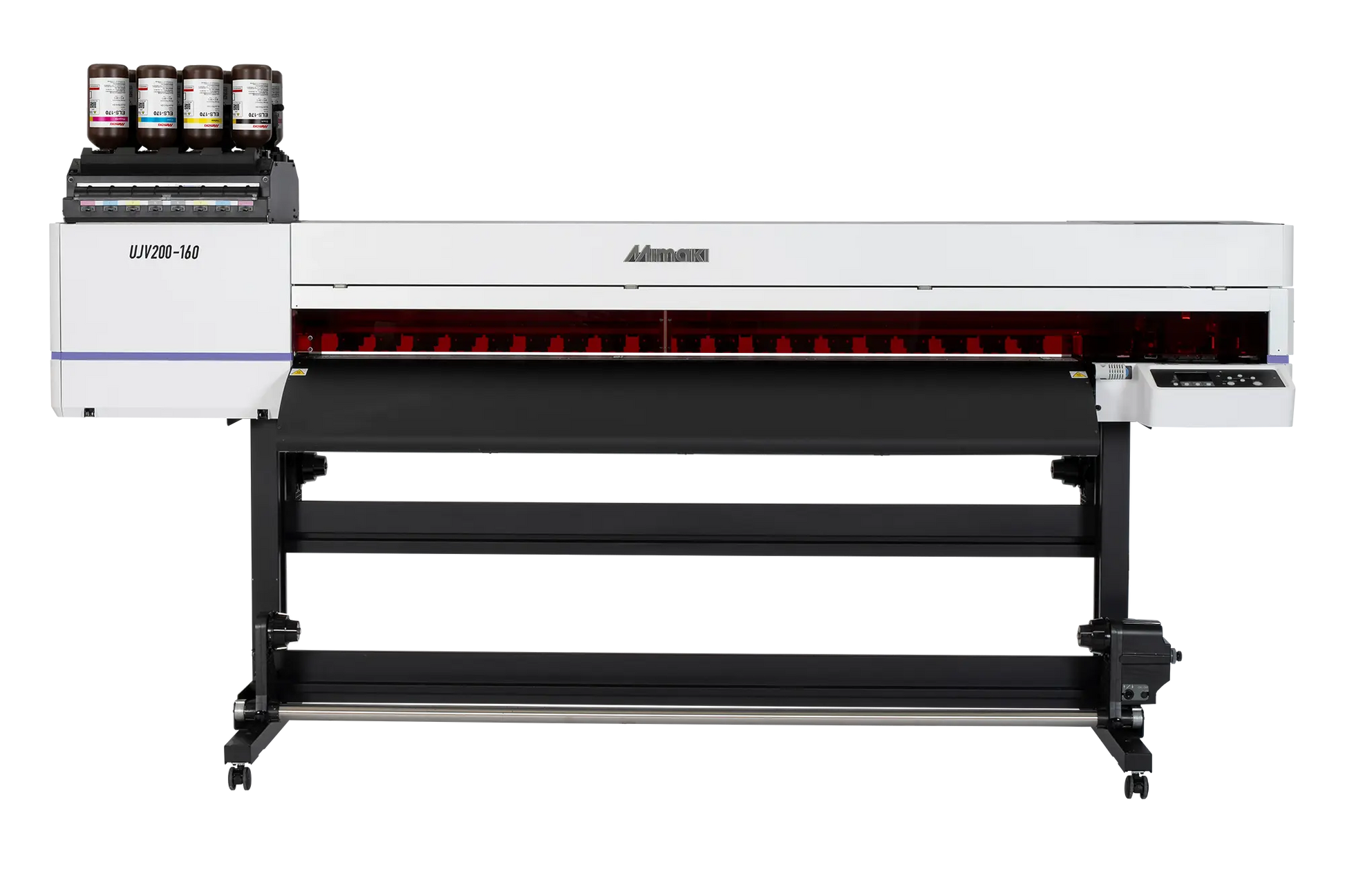

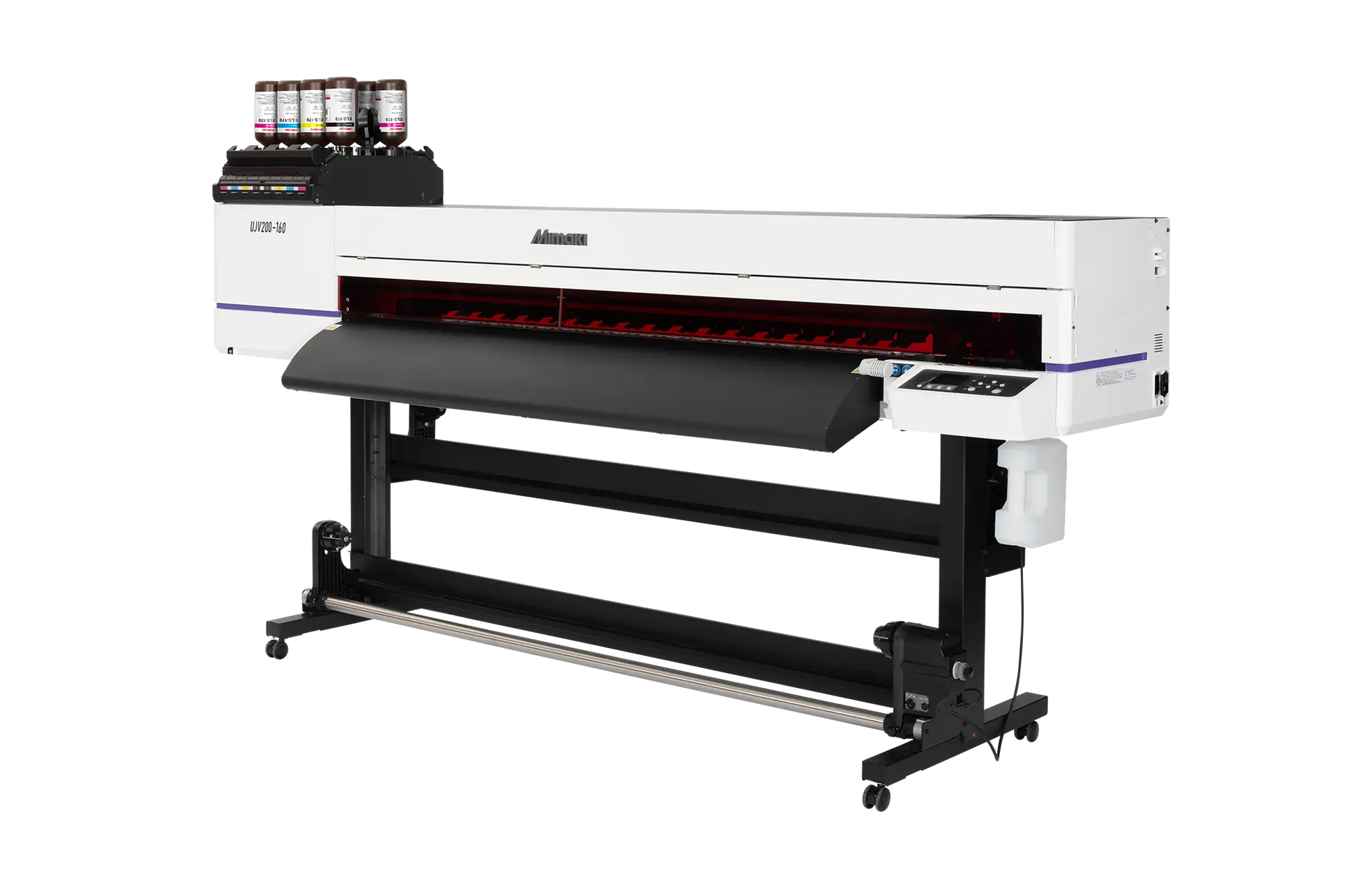

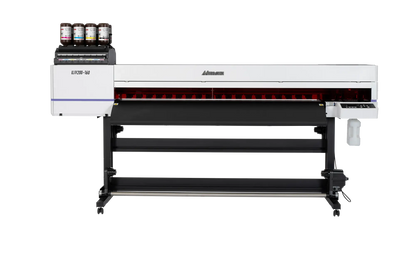

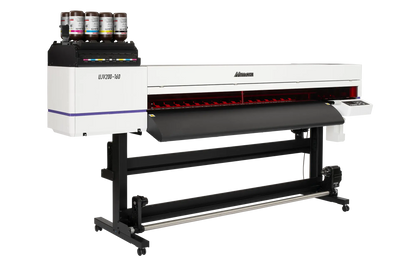

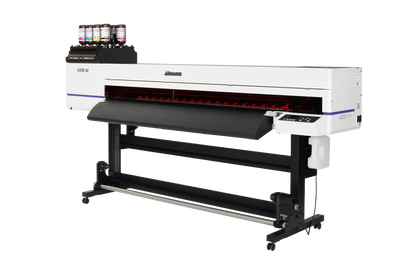

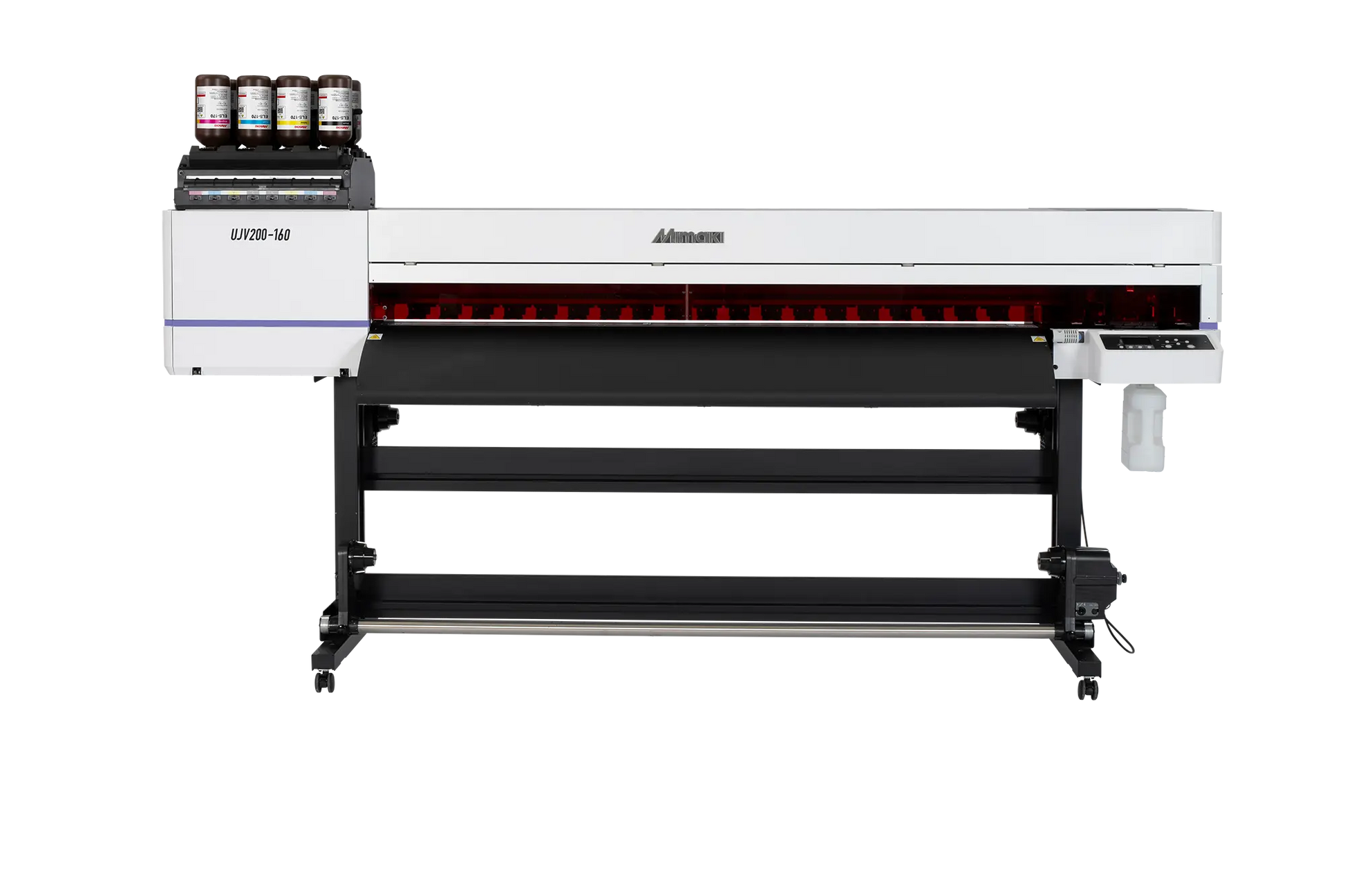

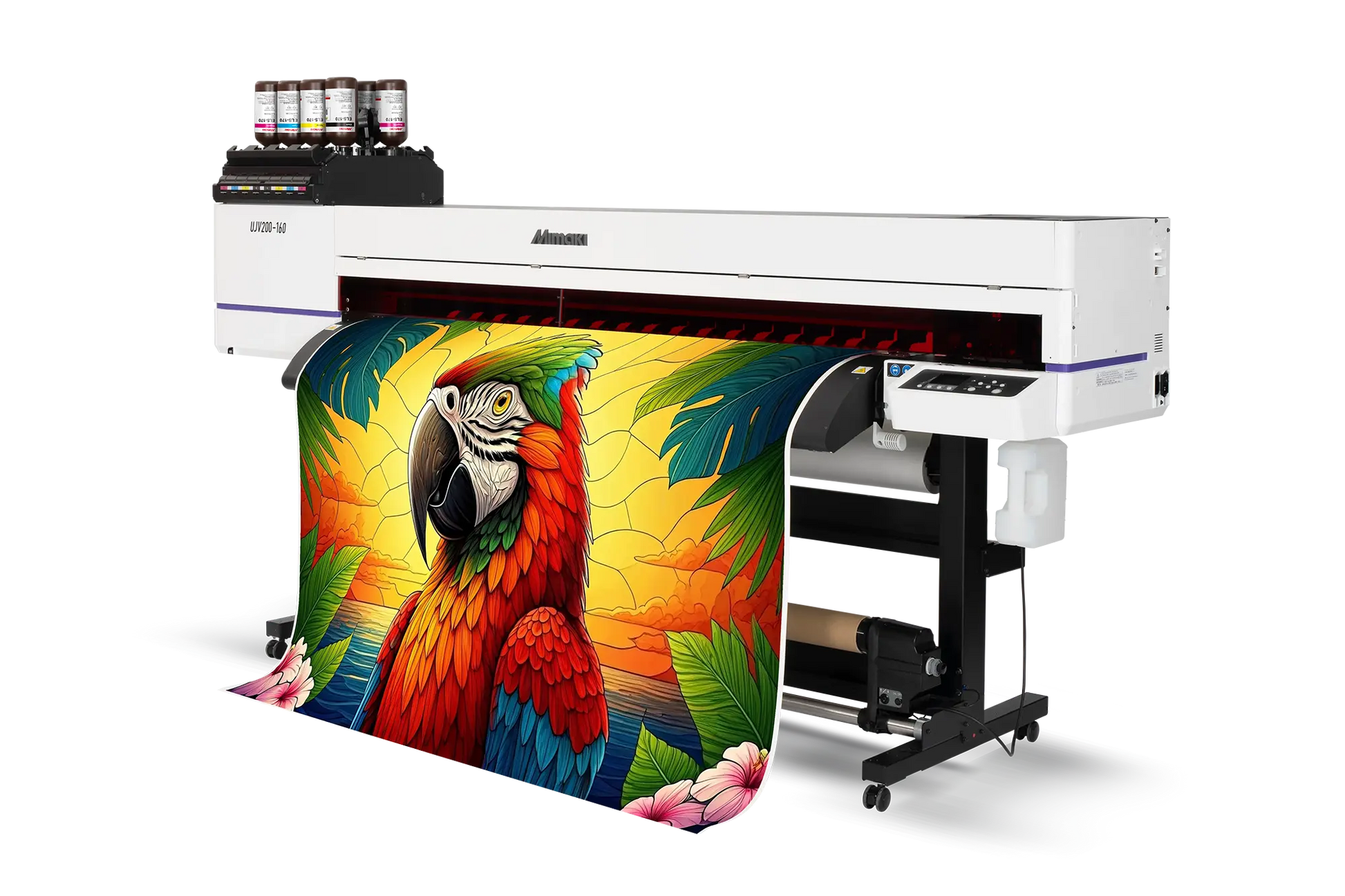

The Mimaki UJV200 Series delivers high-quality UV-LED printing without the high operating costs or complexity associated with many wide-format printing systems. Designed for sign shops, print providers, and growing graphics businesses, the UJV200 combines vibrant output, versatile media compatibility, and simple operation in an affordable production platform.
Instant UV-LED curing means graphics are ready for finishing, laminating, or delivery immediately after printing—eliminating traditional drying time and helping jobs move through production faster. Because the UJV200 does not require the high curing temperatures used by latex printers, it can print on a wider selection of materials, including heat-sensitive media, while consuming less power.

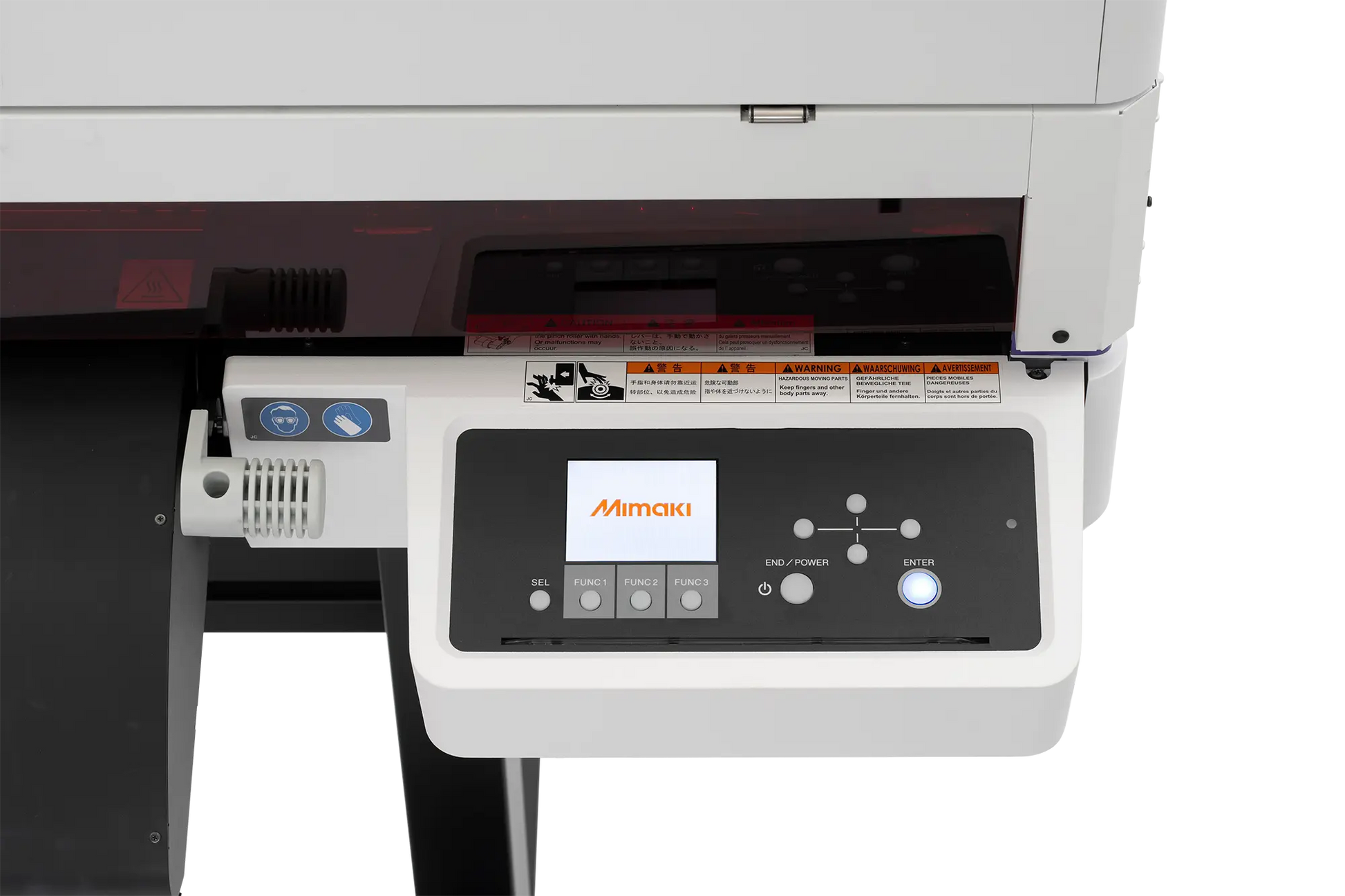

Mimaki’s Variable Dot Technology produces smooth gradients, attractive skin tones, rich solid colors, and sharp fine details using droplets as small as 4 picoliters. Automated media and dot-position adjustment with DAS2 simplifies setup, reduces material waste, and helps operators maintain consistent print quality.

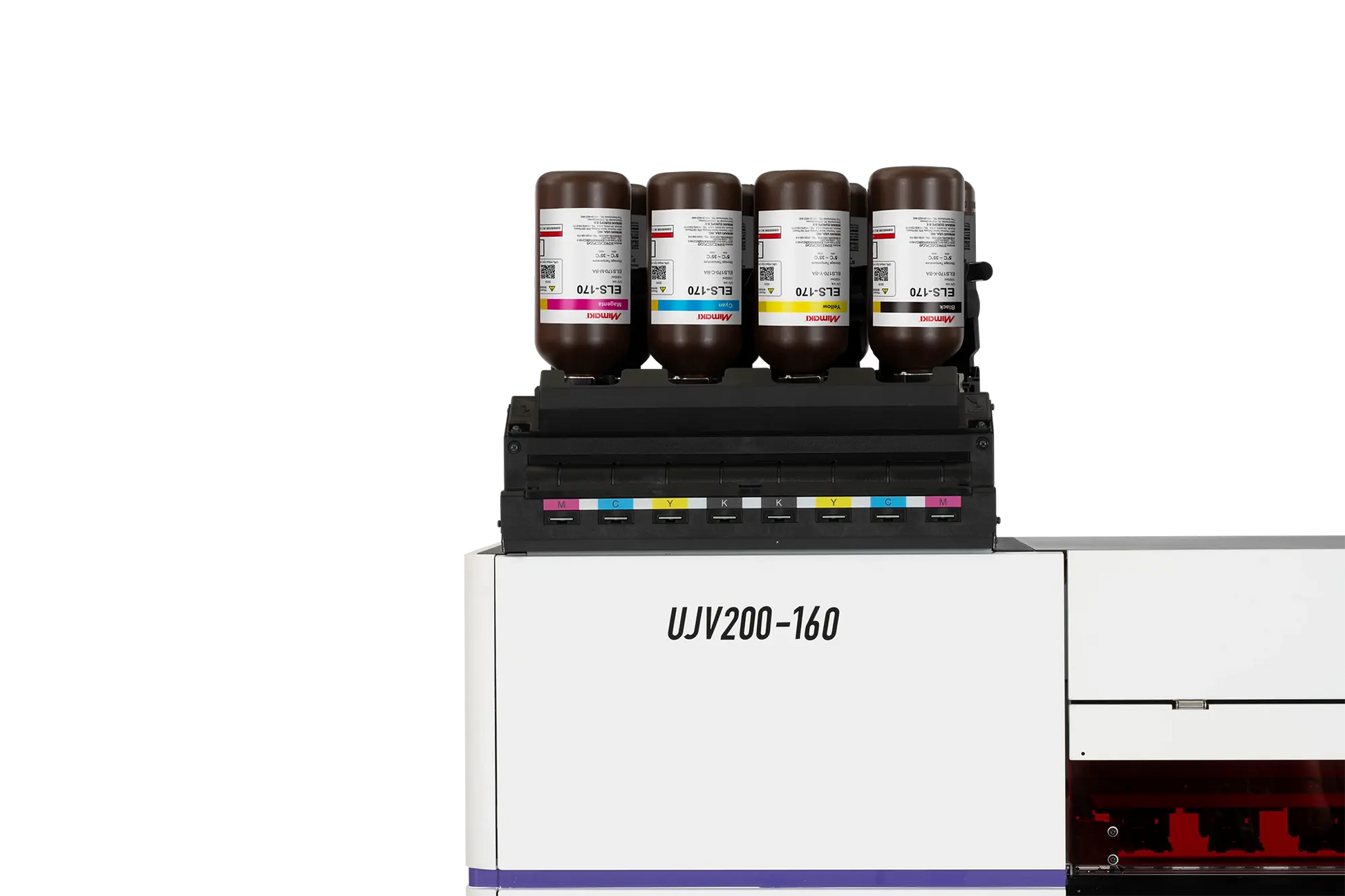

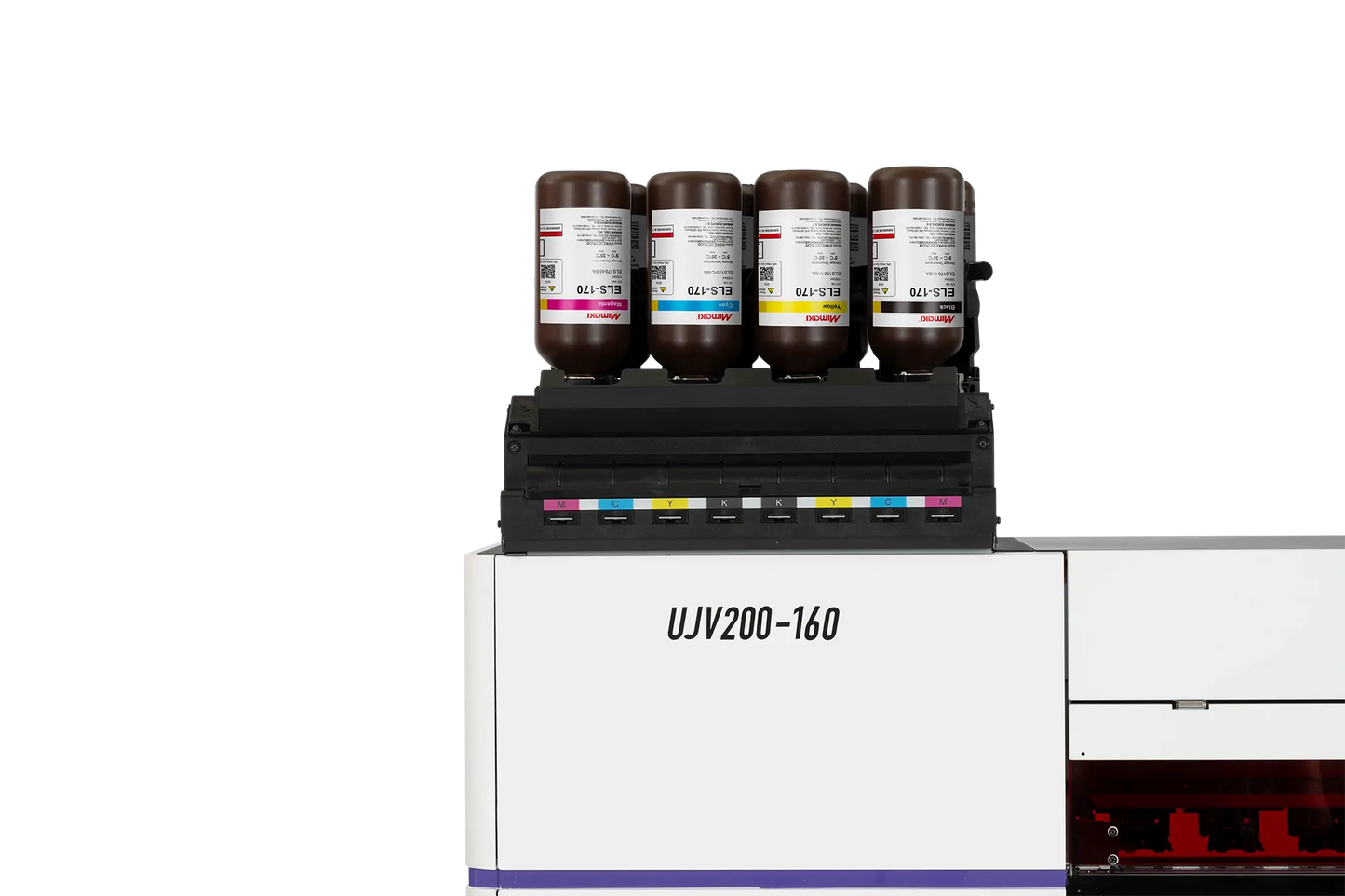

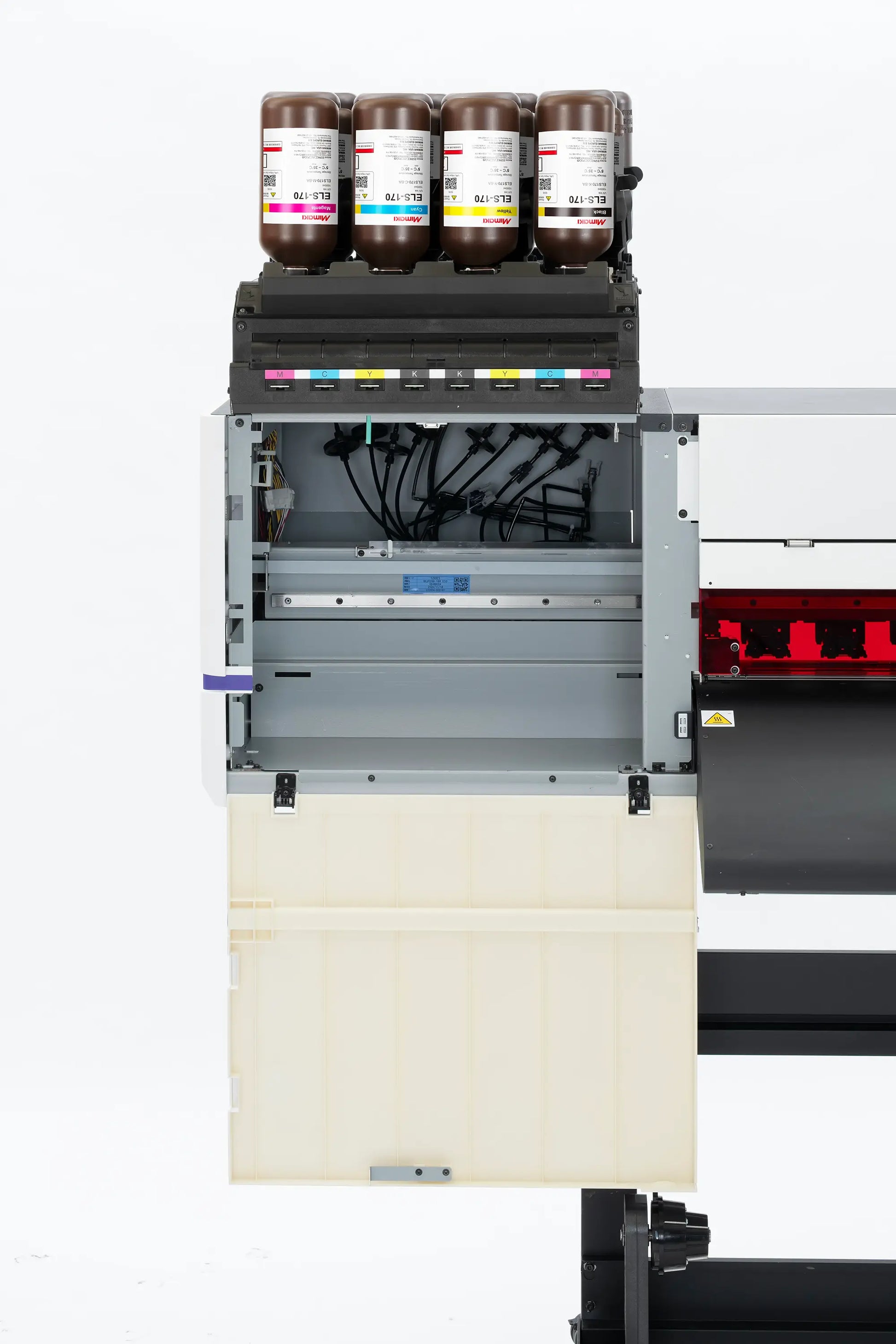

Available ink configurations include CMYK, white, and clear ELS-170 UV-curable inks. White ink expands the range of printable media and applications, while clear ink can be used to create premium gloss, matte, and textured effects. Stable multilayer printing also makes it possible to produce more sophisticated graphics without pulling the media backward between layers.

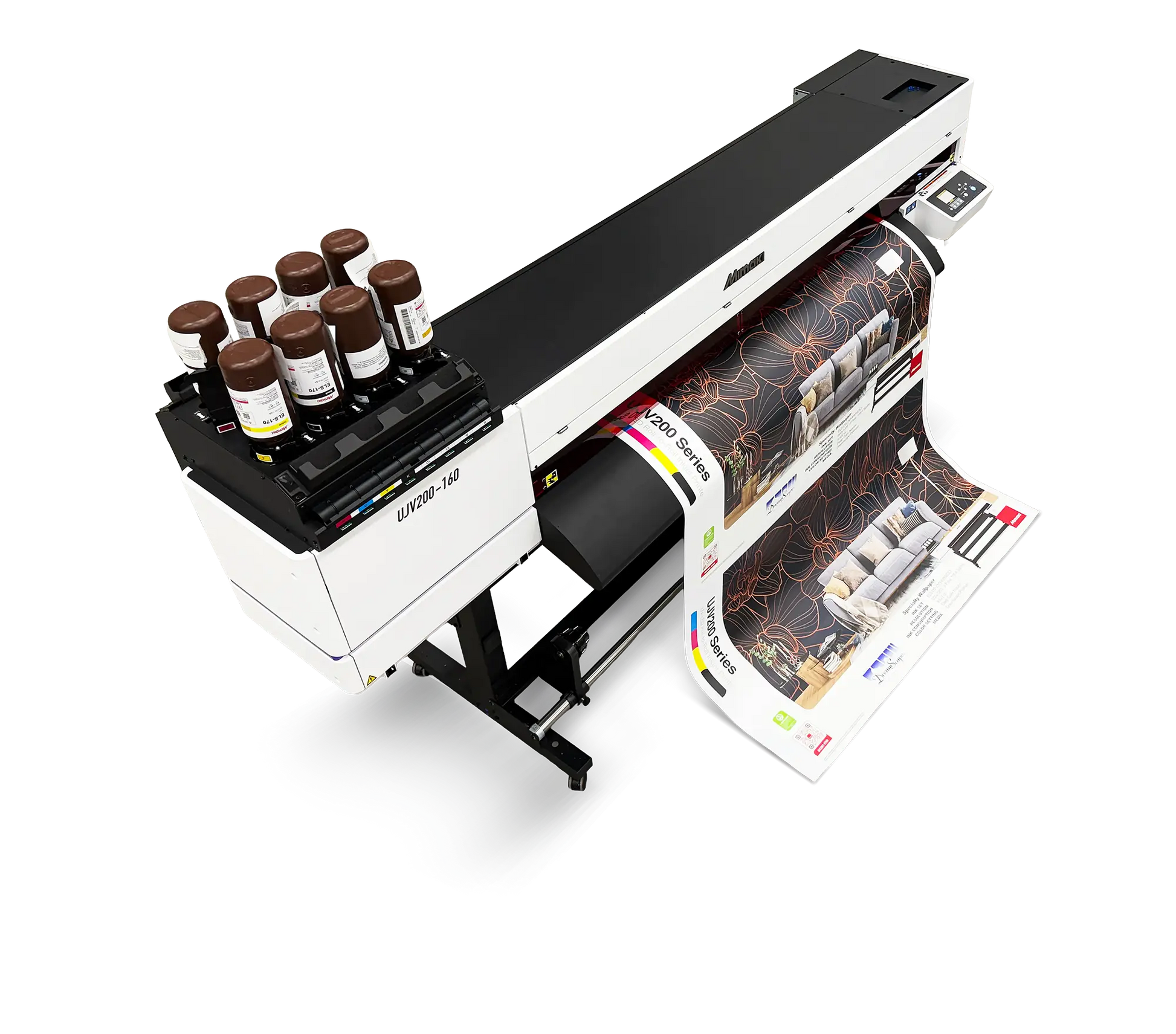

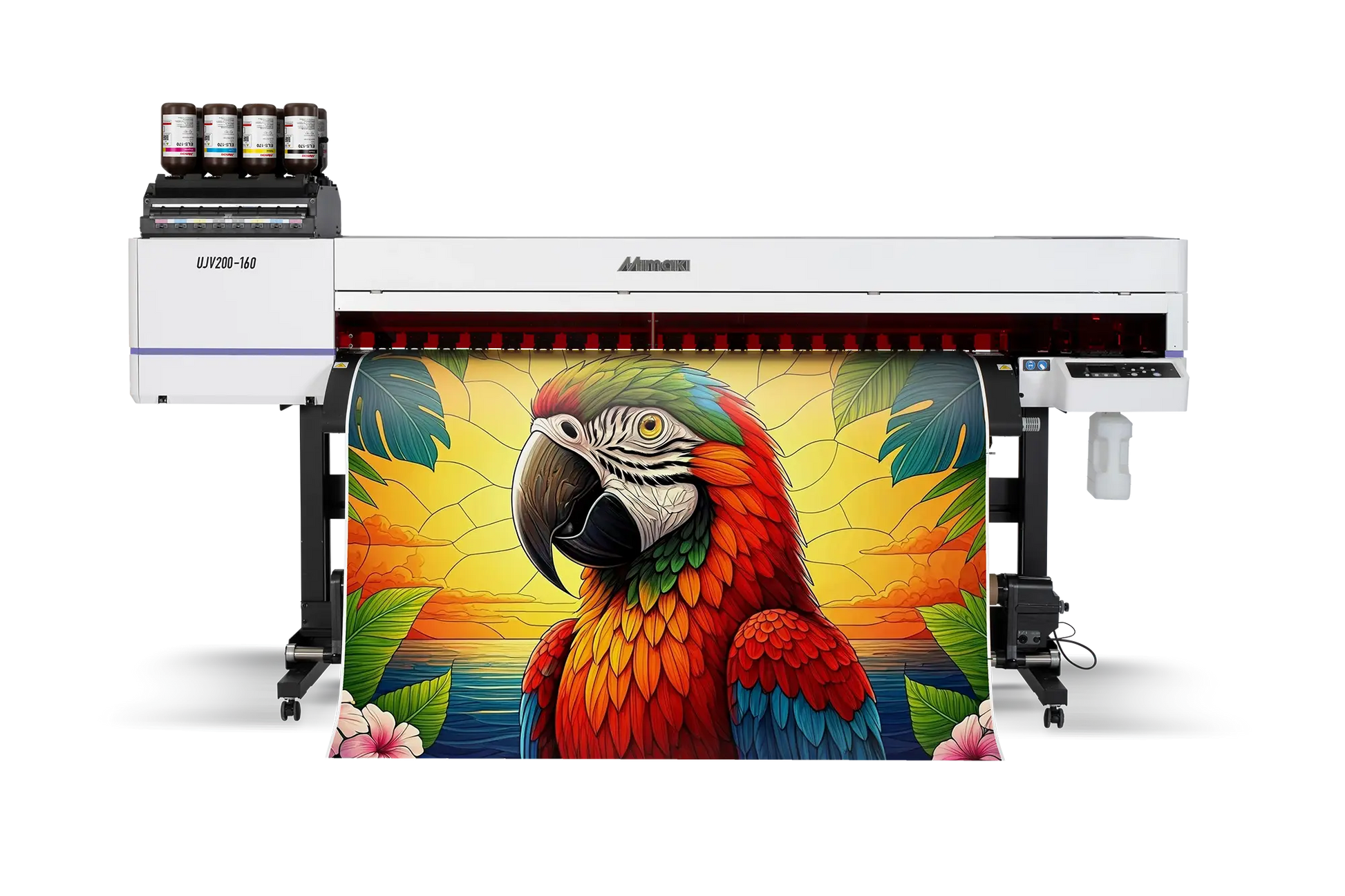

The Mimaki UJV200 is an excellent choice for producing signs, banners, window graphics, decals, floor graphics, wall graphics, labels, and other high-value applications. It gives print providers the versatility of UV printing, the productivity of instant curing, and the dependable technology expected from Mimaki—all in an approachable, cost-effective system.
| UJV200-130 | UJV200-160 | |
|---|---|---|
| Printhead | Single on-demand piezo head | |
| Print Resolutions | 600 dpi, 900 dpi, 1200 dpi | X: 600 dpi, 1200 dpi | |
| Print Speed (4 color mode) — High Speed | 236.8 sqft/hr (22.0 sqm/hr) | 269.1 sqft/hr (25.0 sqm/hr) |
| Print Speed (4 color mode) — Standard | 139.9 sqft/hr (13.0 sqm/hr) | 150.7 sqft/hr (14.0 sqm/hr) |
| Maximum Print Width | 53.5 in (1360 mm) | 63.4 in (1610 mm) |
| Media Thickness | Up to 2 mm | |
| Maximum Media Weight | Max 55 lbs (25 kg) roll weight | |
| Ink Type | ELS-170 ink sets: CMYK | CMYK, Cl, Cl, W, W | CMYK, W, W (*ELS-175 / *LUS-210 — LATAM Market Only) |
|
| Ink Package Size | 1L bottle | |
| Interface | Ethernet 1000 BASE-T (Recommended), USB 2.0 Hi-Speed | |
| Power Supply | AC100–120V (11A) or AC200–240V (5.5A) | |
| Power Consumption | Max 1320W | Standard 550W | Min 4.5W | |
| Operational Environment | Temperature: 68–86°F (20–30°C) | Humidity: 35–65% | Recommended: 68–77°F (20–25°C) | Dust: General office level | |
| Dimensions (W × D × H) | 99.2 × 29.4 × 55.3 in (2520 × 748 × 1405 mm) | 109.1 × 29.4 × 55.3 in (2770 × 748 × 1405 mm) |
| Weight | 342 lb (155 kg) | 352 lb (160 kg) |
| Options | OPT-J0422 – NCU | OPT-J0502 – Leveling Foot (supports up to 45 kg media) | OPT-J0545 – Ionizer 1600 | OPT-01038 – UJV200 Ionizer OPT Connection Kit | |
| Certifications | IEC 62368-1, CE (EMC, Low Voltage, Machinery Directive, RoHS), REACH, VCCI Class A, FCC Class A, RCM, EAC, ENERGY STAR | |
